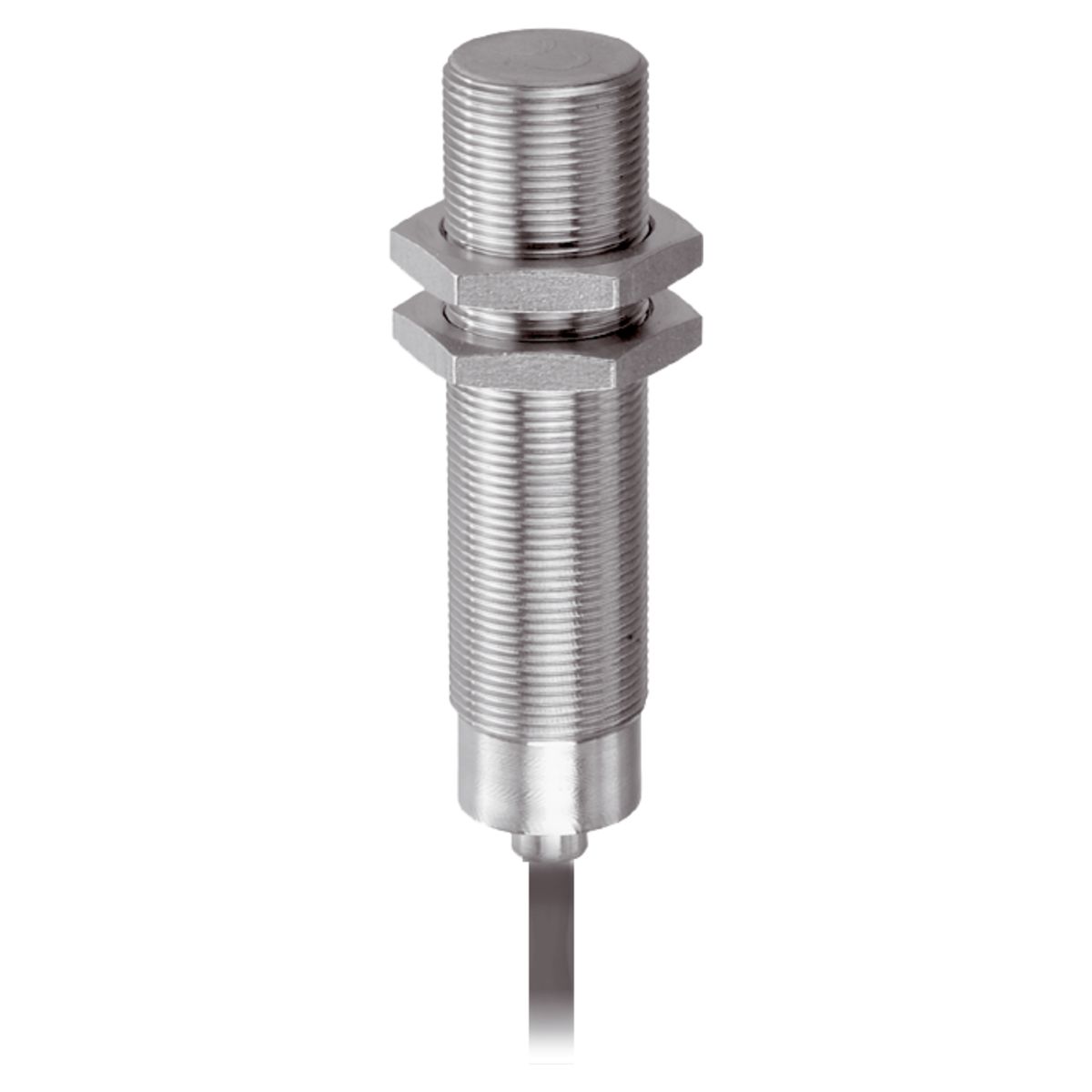

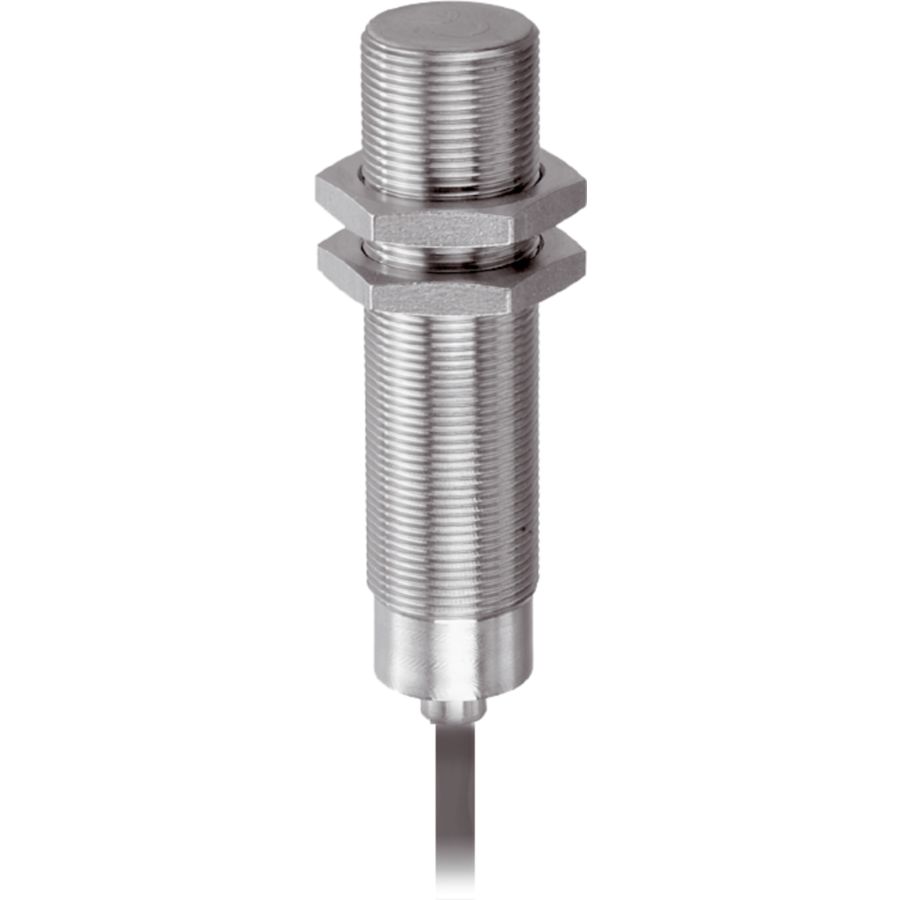

Inductive Proximity Sensor - DCC 18 VH 05 NSK/230/V
Part Number: DCC 18 VH 05 NSK/230/V
Article Number: 204613
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | Flush |
| Switching distance | 5 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | npn, 200 mA, NO |
| No-load current (max.) | 5 mA |
| Evaluation | digital |
| Design | Thread |
| Characteristics | < +180 °C, high-temperature resistant |
| Housing material | Stainless steel |
| Size | M18 x 1 |
| Ambient temperature during operation | 0 … +180 °C |
| Protection type | IP 65 |
| Connection | Cable, PTFE, 3 m |
