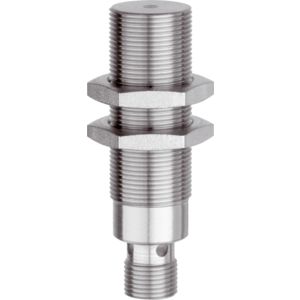

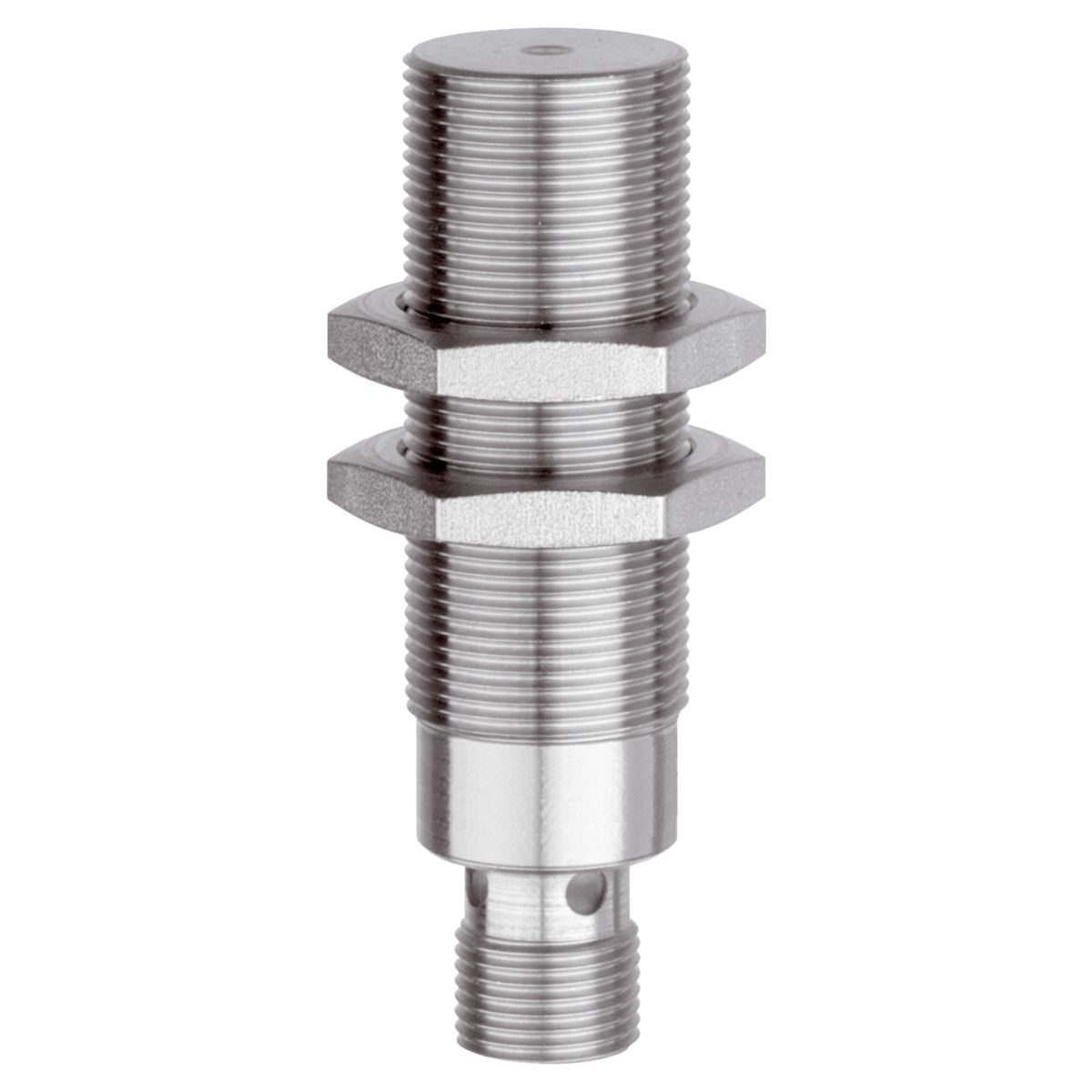

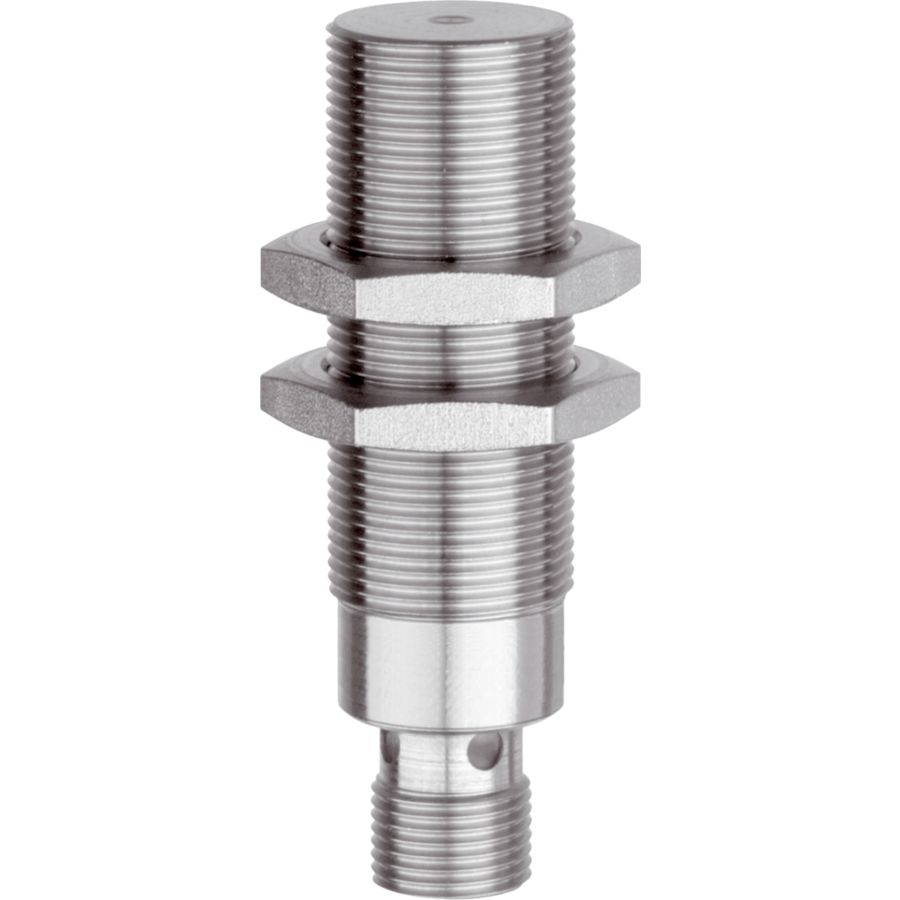

Inductive Proximity Sensor - DCC 18 VL 10 PSK-IBSL
Part Number: DCC 18 VL 10 PSK-IBSL
Article Number: 203384
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | Flush |
| Switching distance | 10 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | pnp, 200 mA, NO |
| No-load current (max.) | 10 mA |
| Evaluation | digital |
| Design | Thread |
| Characteristics | < 60 bar, extremely high operating distance, Full-metal casing closed |
| Housing material | Stainless steel, 1.4435 / AISI 316L |
| Size | M18 x 1 |
| Ambient temperature during operation | -25 … +85 °C |
| Protection type | IP 68, IP 69K |
| Connection | Connector, M12, 3-pin |
