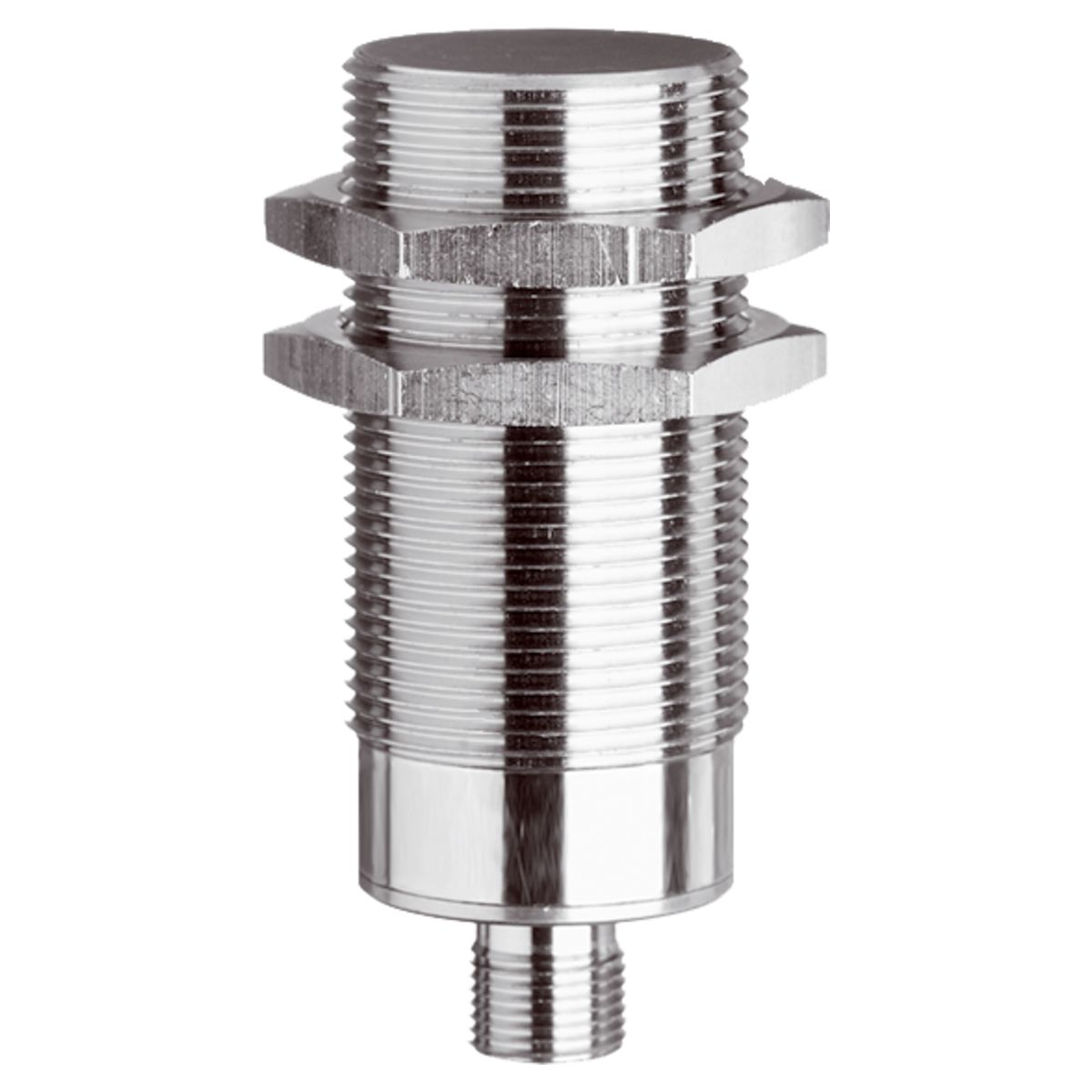

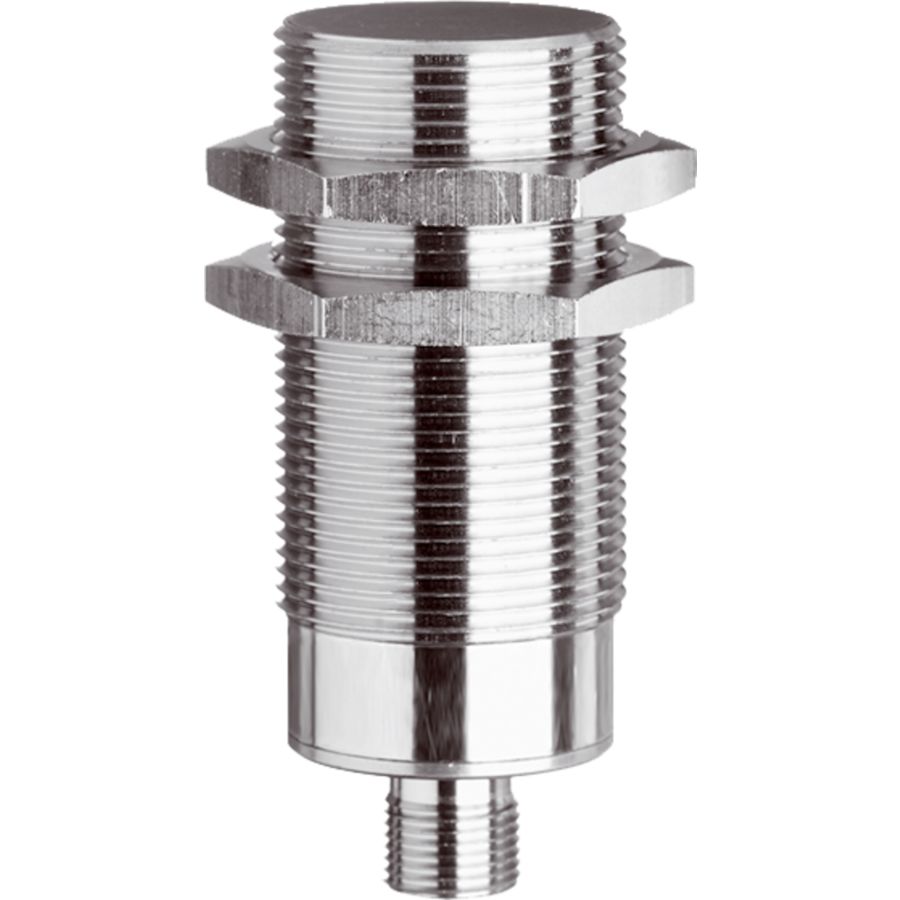

Inductive Proximity Sensor - DCC 30 M 20 AIK-IBS
Part Number: DCC 30 M 20 AIK-IBS
Article Number: 200371
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | quasi-flush |
| Switching distance | 0 mm … 20 mm |
| Service voltage | 10 … 30 V DC |
| Analog output voltage | 0 … 5 V |
| Analog output current | 1 … 5 mA |
| No-load current (max.) | 10 mA |
| Evaluation | analog |
| Design | Thread |
| Characteristics | extremely high operating distance |
| Housing material | Brass, CuZn |

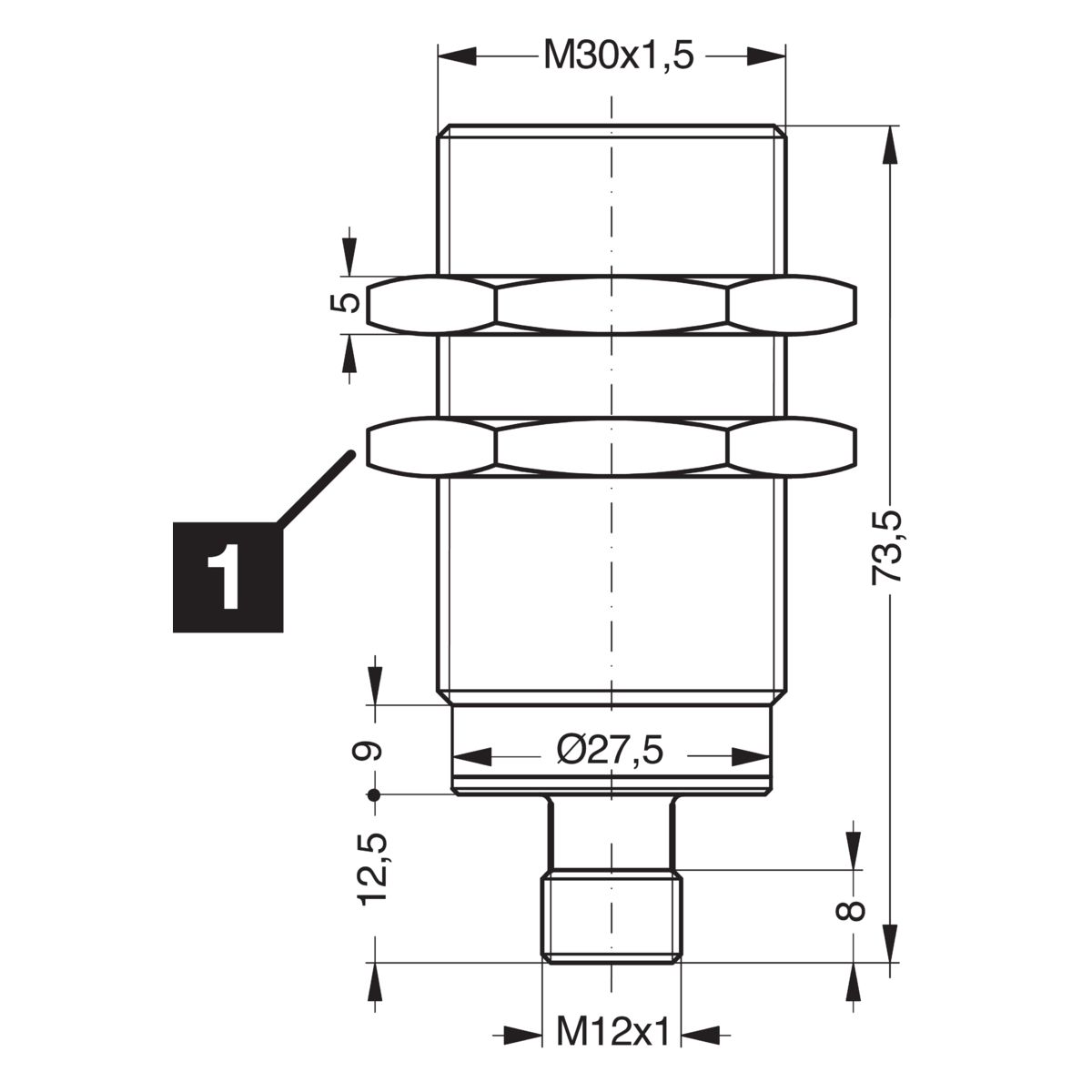

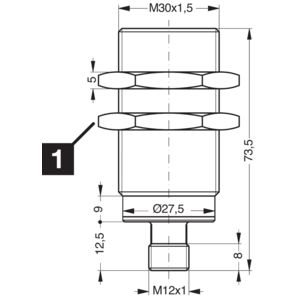

| Size | M30 x 1,5 |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Connector, M12, 3-pin |
