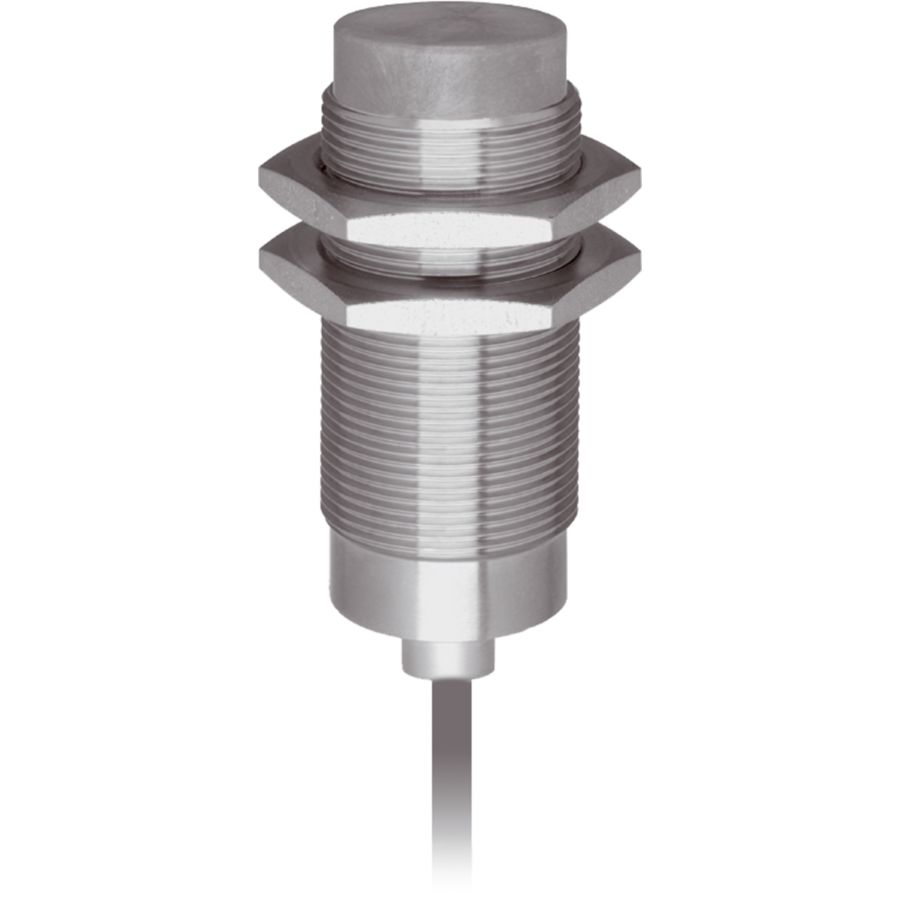

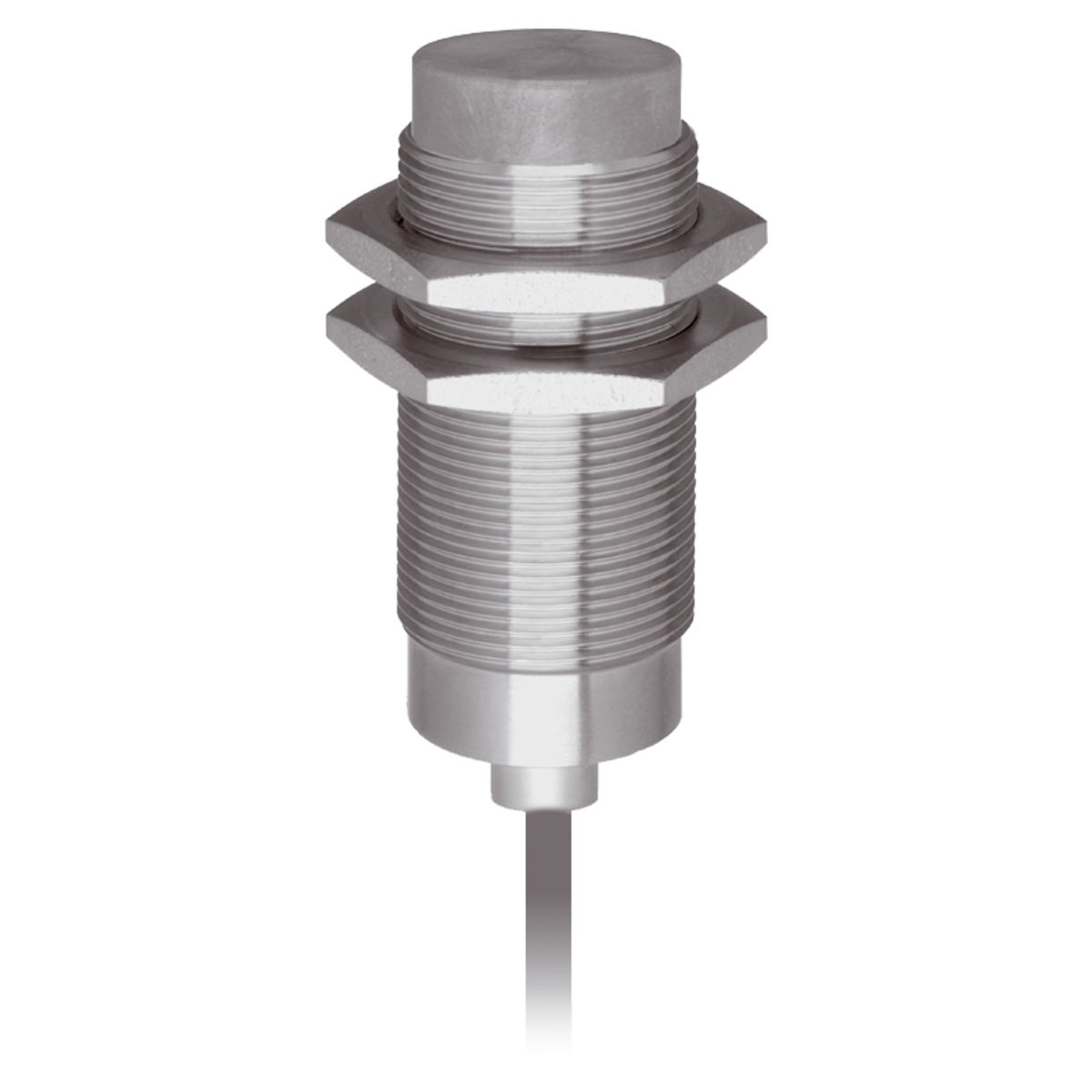

Inductive Proximity Sensor - DCC 30 VH 15 PSK/230/V
Part Number: DCC 30 VH 15 PSK/230/V
Article Number: 203357
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | non-flush |
| Switching distance | 15 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | pnp, 200 mA, NO |
| No-load current (max.) | 5 mA |
| Evaluation | digital |
| Design | Thread |
| Characteristics | < +230 °C, high-temperature resistant |
| Housing material | Stainless steel |

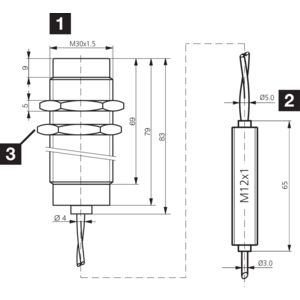

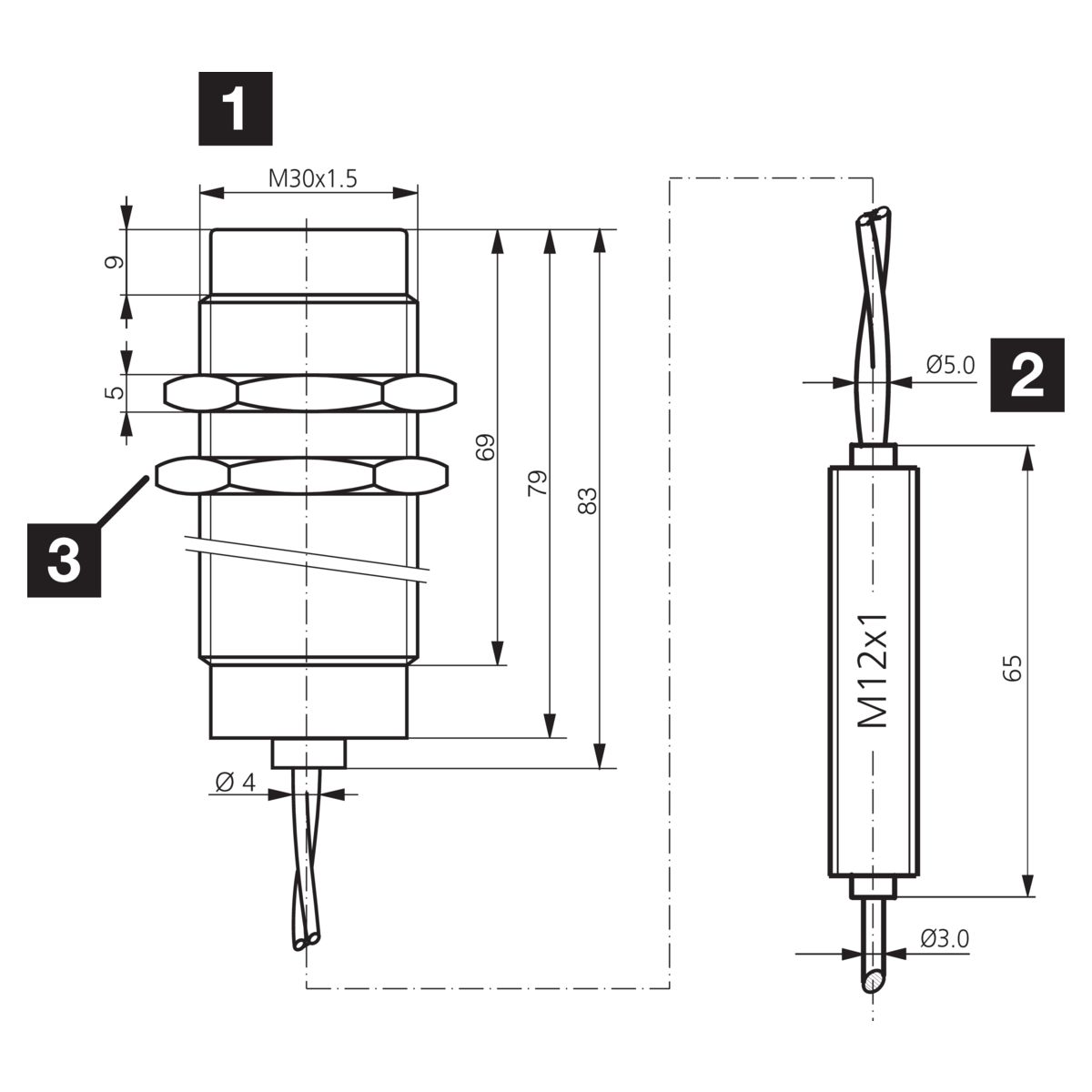

| Size | M30 x 1,5 |
| Ambient temperature during operation | 0 … +230 °C |
| Protection type | IP 65 |
| Connection | Cable, 3 m |
