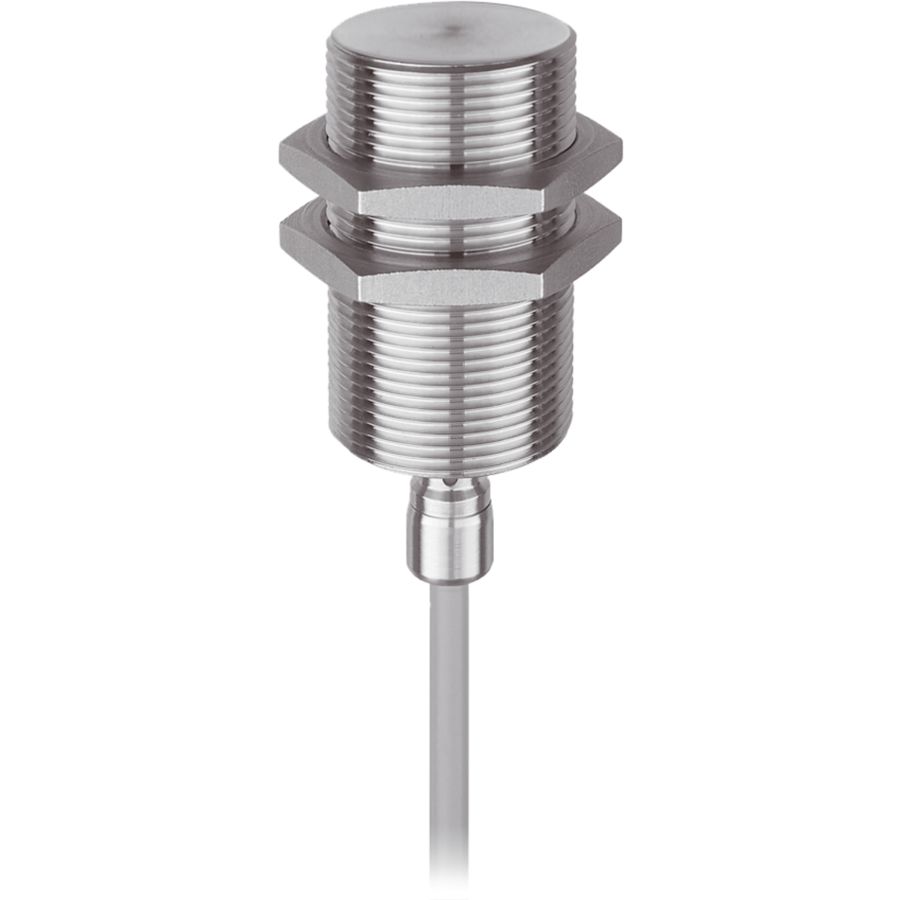

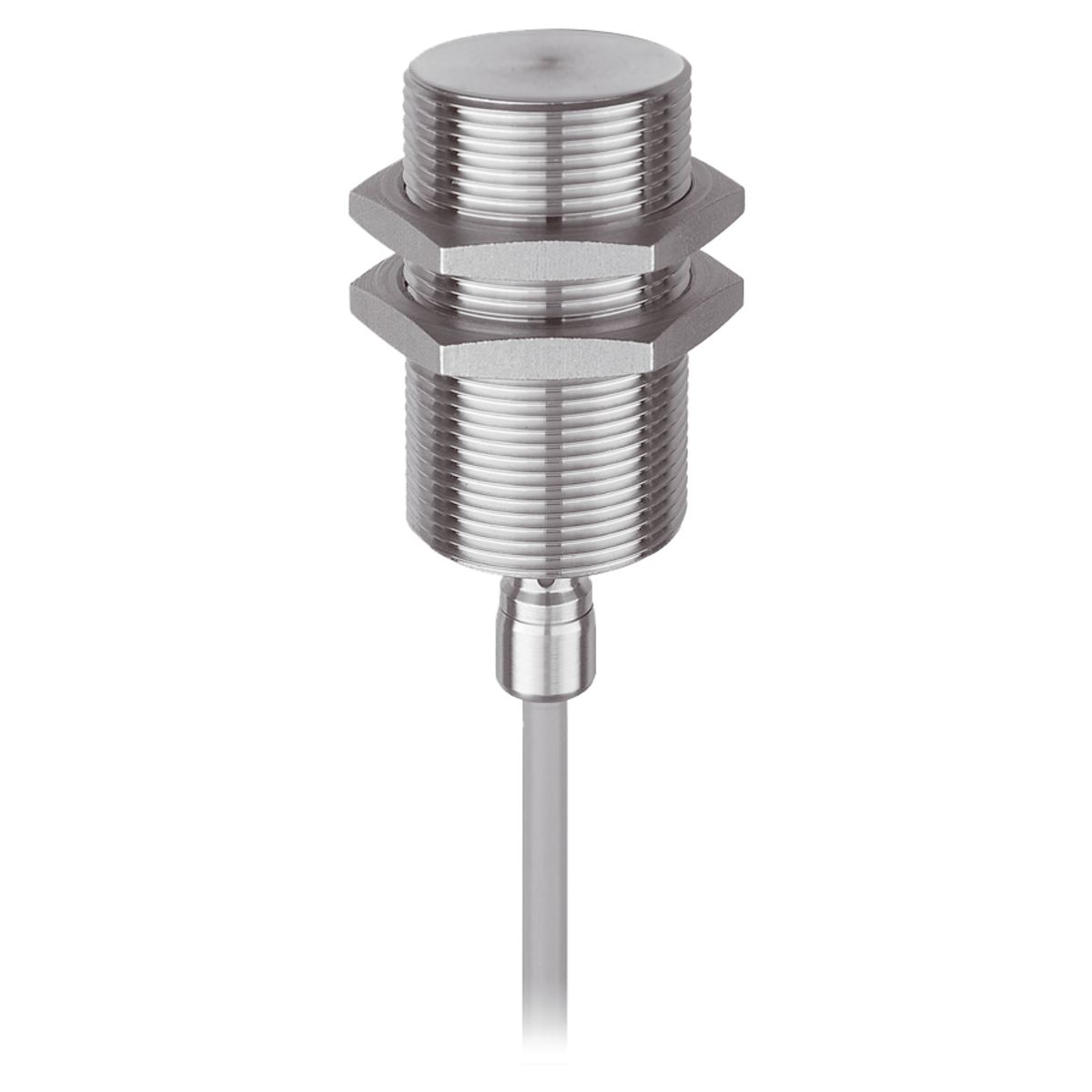

Inductive Proximity Sensor - DCC 30 VL 20 NOLK
Part Number: DCC 30 VL 20 NOLK
Article Number: 205387
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | Flush |
| Switching distance | 20 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | npn, 200 mA, NC |
| No-load current (max.) | 10 mA |
| Evaluation | digital |
| Design | Thread |
| Characteristics | < 40 bar, extremely high operating distance, Full-metal casing closed |
| Housing material | Stainless steel, 1.4435 / AISI 316L |

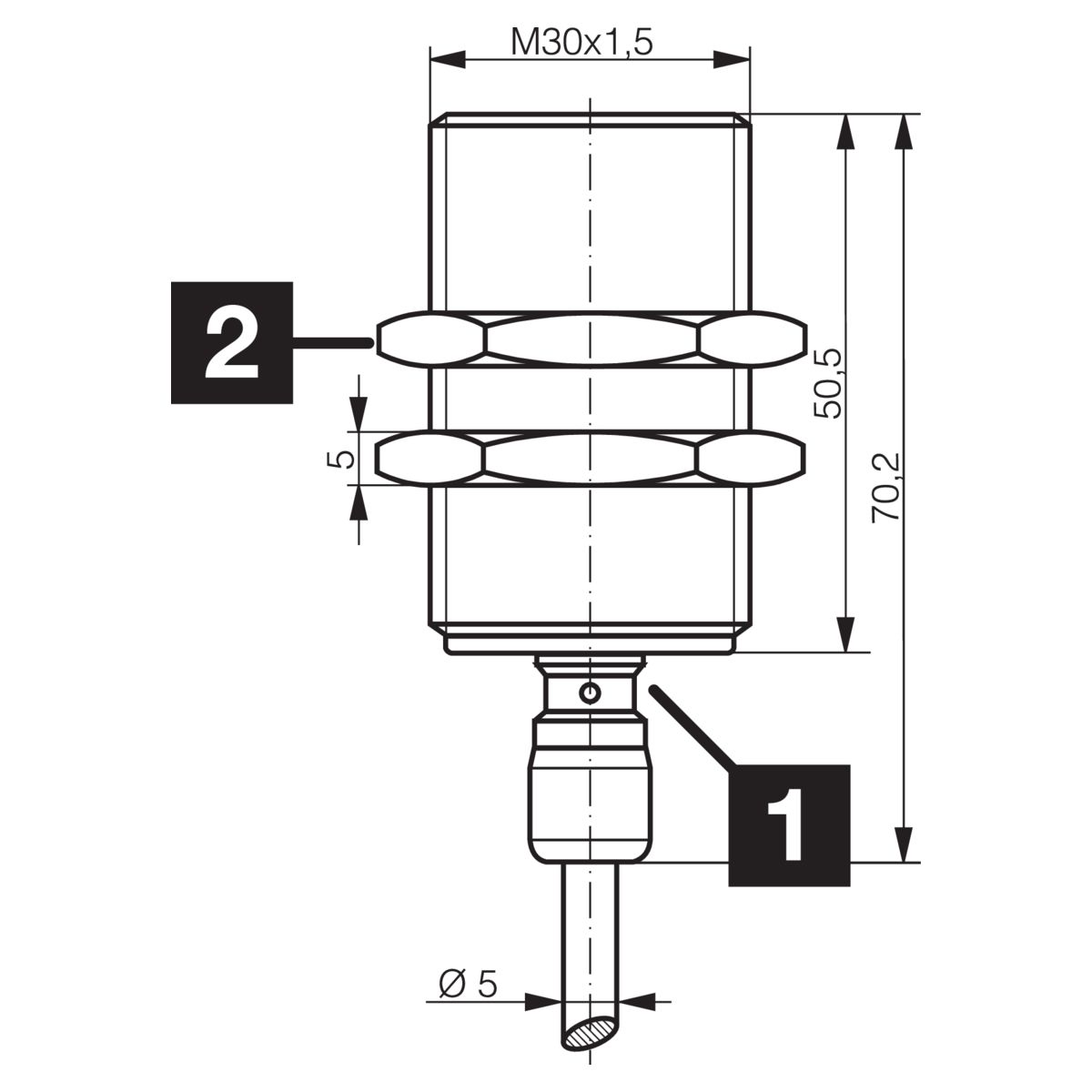

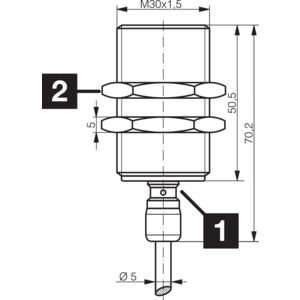

| Size | M30 x 1,5 |
| Ambient temperature during operation | -25 … +85 °C |
| Protection type | IP 68, IP 69K |
| Connection | Cable, 2 m |
