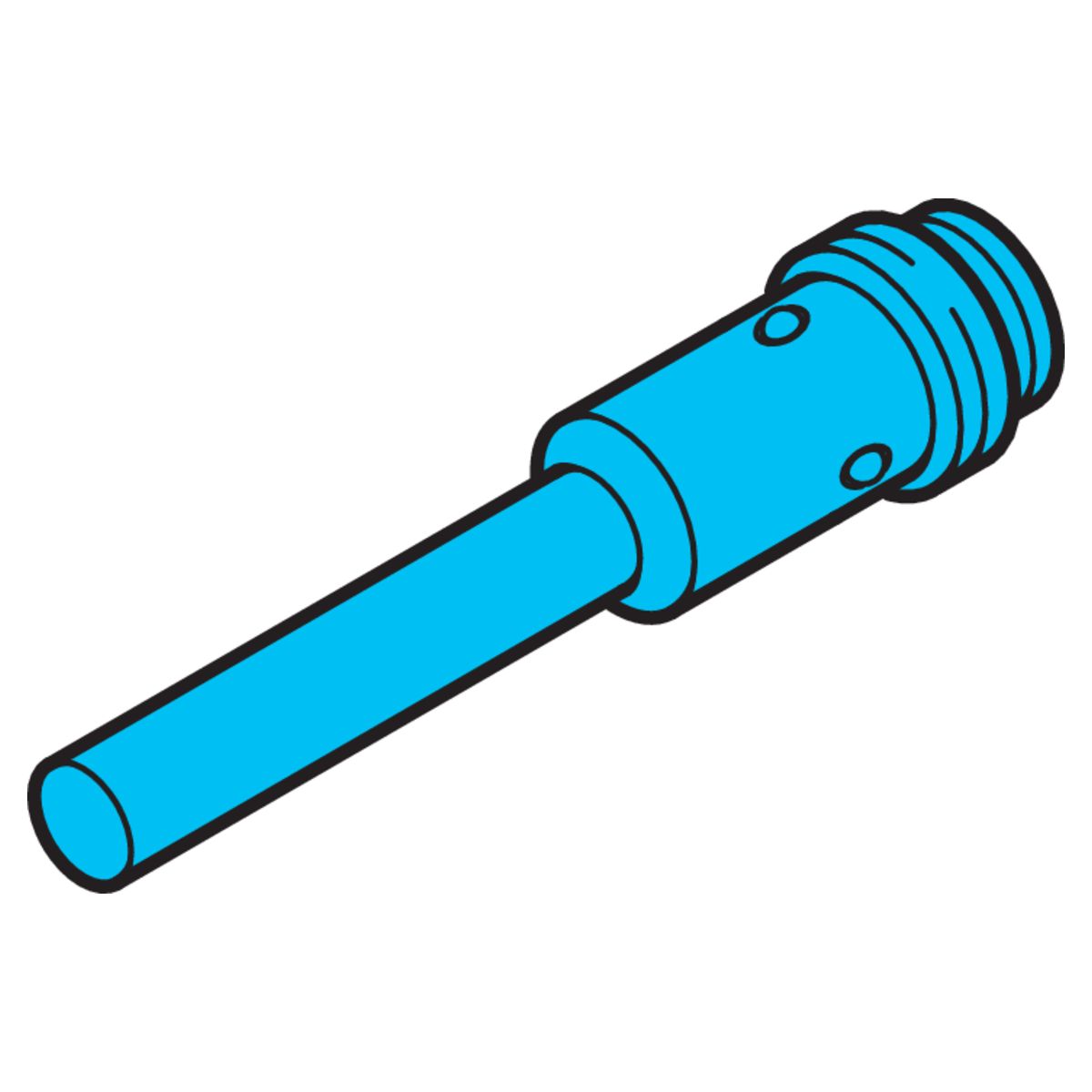

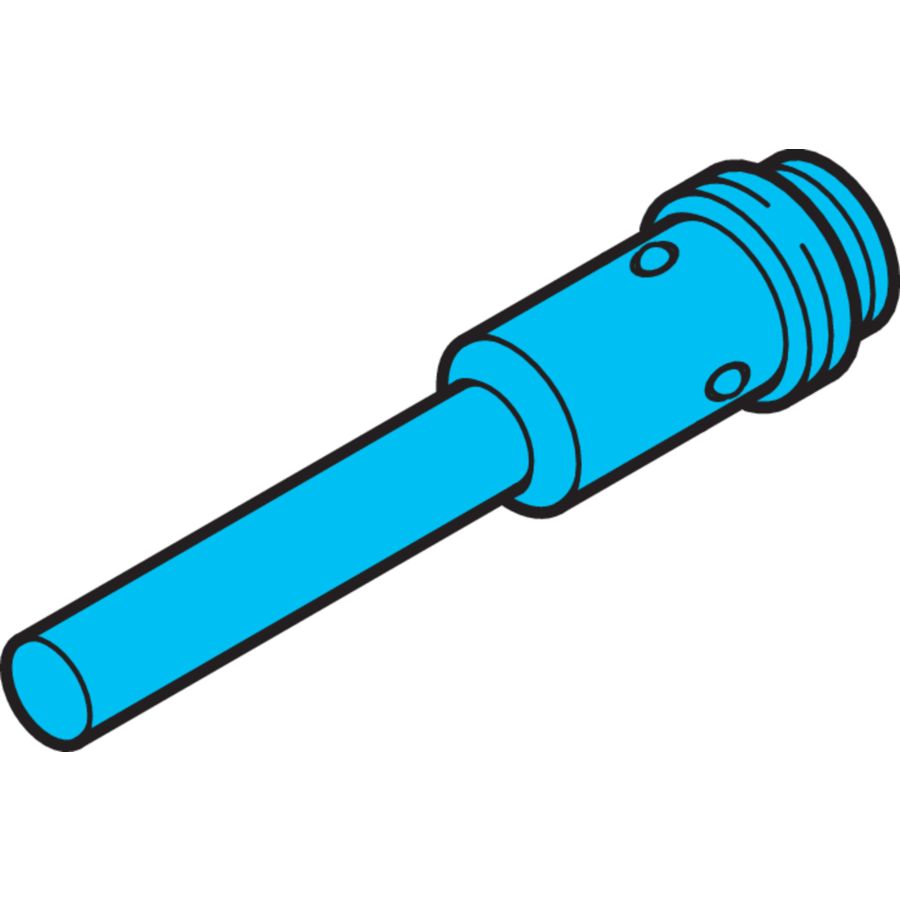

Inductive Proximity Sensor - DCC 4.0 V 1.5 PSK-TSL
Part Number: DCC 4.0 V 1.5 PSK-TSL
Article Number: 210486
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | Flush |
| Switching distance | 1,5 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | pnp, 100 mA, NO |
| No-load current (max.) | 10 mA |
| Evaluation | digital |
| Design | Cylinder |
| Characteristics | increased operating distance |

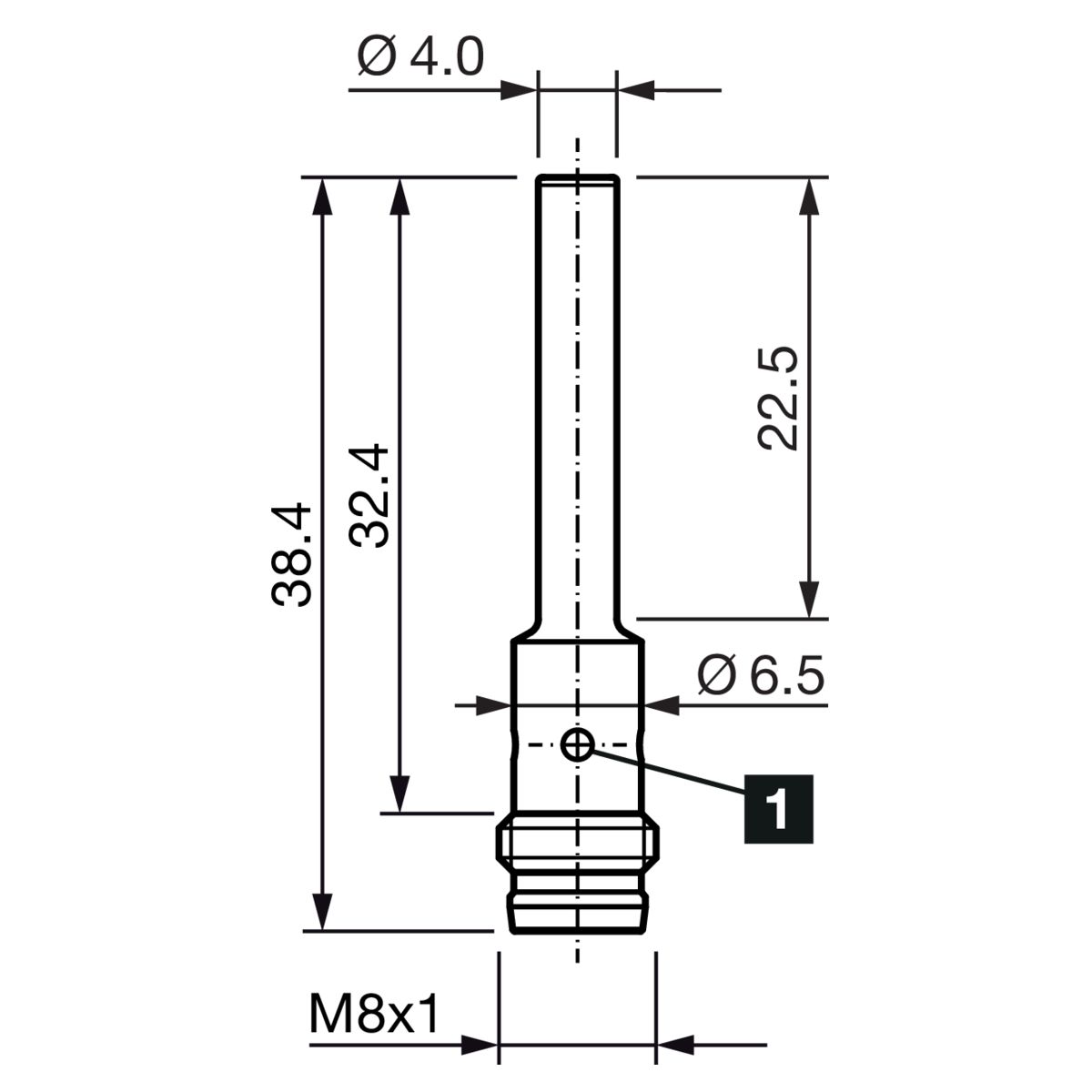

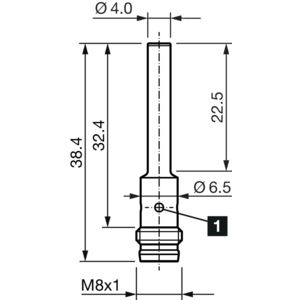

| Size | Ø 4 mm |
| Ambient temperature during operation | -25 … +70 °C |
| Connection | Connector, M8, 3-pin |
