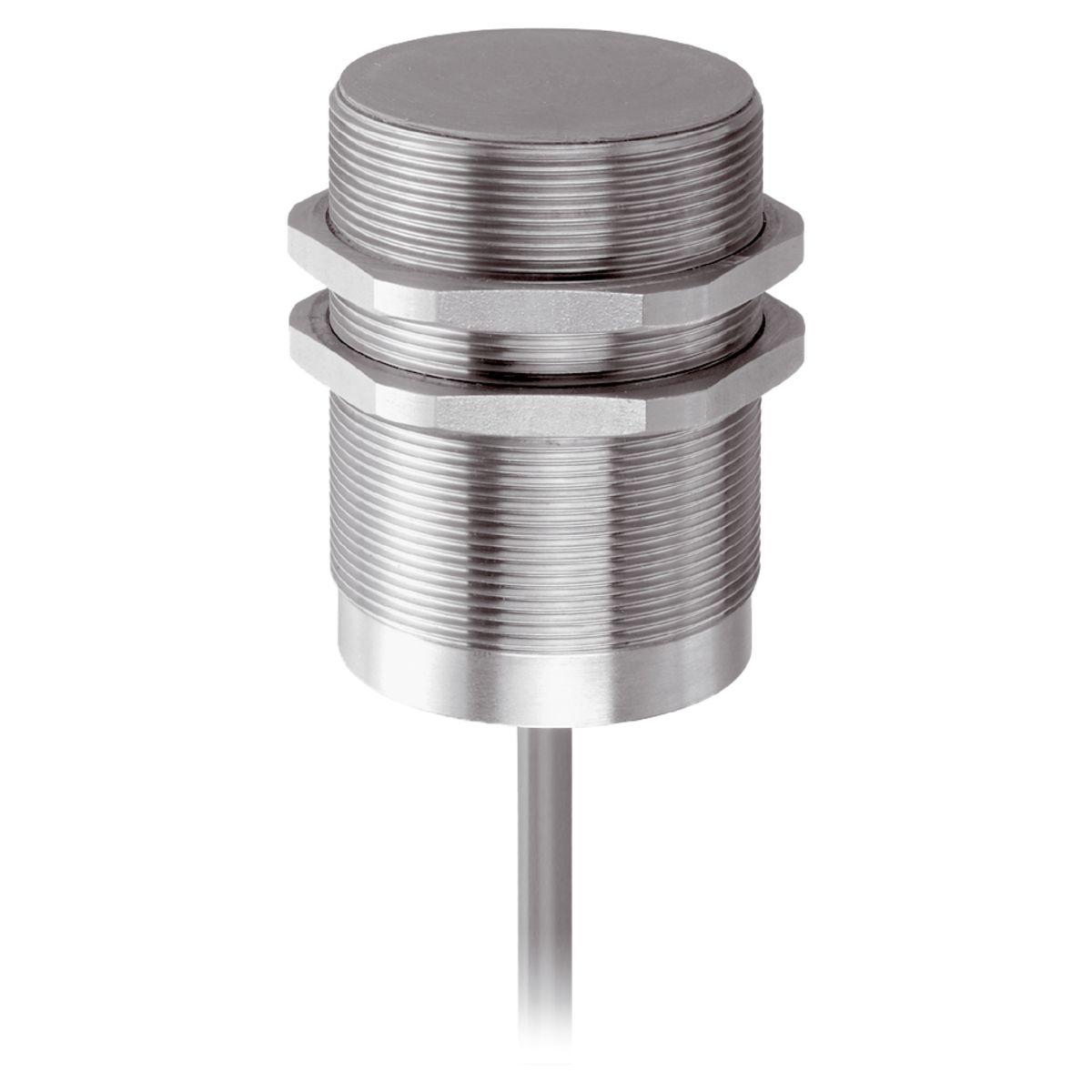

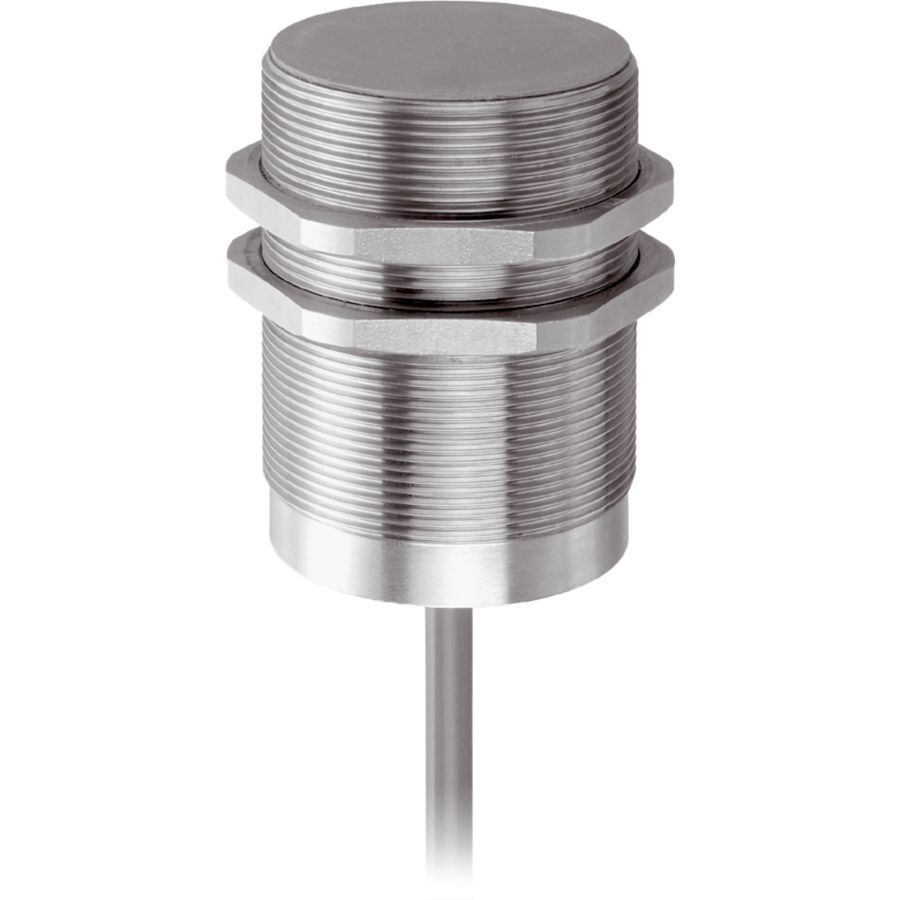

Inductive Proximity Sensor - DCC 50 VH 20 NSK/180

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	inductive
Installation type	quasi-flush
Switching distance	20 mm
Service voltage	10 … 30 V DC
Switching output	npn, 150 mA, NO
No-load current (max.)	10 mA
Evaluation	digital
Design	Thread
Characteristics	< +180 °C, high-temperature resistant
Housing material	Stainless steel

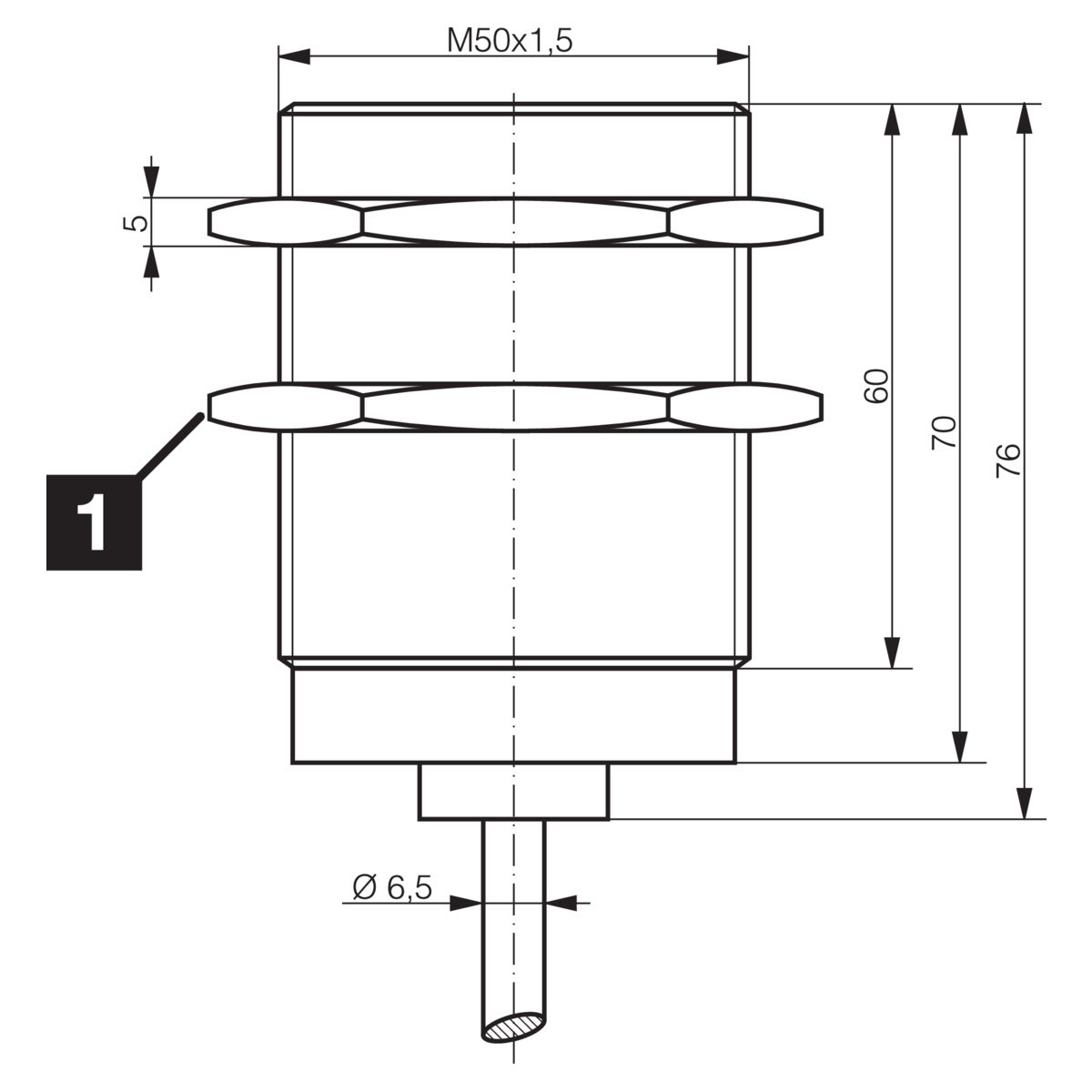

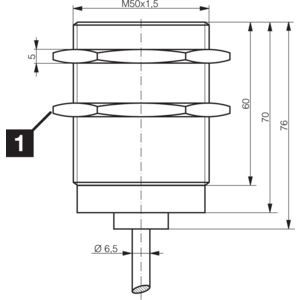

Size	M50 x 1,5
Ambient temperature during operation	0 … +180 °C
Protection type	IP 65
Connection	Cable, 2 m
