Inductive Proximity Sensor - DCC 6.5 M 03 POLK
Part Number: DCC 6.5 M 03 POLK
Article Number: 209886
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | Flush |
| Switching distance | 3 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | pnp, 200 mA, NC |
| No-load current (max.) | 10 mA |
| Evaluation | digital |
| Design | Cylinder |
| Characteristics | extremely high operating distance |
| Housing material | Brass, CuZn |

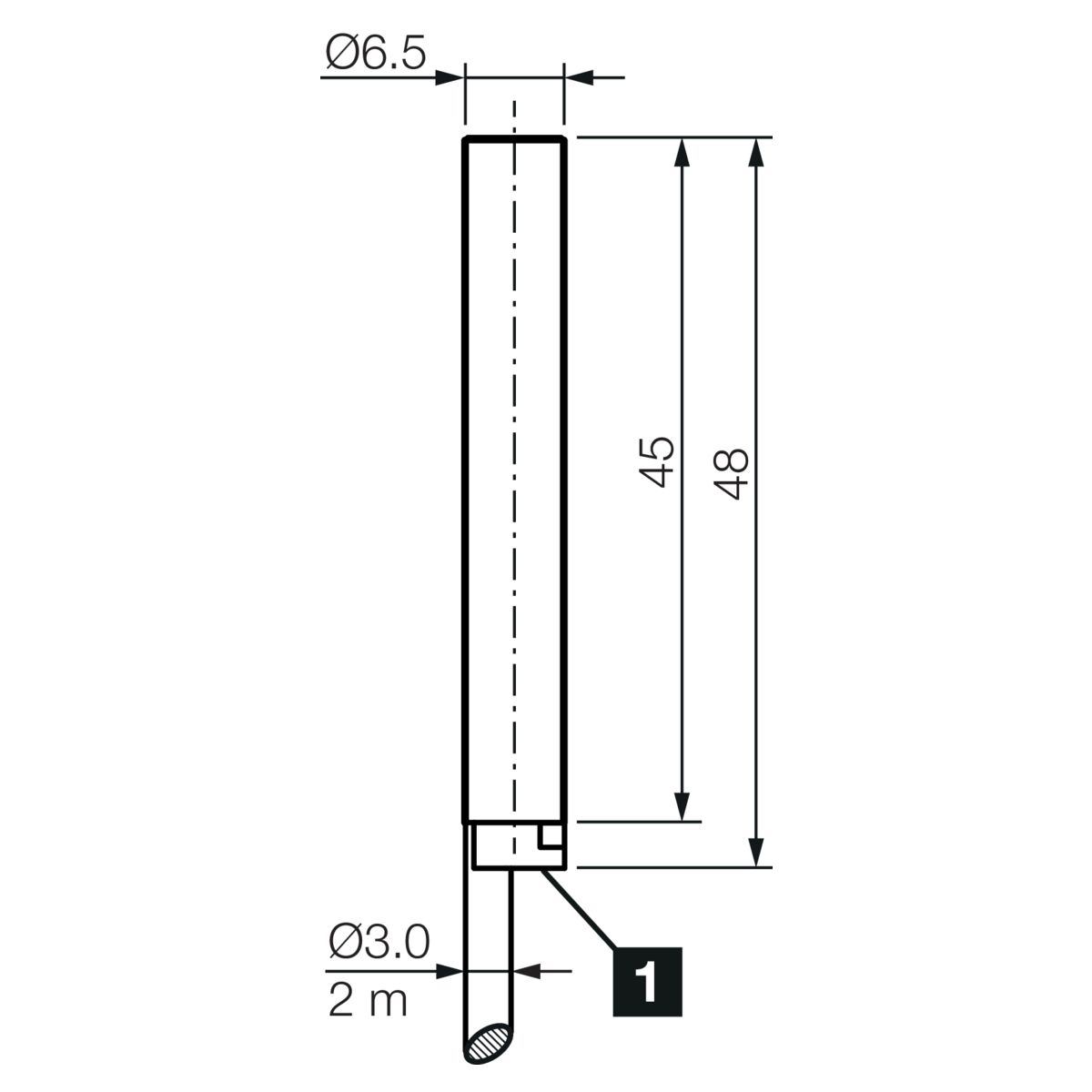

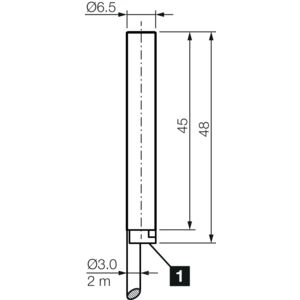

| Size | Ø 6,5 mm |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Cable, 2 m |
