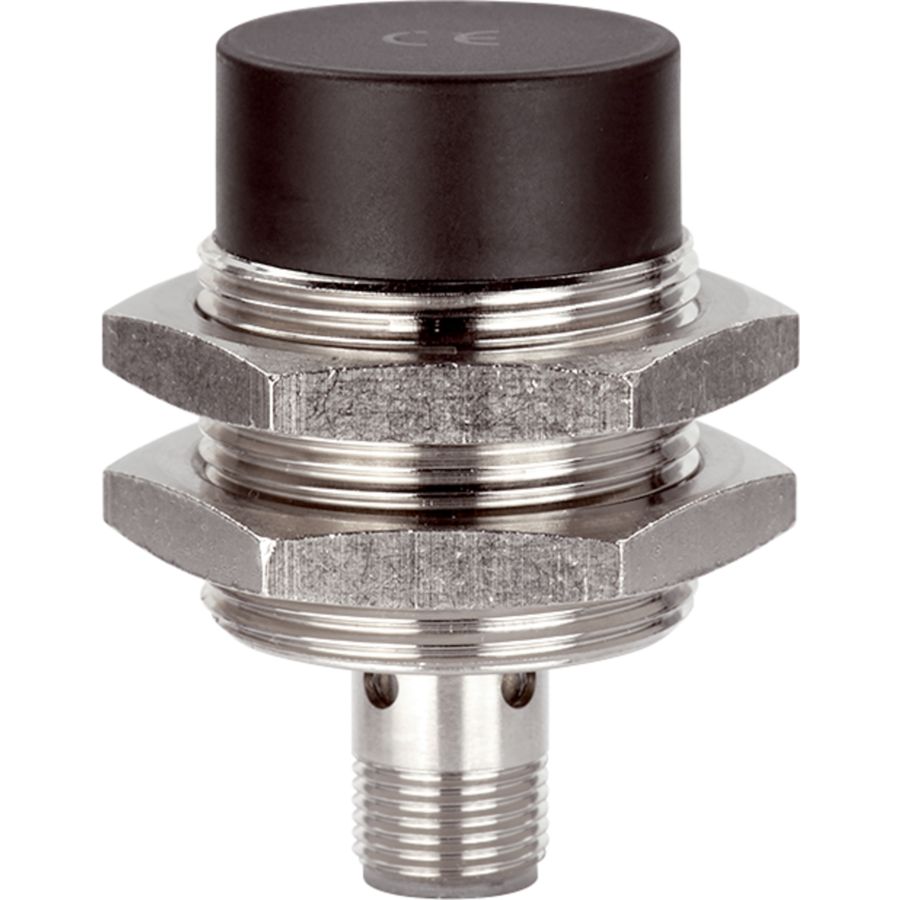

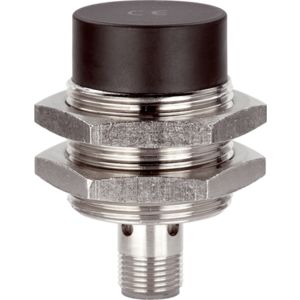

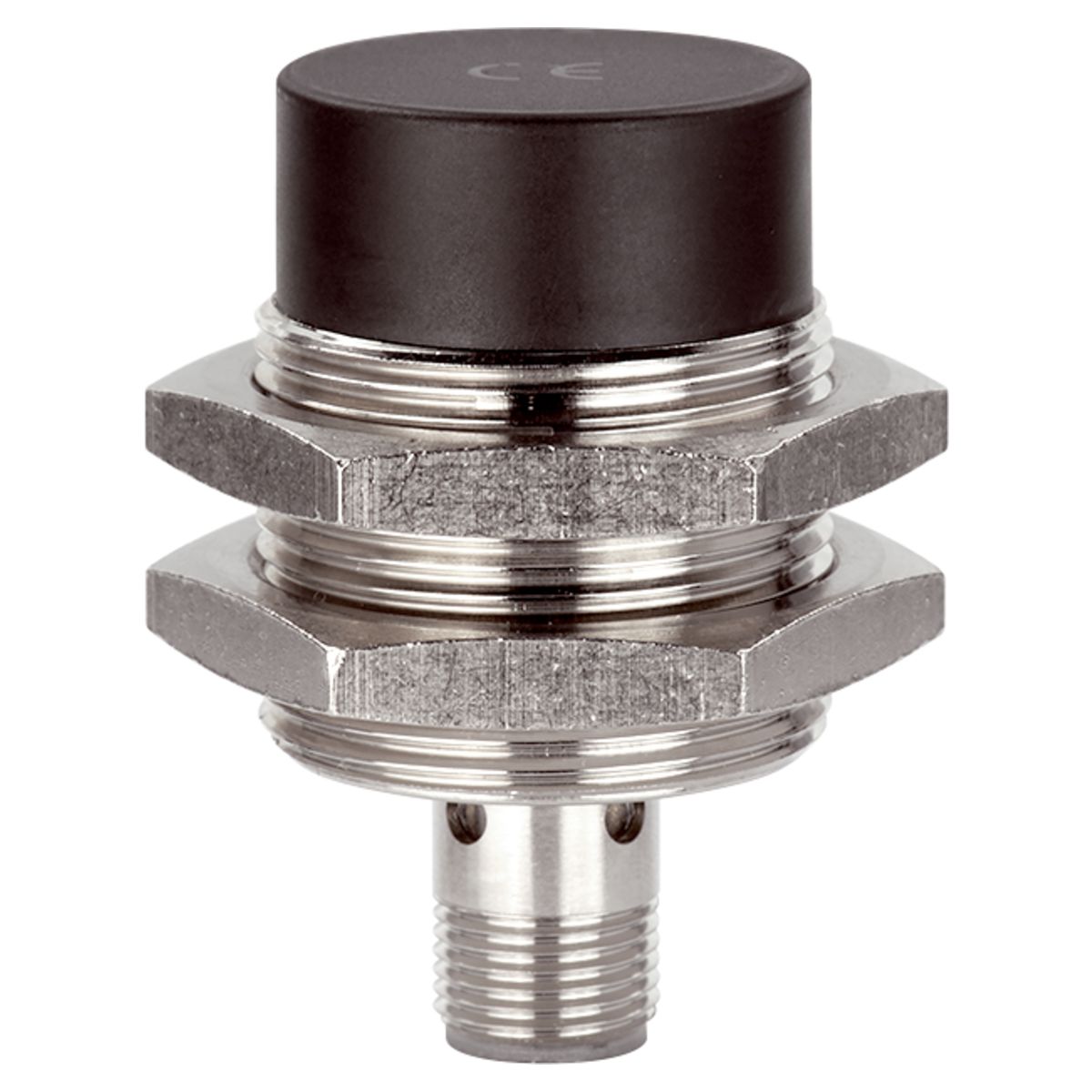

Inductive Proximity Sensor - DCCK 30 M 15 NSK-IBSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	inductive
Installation type	non-flush
Switching distance	15 mm
Service voltage	10 … 30 V DC
Switching output	npn, 200 mA, NO
No-load current (max.)	10 mA
Evaluation	digital
Design	Thread
Housing material	Brass, CuZn

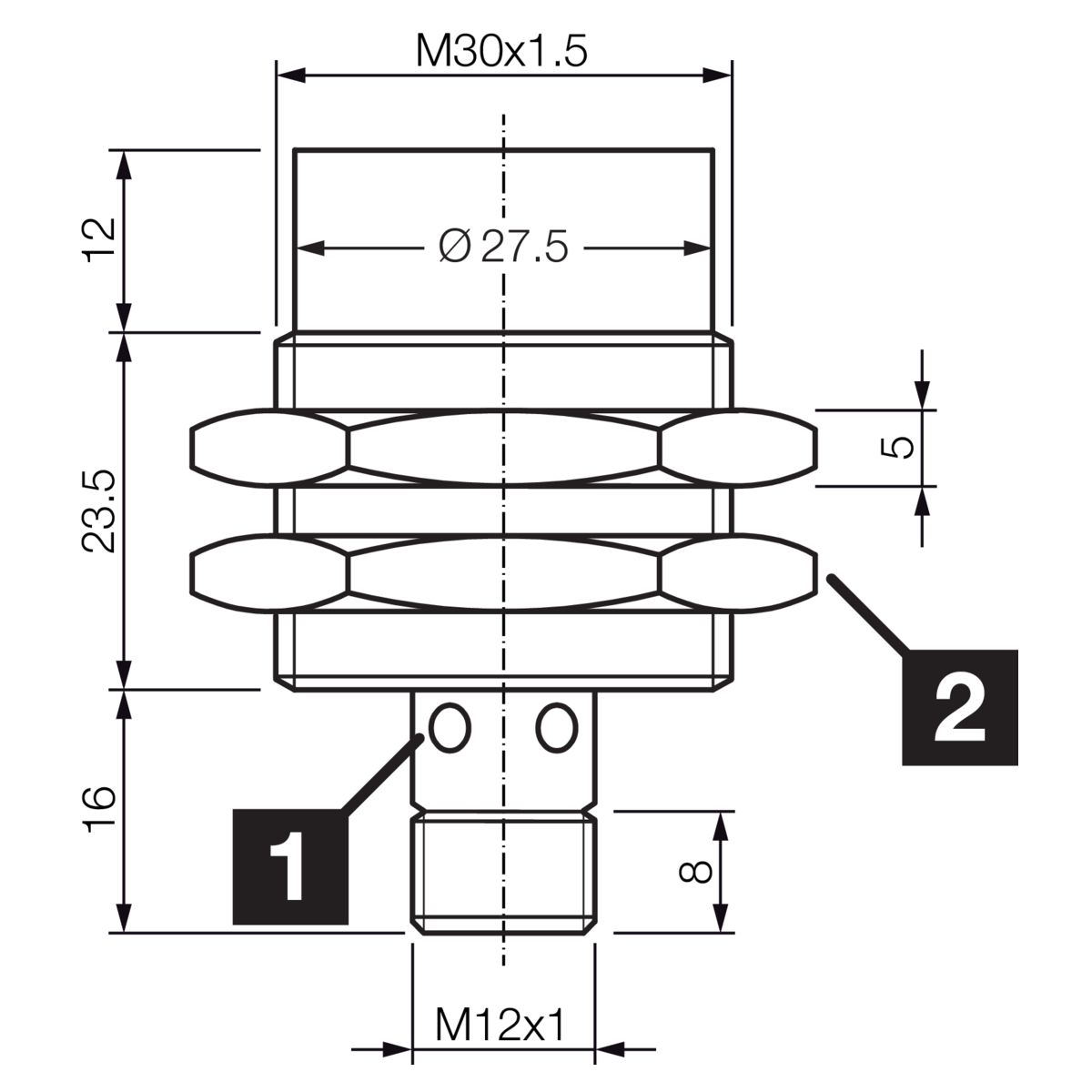

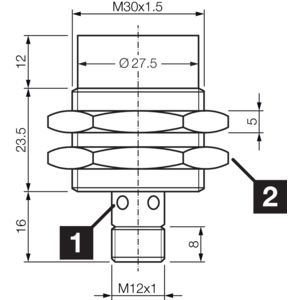

Size	M30 x 1,5
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M12, 4-pin
