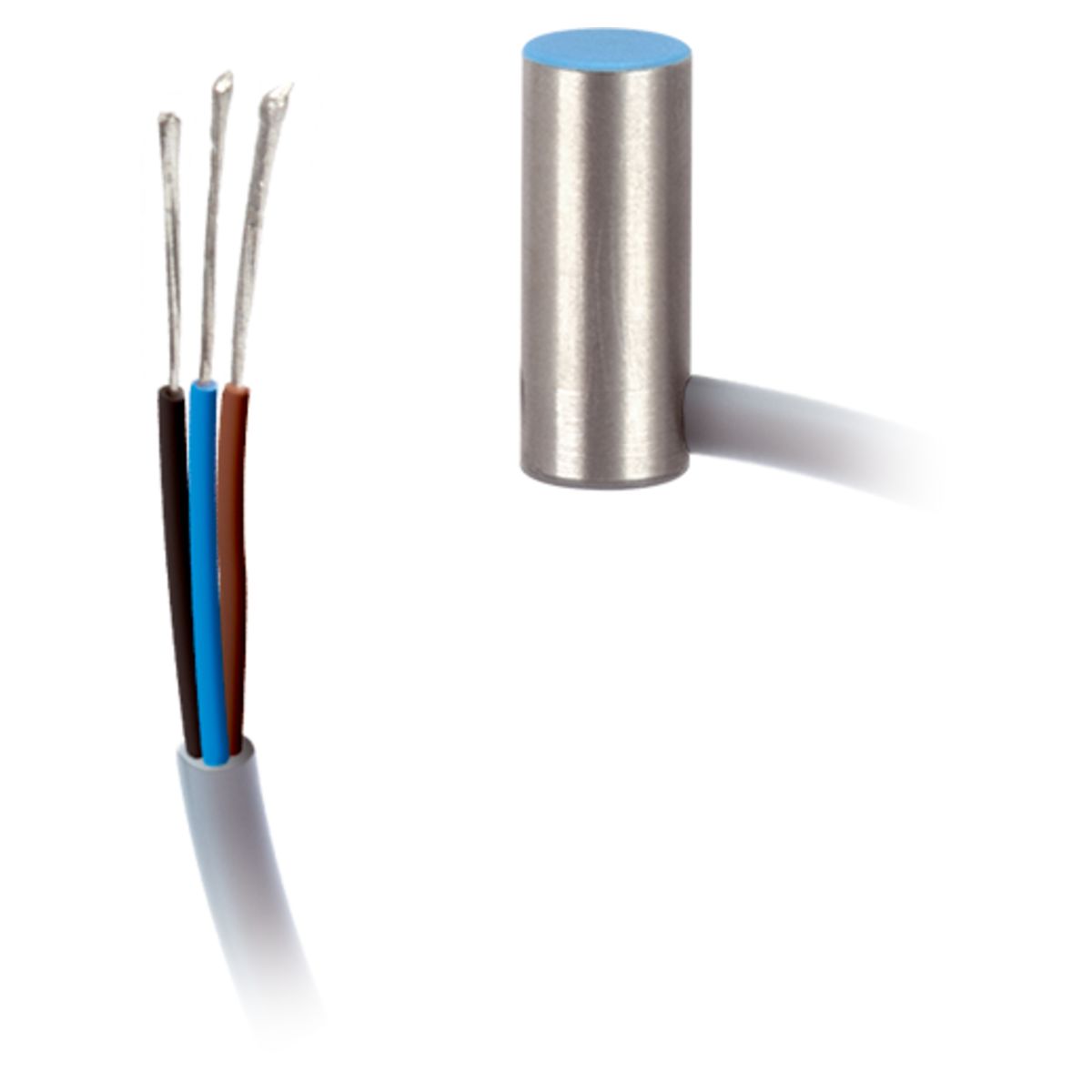

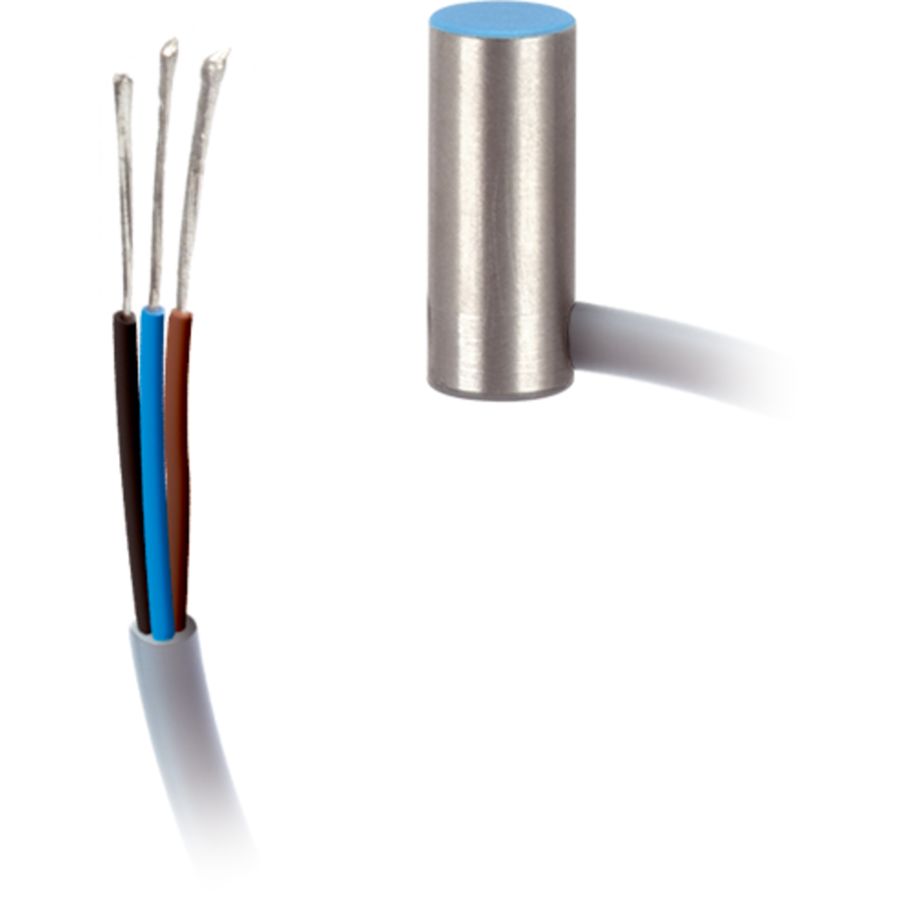

Inductive Proximity Sensor - DCCKR 6.5 V 02 NOLK

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	inductive
Installation type	Flush
Switching distance	2 mm
Service voltage	10 … 30 V DC

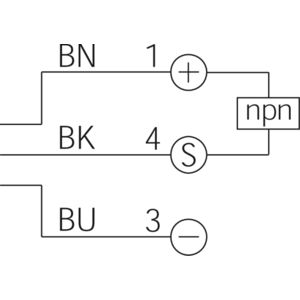

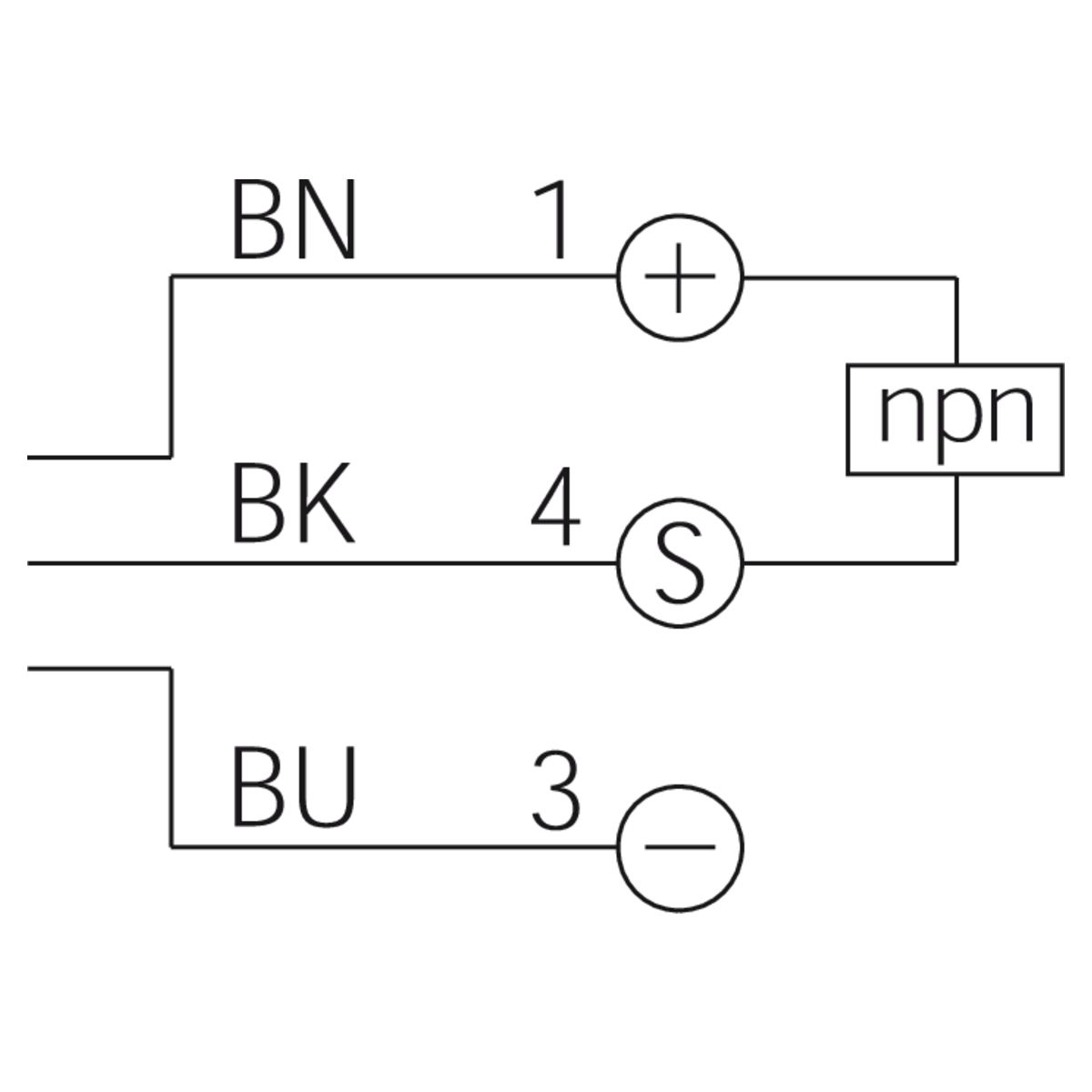

Switching output	npn, 200 mA, NC
No-load current (max.)	10 mA
Evaluation	digital
Design	Cylinder
Characteristics	increased operating distance
Housing material	Stainless steel

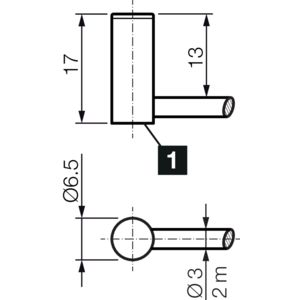

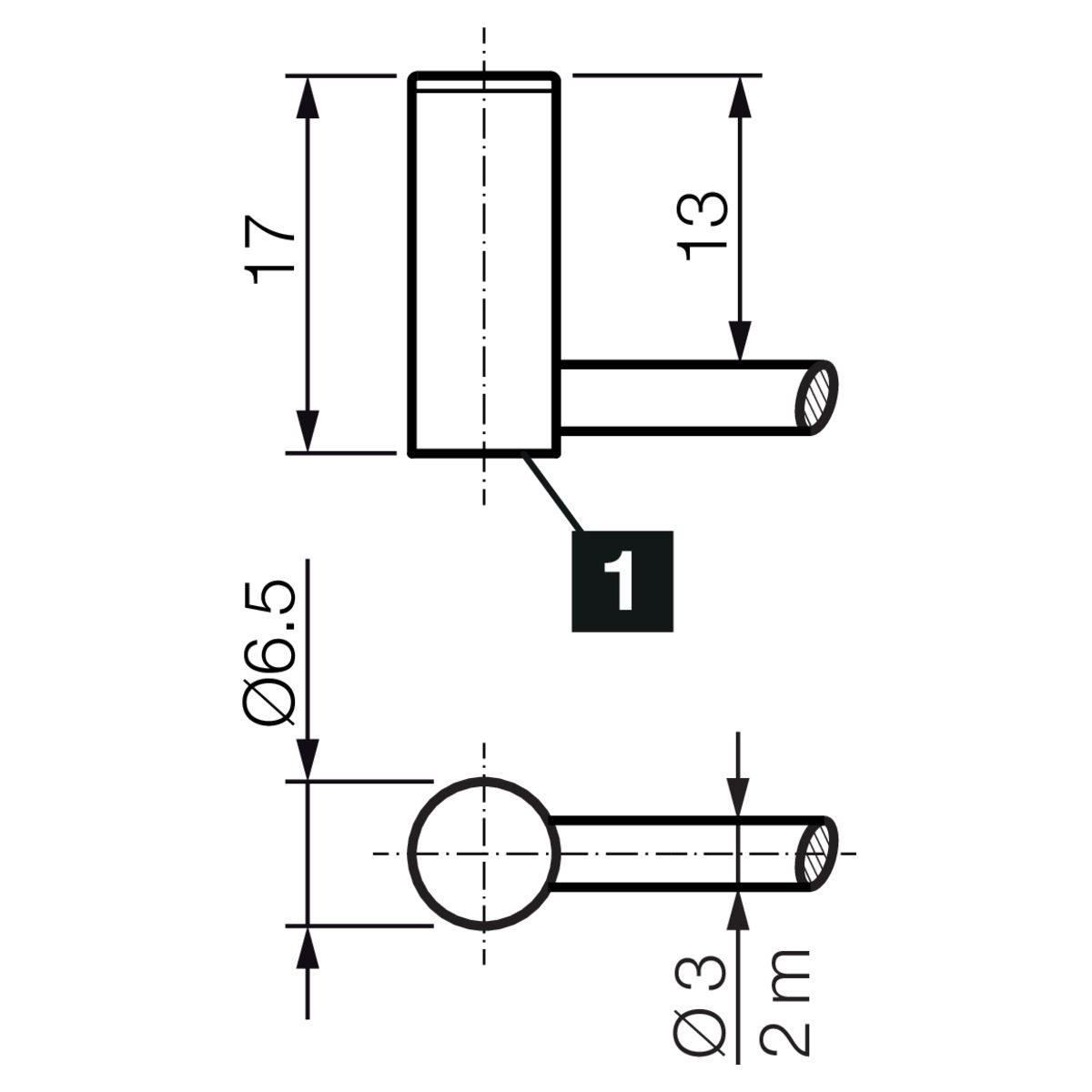

Size	Ø 6,5 mm
Ambient temperature during operation	-25 … +70 °C
Connection	Cable
