Inductive Proximity Sensor - DCCKR 6.5 V 1.5 NAMUR
Part Number: DCCKR 6.5 V 1.5 NAMUR
Article Number: 203364
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | Flush |
| Switching distance | 1,5 mm |
| Service voltage | 7,7 … 9 V DC |

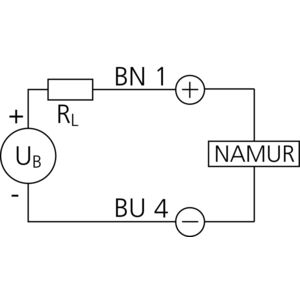

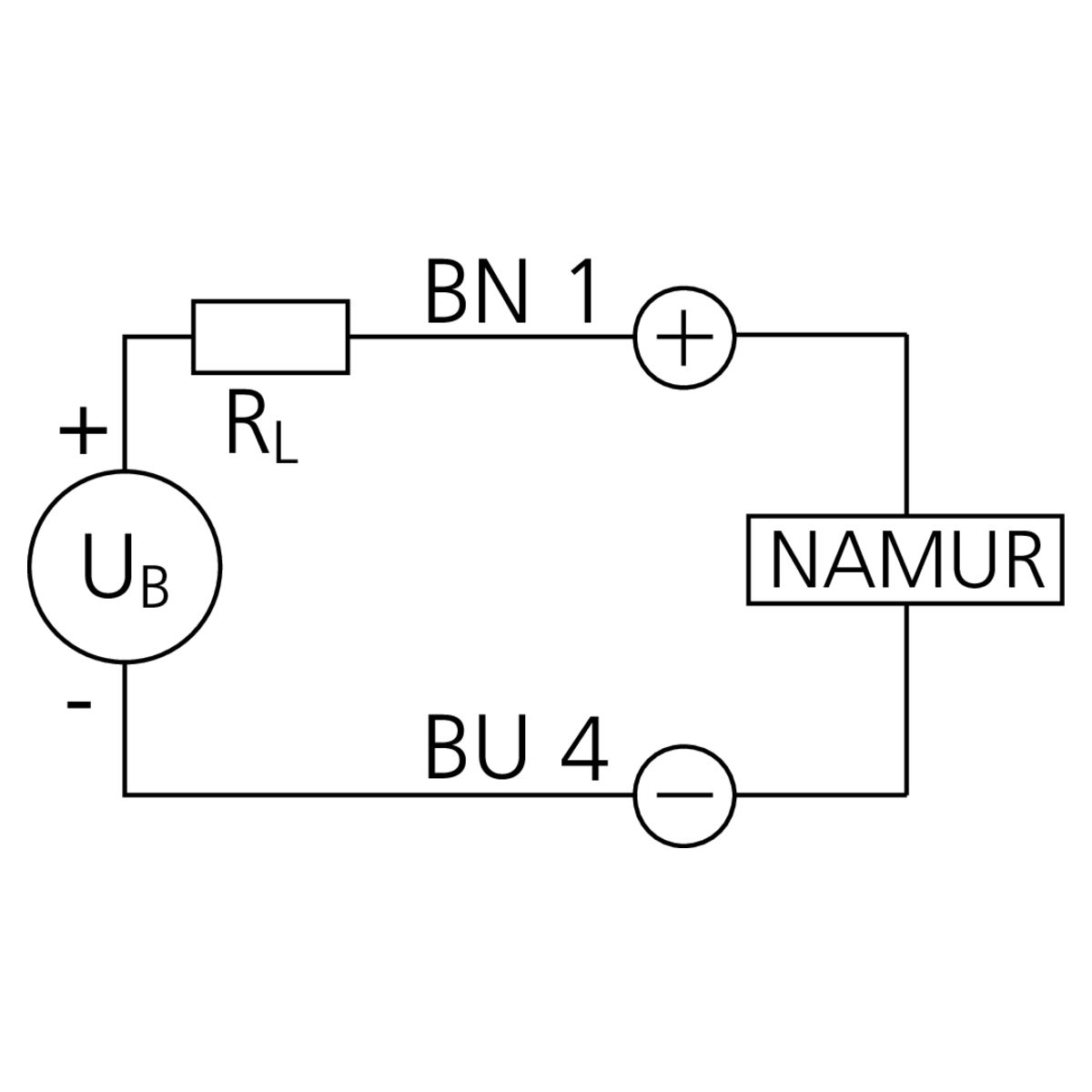

| Switching output | Namur, < 1 mA, > 2,2 mA |
| Evaluation | digital |
| Design | Cylinder |
| Housing material | Stainless steel |

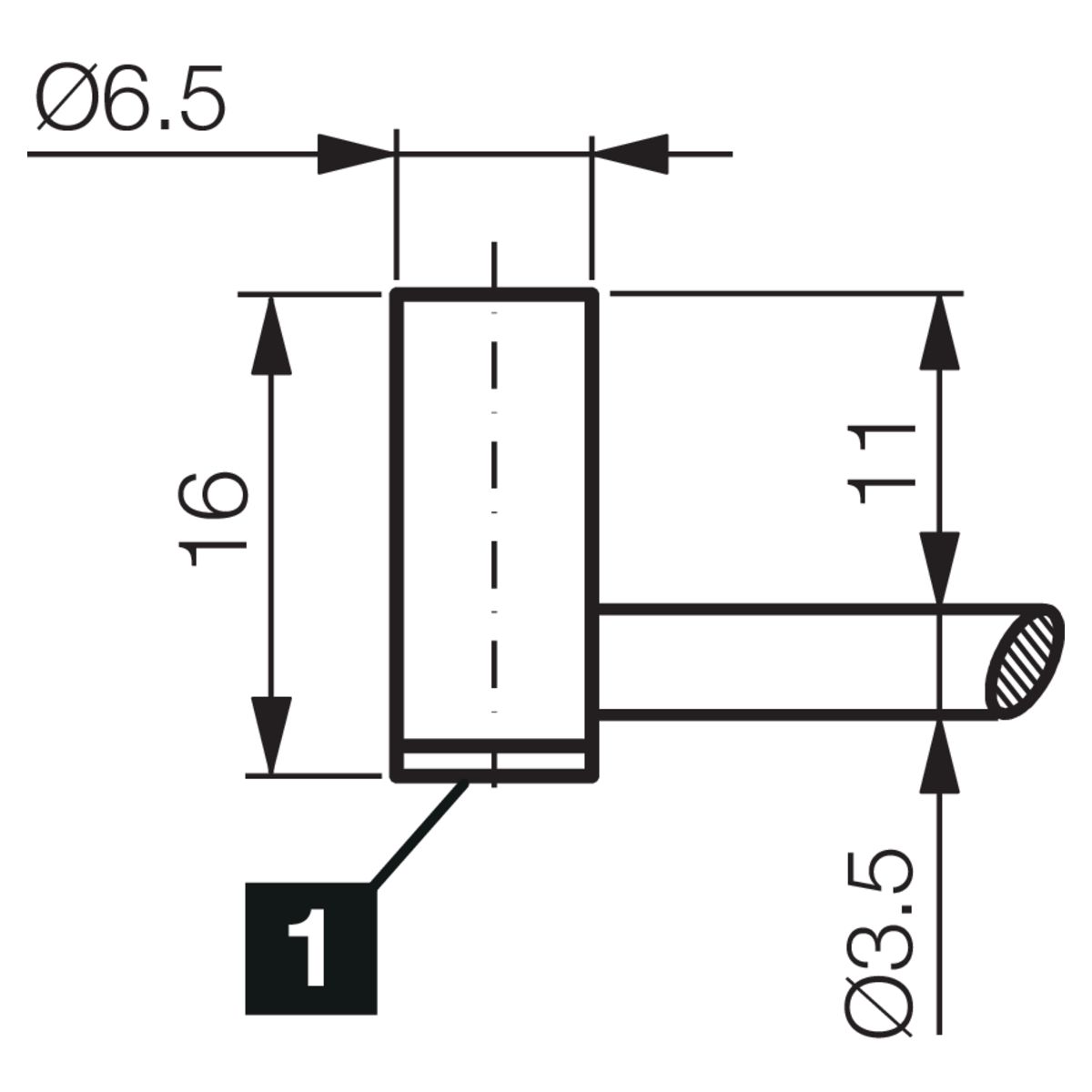

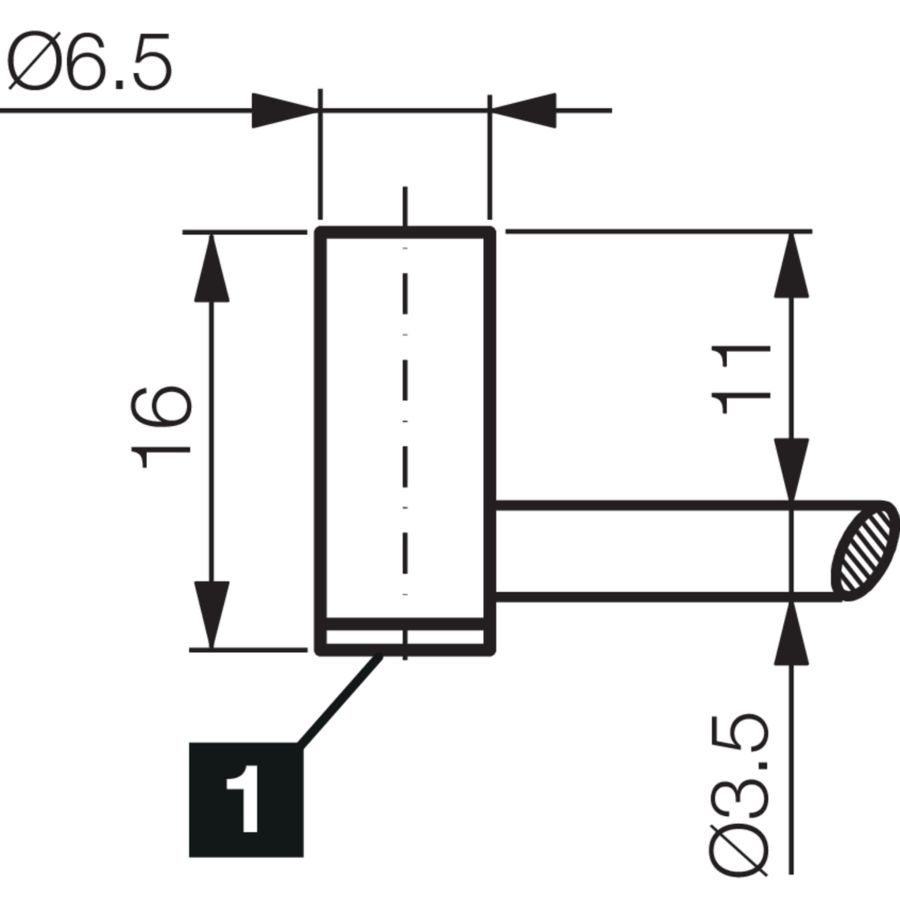

| Size | Ø 6,5 mm |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Cable, Connector, 2 m, M12 |
