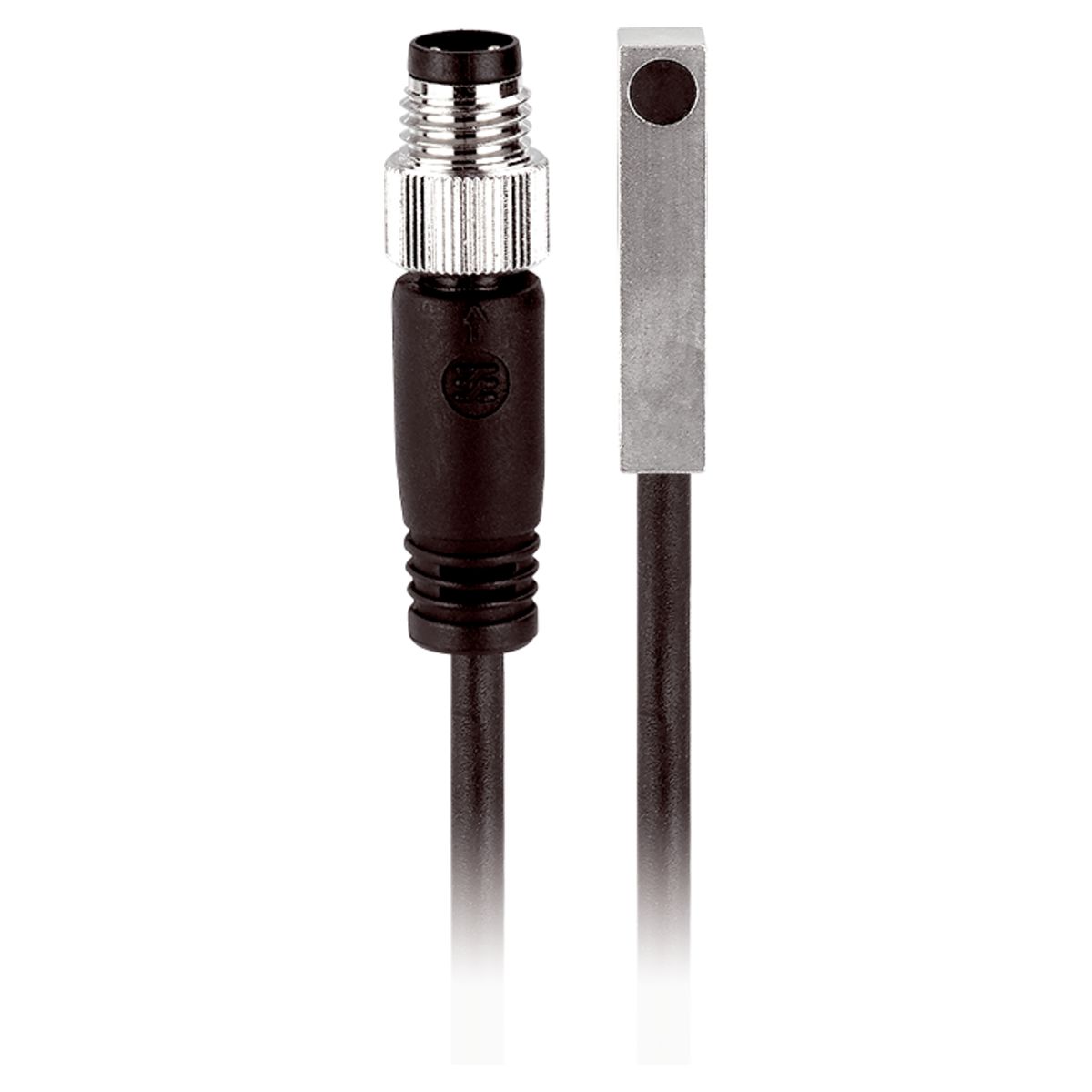

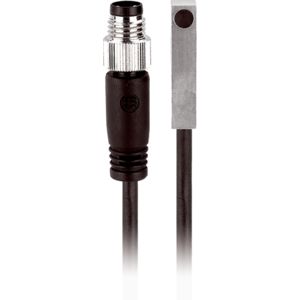

Inductive Proximity Sensor - DCCQ 05 M 0.8 PSK-K-TSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	inductive
Installation type	Flush
Switching distance	0,8 mm
Service voltage	10 … 30 V DC
Switching output	pnp, 200 mA, NO
No-load current (max.)	10 mA
Evaluation	digital
Design	Cuboid design
Housing material	Brass, CuZn

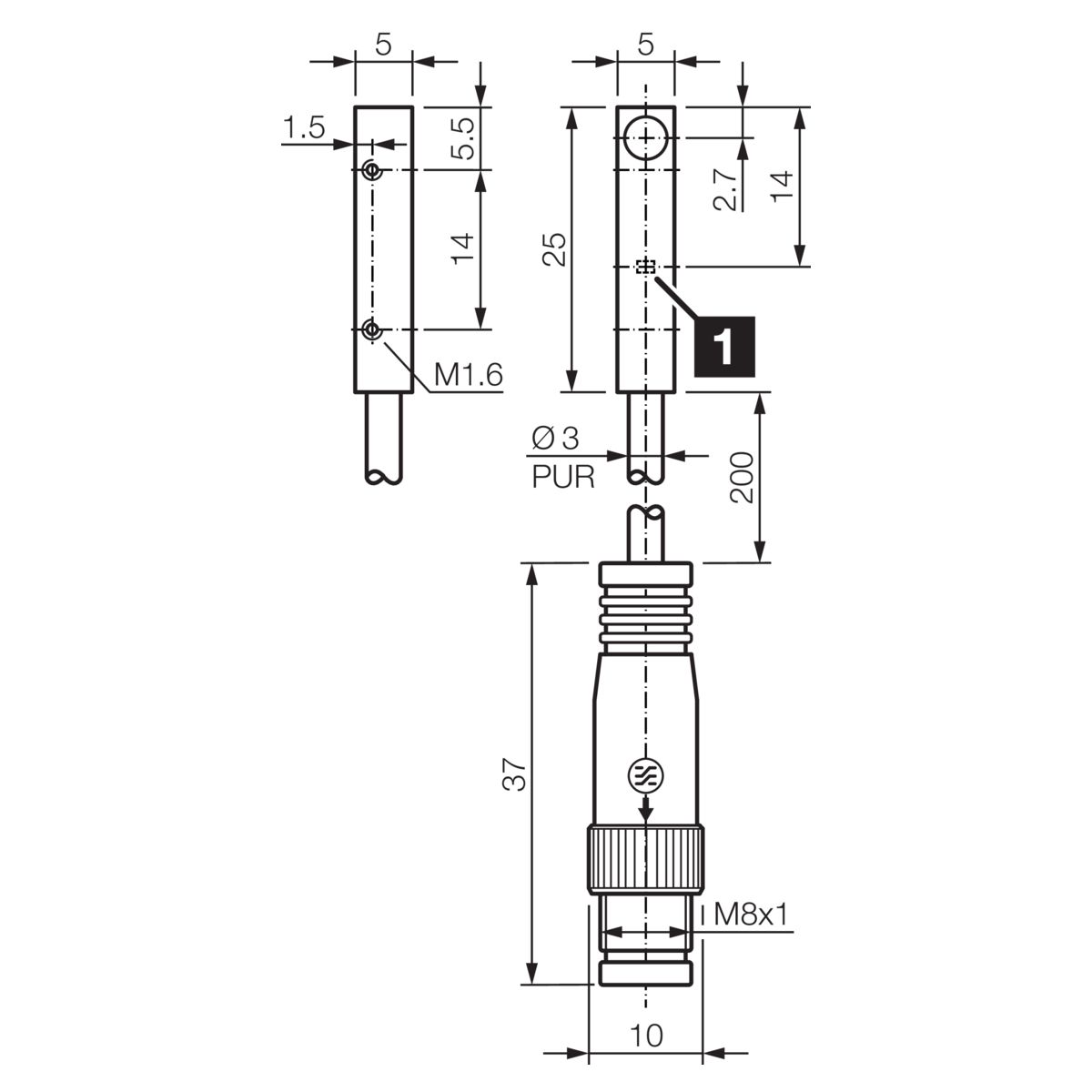

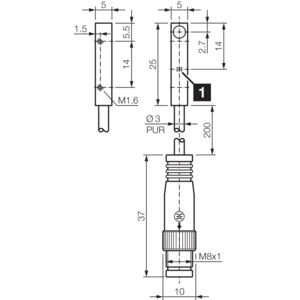

Size	5 x 5 x 25 mm
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Cable/socket, 0,2 m, M8, 3-pin
