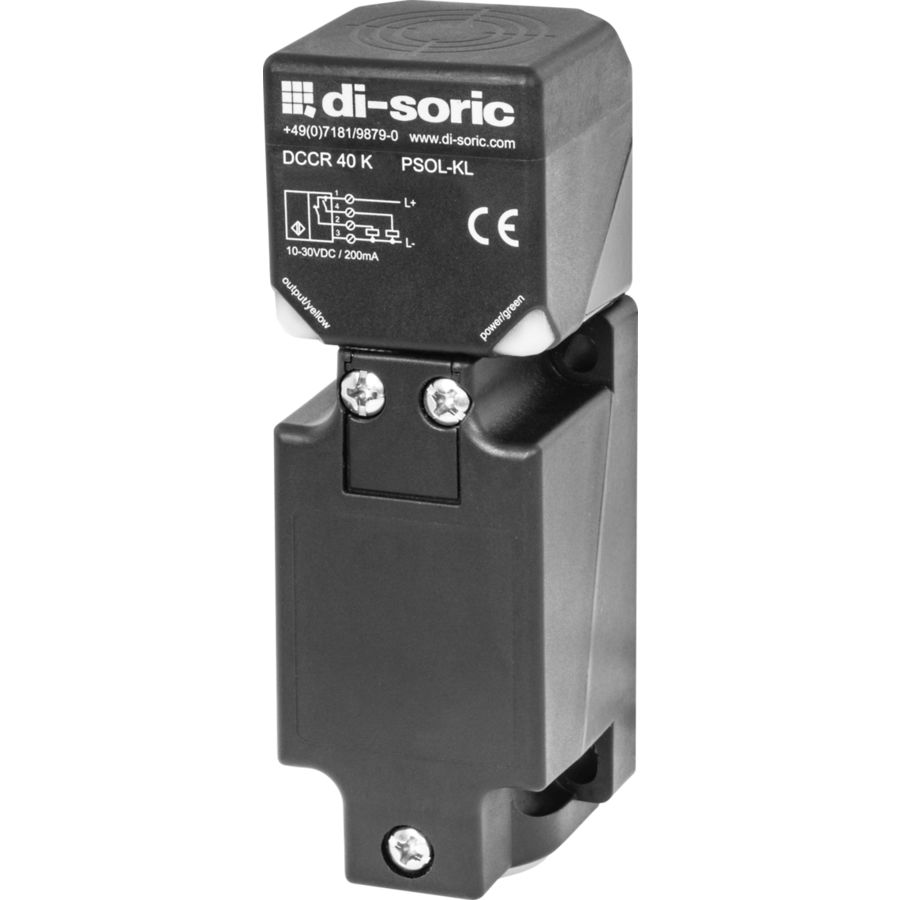

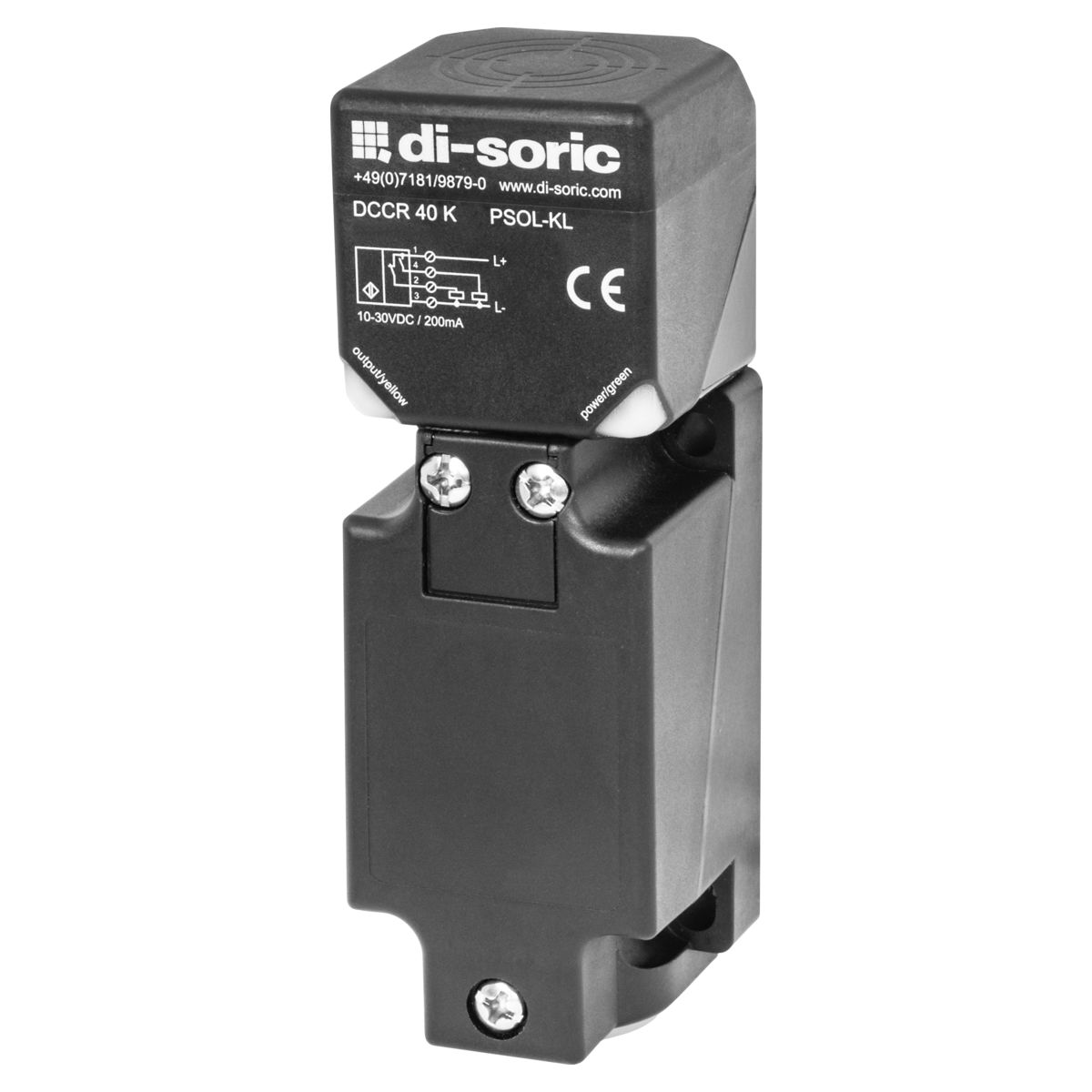

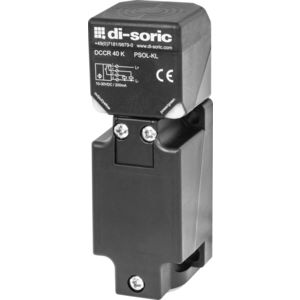

Inductive Proximity Sensor - DCCR 40 K 20 PSOL-KL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	inductive
Installation type	Flush
Switching distance	20 mm
Service voltage	10 … 30 V DC

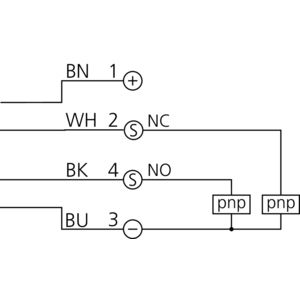

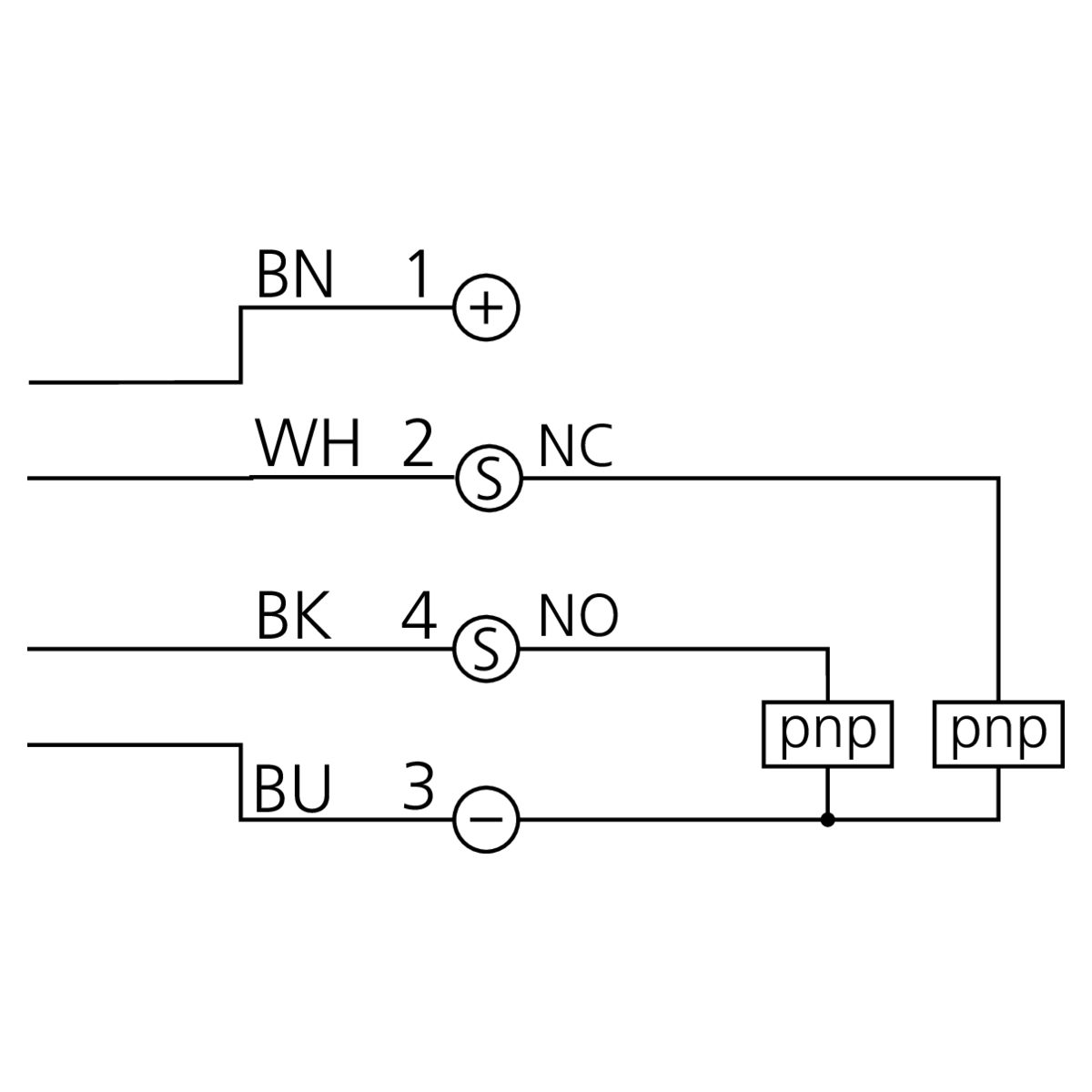

Switching output	pnp, 200 mA, antivalent
No-load current (max.)	20 mA
Evaluation	digital
Design	Cuboid design
Housing material	Plastic, Metal, PA

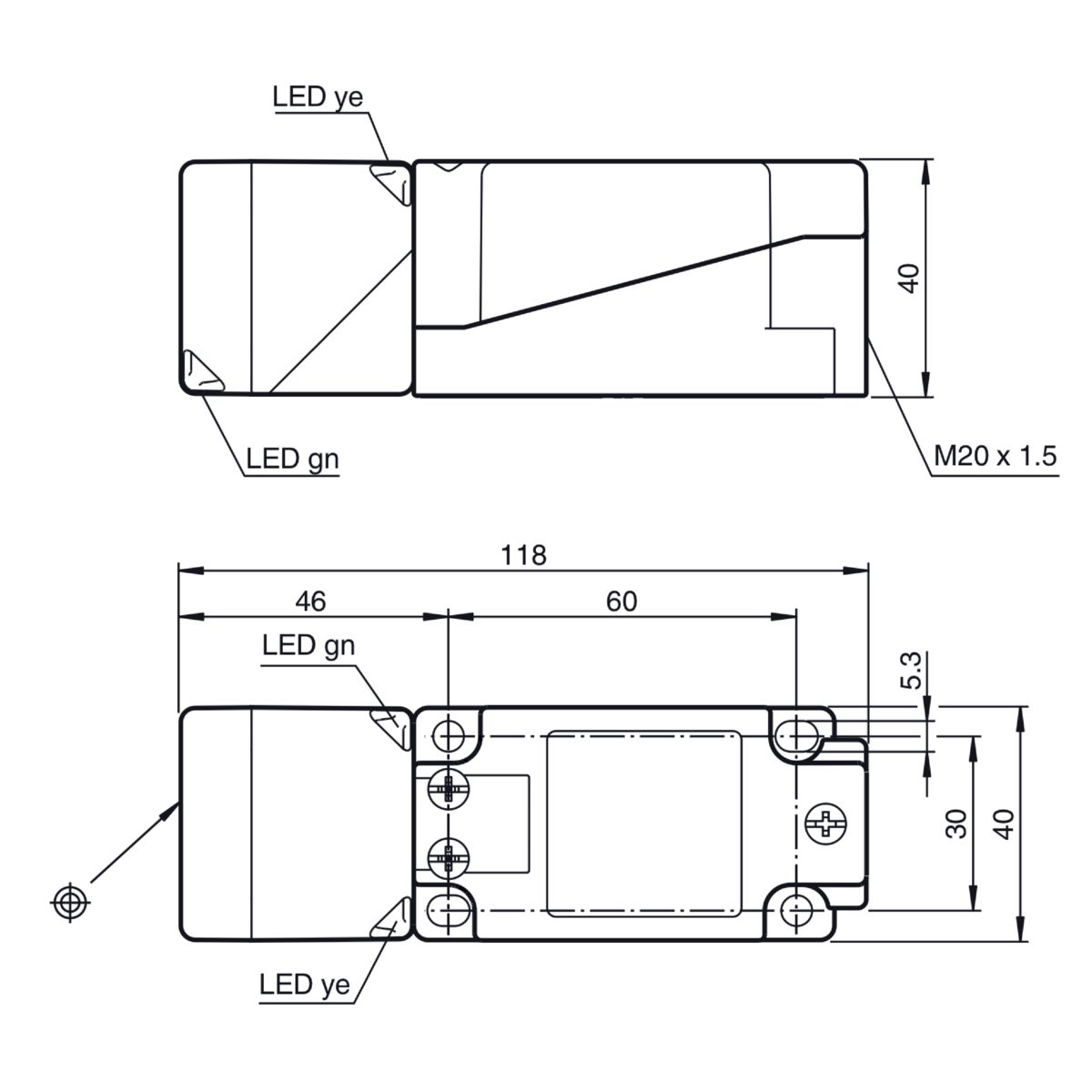

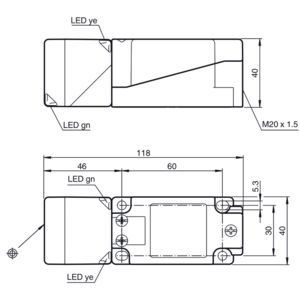

Size	40 x 40 x 118 mm
Ambient temperature during operation	-25 … +85 °C
Protection type	IP 68, IP 69K
Connection	Clamps
