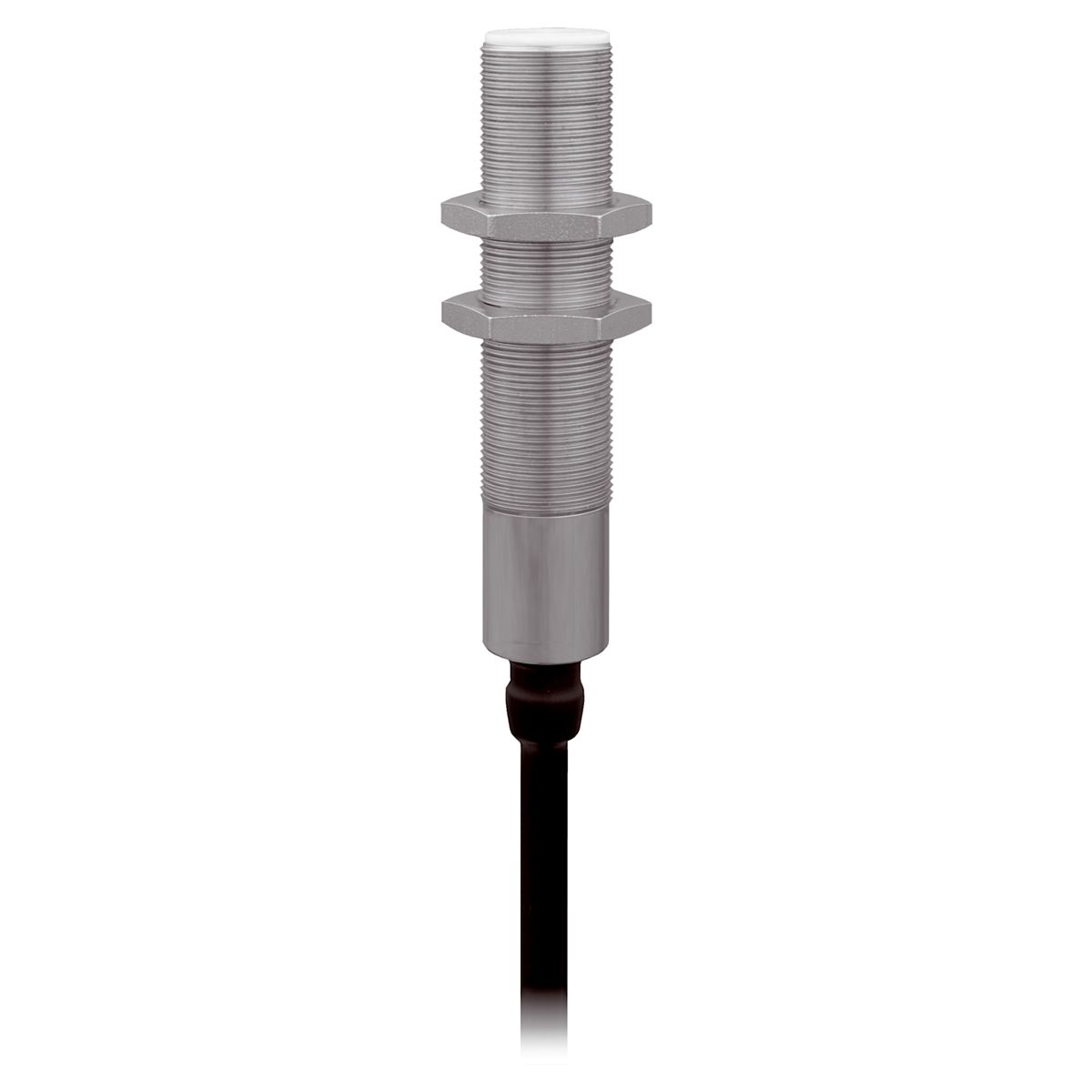

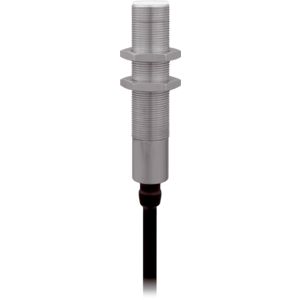

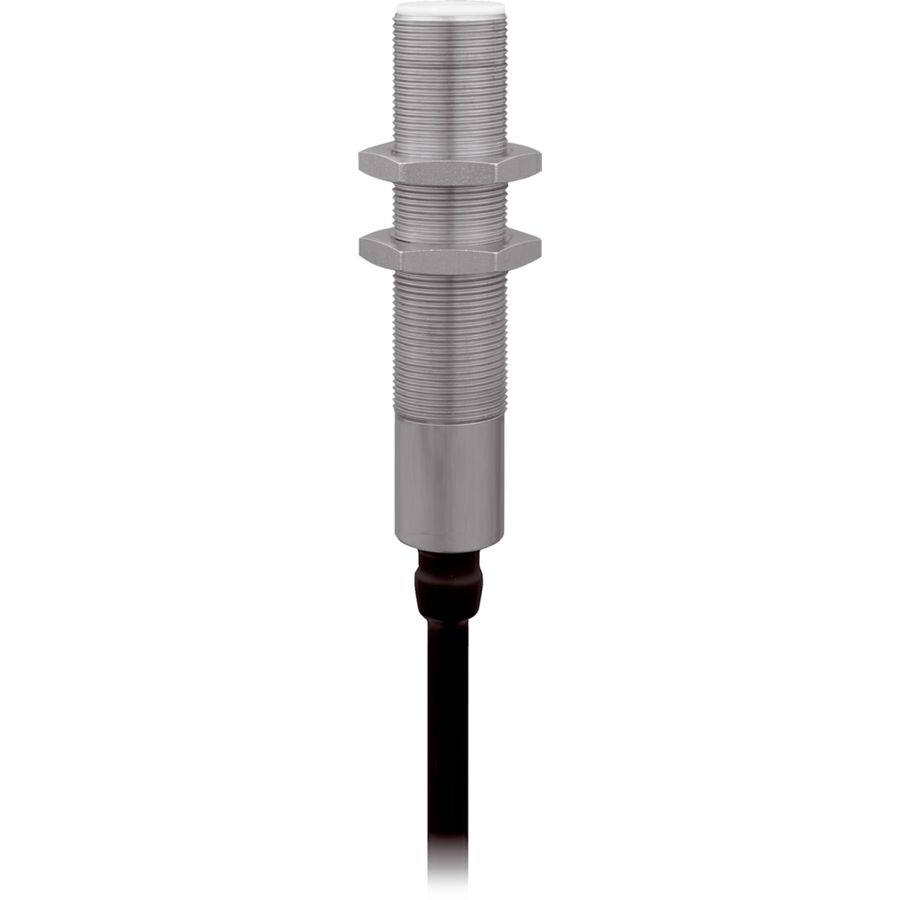

Inductive Proximity Sensor - DCE 18 VH 05 PSK
Part Number: DCE 18 VH 05 PSK
Article Number: 200538
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | Flush |
| Switching distance | 5 mm |
| Service voltage | 10 … 33 V DC |
| Switching output | pnp, 200 mA, NO |
| No-load current (max.) | 4 mA |
| Evaluation | digital |
| Design | Thread |
| Characteristics | < +160 °C, high-temperature resistant |
| Housing material | Stainless steel, Plastic, V4A 1.4571 / AISI 316Ti, PTFE |

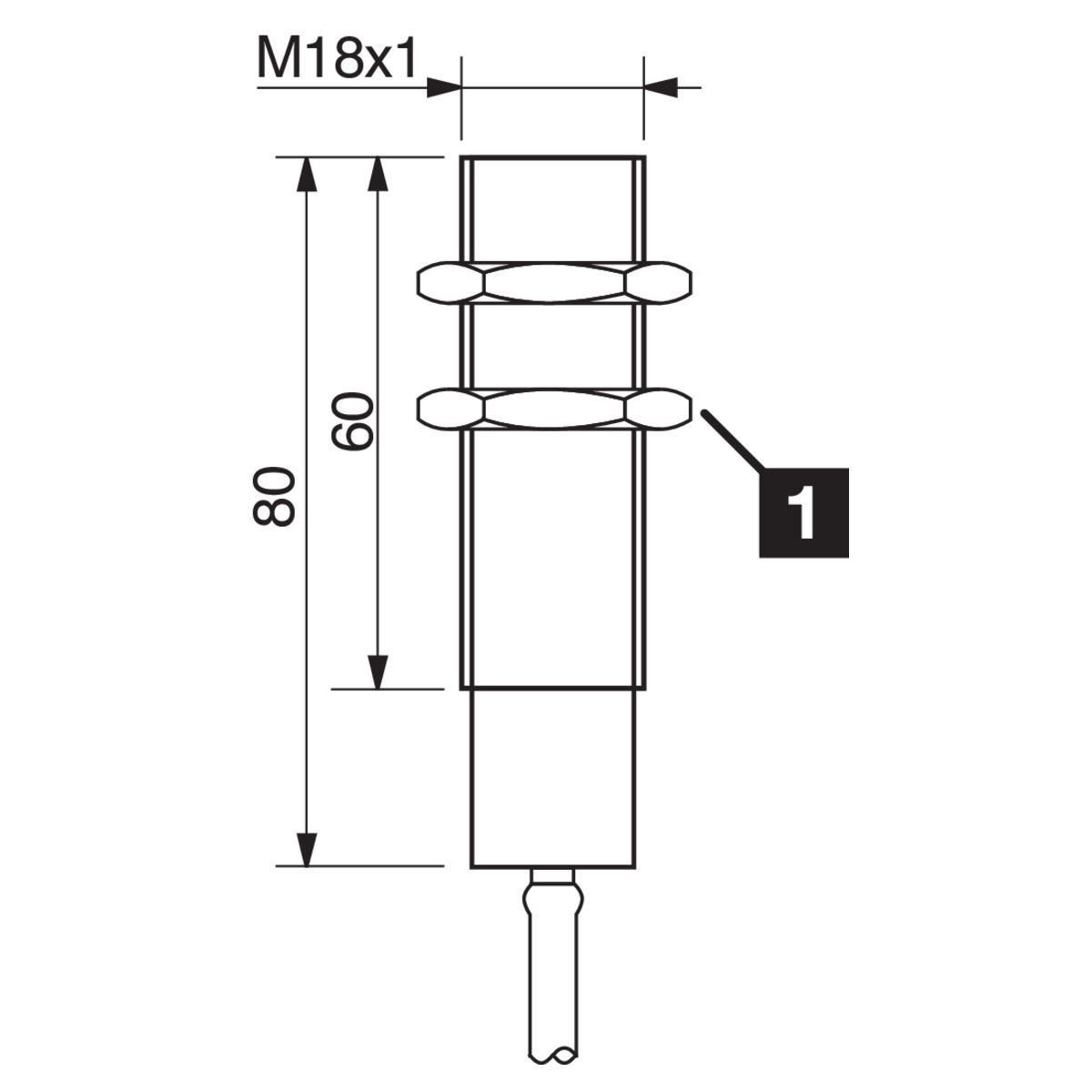

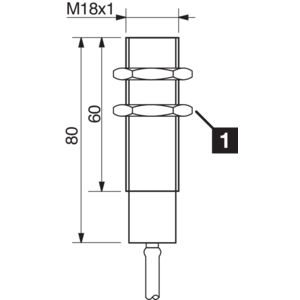

| Size | M18 x 1 |
| Ambient temperature during operation | -25 … +160 °C |
| Protection type | IP 65 |
| Connection | Cable, 2 m |
