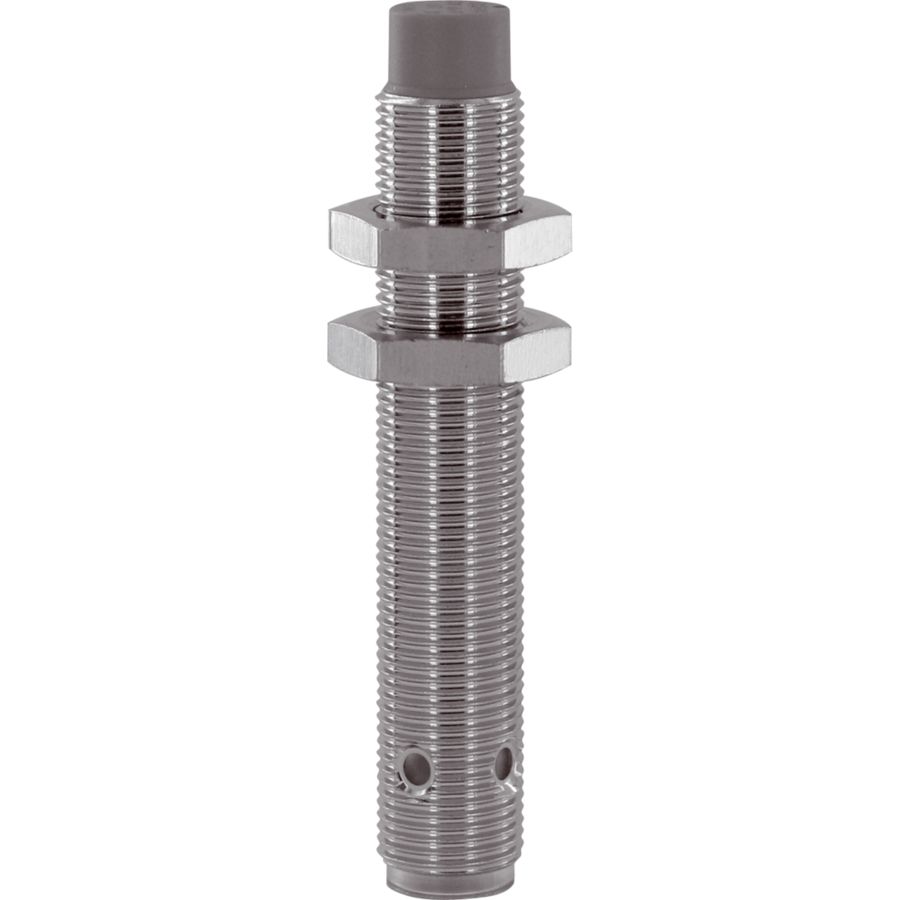

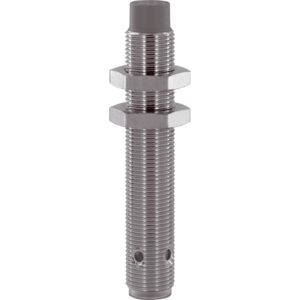

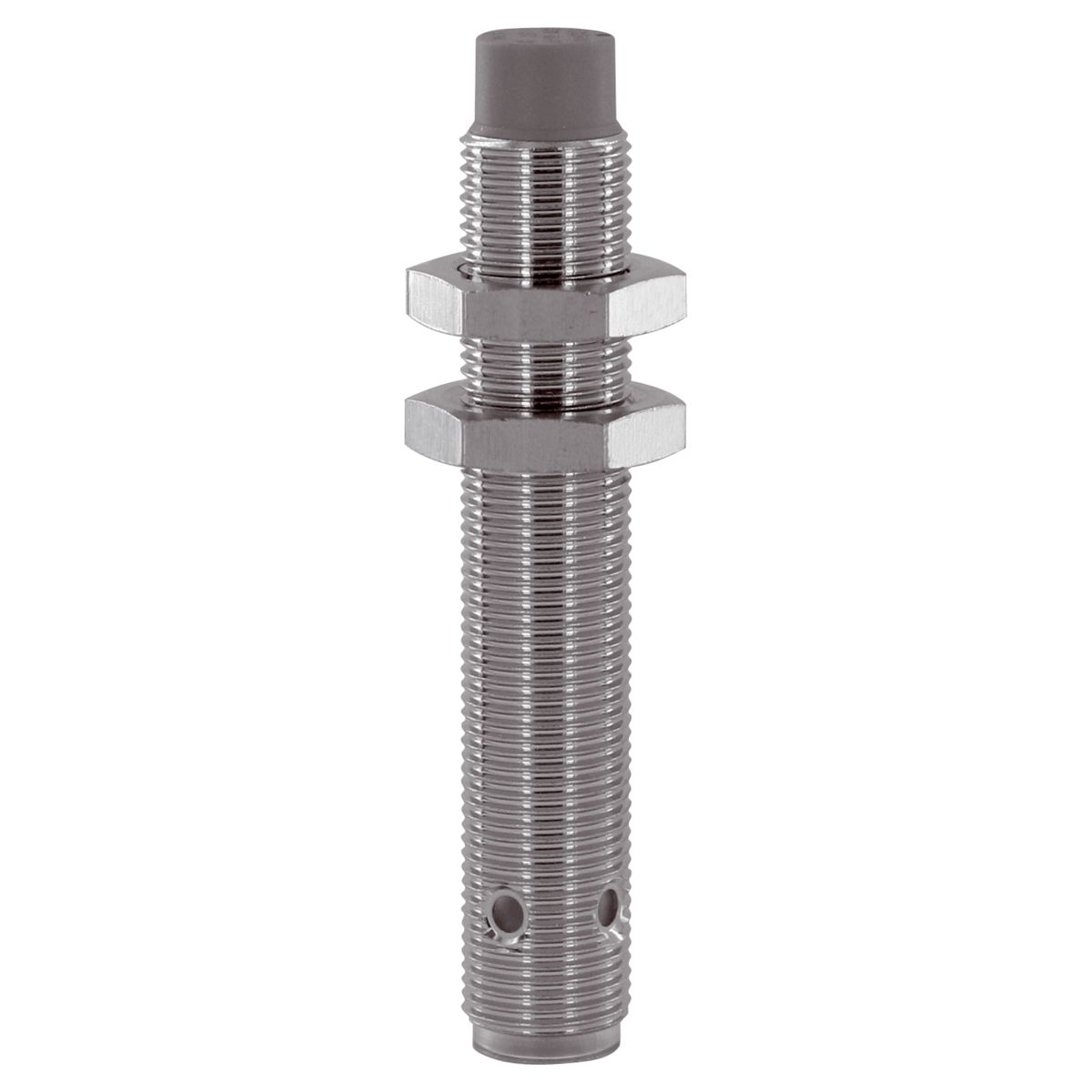

Inductive Proximity Sensor - UCC 12 M 04 O-IBSL
Part Number: UCC 12 M 04 O-IBSL
Article Number: 201750
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | inductive |
|---|---|
| Installation type | non-flush |
| Switching distance | 4 mm |
| Service voltage | 20 … 250 V AC / 10 … 250 V DC |
| Switching output | 200 mA, AC/DC |
| No-load current (max.) | 1 mA |
| Evaluation | digital |
| Design | Thread |
| Housing material | Brass, CuZn |

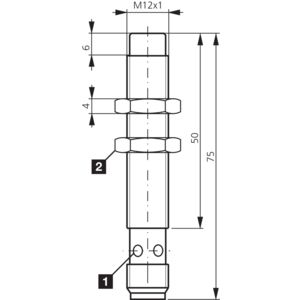

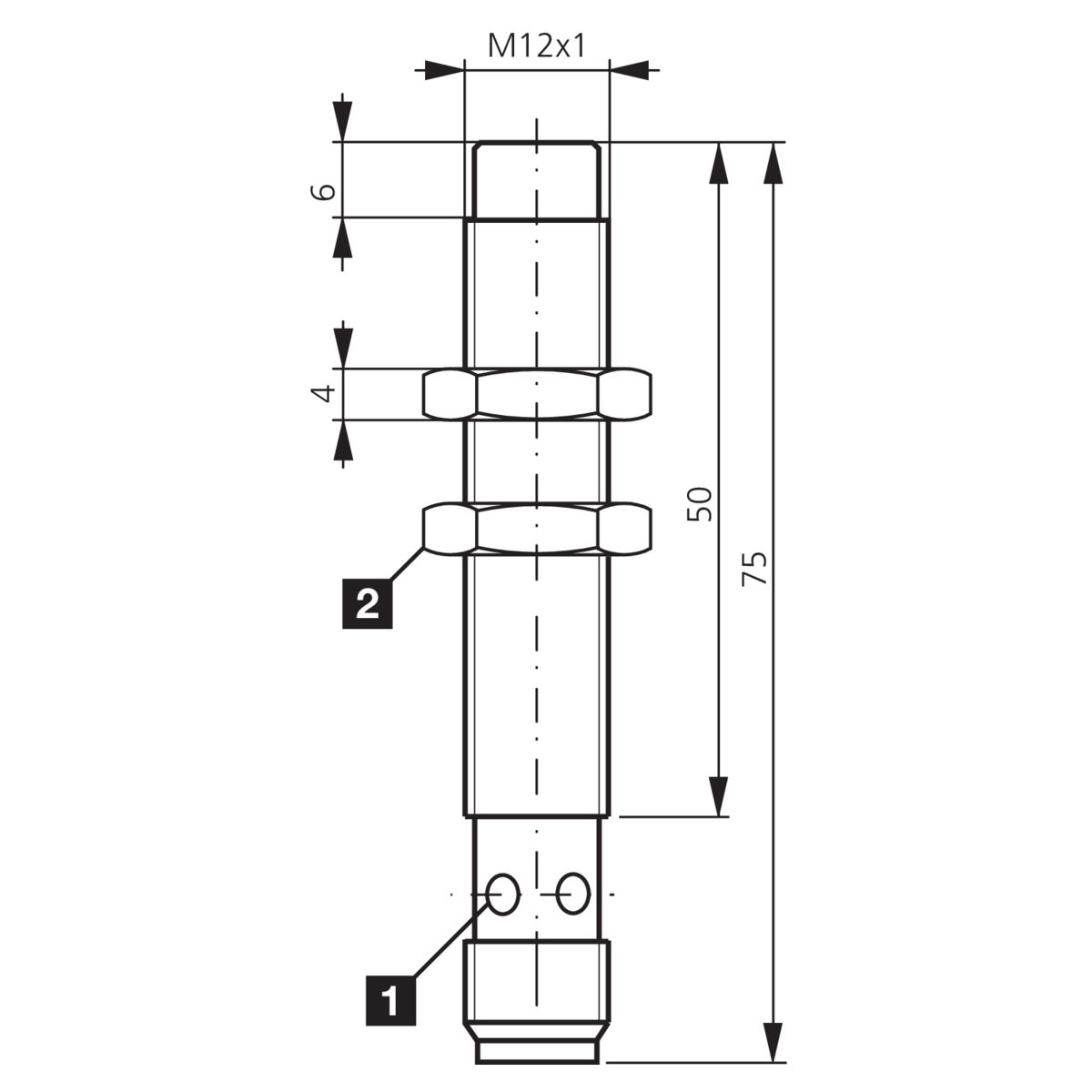

| Size | M12 x 1 |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Connector, M12 |
