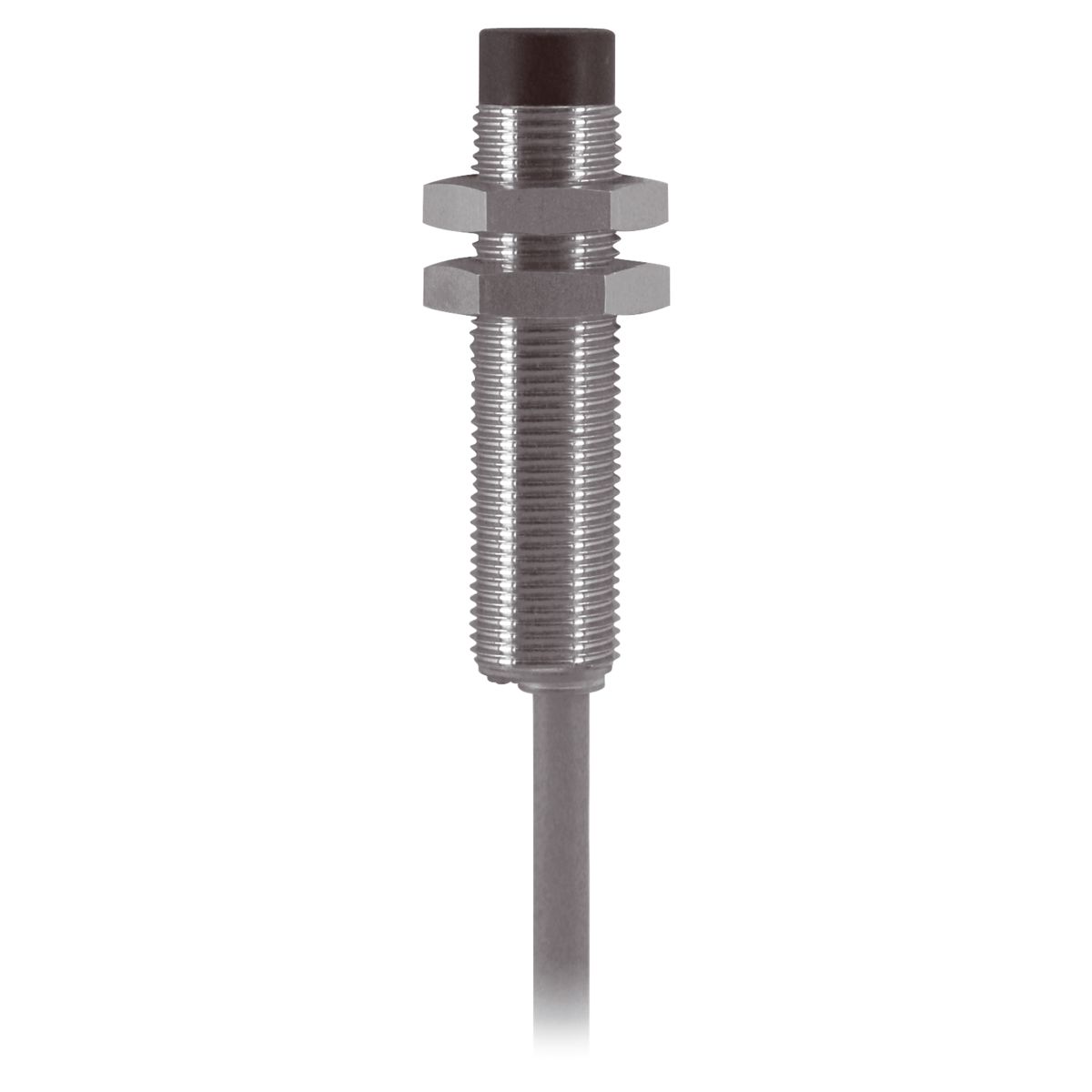

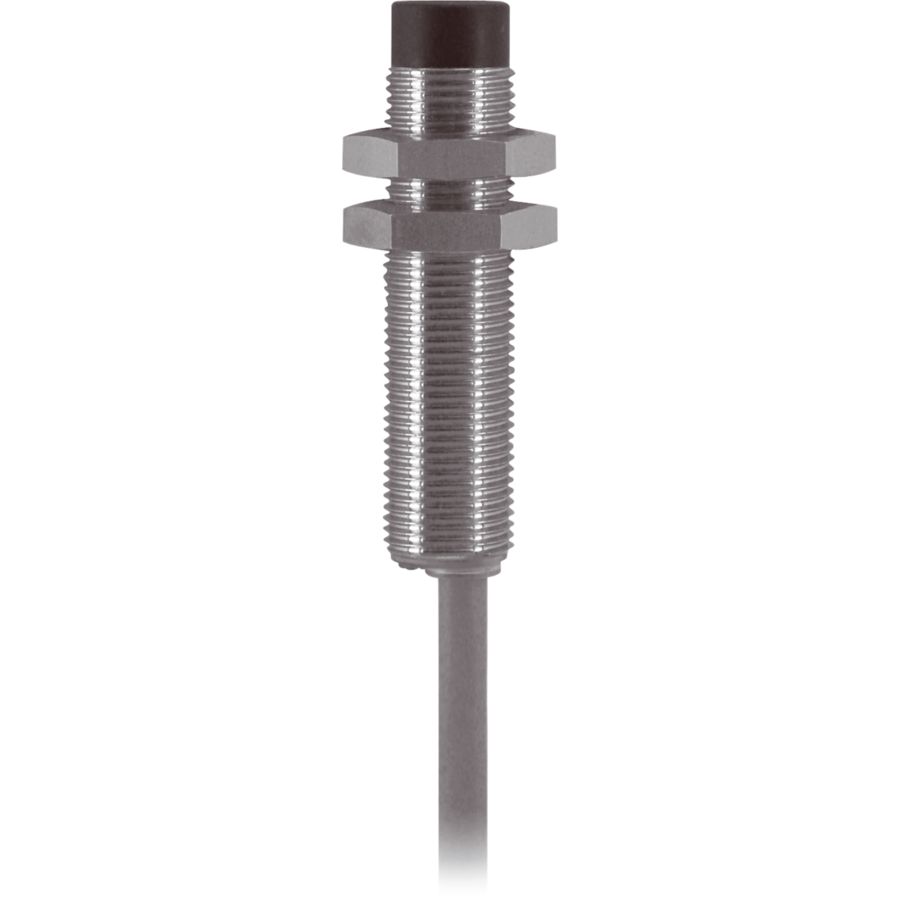

Inductive Proximity Sensor - UCC 12 M 04 OL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	inductive
Installation type	non-flush
Switching distance	4 mm
Service voltage	20 V AC … 250 V AC/DC
Switching output	200 mA, AC/DC
No-load current (max.)	1 mA
Evaluation	digital
Design	Thread
Housing material	Brass, CuZn
Size	M12 x 1
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Cable, 2 m, 2-pin
