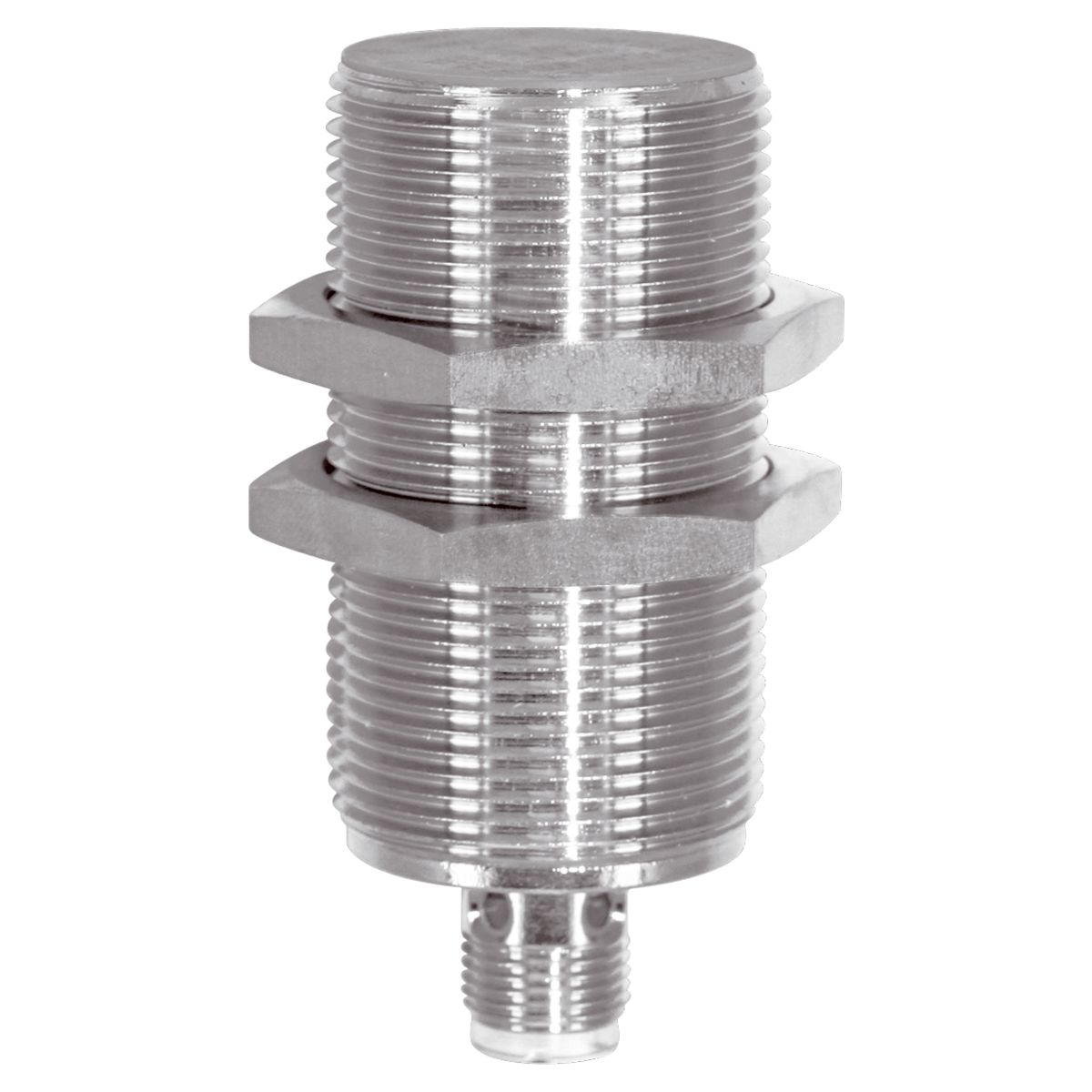

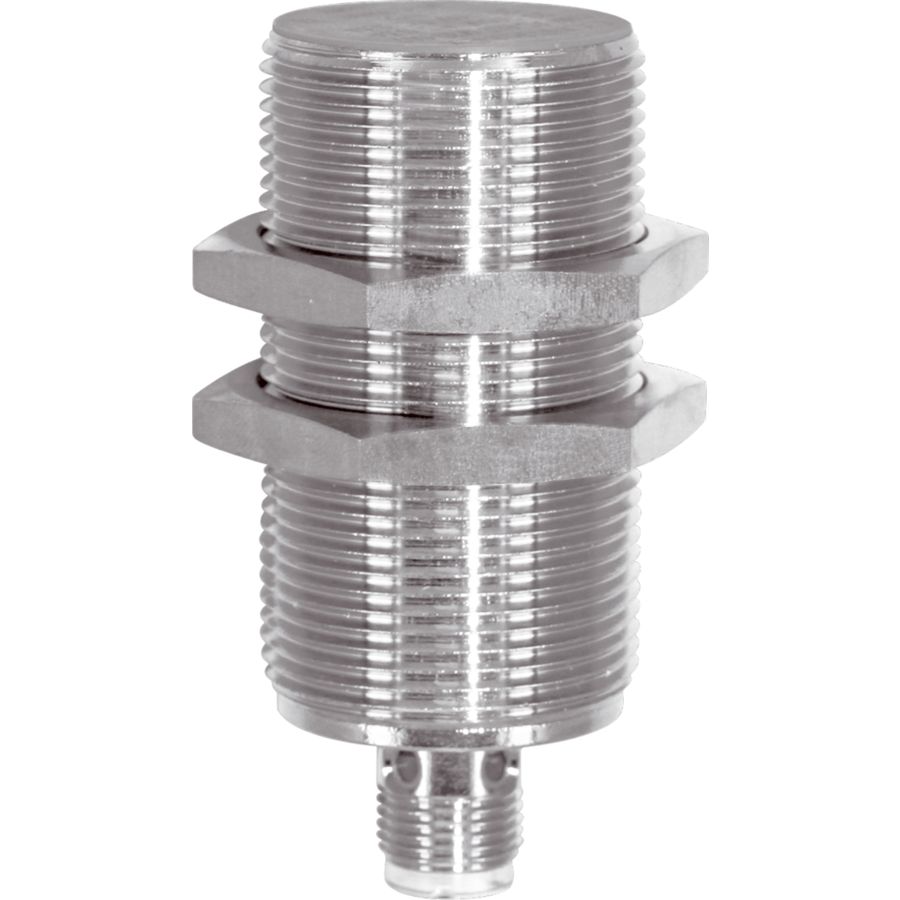

Inductive Proximity Sensor - UCC 30 M 10 O-IBSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	inductive
Installation type	Flush
Switching distance	10 mm
Service voltage	20 … 250 V AC / 10 … 250 V DC
Switching output	200 mA, AC/DC
No-load current (max.)	1 mA
Evaluation	digital
Design	Thread
Housing material	Brass, CuZn

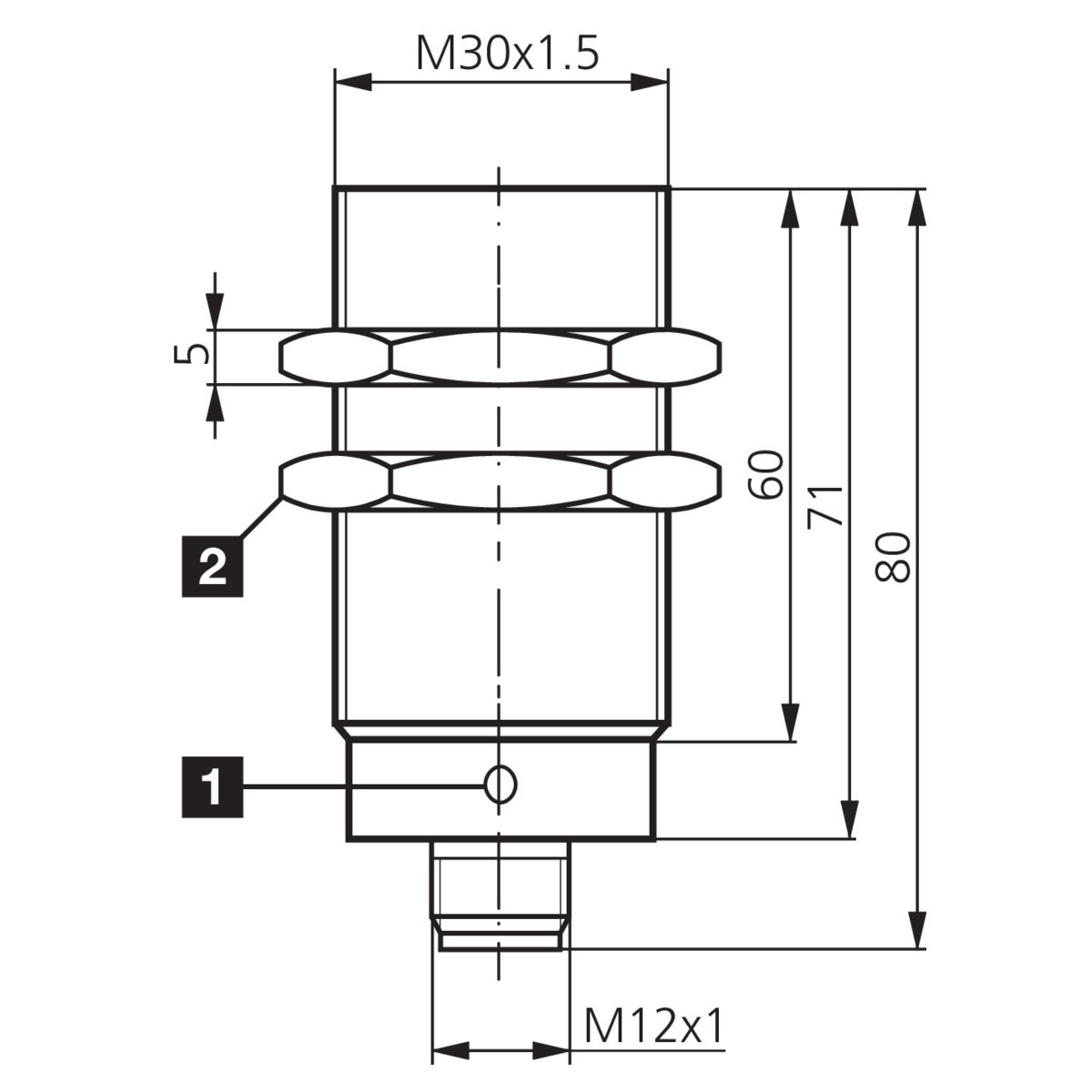

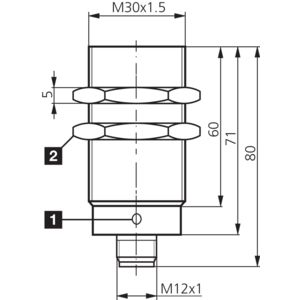

Size	M30 x 1,5
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M12
