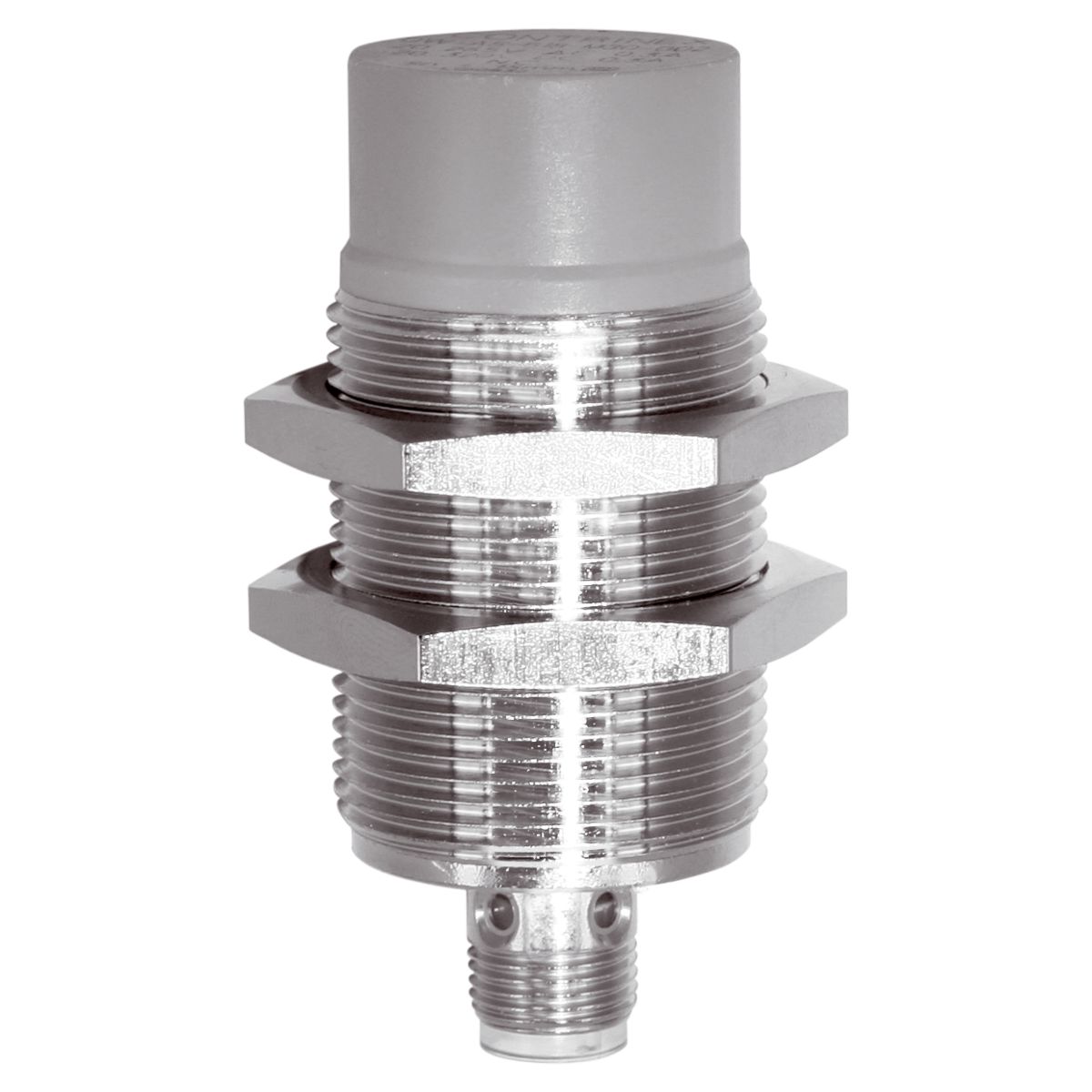

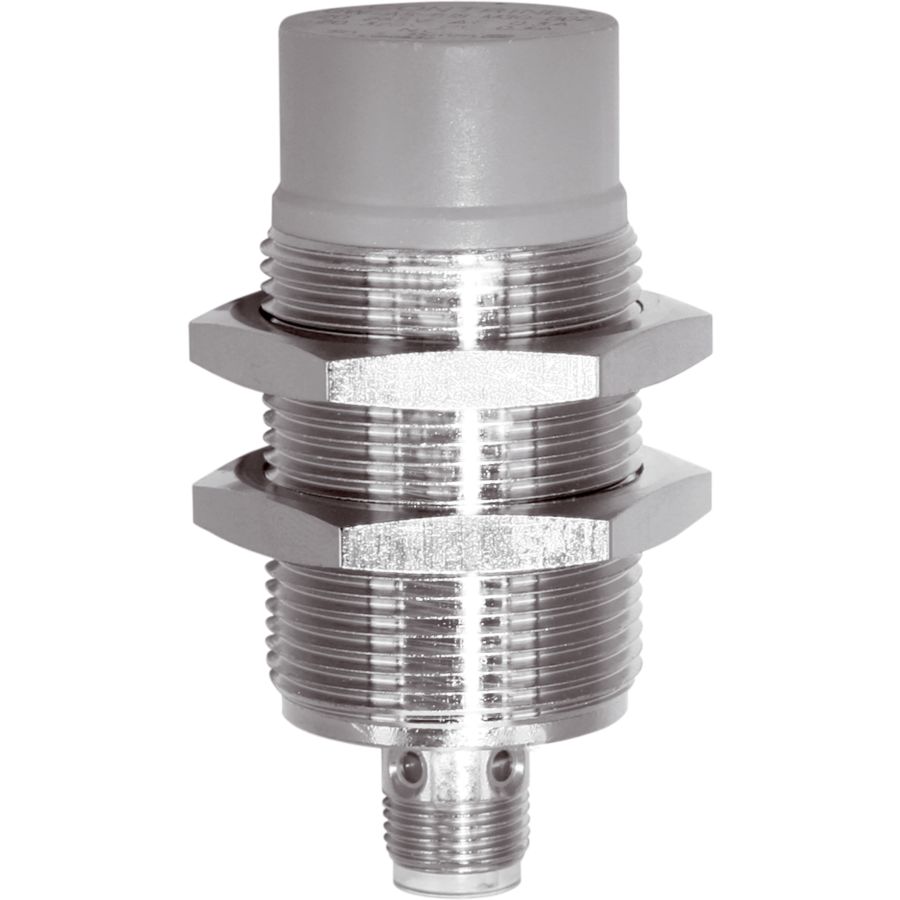

Inductive Proximity Sensor - UCC 30 M 15 S-IBSL
Part Number: UCC 30 M 15 S-IBSL
Article Number: 202525
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Operating principle | inductive |
---|---|
Installation type | non-flush |
Switching distance | 15 mm |
Service voltage | 20 … 250 V AC / 10 … 250 V DC |
Switching output | 200 mA, AC/DC |
No-load current (max.) | 1 mA |
Evaluation | digital |
Design | Thread |
Housing material | Brass, CuZn |

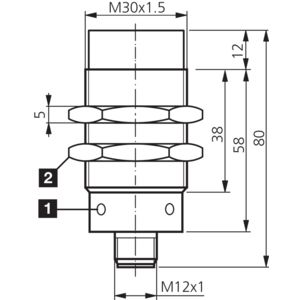

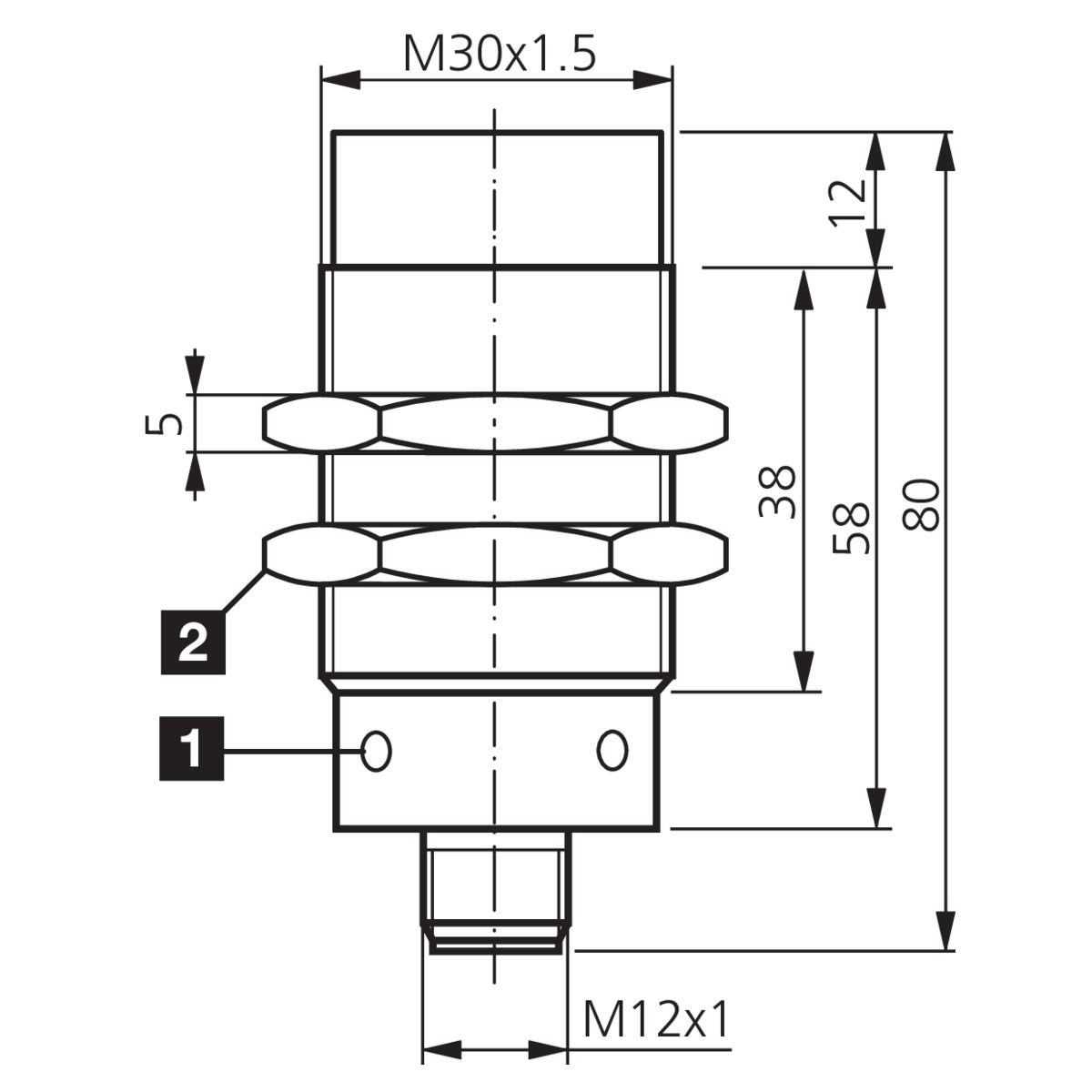

Size | M30 x 1,5 |
Ambient temperature during operation | -25 … +70 °C |
Protection type | IP 67 |

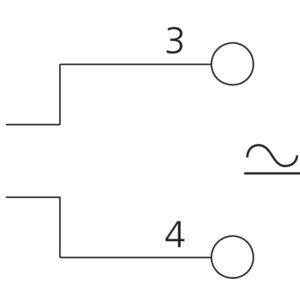

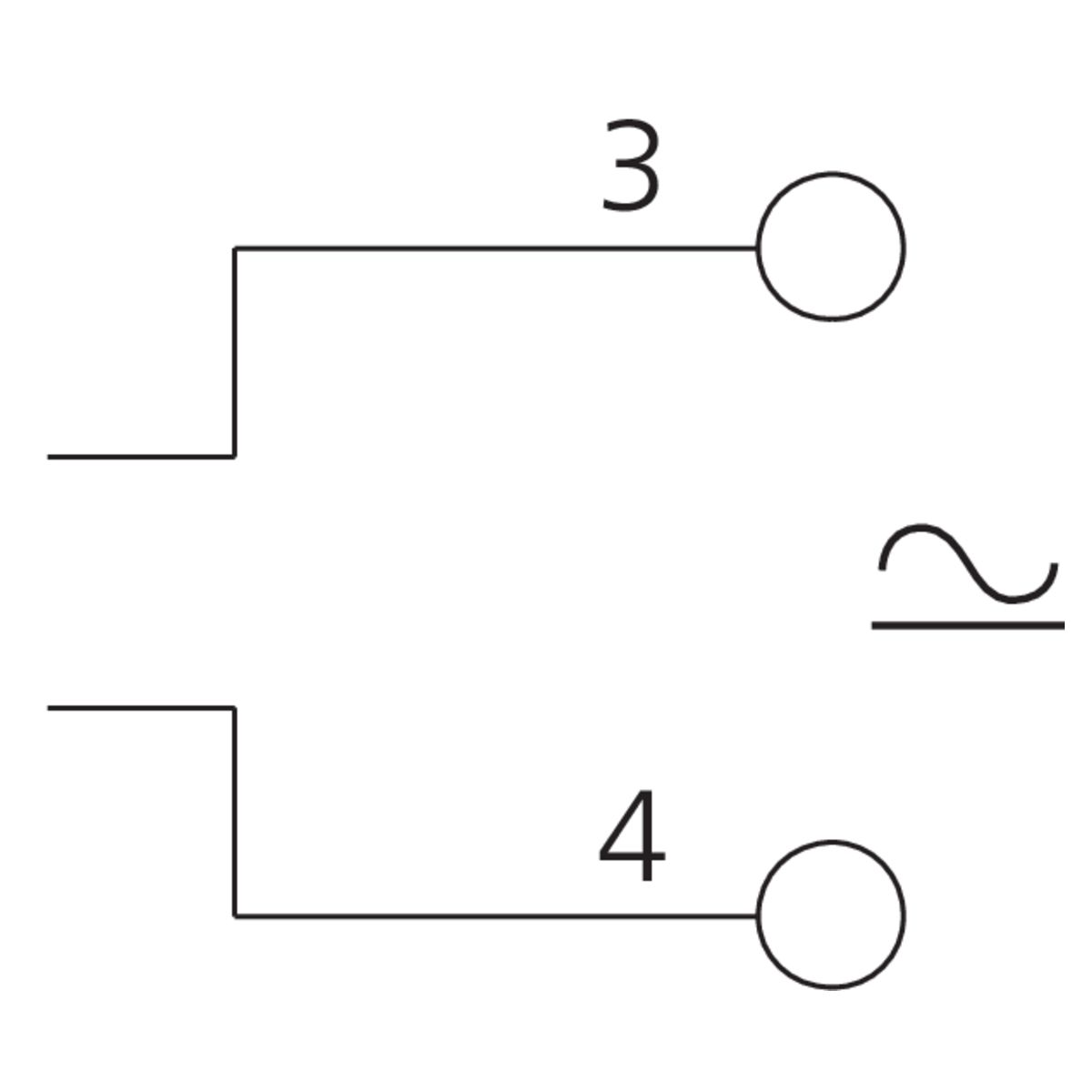

Connection | Connector, M12 |
