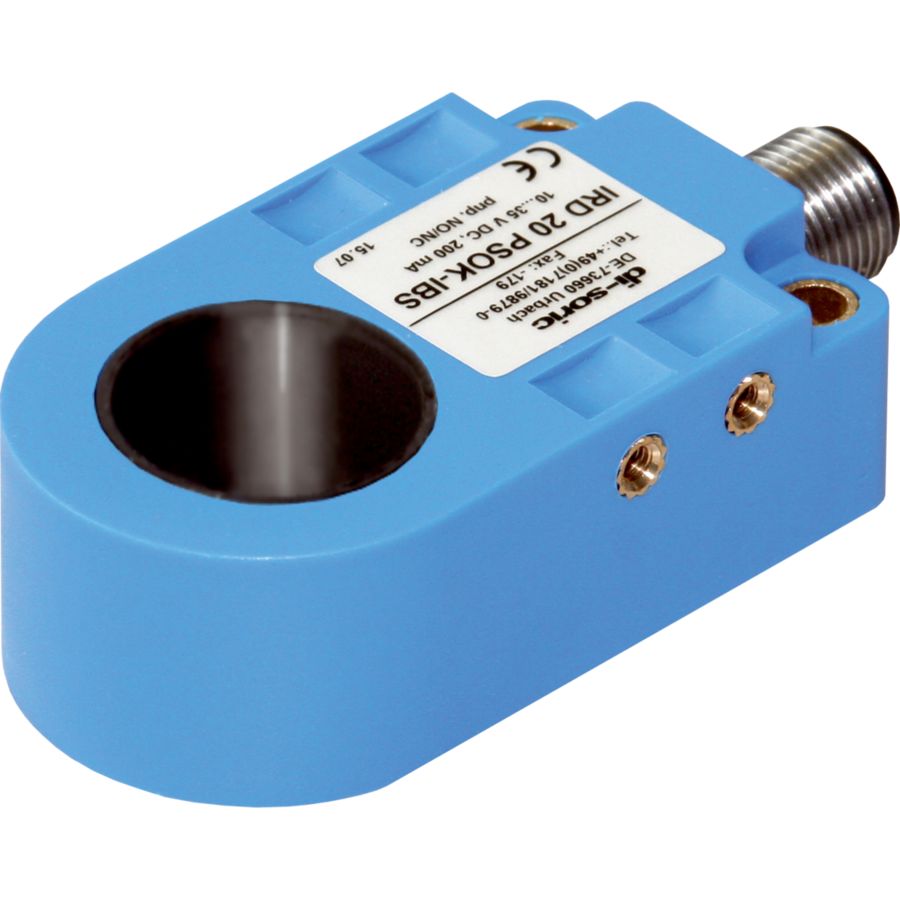

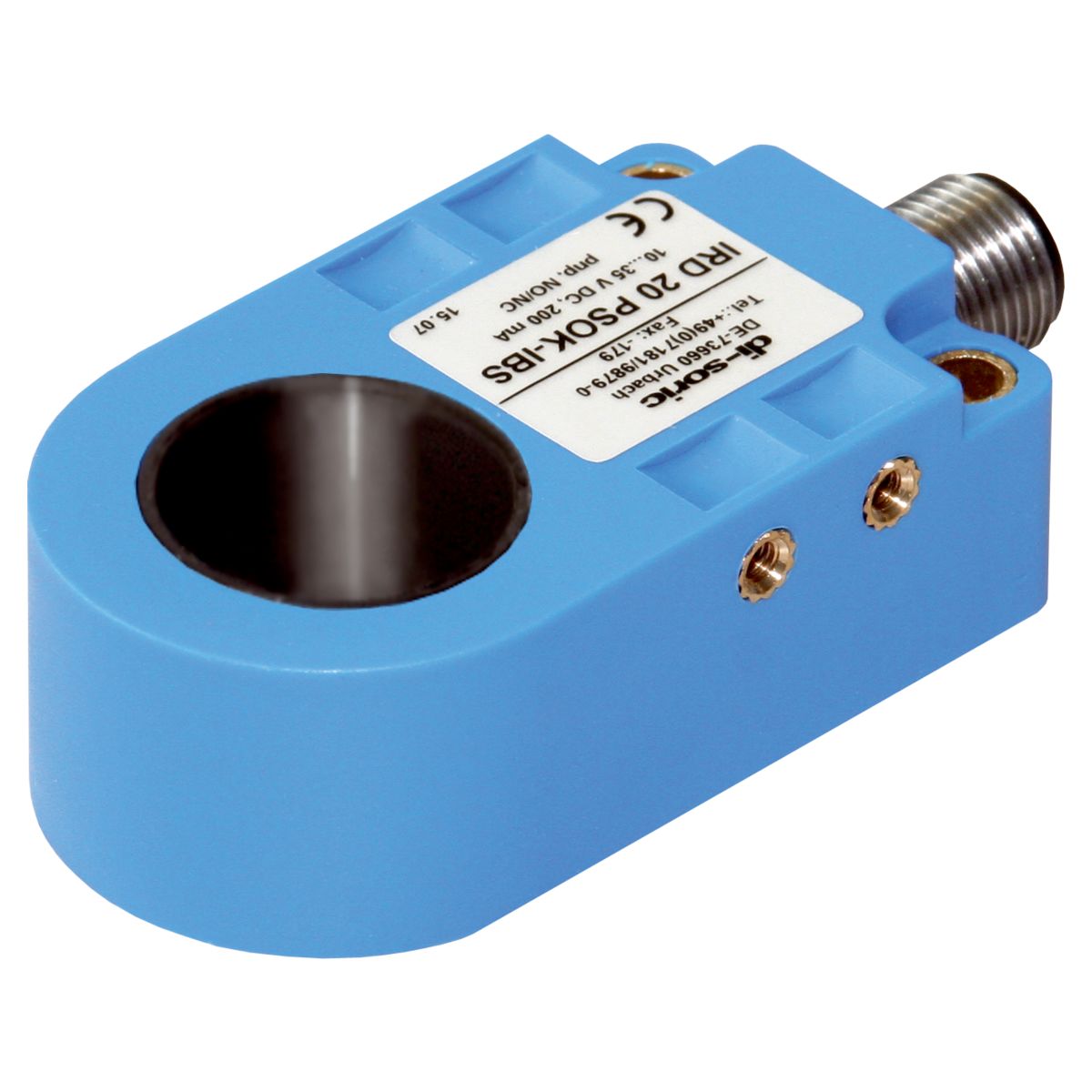

Inductive Ring Sensor - IRD 20 NSOK-IBS
Part Number: IRD 20 NSOK-IBS
Article Number: 205466
Inductive ring sensors are the perfect solution for the detection of metallic parts in automated feeding systems. These sensors are featured by a high resolution and short response time and will be mainly applied for parts detection and stow control.
Inductive ring sensors with dynamic evaluation are featured by an even higher resolution and detect very tiny parts like e.g. springs. The high resolution also stays stable, when the ambient conditions are changing, e. g. metal-containing contamination. di-soric wire break sensors with static function will be used where wires have to be detected in active detection zones.
- Various connector (outlets) available
- Static and dynamic working principle
- High resolution
- Short response time
- Sensitivity and pulse stretching adjustable
- NO/NC switchable
- Insensitive to dirt
- Metal connector
- High protection class
- Compact design
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Dynamic |
|---|---|

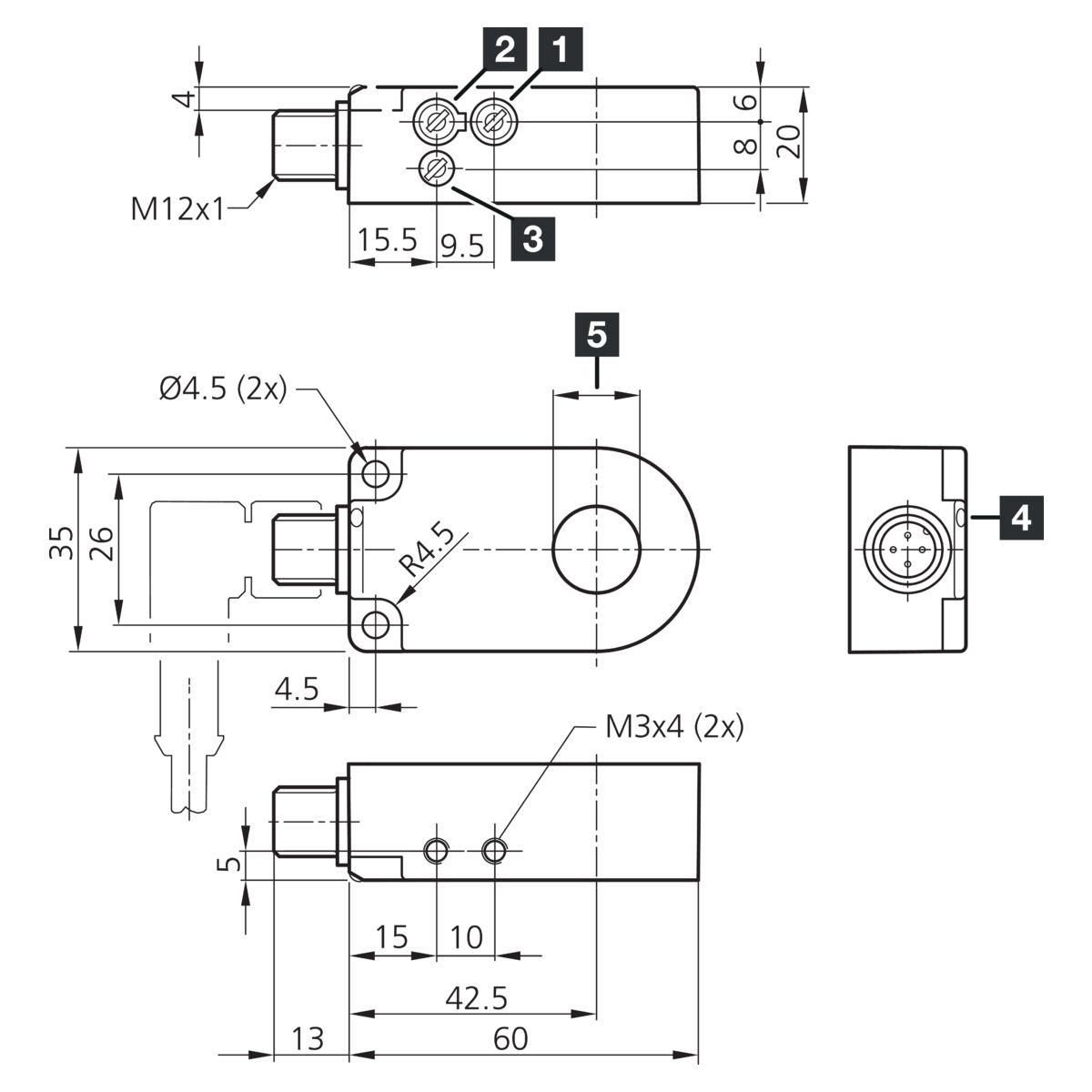

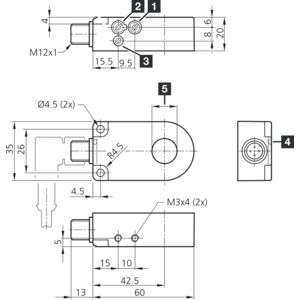

| Internal diameter | 20.1 mm |
| Assembly distance to metal (min.) | 5 mm |
| Service voltage | 10 … 35 V DC (Supply Class 2) |
| Switching output | npn, 200 mA, NO/NC |
| No-load current (max.) | 20 mA |
| Speed of parts (min.) | 0,1 m/s |
| Speed of parts (max.) | 35 m/s |
| Pulse stretching | 0,1 … 150 ms |
| Housing material | Plastic |
| Protection type | IP 67 |
| Ambient temperature during operation | -25 … +70 °C |

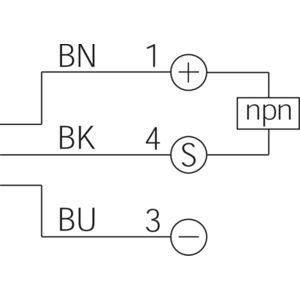

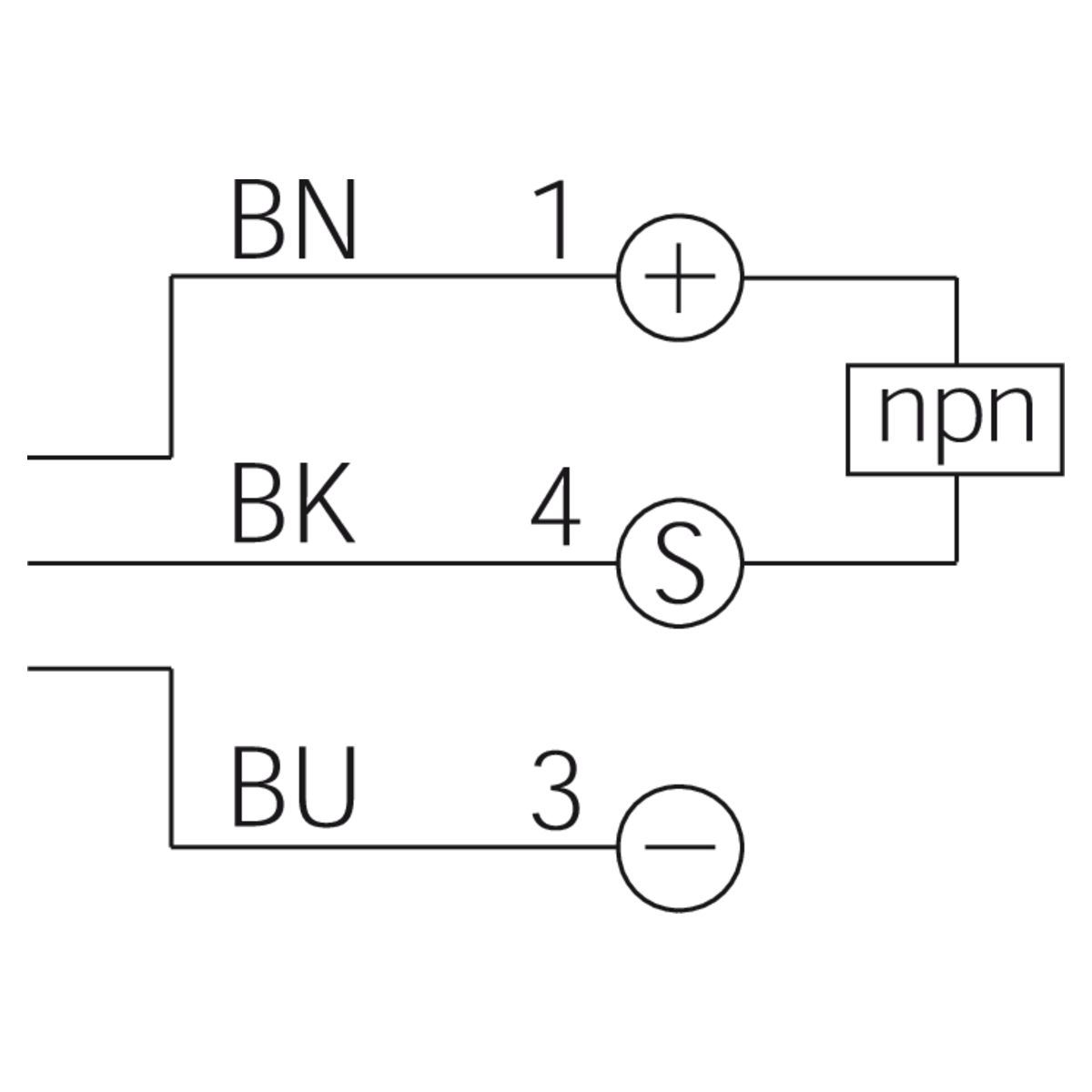

| Connection | Connector, M12, 4-pin |
