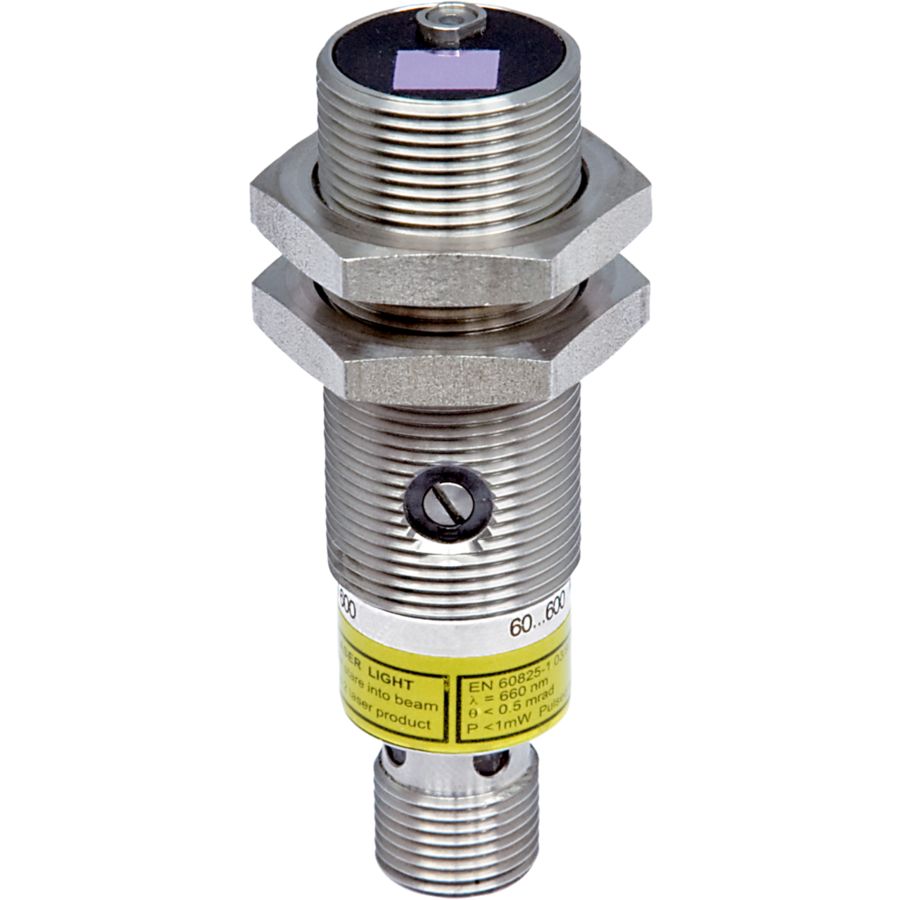

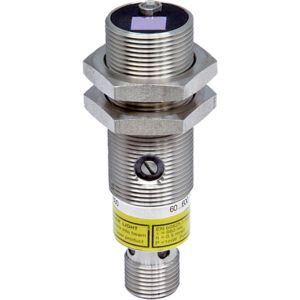

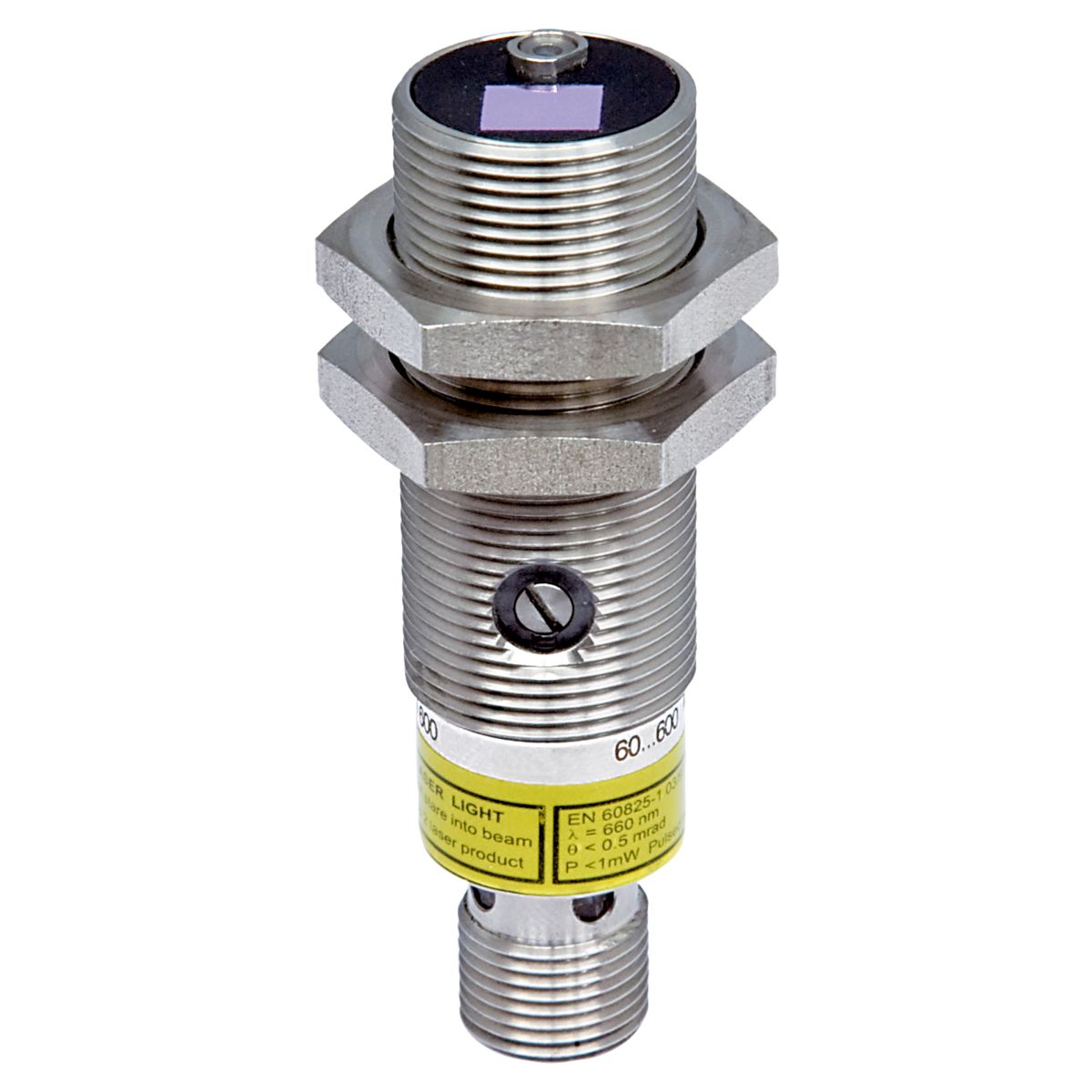

Laser Diffuse Sensor - LTV 18 M 600 P4K-IBSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Diffuse sensor
Transmitter light source	Laser
Light color	red / 660 nm
Laser class	2 (IEC 60825-1)
Scanning range	60 … 600 mm
Service voltage	10 … 36 V DC
Switching output	pnp, 200 mA, antivalent
Ambient temperature during operation	-10 … +50 °C
Protection class	III, operation on protective low voltage

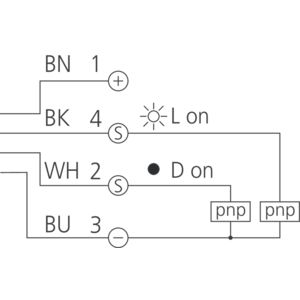

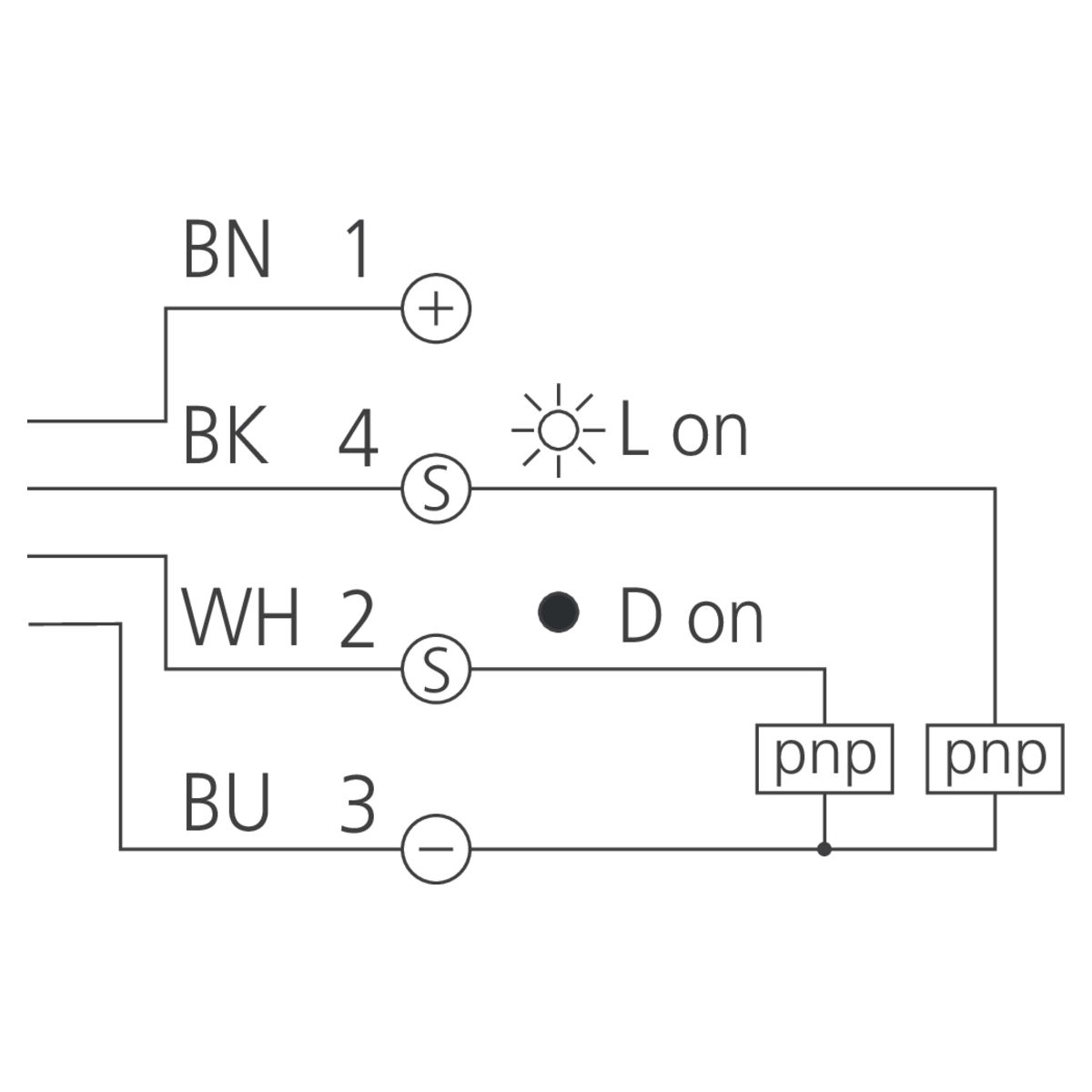

Connection	Connector, M12, 4-pin
