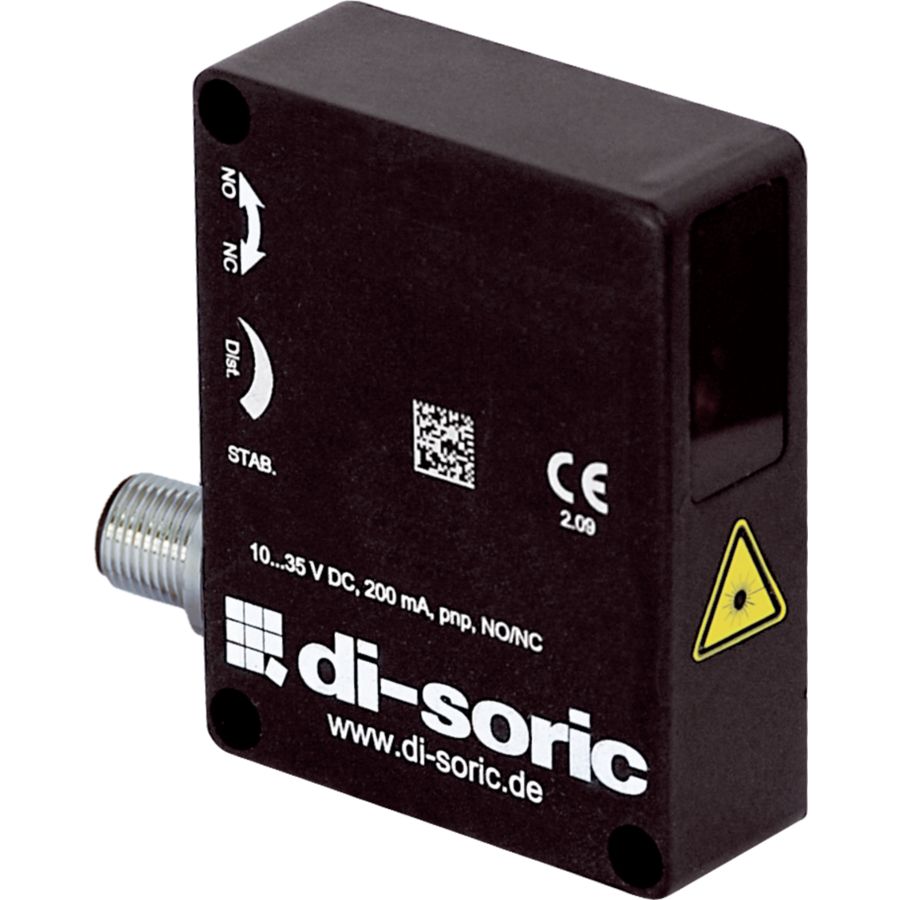

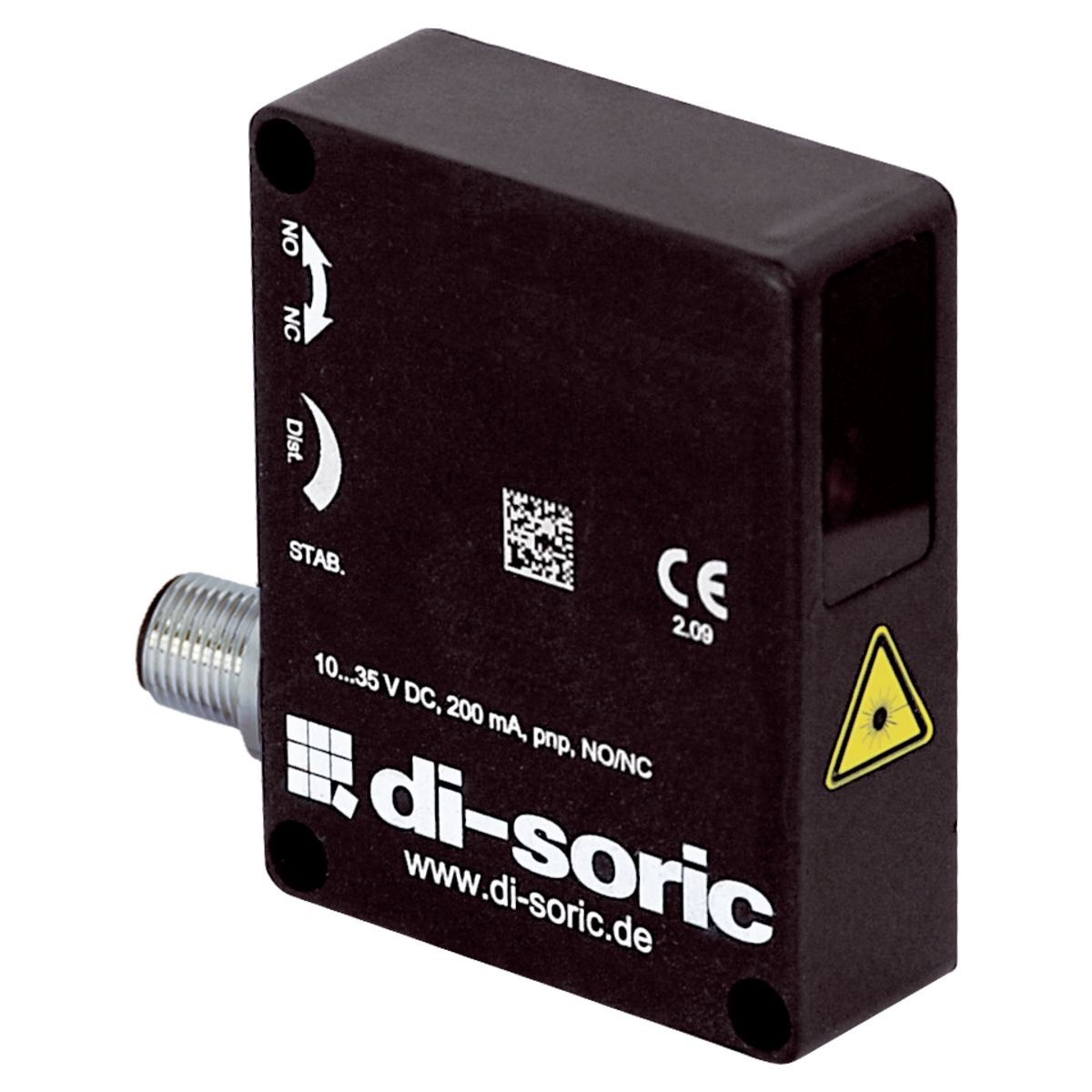

Laser Diffuse Sensor - LTV 51 M 200 P3K-IBS

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Diffuse sensor
Transmitter light source	Laser
Light color	red / 650 nm
Laser class	1 (IEC 60825-1)
Scanning range	75 … 200 mm
Service voltage	10 … 35 V DC
Switching output	pnp, 200 mA, NO/NC
Ambient temperature during operation	0 … +45 °C
Protection class	III, operation on protective low voltage
Connection	Connector, M12, 3-pin
