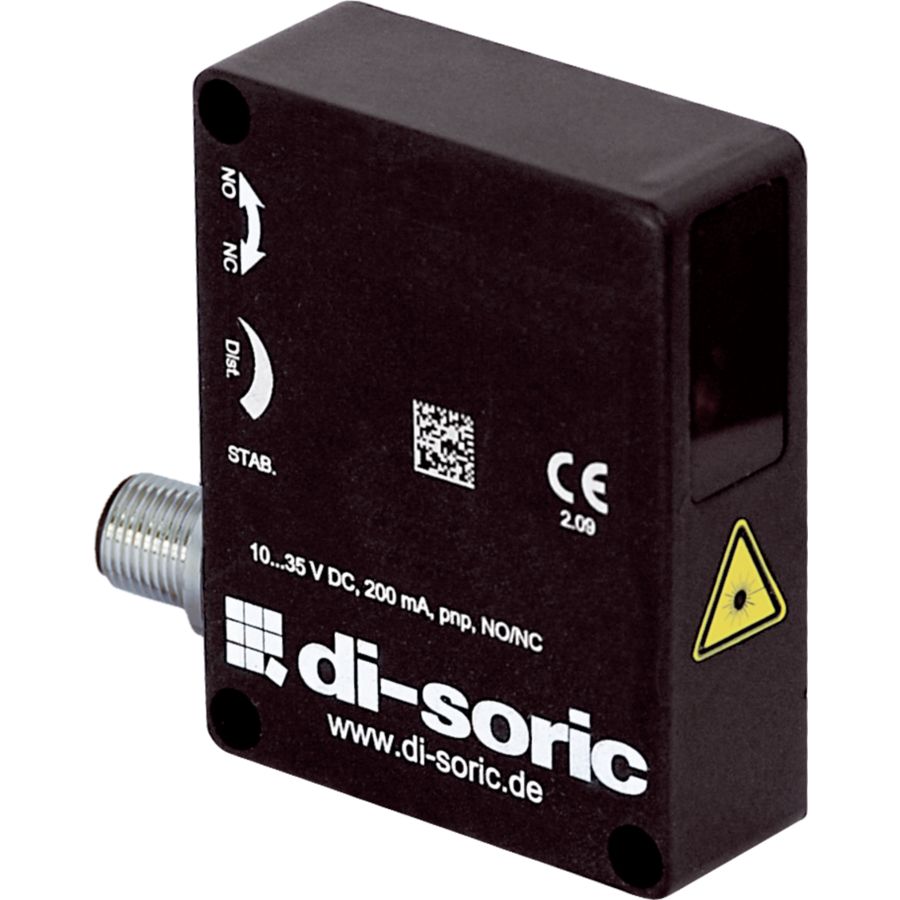

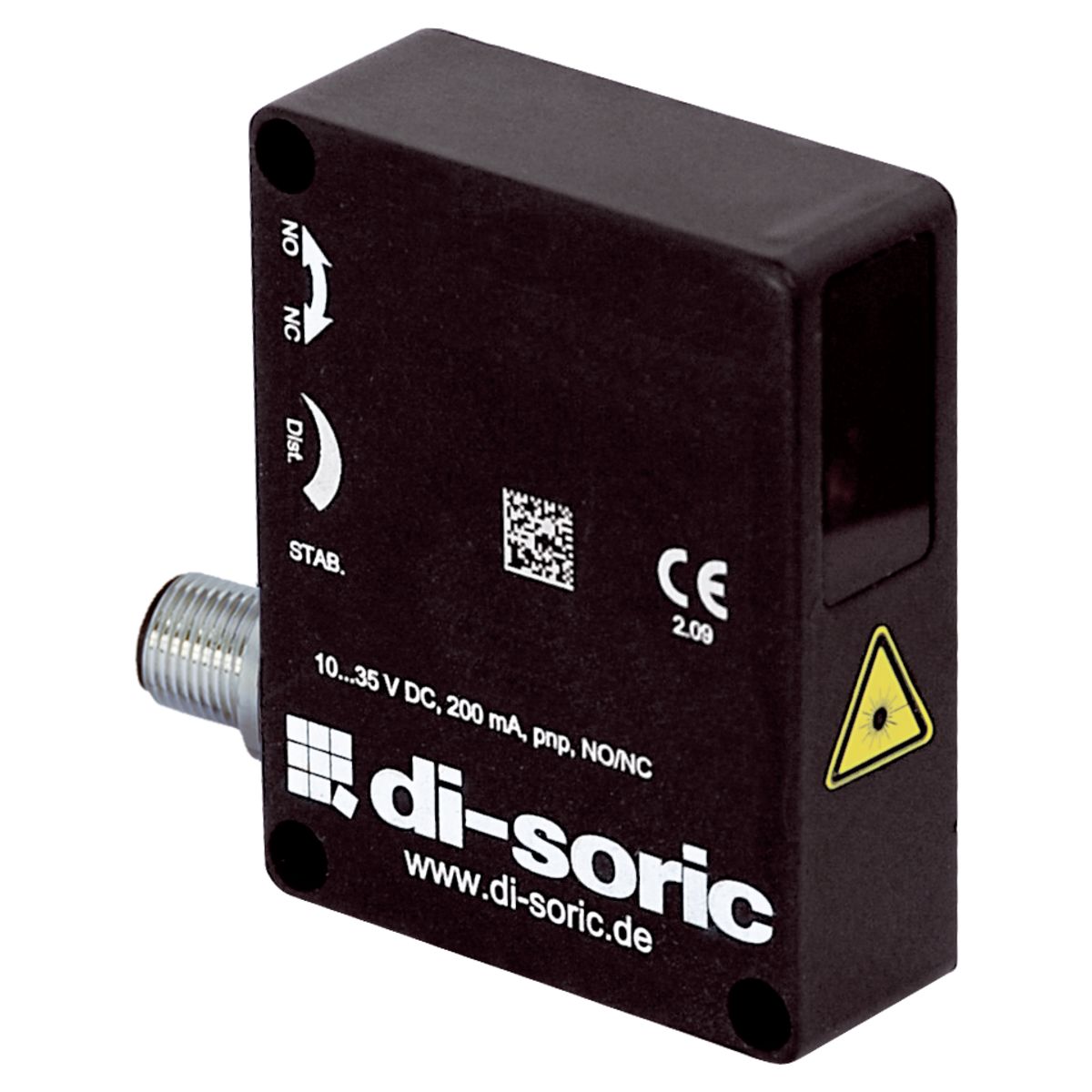

Laser Diffuse Sensor - LTVTI 51 M 600 FP3K-IBS
Part Number: LTVTI 51 M 600 FP3K-IBS
Article Number: 204057
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Operating principle | Diffuse sensor |
---|---|
Transmitter light source | Laser |
Light color | red / 650 nm |
Laser class | 1 (IEC 60825-1) |
Scanning range | 100 … 600 mm |
Service voltage | 10 … 35 V DC |
Switching output | pnp, 200 mA, NO/NC |
Ambient temperature during operation | -10 … +50 °C |
Protection class | III, operation on protective low voltage |

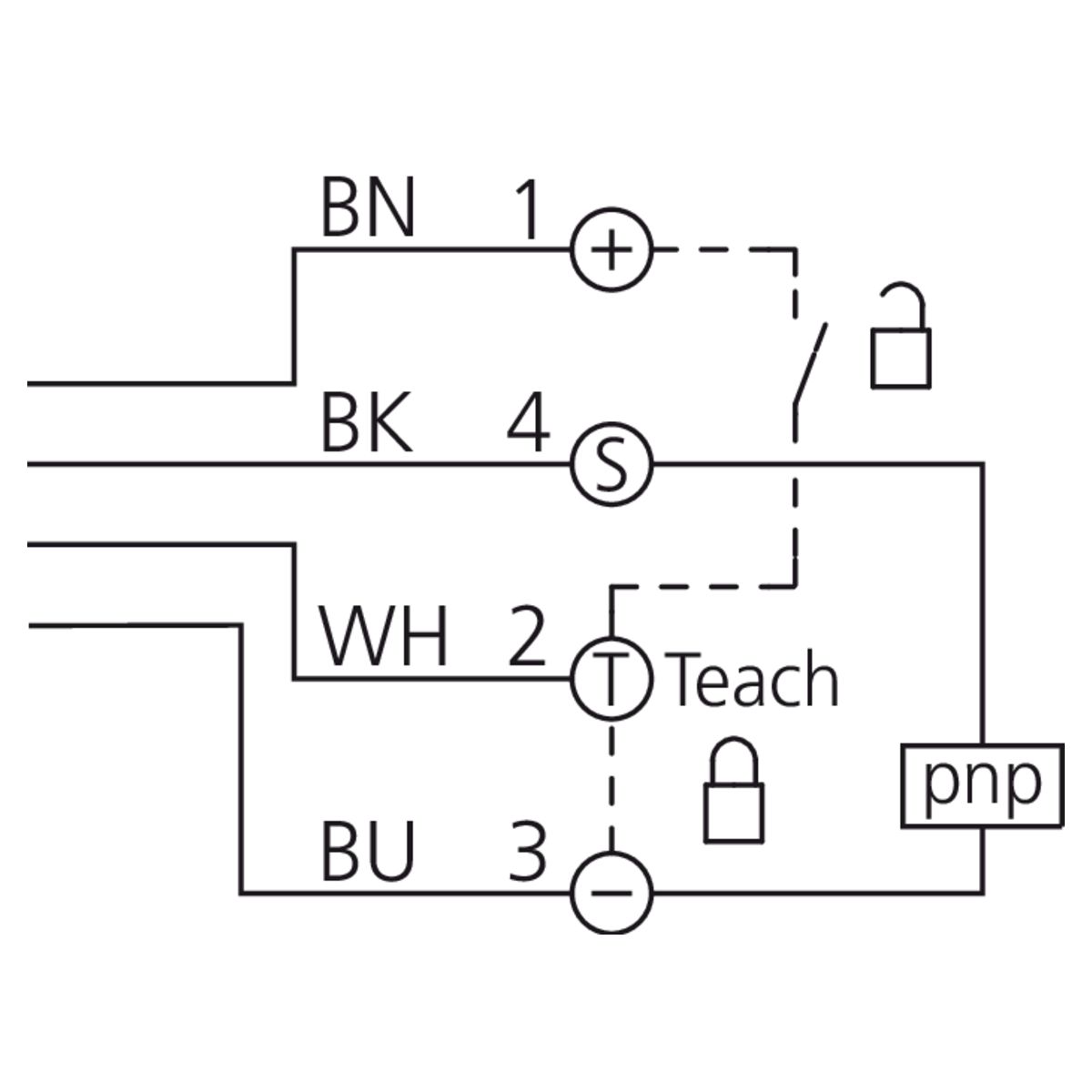

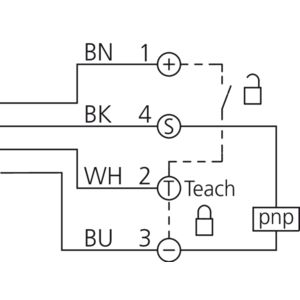

Connection | Connector, M12, 4-pin |
