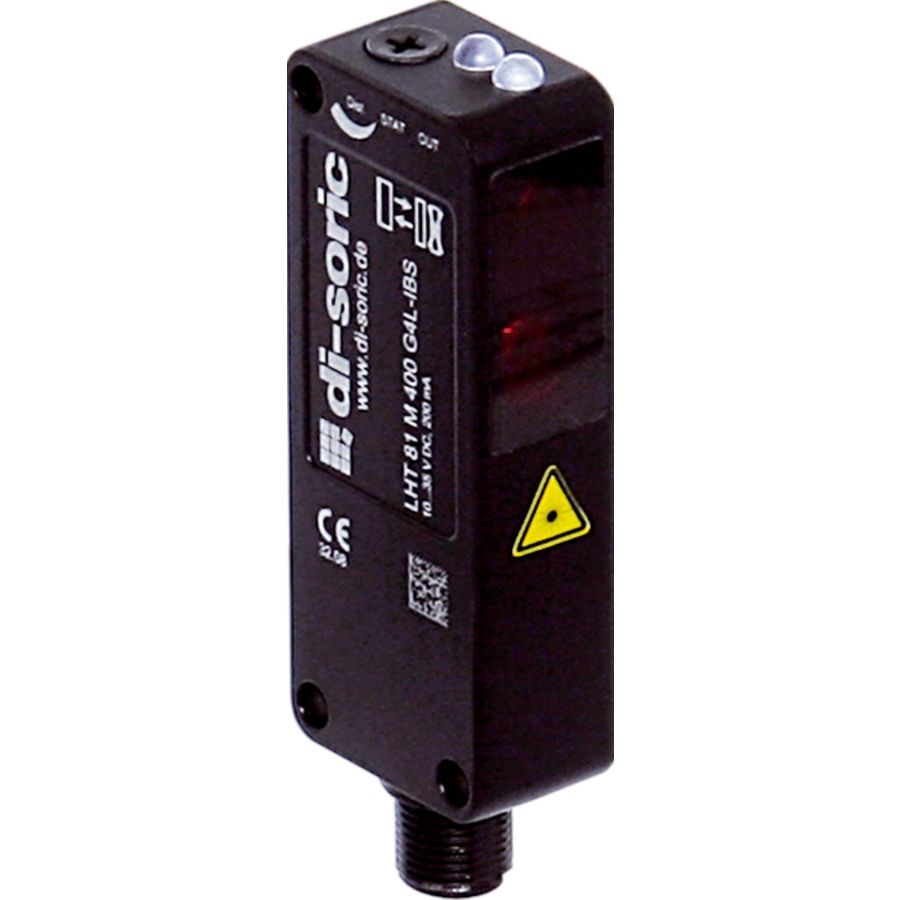

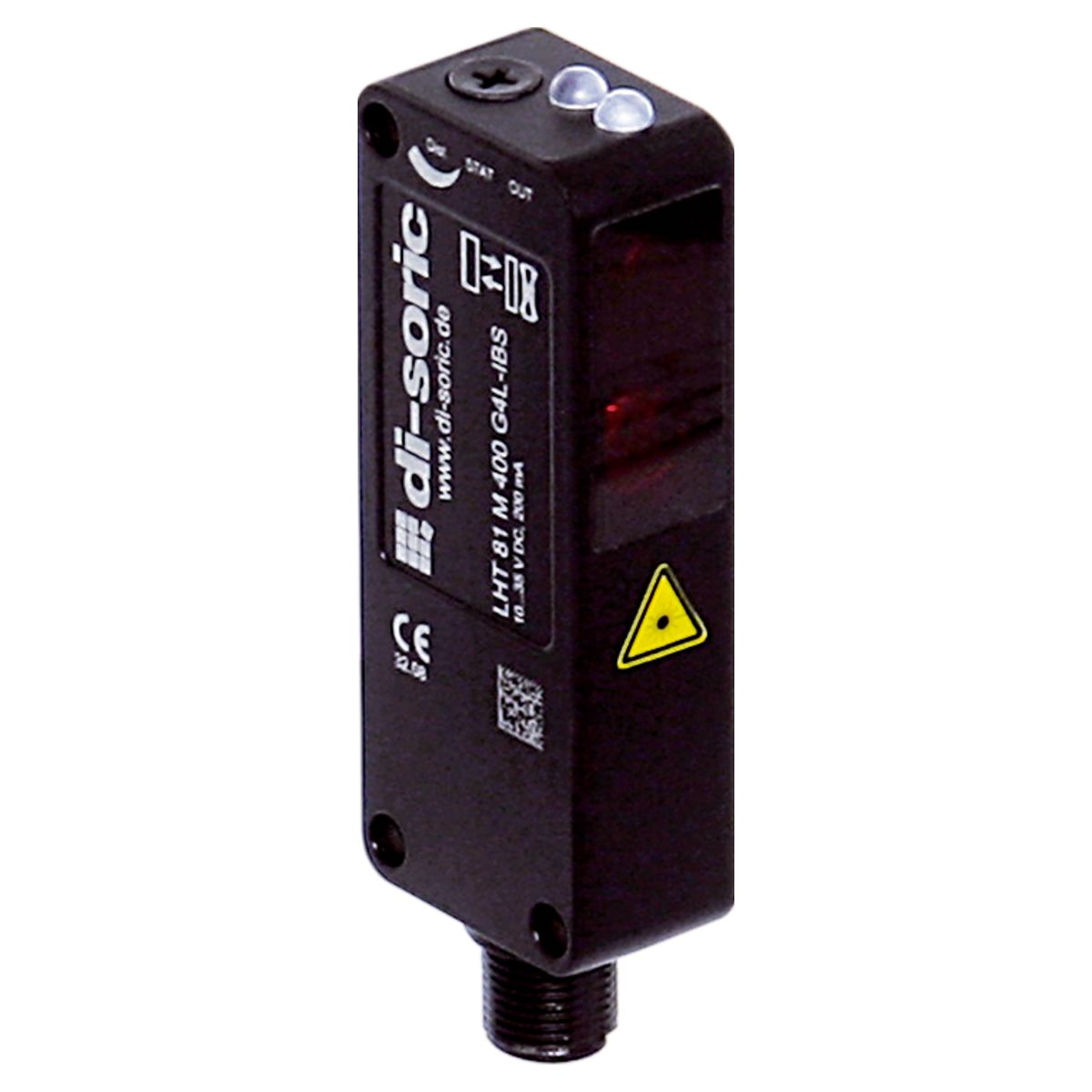

Laser Diffuse Sensor With Background Suppression - LHT 81 M 400 G4L-IBS

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Diffuse sensor with background suppression
Transmitter light source	Laser
Light color	red / 650 nm
Laser class	2 (IEC 60825-1)
Scanning range	40 … 400 mm
Service voltage	10 … 35 V DC

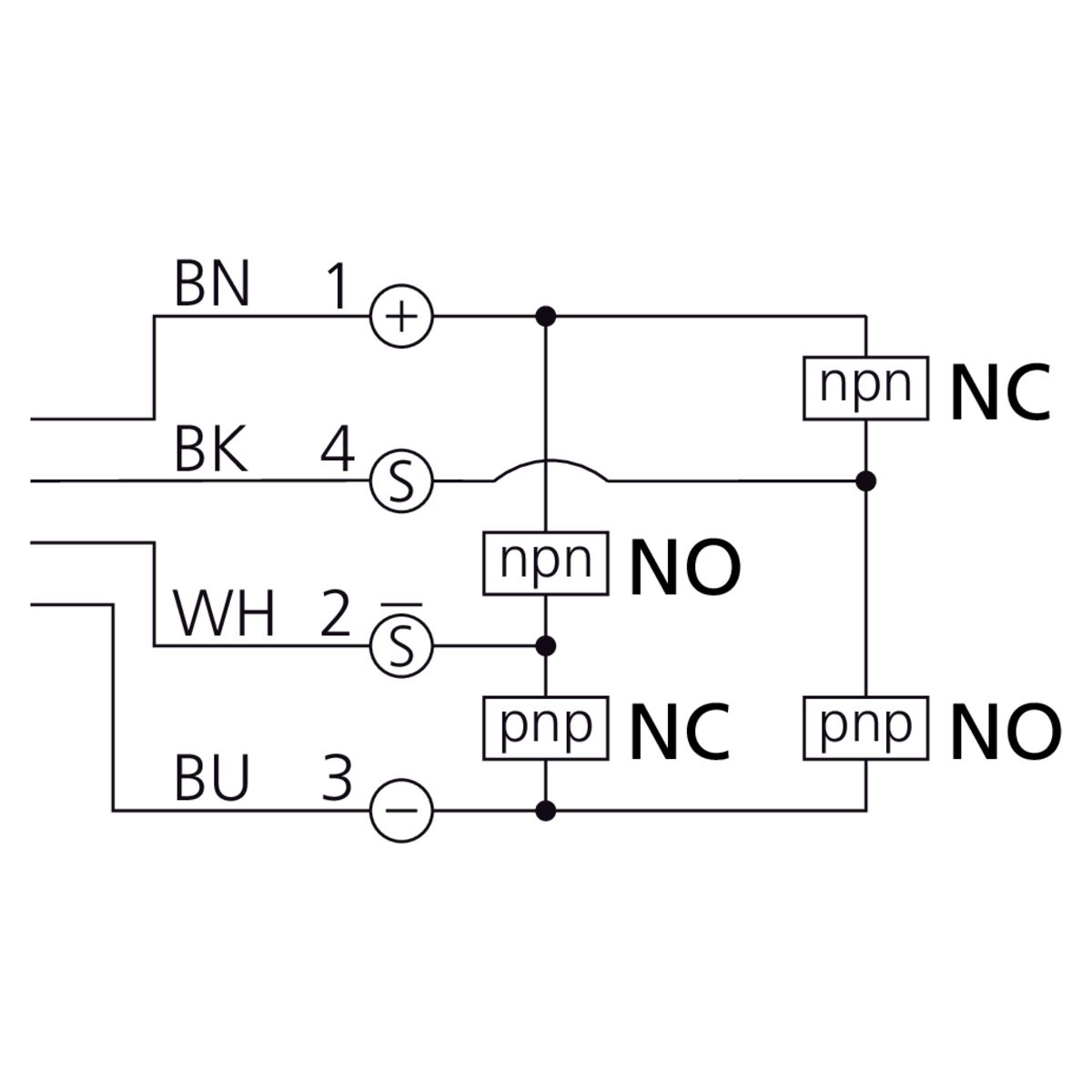

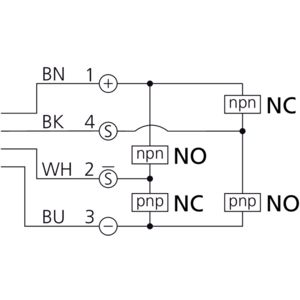

Switching output	Push-pull, 200 mA, NO/NC, antivalent
Ambient temperature during operation	-20 … +60 °C
Protection class	III, operation on protective low voltage
Connection	Connector, M12, 4-pin
