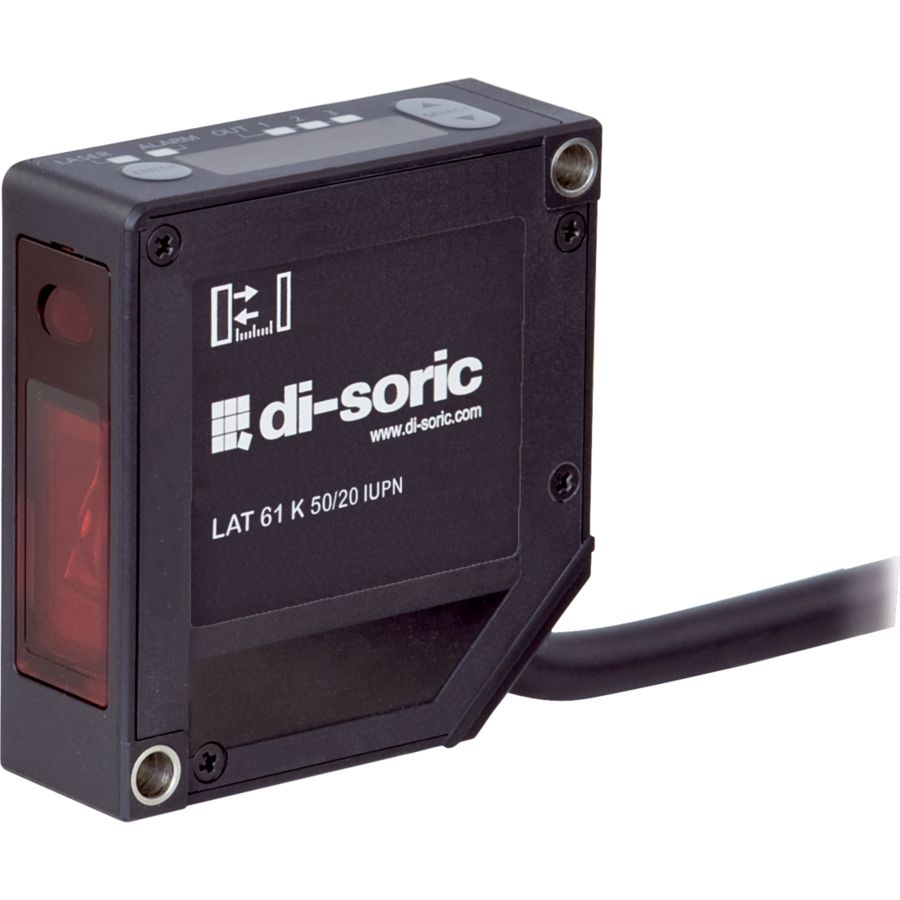

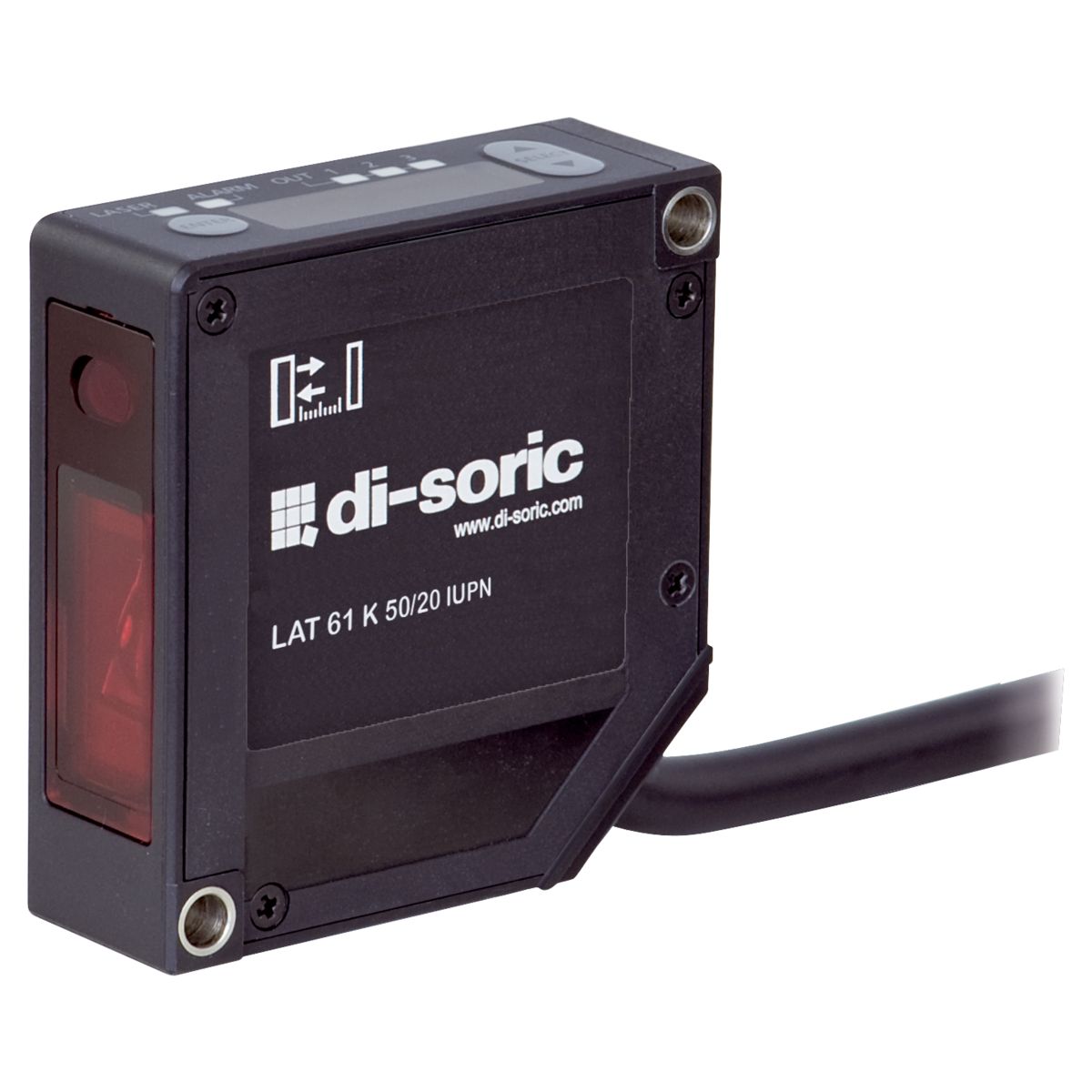

Laser Distance Sensor - LAT 61 K 85/40 IUPN
Part Number: LAT 61 K 85/40 IUPN
Article Number: 206992
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Transmitter light source | Laser |
|---|---|
| Laser class | 2 (IEC 60825-1) |
| Detection range | 65 … 105 mm |
| Resolution | 2,5 µm |
| Light color | red / 665 nm |
| Service voltage | 24 V DC (± 10%) |
| Switching output | pnp/npn, 50 mA, NO/NC |
| Analog output voltage | 0 … 10 V (linearized) |
| Analog output current | 4 … 20 mA (linearized) |
| Housing material | Plastic |

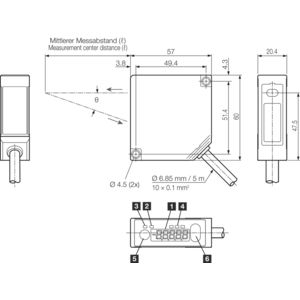

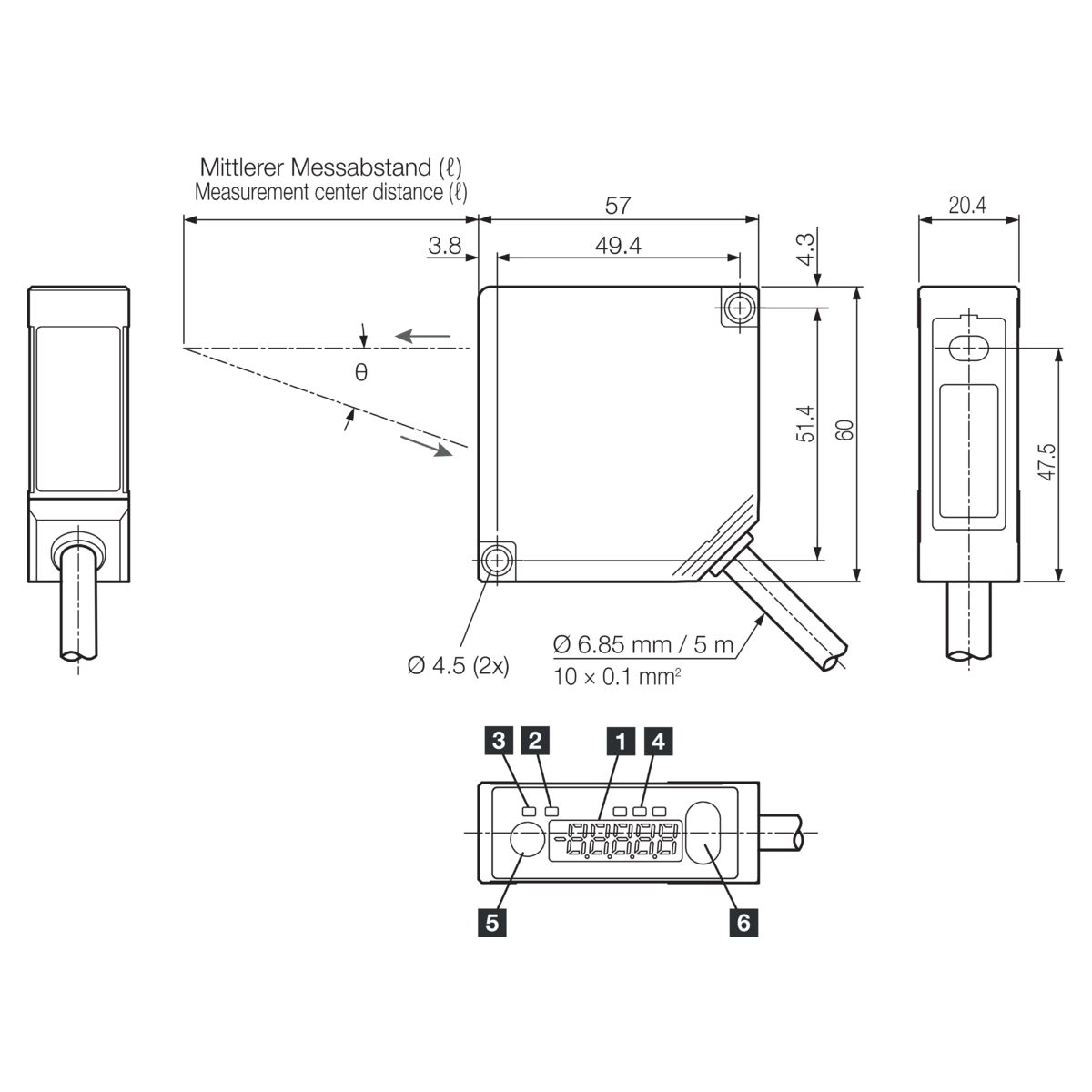

| Size | 60 x 57 x 20 mm |
| Ambient temperature during operation | -10 … +45 °C |
| Protection type | IP 67 |
| Connection | Cable, 5 m, 10-pin |
