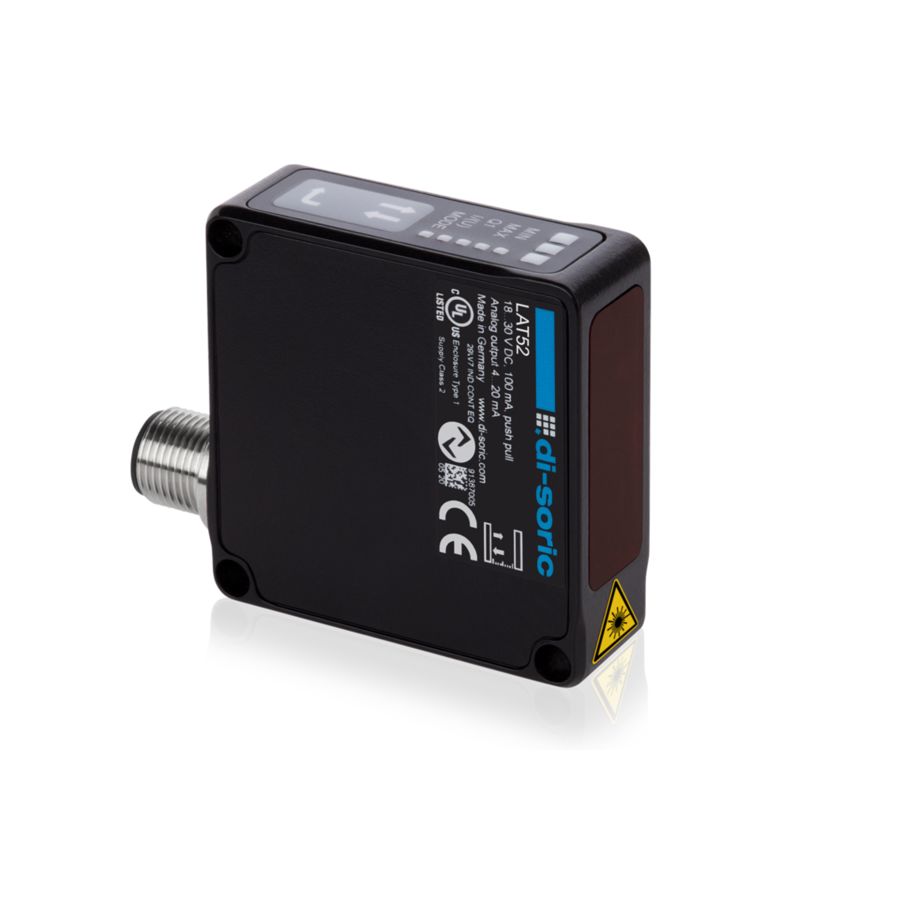

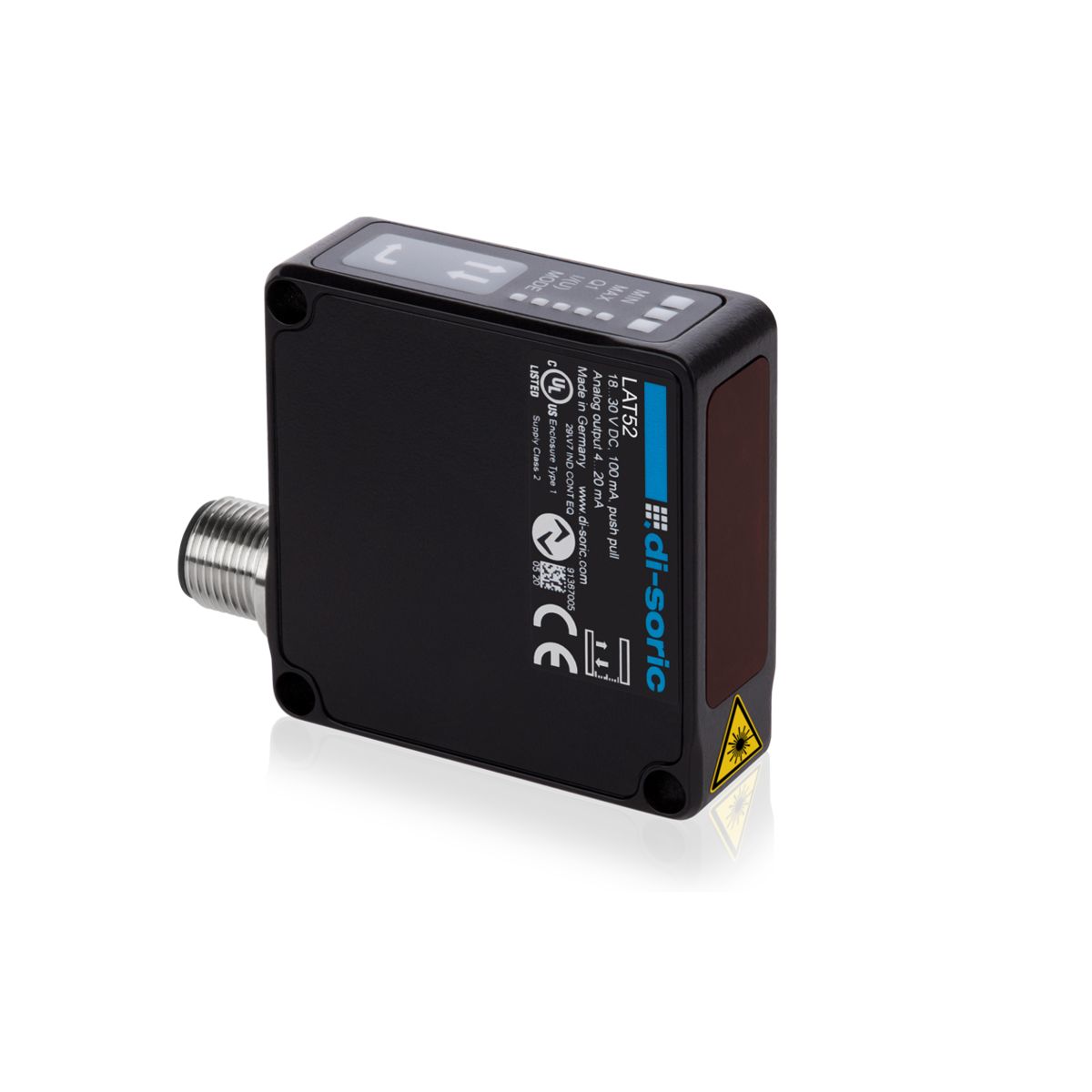

Laser Distance Sensor - LAT52-500IU-B5
Part Number: LAT52-500IU-B5
Article Number: 212857
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Transmitter light source | Laser |
|---|---|
| Laser class | 1 (IEC 60825-1) |
| Detection range | 50 … 500 mm |
| Resolution | 0,3 mm |
| Service voltage | 18 … 30 V DC |
| Switching output | Push-pull, 100 mA |
| Analog output voltage | 0 … 10 V |
| Analog output current | 4 … 20 mA |
| Housing material | Aluminum, Black (Anodized) |
| Ambient temperature during operation | 0 … +50 °C |
| Protection type | IP 67 |

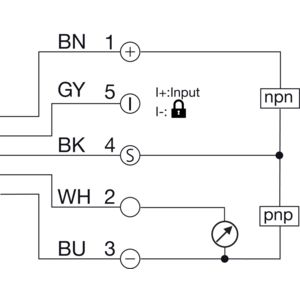

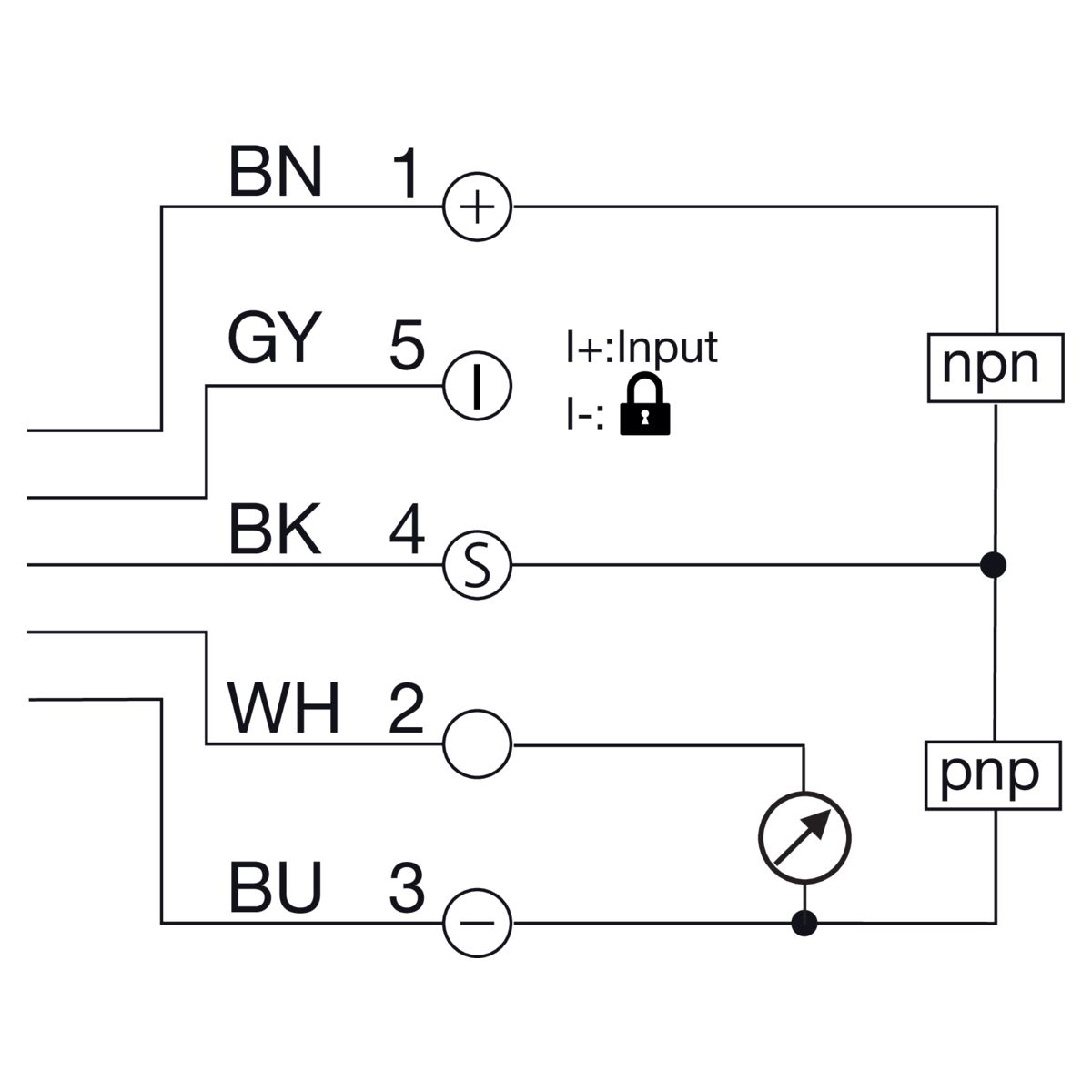

| Connection | Connector, M12, 5-pin |
