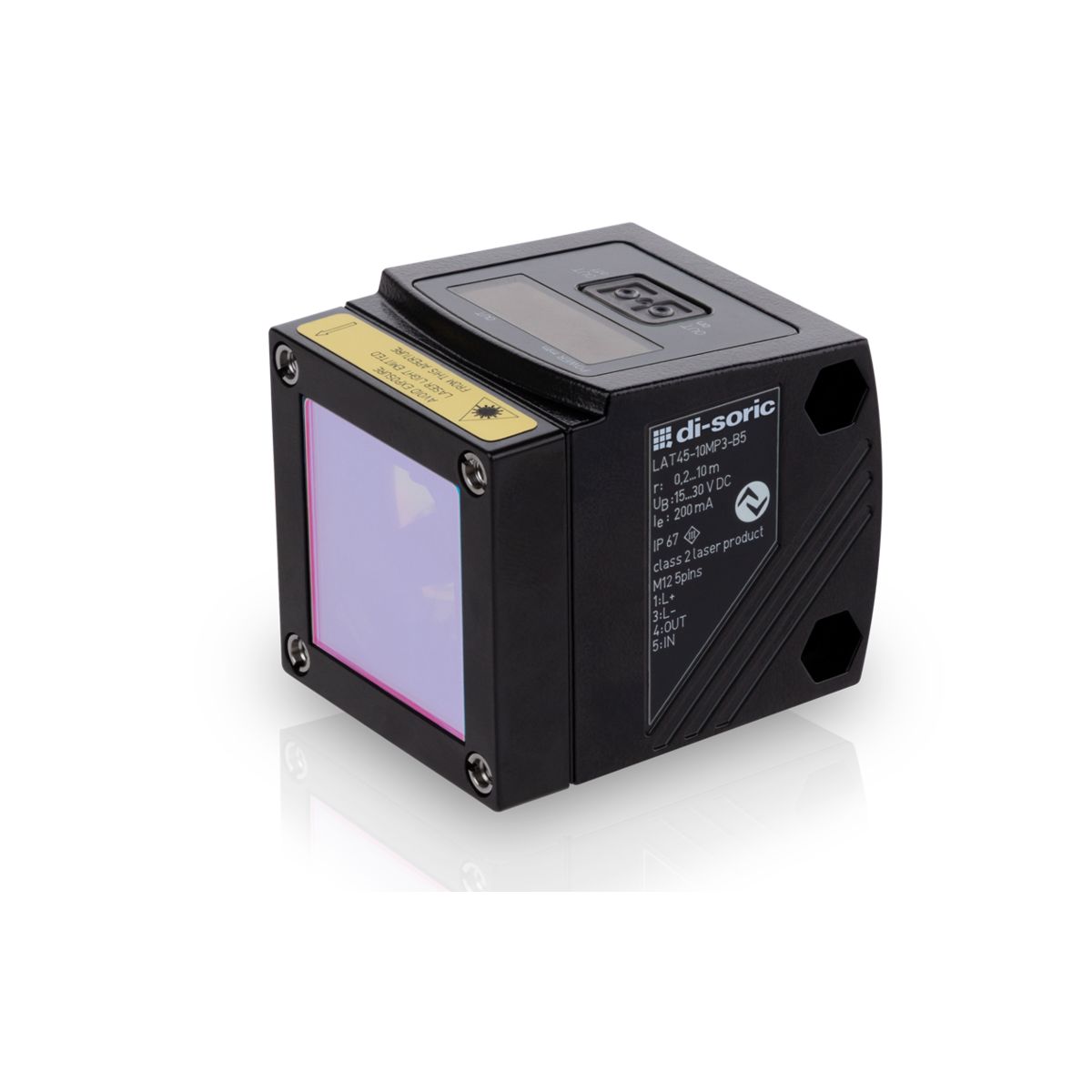

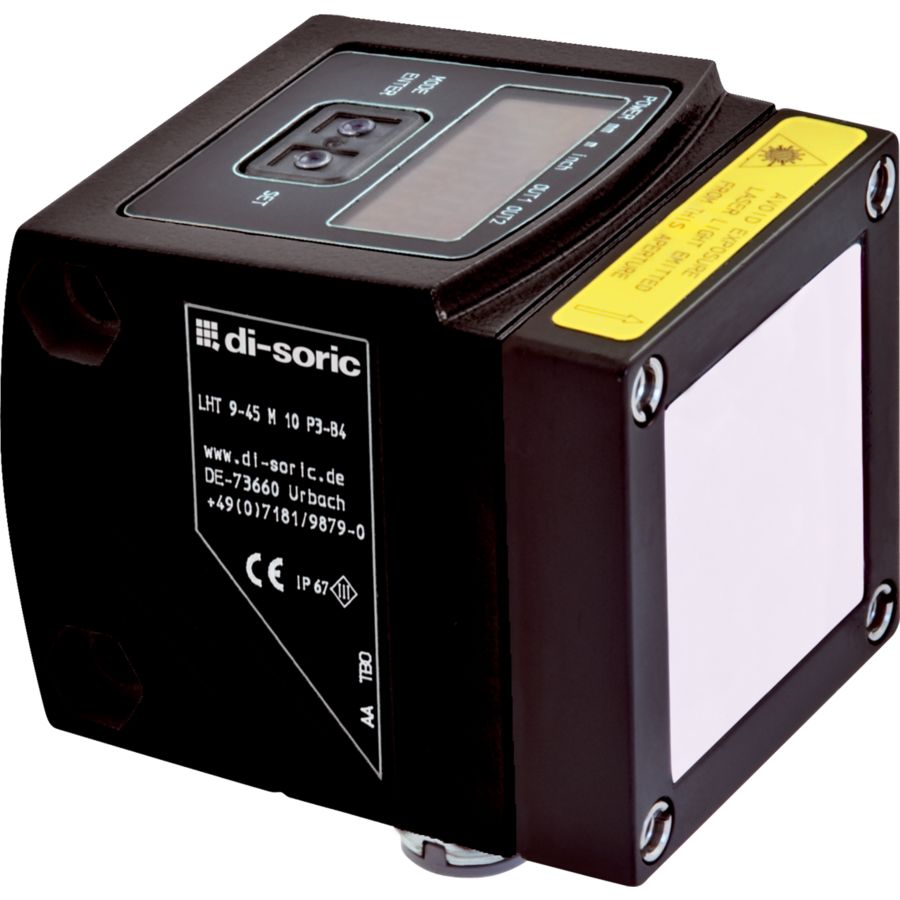

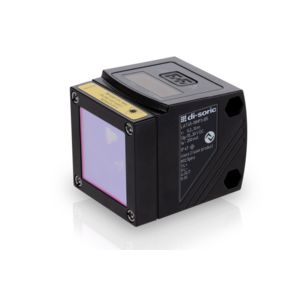

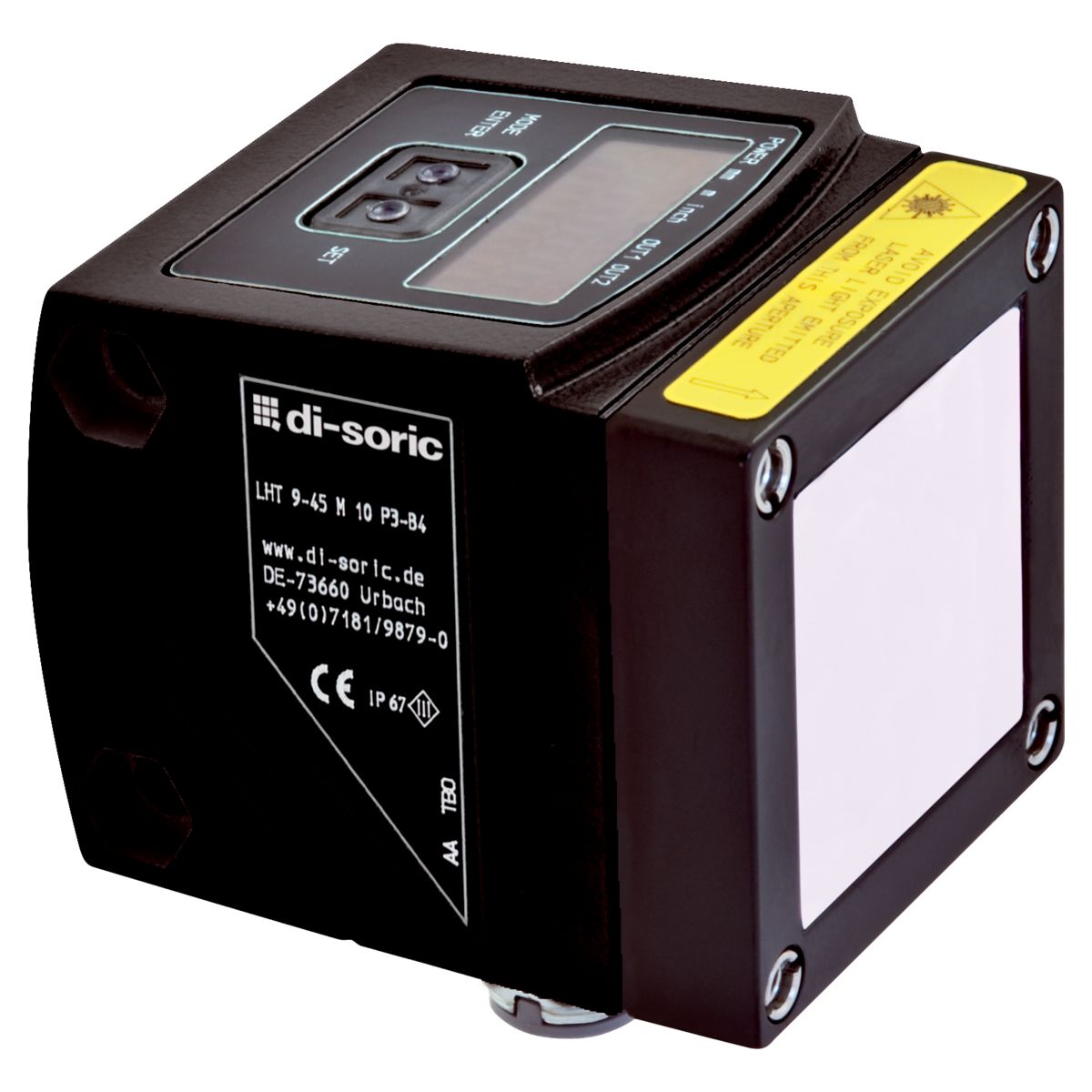

Laser Distance Sensor - LHT 9-45 M 10 P3-B4

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Transmitter light source	Laser
Laser class	2 (IEC 60825-1)
Detection range	200 … 10.000 mm
Light color	red / 650 nm
Service voltage	10 … 30 V DC
Switching output	pnp, 200 mA, NO/NC
Housing material	Die-cast zinc, Black (painted)

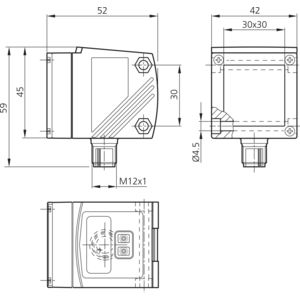

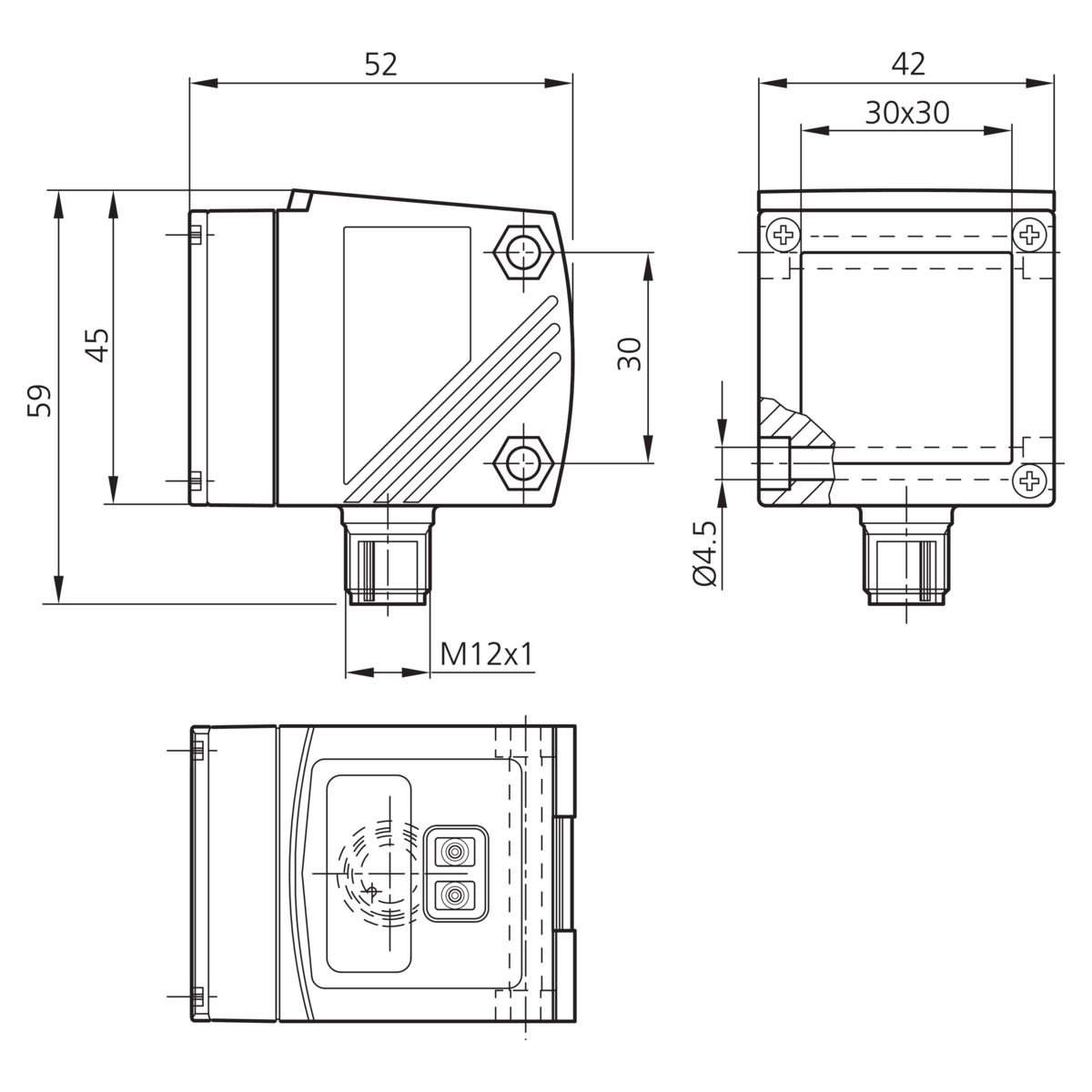

Size	45 x 52 x 42 mm
Ambient temperature during operation	-10 … +60 °C
Protection type	IP 67
Connection	Connector, M12, 3-pin
