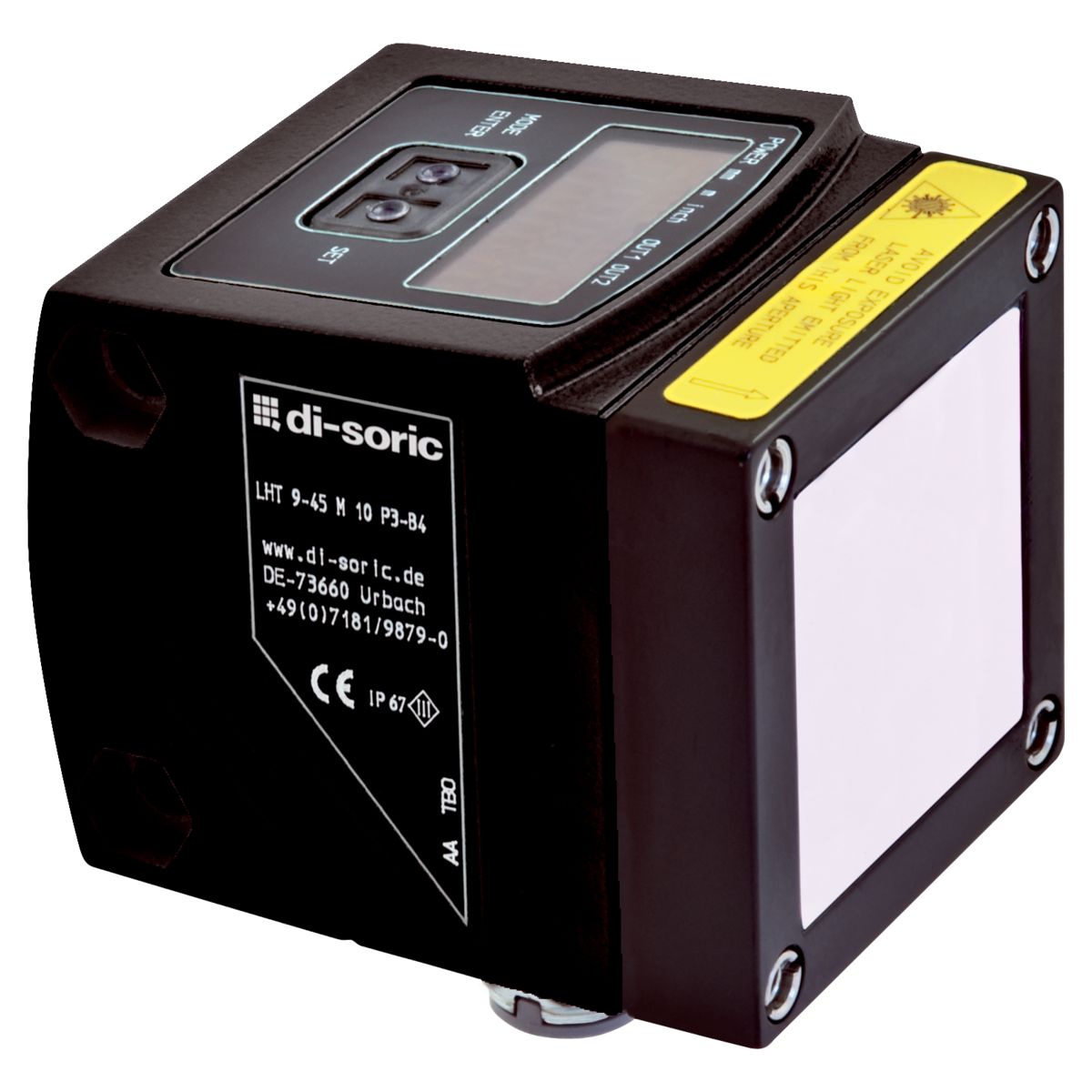

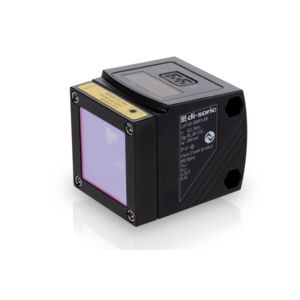

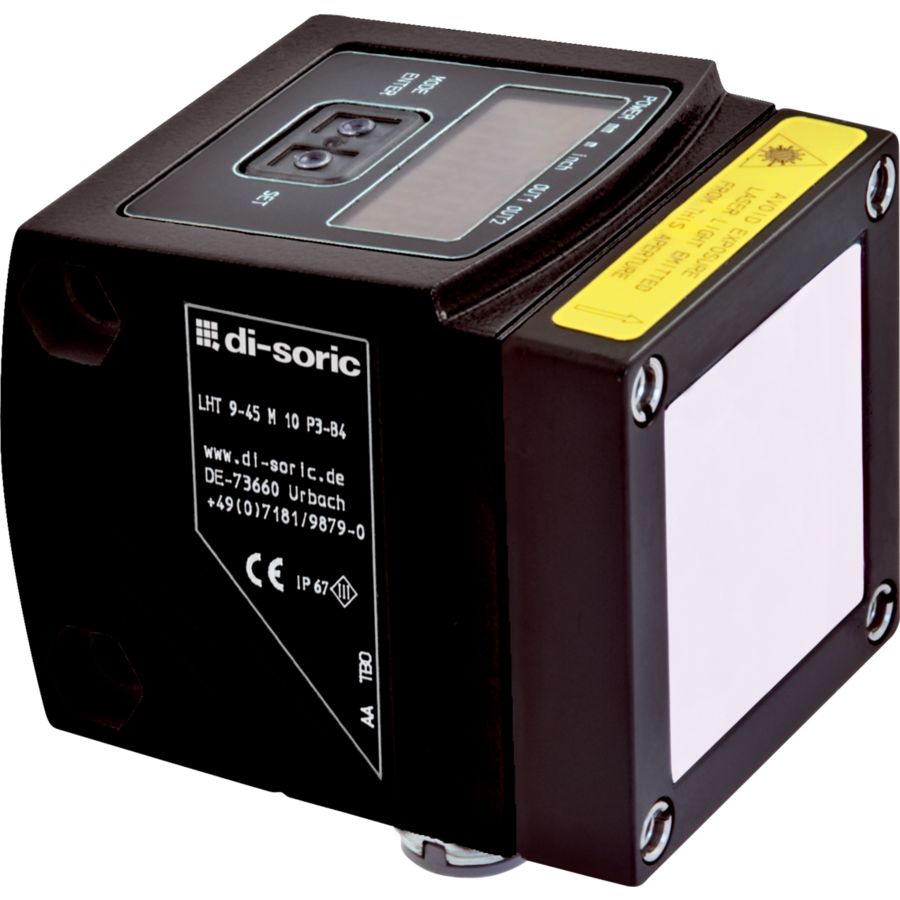

Laser Distance Sensor - LHT 9-45 M 10 P3IU-B4
Part Number: LHT 9-45 M 10 P3IU-B4
Article Number: 204712
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Transmitter light source | Laser |
|---|---|
| Laser class | 2 (IEC 60825-1) |
| Detection range | 200 … 10.000 mm |
| Light color | red / 650 nm |
| Service voltage | 18 … 30 V DC |
| Switching output | pnp, 200 mA, NO/NC |
| Analog output voltage | 0 … 10 V (linearized) |
| Analog output current | 4 … 20 mA (linearized) |
| Housing material | Die-cast zinc, Black (painted) |

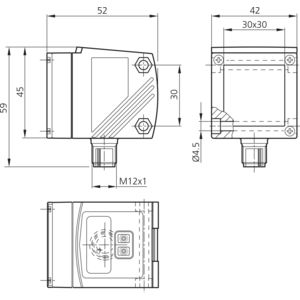

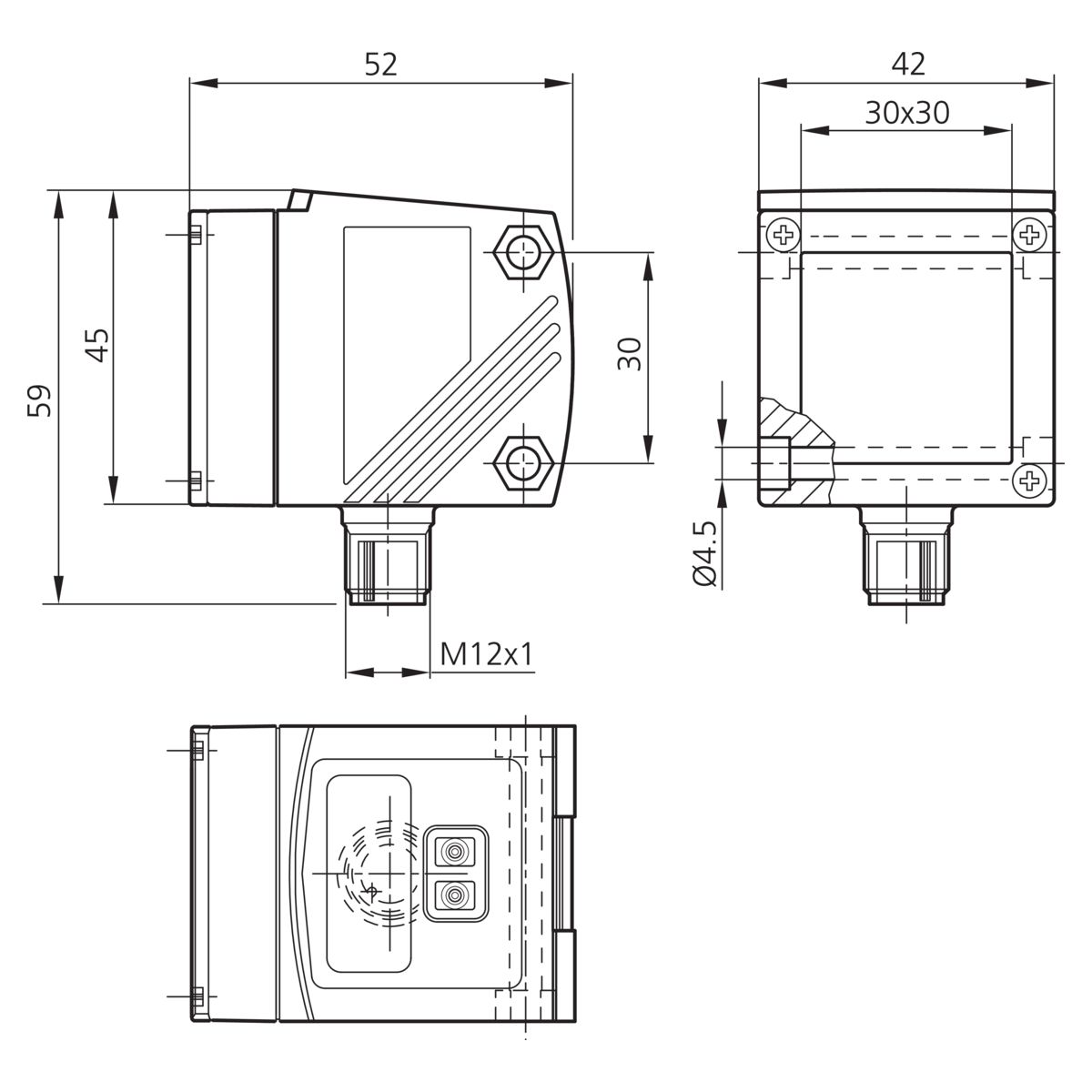

| Size | 45 x 52 x 42 mm |
| Ambient temperature during operation | -10 … +60 °C |
| Protection type | IP 67 |

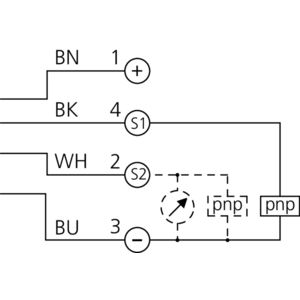

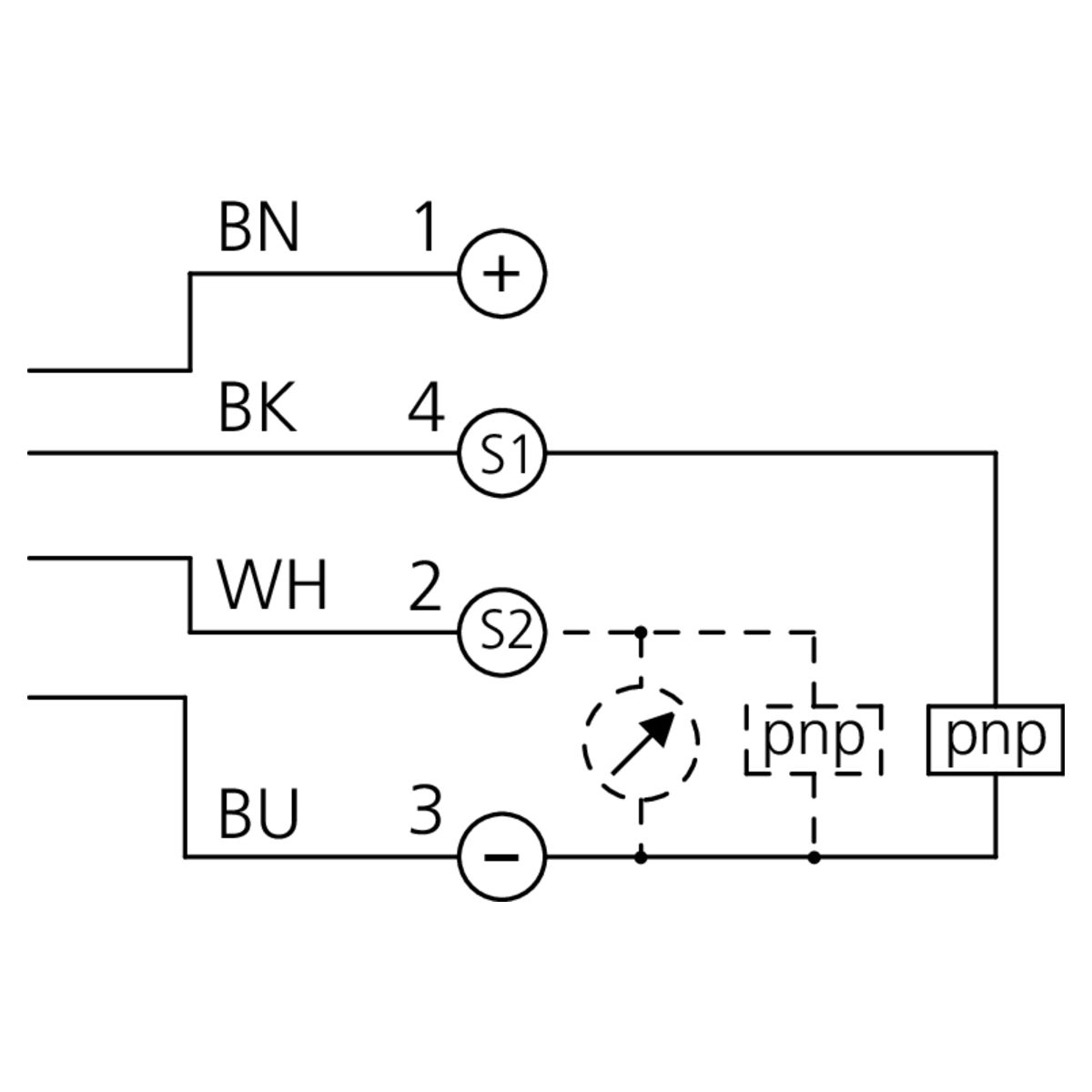

| Connection | Connector, M12, 4-pin |
