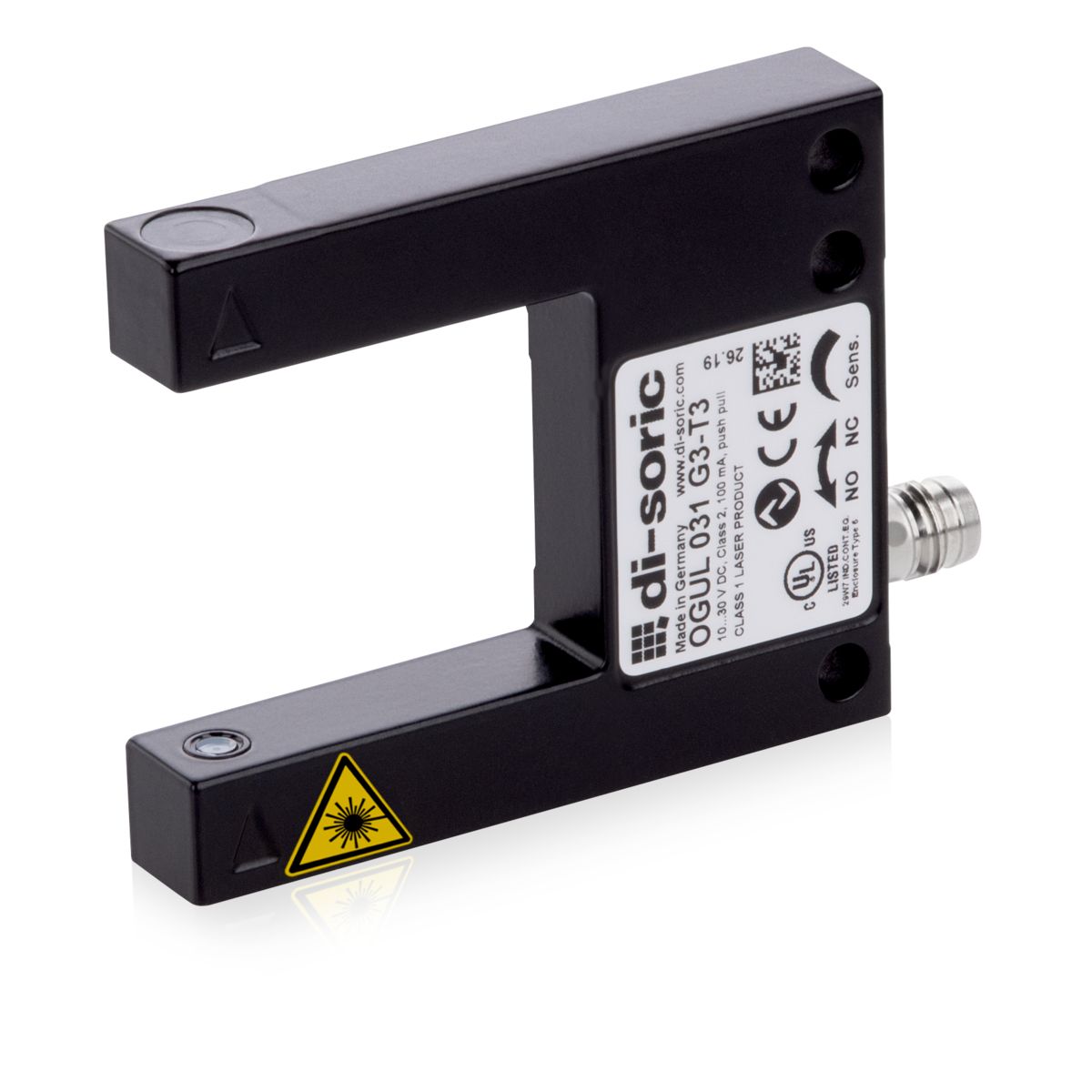

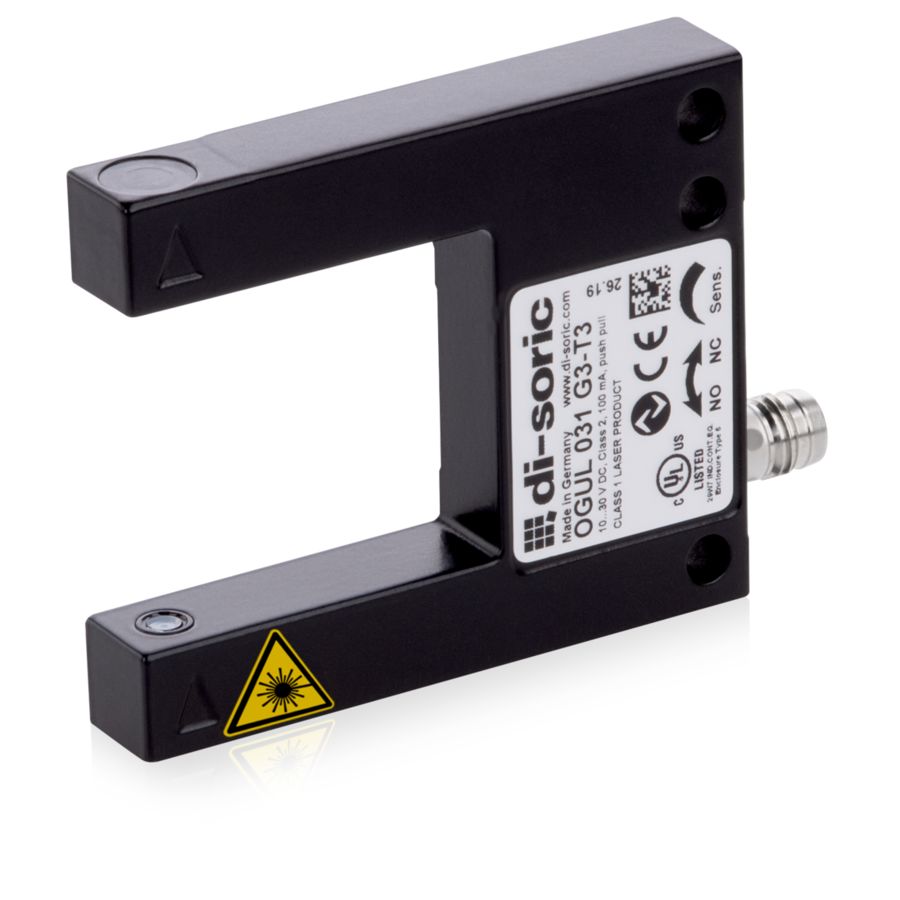

Laser Fork Light Barrier - OGUL 031 G3-T3

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	Laser
Light color	red
Fork opening	30 mm
Service voltage	10 … 30 V DC
No-load current (max.)	30 mA

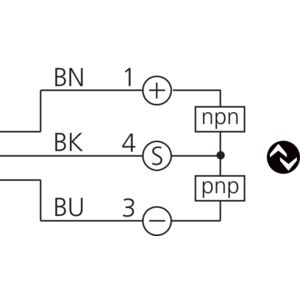

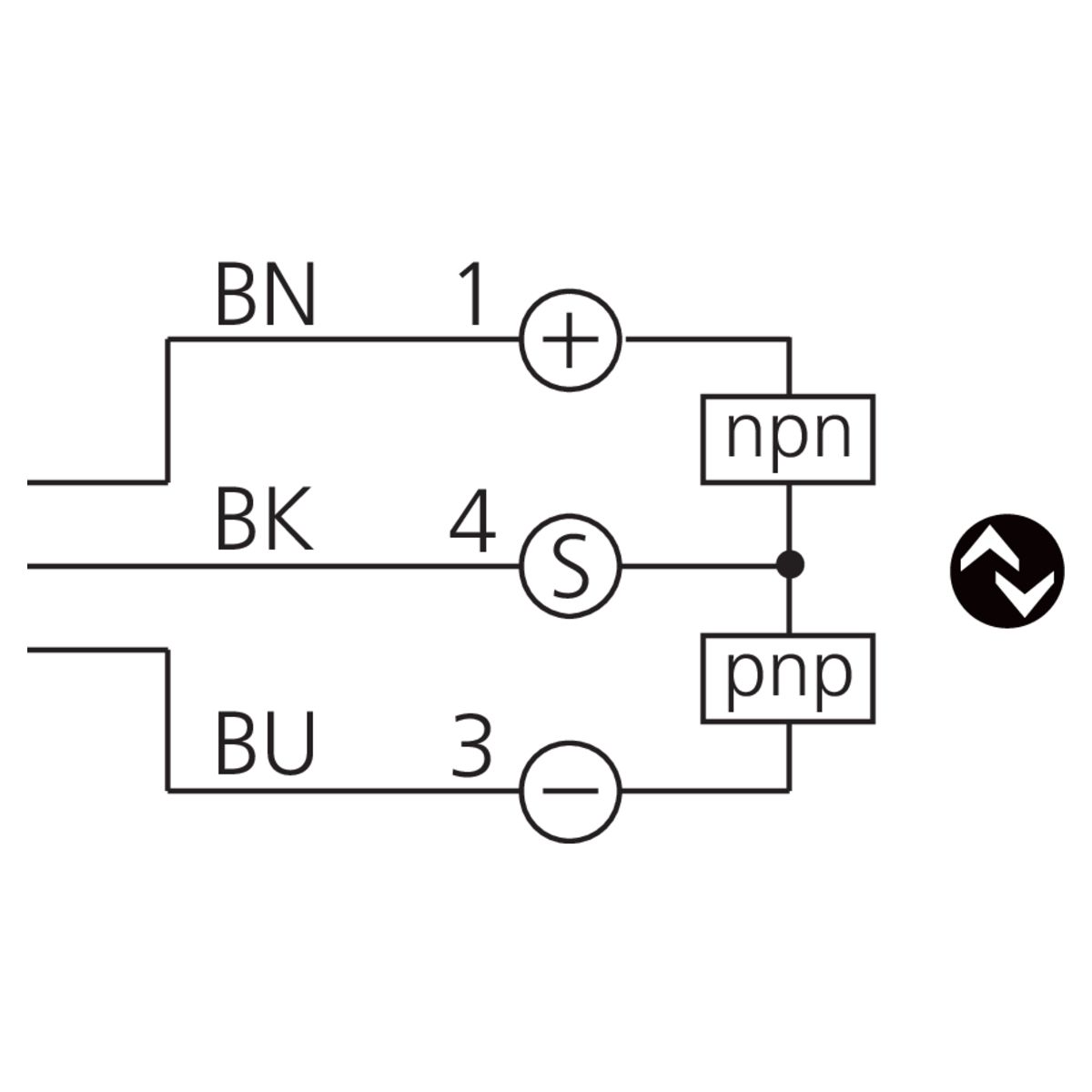

Switching output	Push-pull/PNP/NPN, 100 mA
Interface	IO-Link
Housing material	Die-cast zinc, Black (powder-coated)

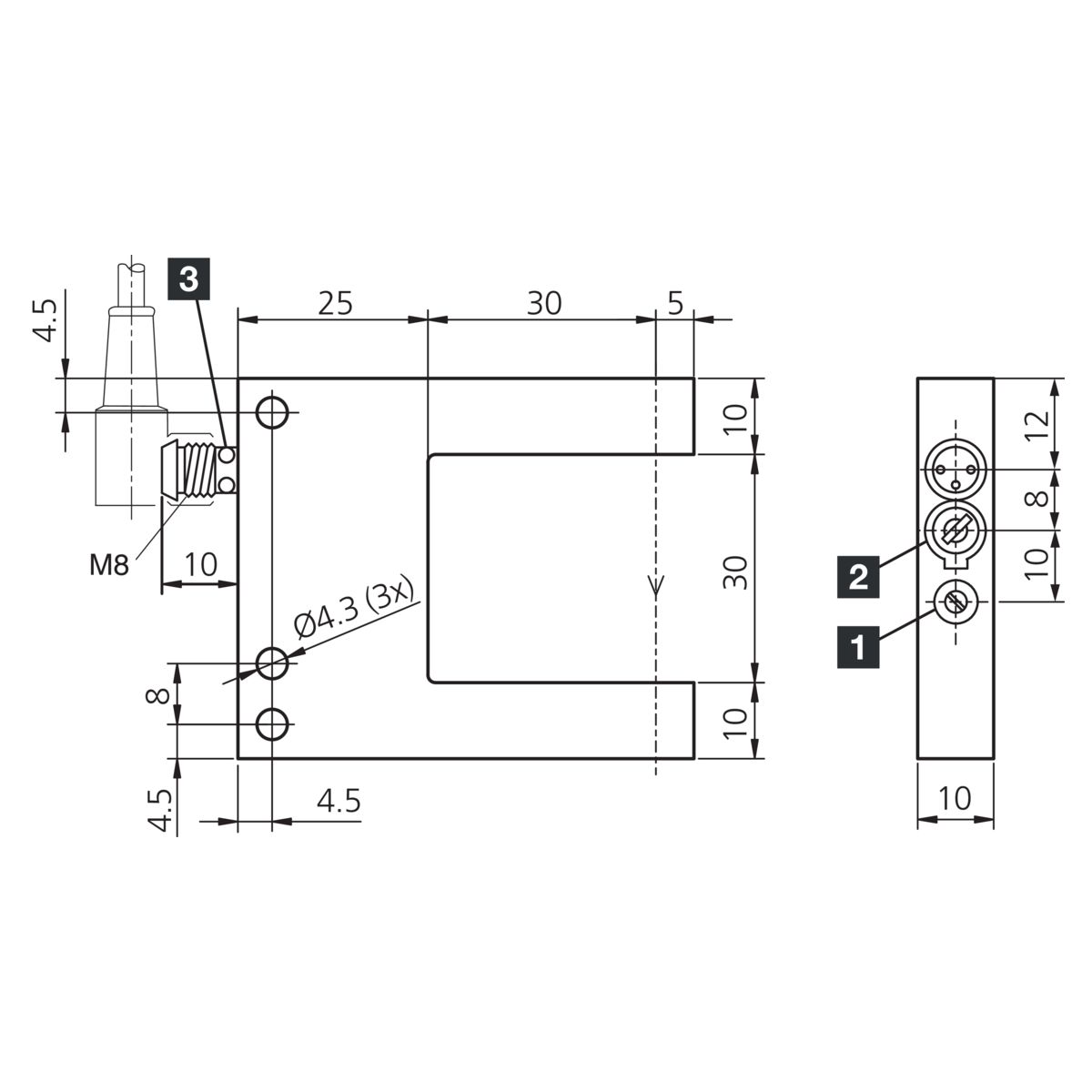

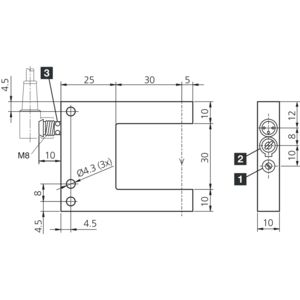

Size	50 x 60 x 10 mm
Ambient temperature during operation	-25 … +60 °C
Connection	Connector, M8, 3-pin
