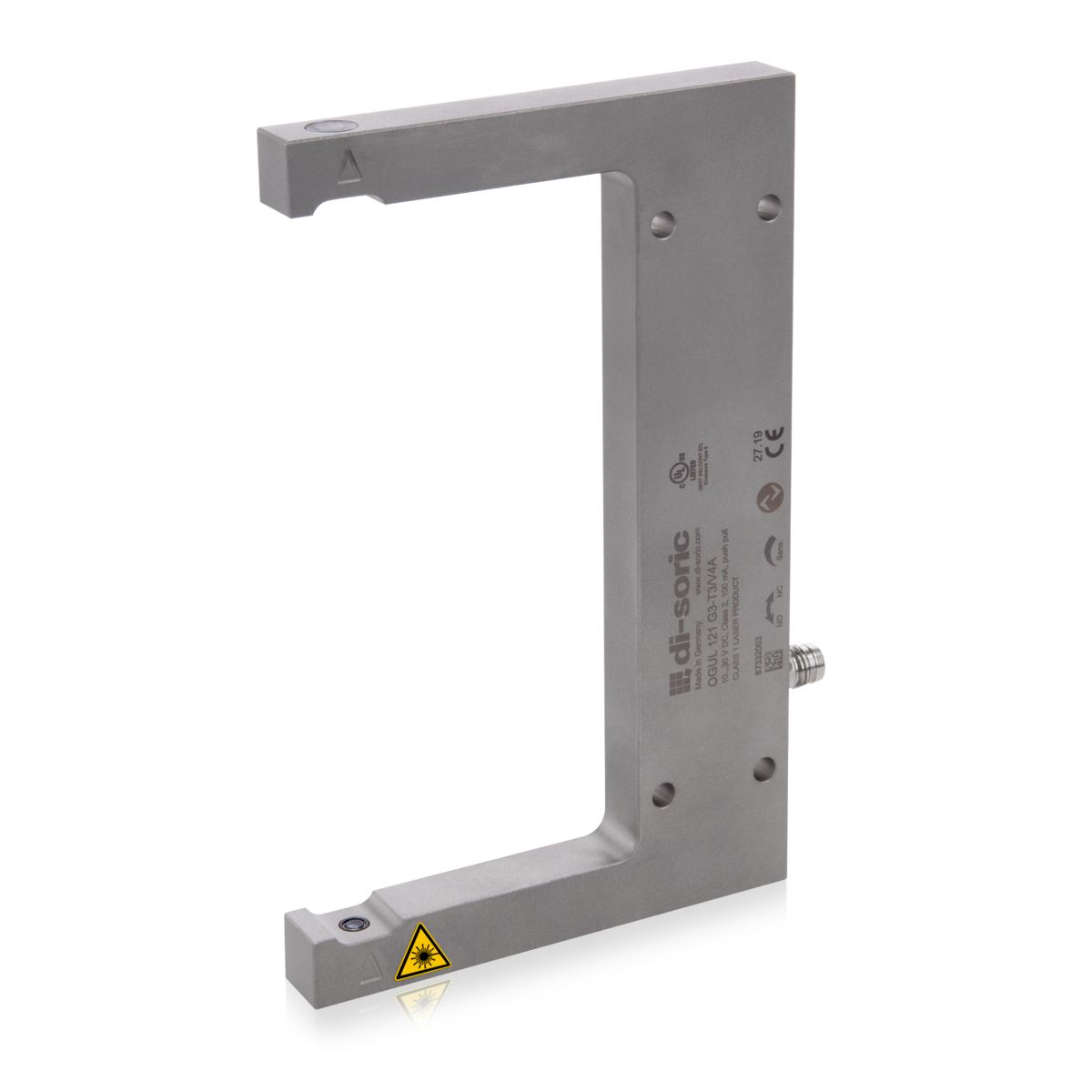

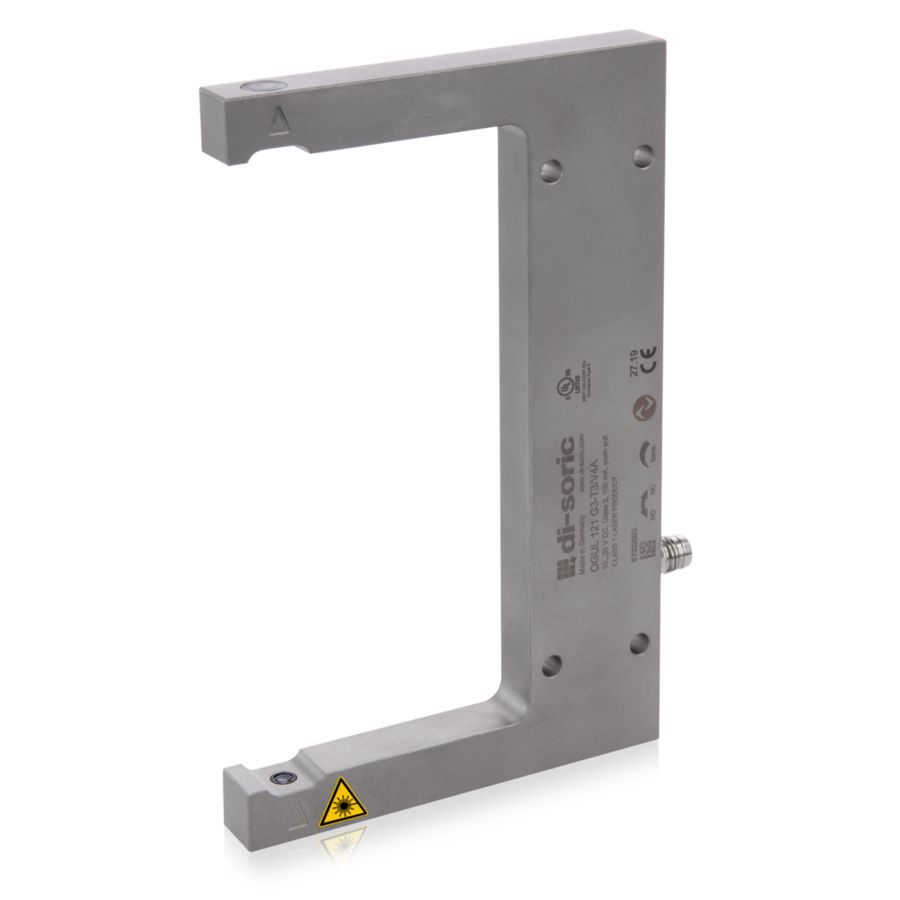

Laser Fork Light Barrier - OGUL 121 G3-T3/V4A

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	Laser
Light color	red
Fork opening	120 mm
Service voltage	10 … 30 V DC
No-load current (max.)	30 mA
Switching output	Push-pull/PNP/NPN, 100 mA, NO/NC
Interface	IO-Link
Housing material	Stainless steel, Black (powder-coated)

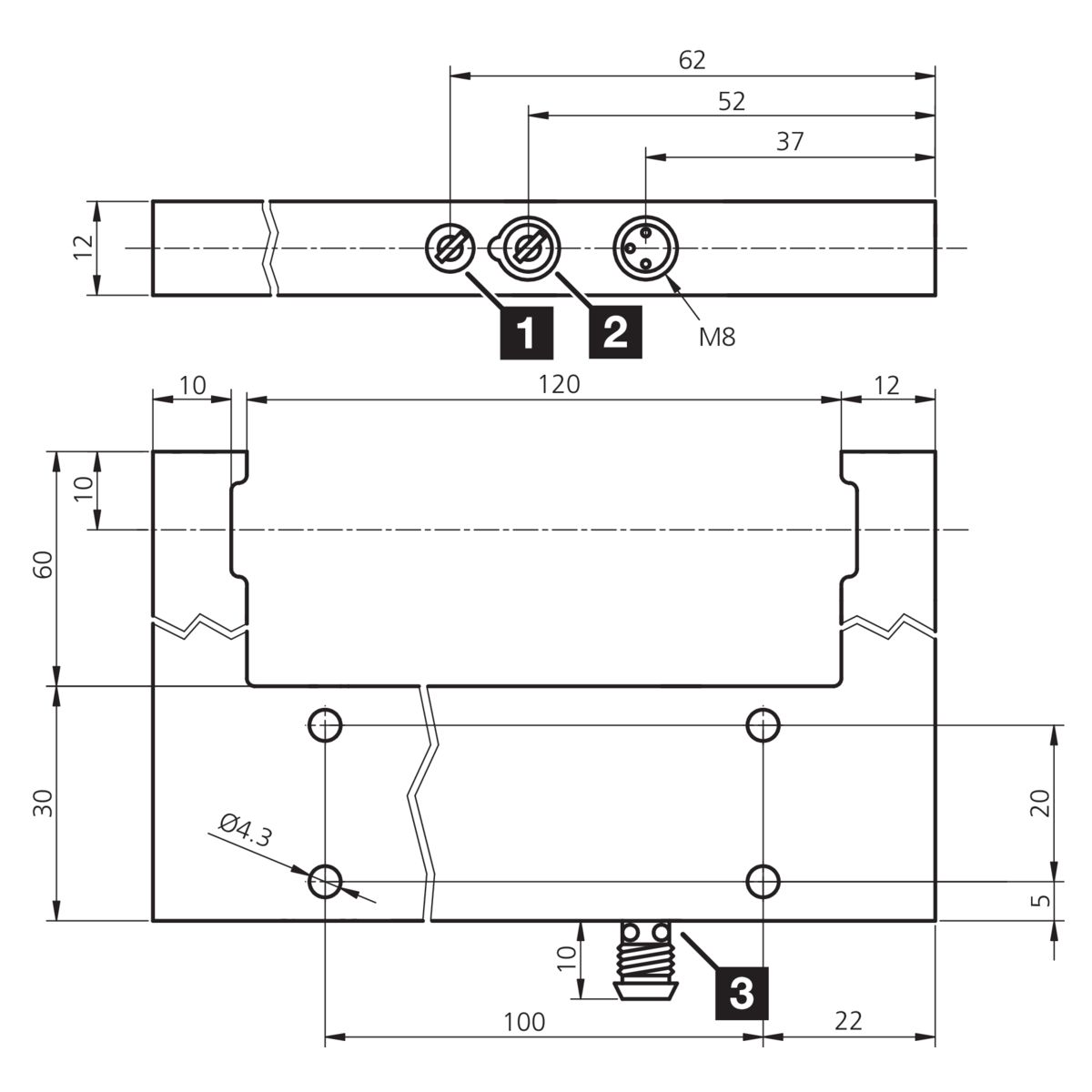

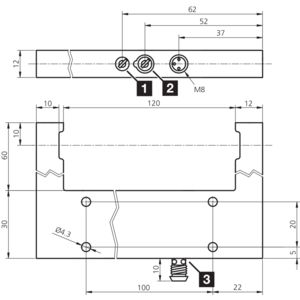

Size	144 x 90 x 12 mm
Ambient temperature during operation	-25 … +60 °C
Connection	Connector, M8, 3-pin
