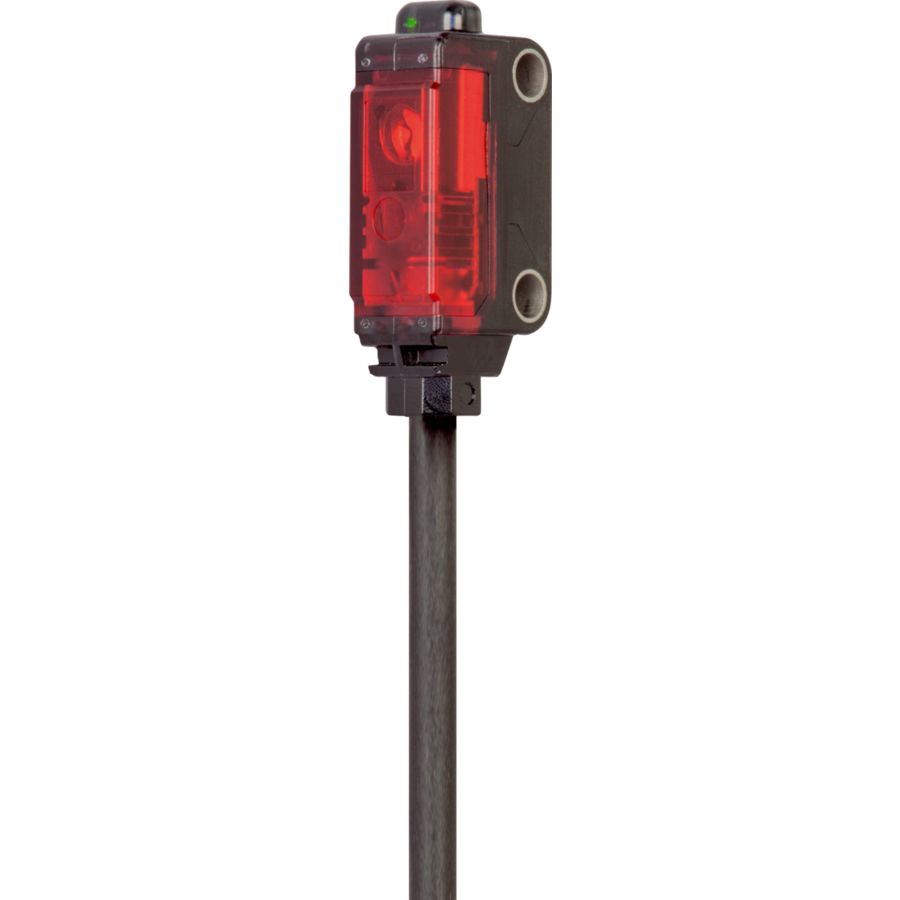

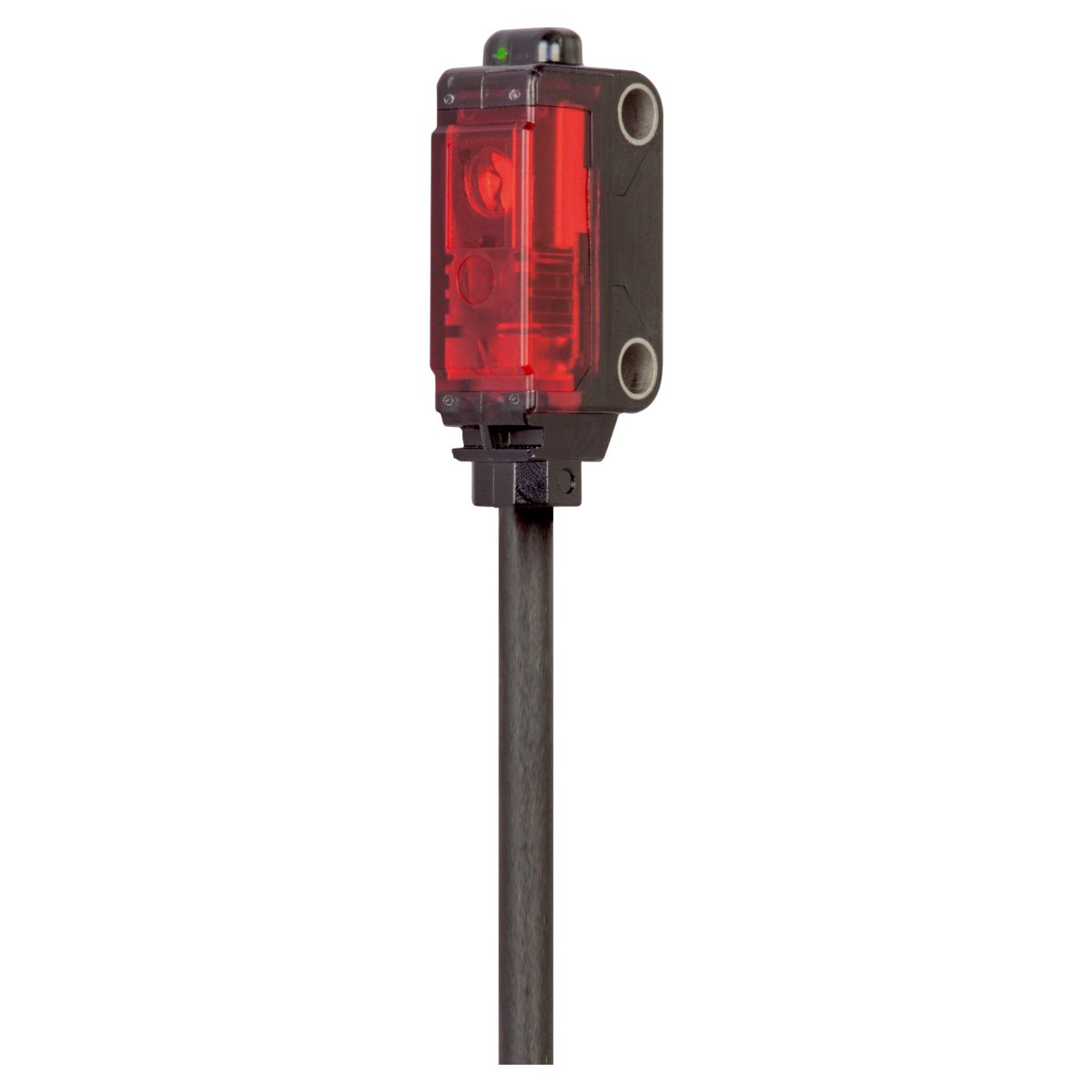

Laser Retroreflective Sensor - LR 21 K 4000 P3-K-T4
Part Number: LR 21 K 4000 P3-K-T4
Article Number: 207264
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Retroreflective sensor |
|---|---|
| Transmitter light source | Laser |
| Light color | red / 655 nm |
| Range | 0 … 4.000 mm |
| Service voltage | 10,8 … 26,4 V DC |
| Ambient temperature during operation | -10 … +55 °C |
| Protection class | III, operation on protective low voltage |
| Connection | Cable/connector, 0,2 m |
