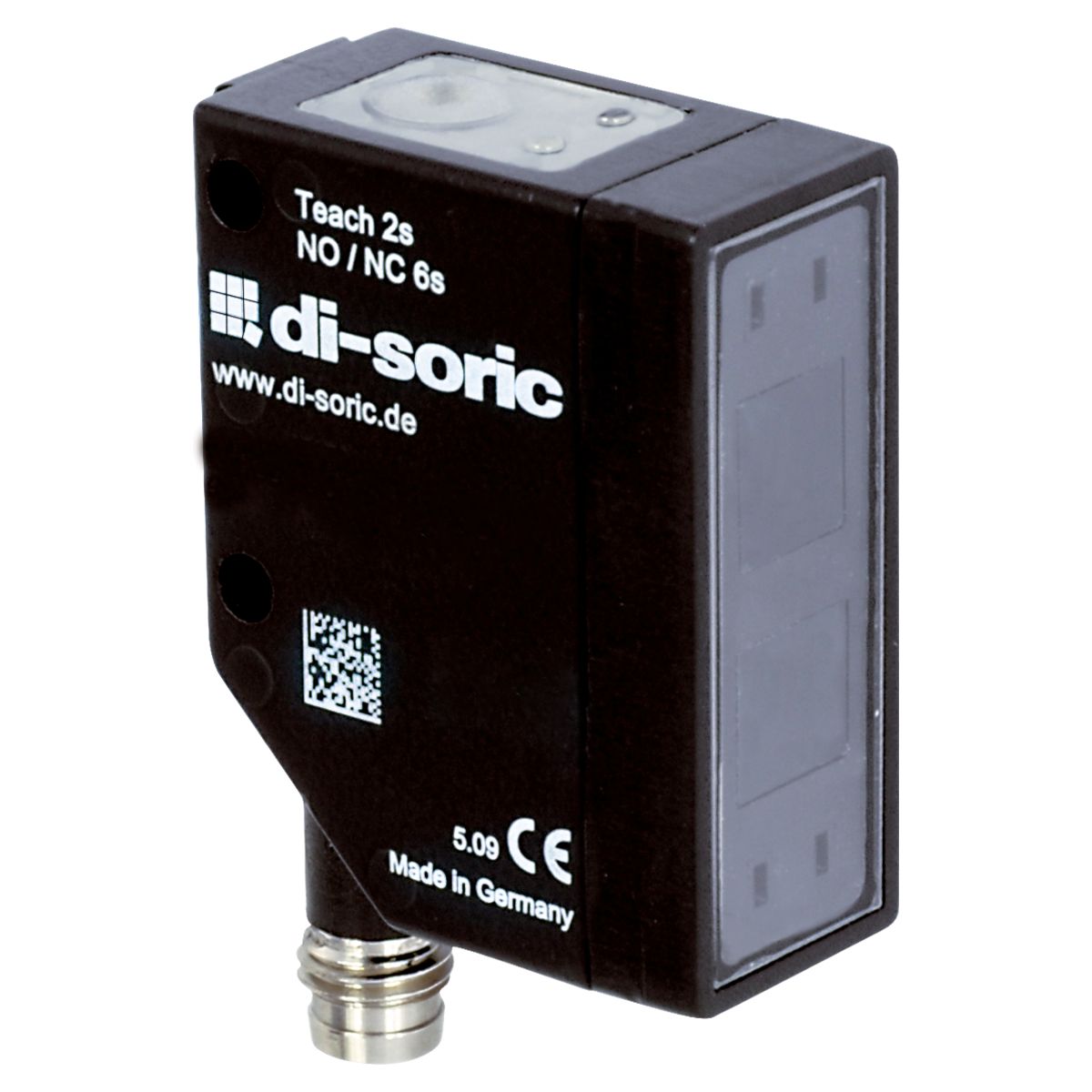

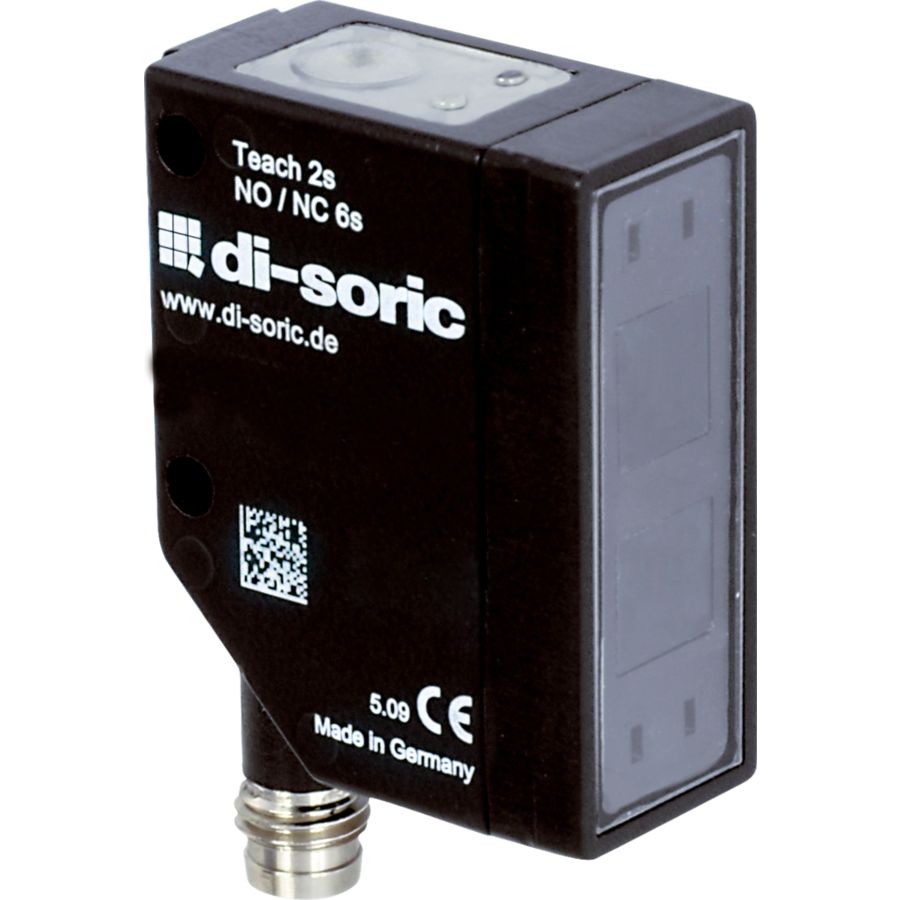

Laser Retroreflective Sensor - LRT 41 M 2 FG3-T4
Part Number: LRT 41 M 2 FG3-T4
Article Number: 206978
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
Operating principle | Retroreflective sensor |
---|---|
Transmitter light source | Laser |
Light color | red |
Laser class | 1 (IEC 60825-1) |
Range | 100 … 2.000 mm |
Referring reflector | RL 13 x 17 mm |
Service voltage | 10 … 30 V DC |
Switching output | Push-pull, 200 mA, NO/NC |
Ambient temperature during operation | 0 … +50 °C |
Protection class | III, operation on protective low voltage |

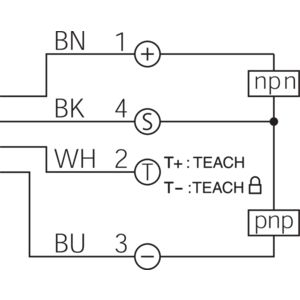

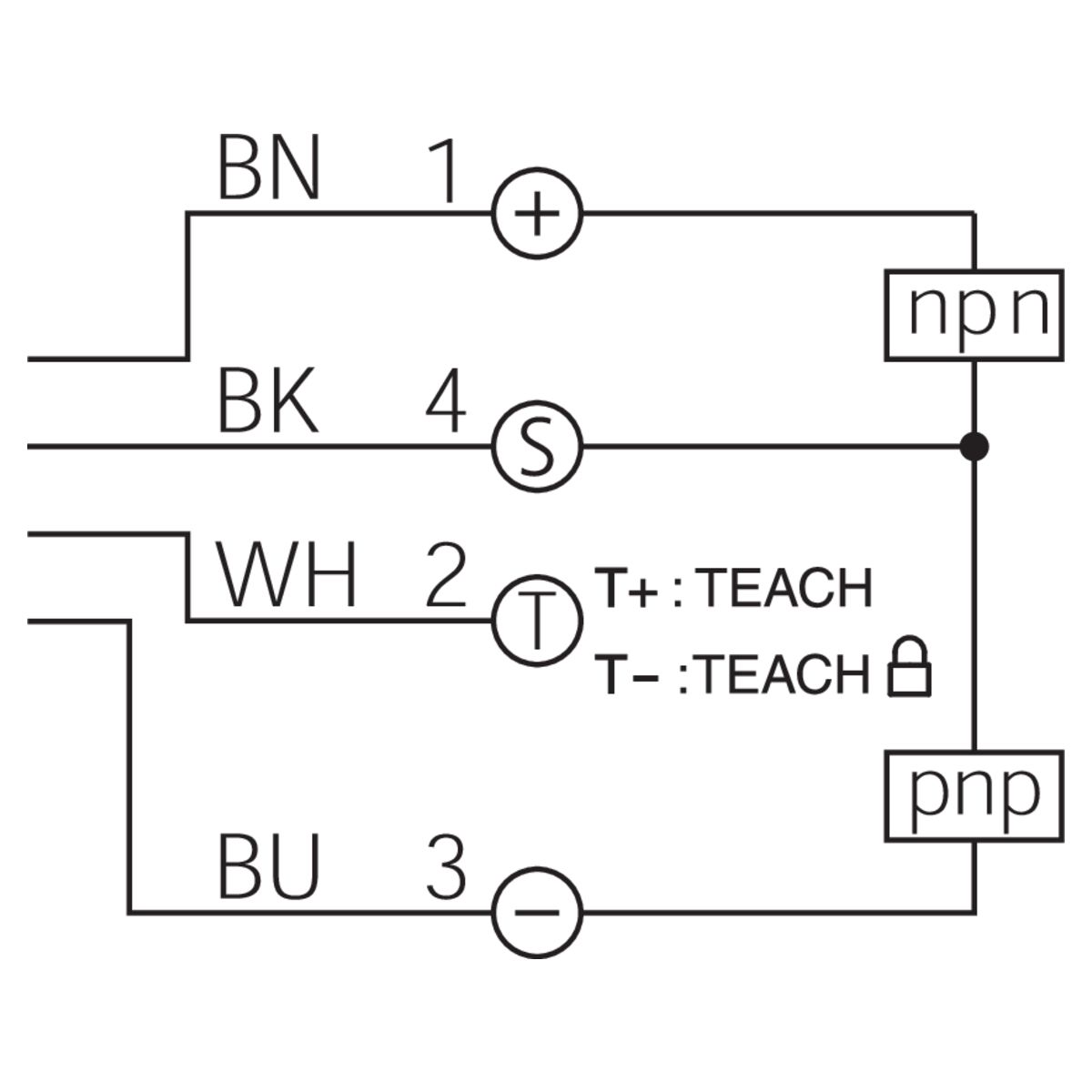

Connection | Connector, M8, 4-pin |
