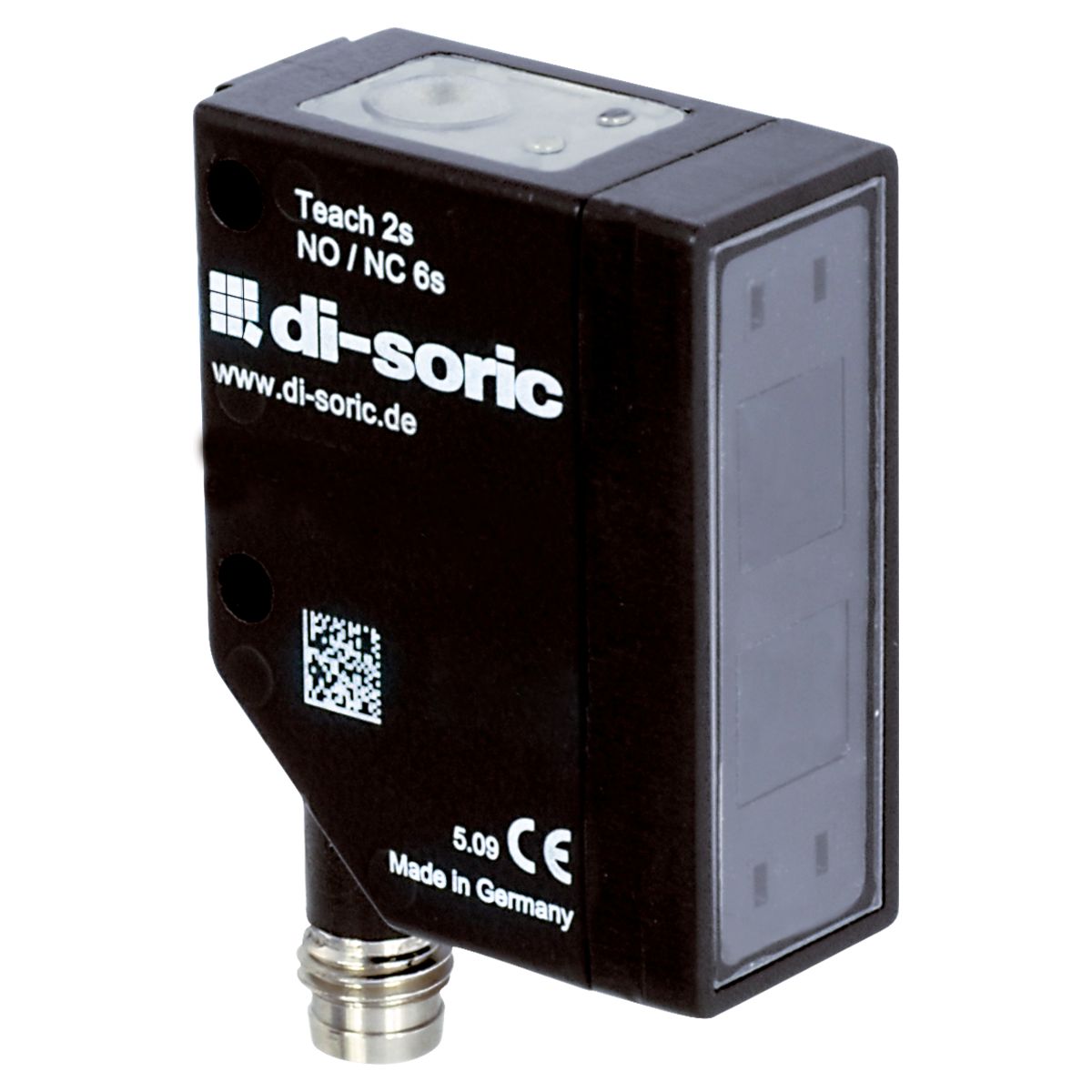

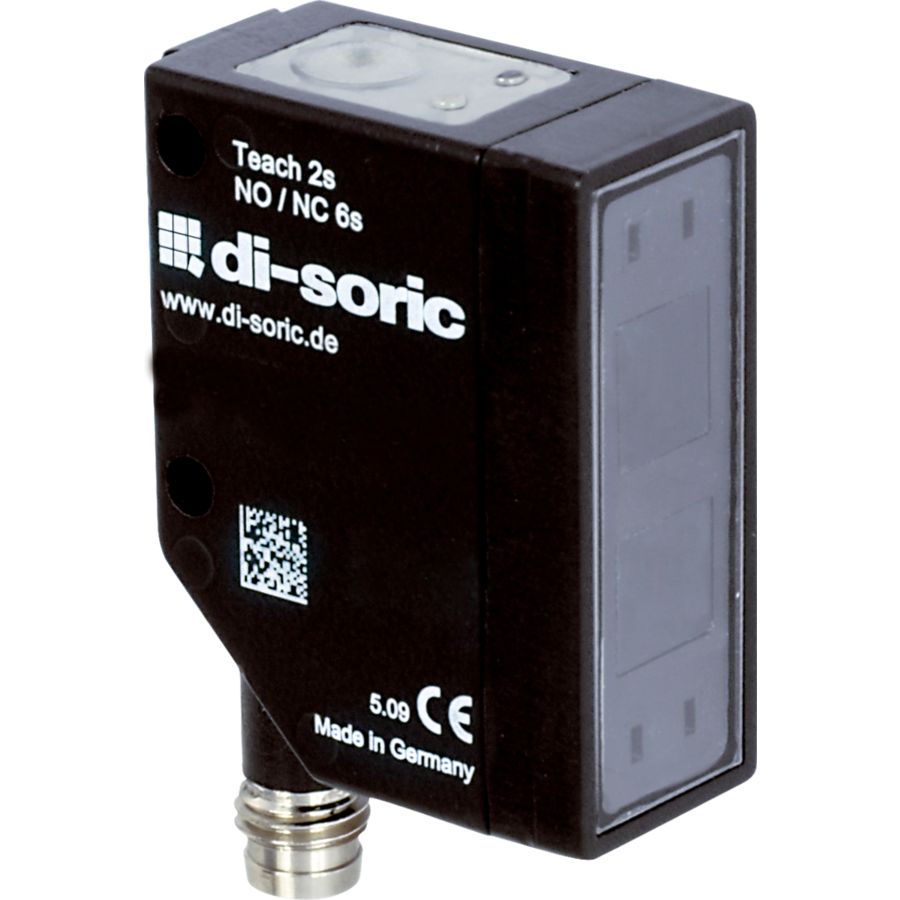

Laser Retroreflective Sensor - LRT 41 M 2 G3-T3
Part Number: LRT 41 M 2 G3-T3
Article Number: 204204
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Retroreflective sensor |
|---|---|
| Transmitter light source | Laser |
| Light color | red |
| Laser class | 1 (IEC 60825-1) |
| Range | 100 … 2.000 mm |
| Referring reflector | RL 13 x 17 mm |
| Service voltage | 10 … 30 V DC |
| Switching output | Push-pull, 200 mA, NO/NC |
| Ambient temperature during operation | 0 … +50 °C |
| Protection class | III, operation on protective low voltage |
| Connection | Connector, M8, 3-pin |
