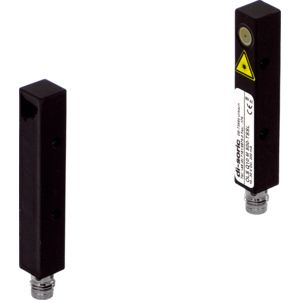

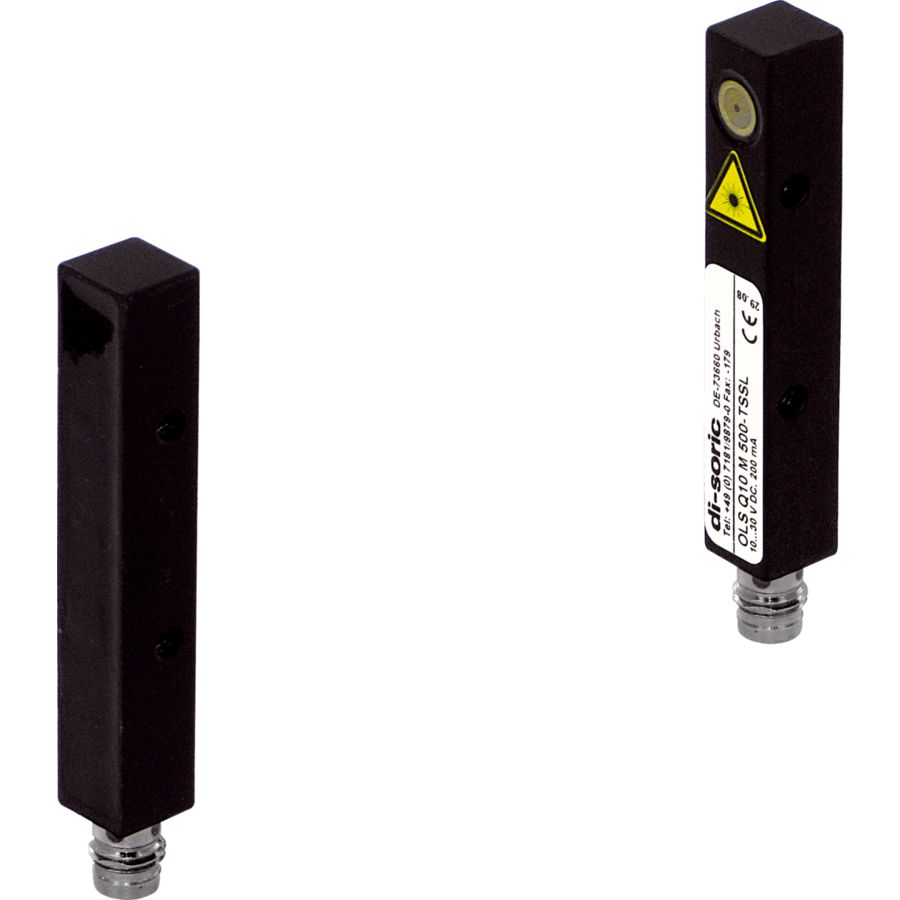

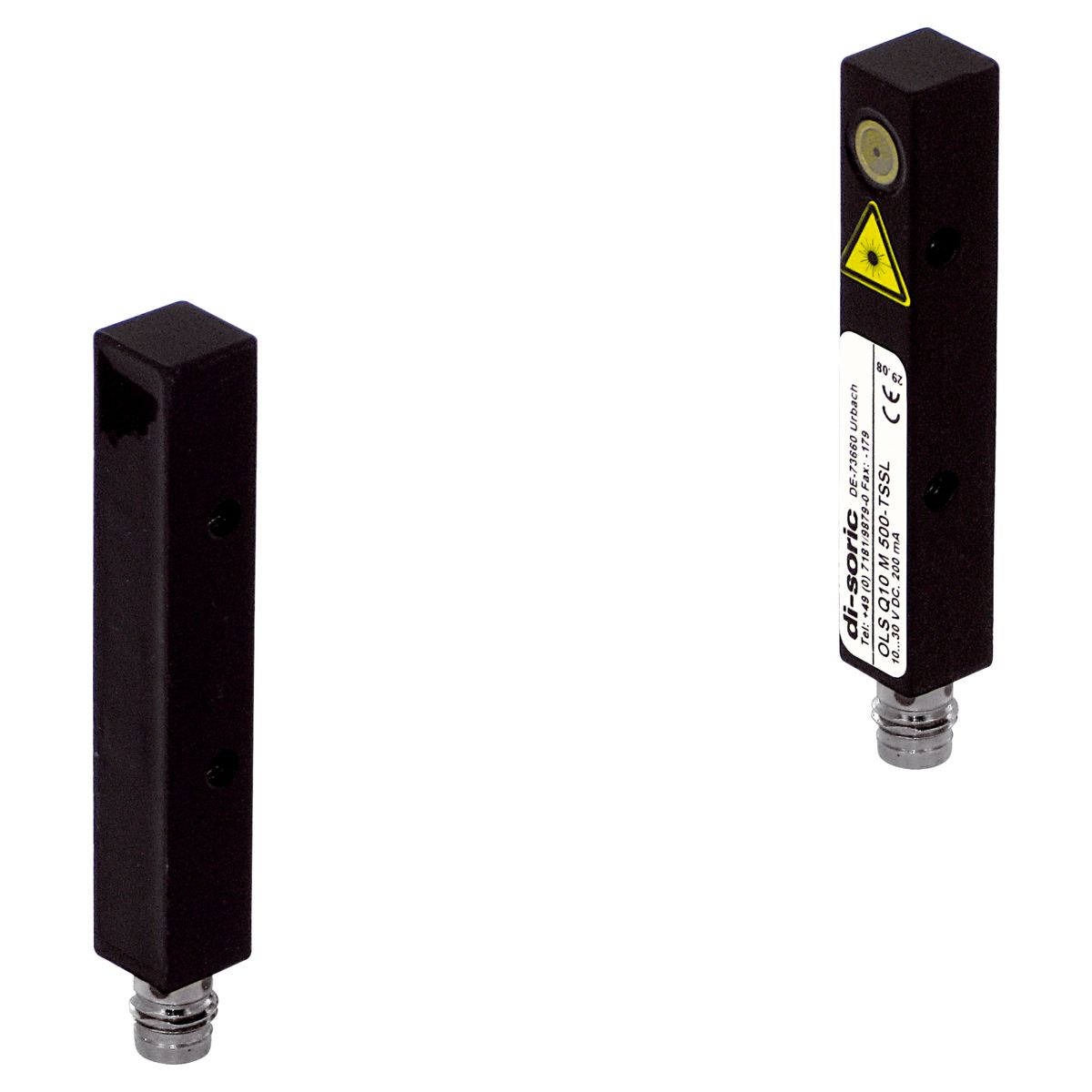

Laser Through-beam Sensor, Receiver - OLE Q10 M 2000 P1K-TSSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Through-beam sensor
Transmitter light source	Laser
Range	500 … 2.000 mm
Service voltage	10 … 35 V DC
Switching output	pnp, 200 mA, NC
Ambient temperature during operation	0 … +50 °C
Protection class	III, operation on protective low voltage
Connection	Connector, M8, 3-pin
