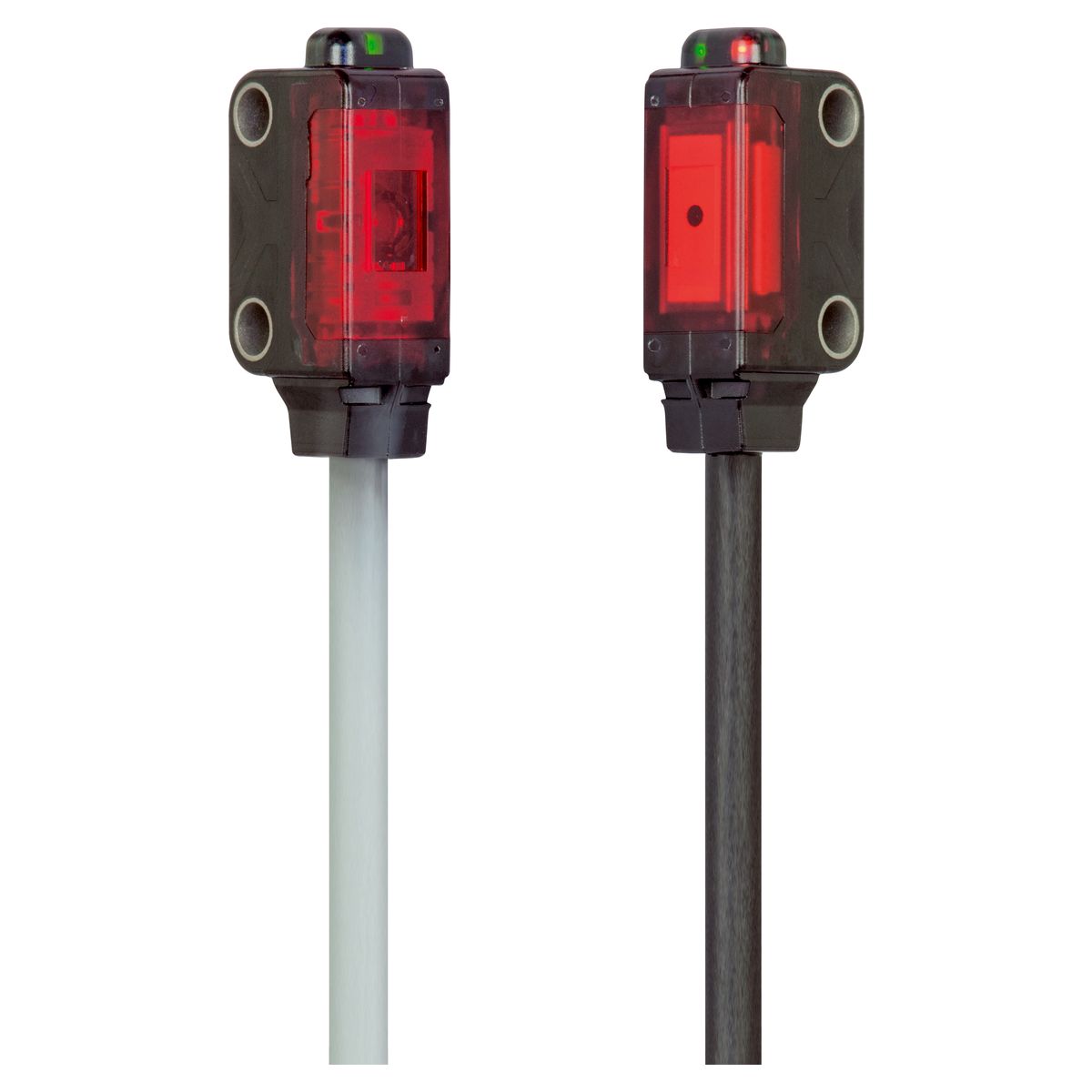

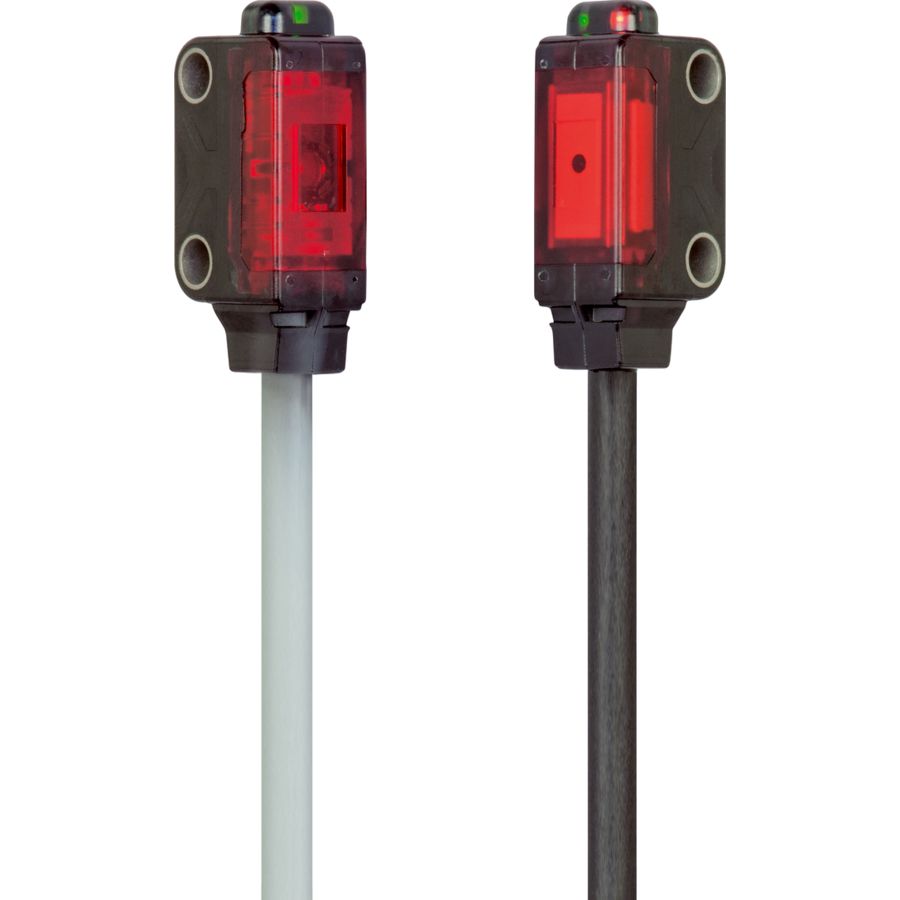

Laser Through-beam Sensor, Transmitter And Receiver - LES 21 K 1000 P3

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Through-beam sensor
Transmitter light source	Laser
Light color	red / 655 nm
Laser class	1 (IEC 60825-1)
Range	0 … 1.000 mm
Service voltage	10,8 … 26,4 V DC

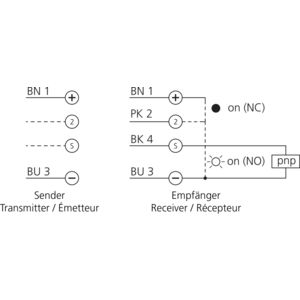

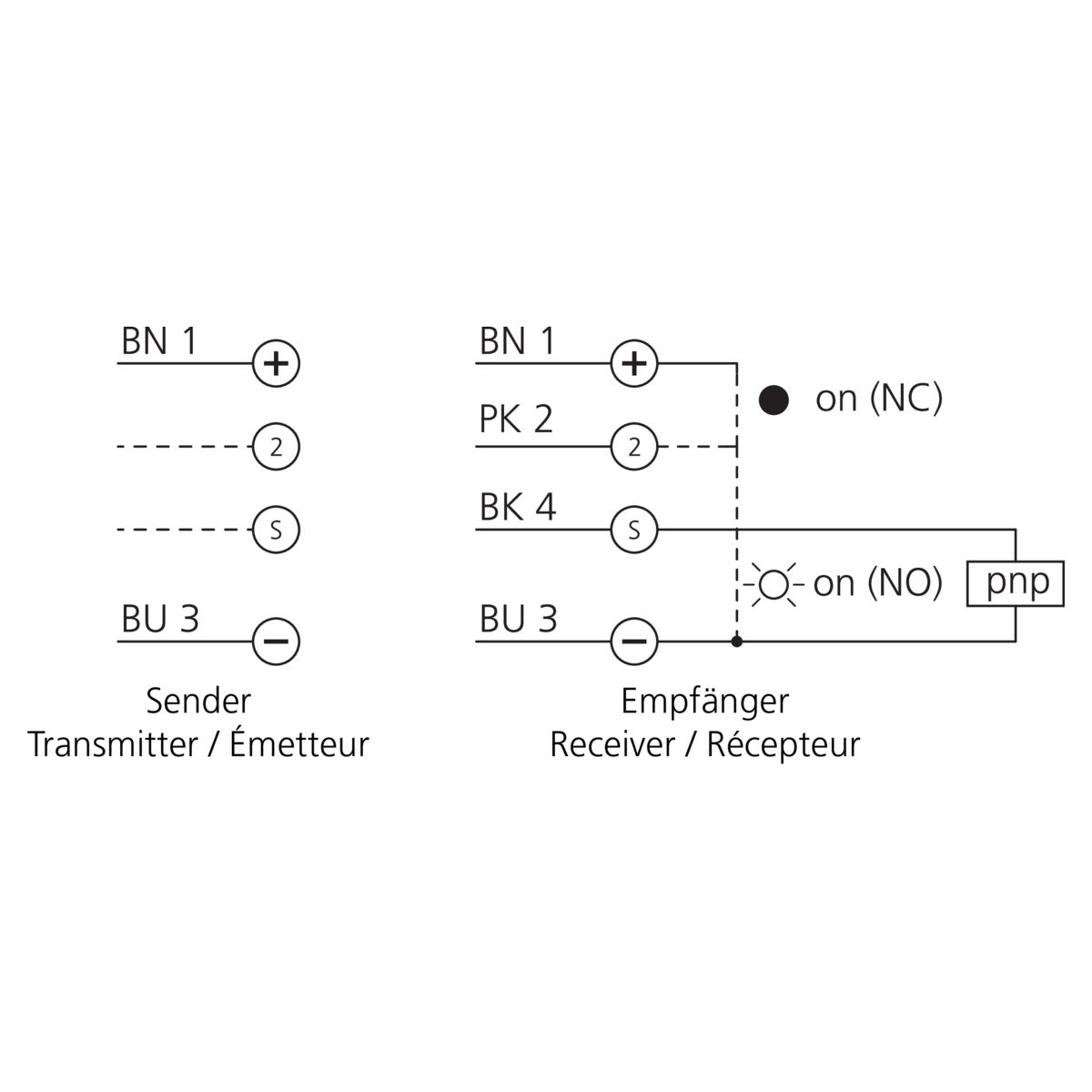

Switching output	pnp, 50 mA, NO/NC
Ambient temperature during operation	-10 … +55 °C
Protection class	III, operation on protective low voltage
Connection	Cable, 2 m, 4-pin
