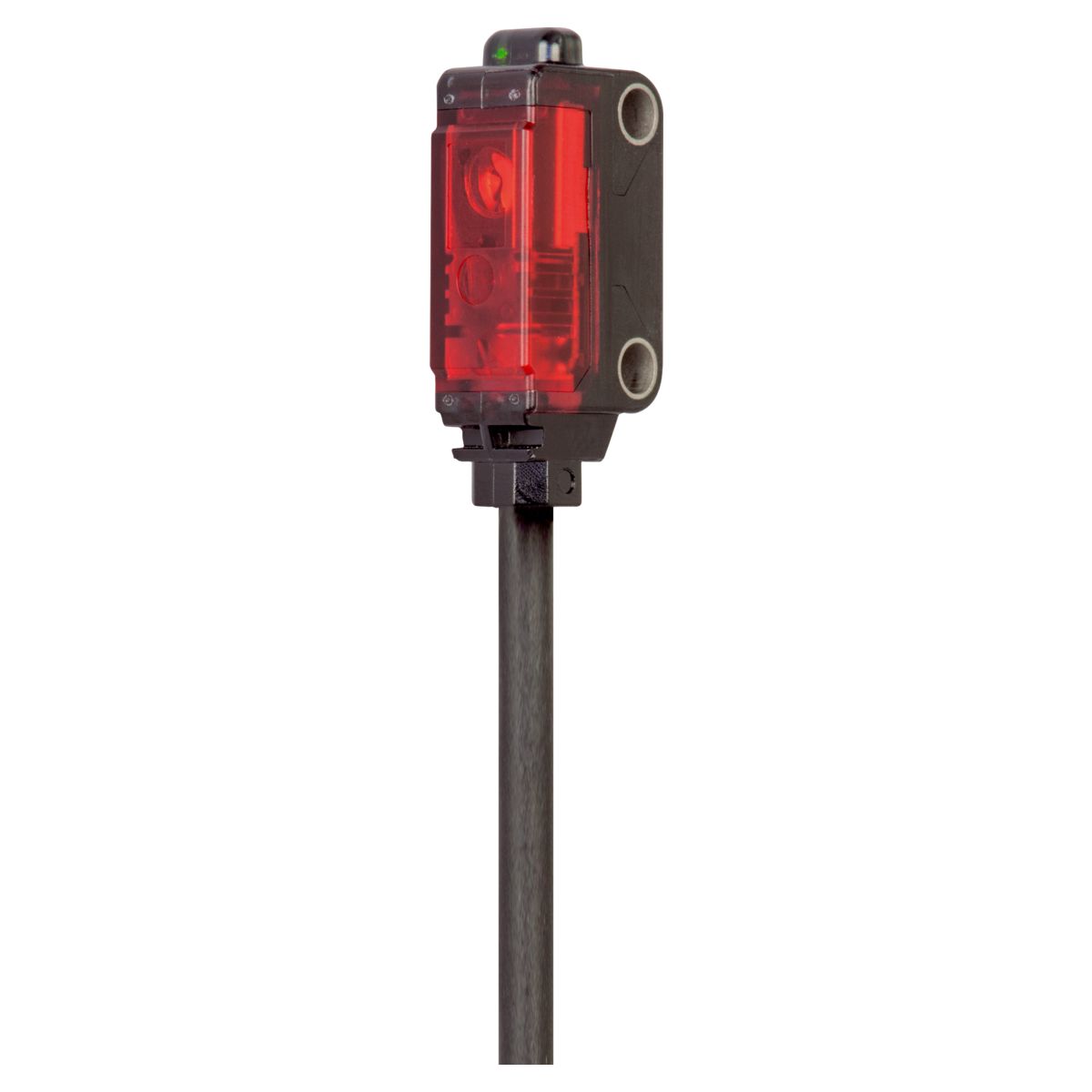

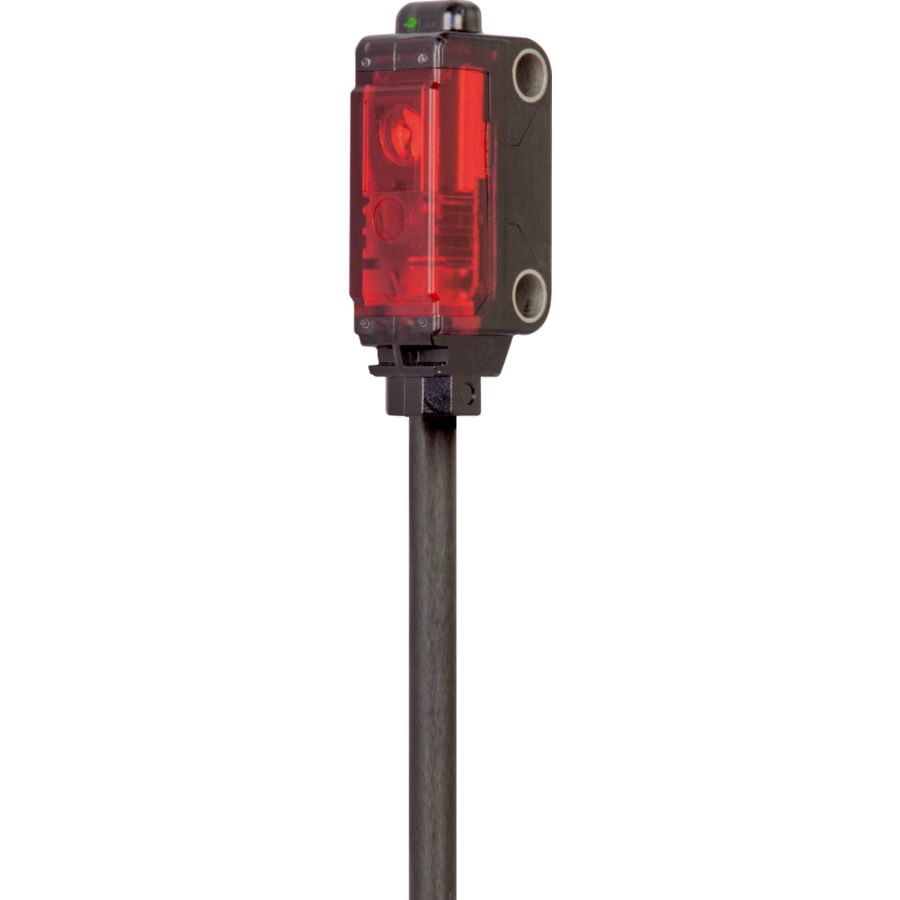

Line Laser Diffuse Sensor - LLT 21 K 70 P3

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Diffuse sensor
Transmitter light source	Laser
Light color	red / 655 nm
Laser class	1 (IEC 60825-1)
Scanning range	20 … 70 mm
Service voltage	10,8 … 26,4 V DC

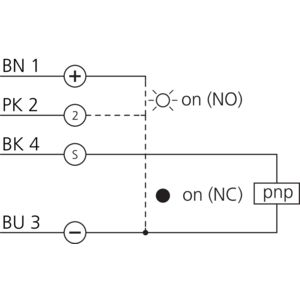

Switching output	pnp, 50 mA, NO/NC
Ambient temperature during operation	-10 … +55 °C
Protection class	III, operation on protective low voltage
Connection	Cable, 2 m, 4-pin
