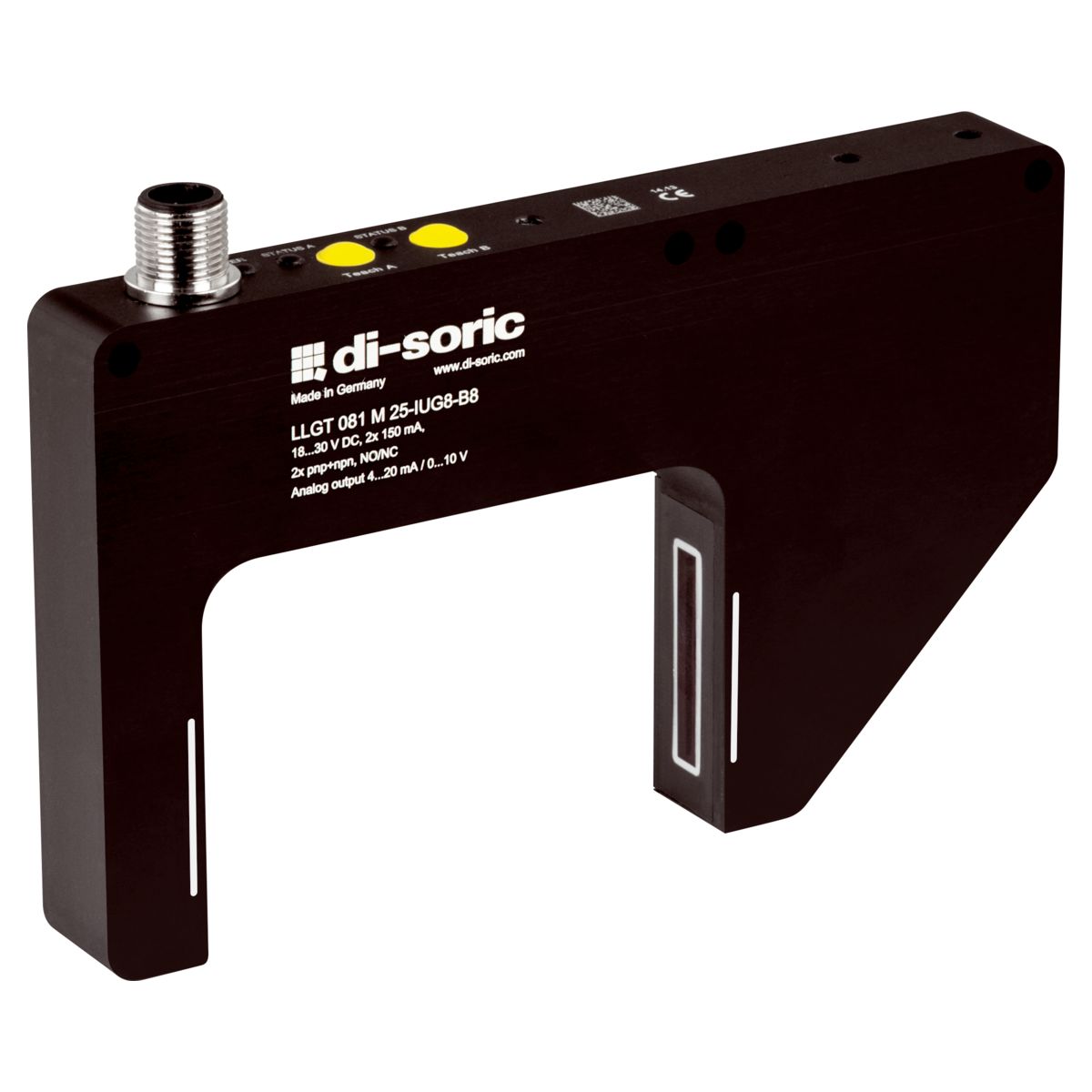

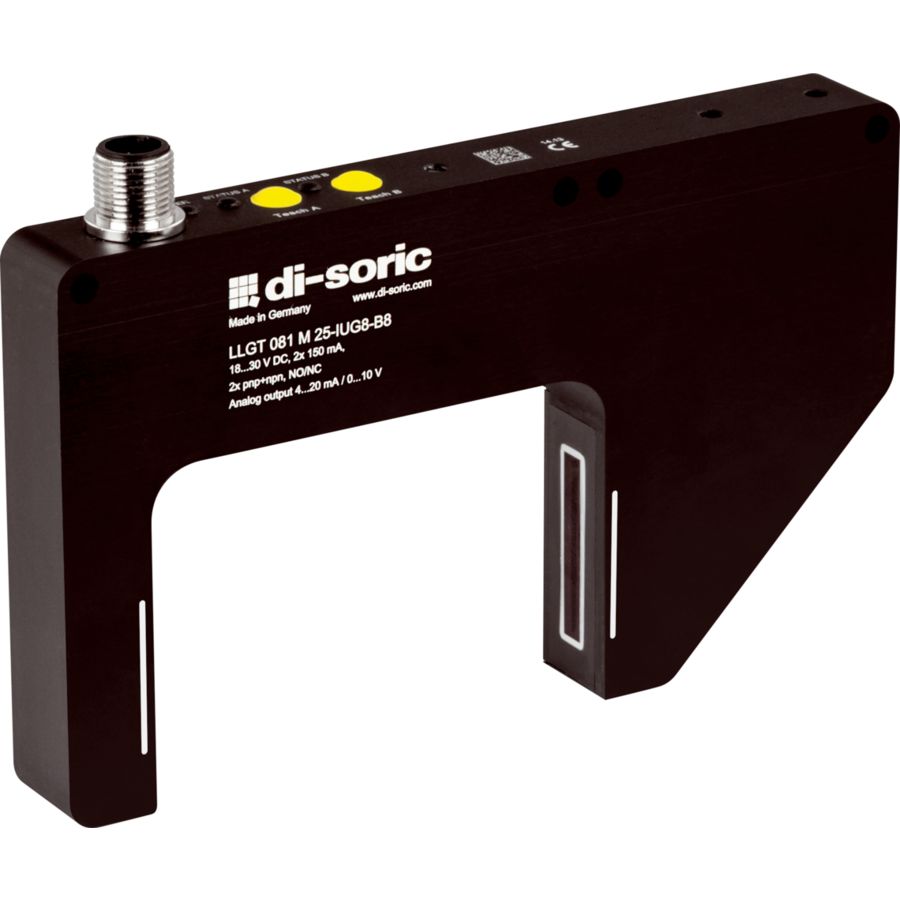

Line Laser Fork Light Barrier - LLGT 081 M 25 IUG8-B8

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	Laser
Light color	red / 650 nm
Fork opening	80 mm
Service voltage	18 … 30 V DC
No-load current (max.)	70 mA (24 V DC)
Switching output	Push-pull, 150 mA, NO/NC
Analog output voltage	0 … 10 V
Analog output current	4 … 20 mA
Permissible impedance	> 1 kΩ, < 0.5 kΩ
Housing material	Aluminum, Black (Anodized)
Size	150 x 90 x 18 mm
Ambient temperature during operation	+5 … +45 °C

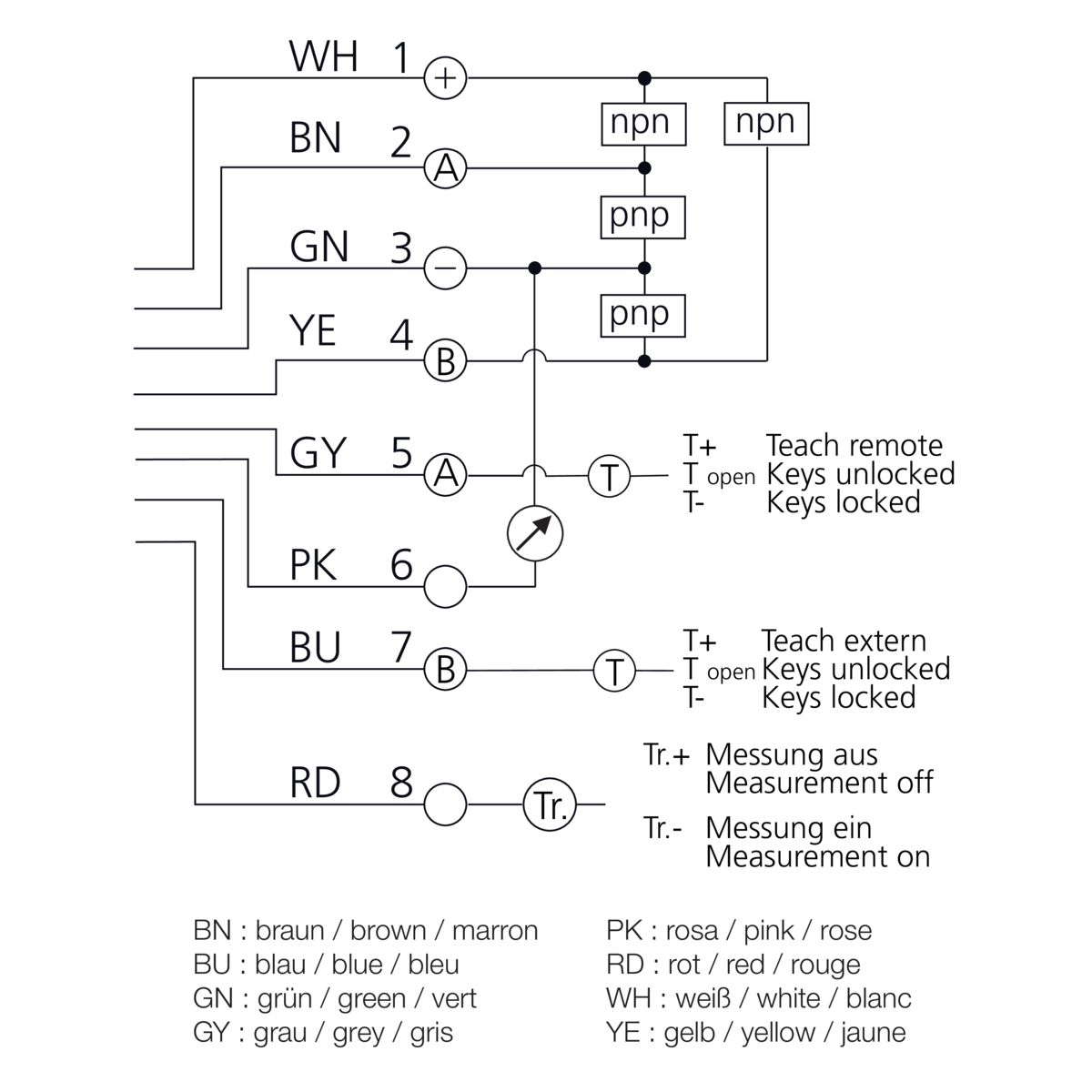

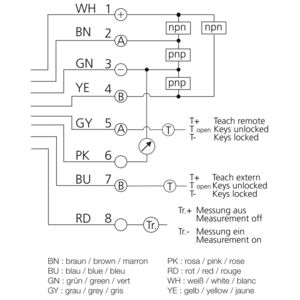

Connection	Connector, M12, 8-pin
