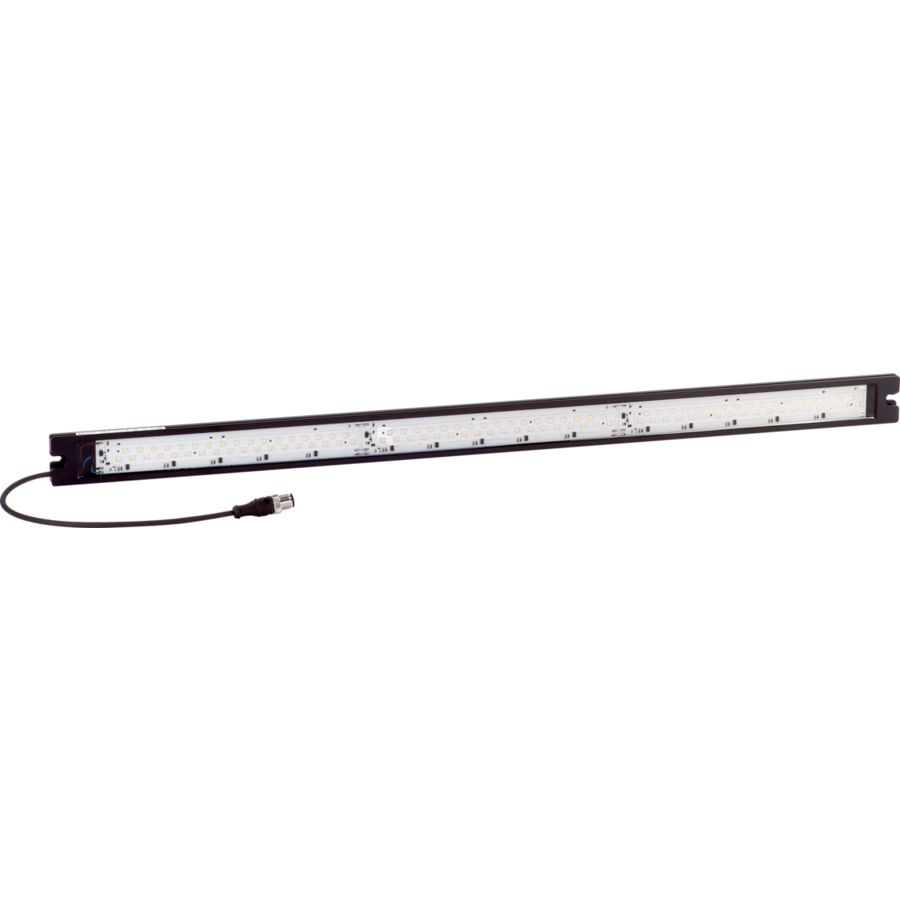

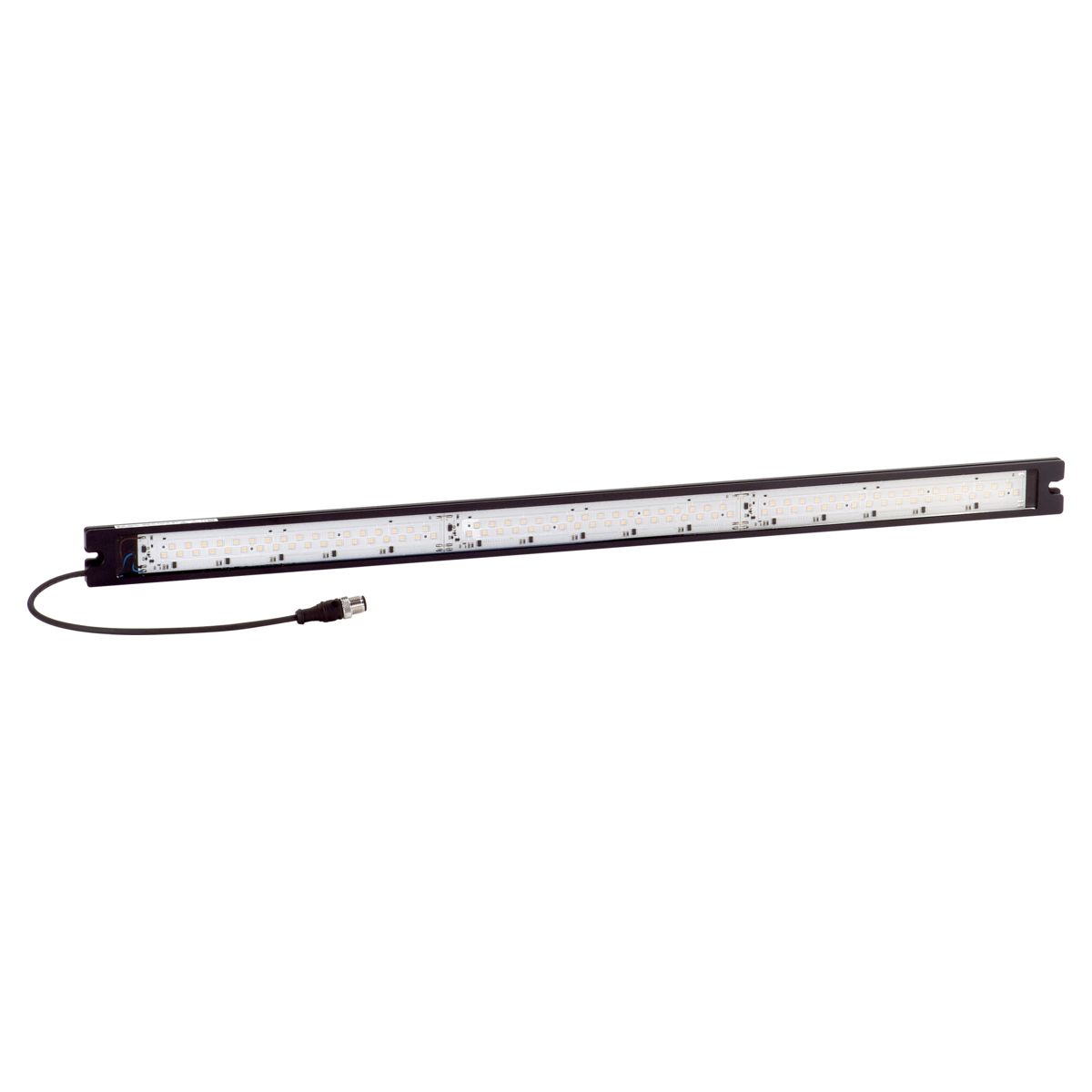

Machine Lighting With Signal Lighting Element - MB-RGBW-700-K-B5

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Transmitter light source	LED
Light color	White, RGB
Deflection angle FWHM	120°
Service voltage	24 V DC (± 5%, Supply Class 2)
No-load current (max.)	1.100 mA (24 V DC)
Housing material	Aluminum, Black (Anodized)
Protection type	IP 67
Risk group (DIN EN 62471)	Free group
Protection class	III, operation on protective low voltage

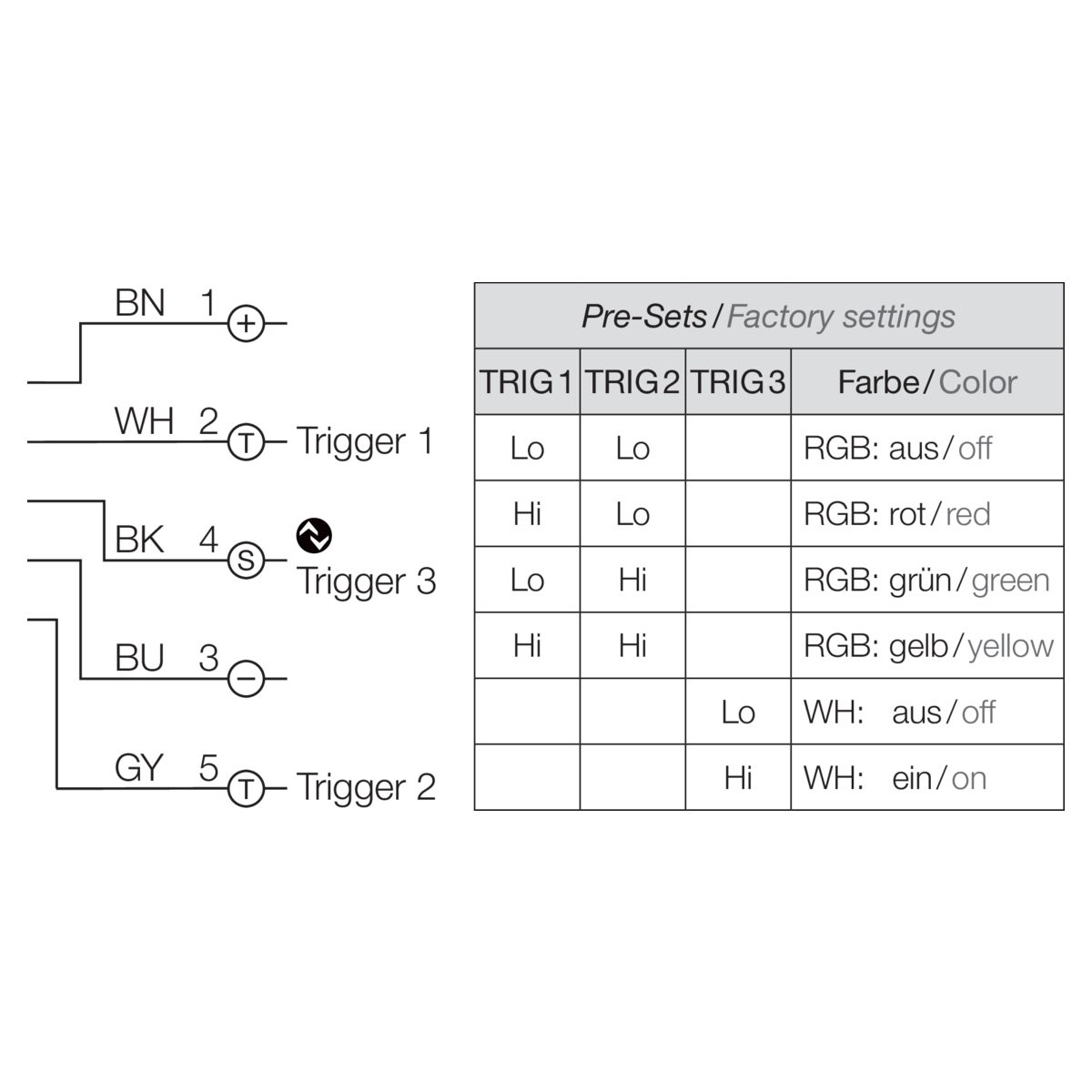

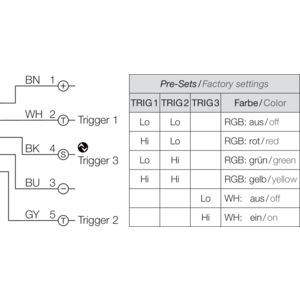

Connection	Cable/connector, 0,3 m, M12, 5-pin
