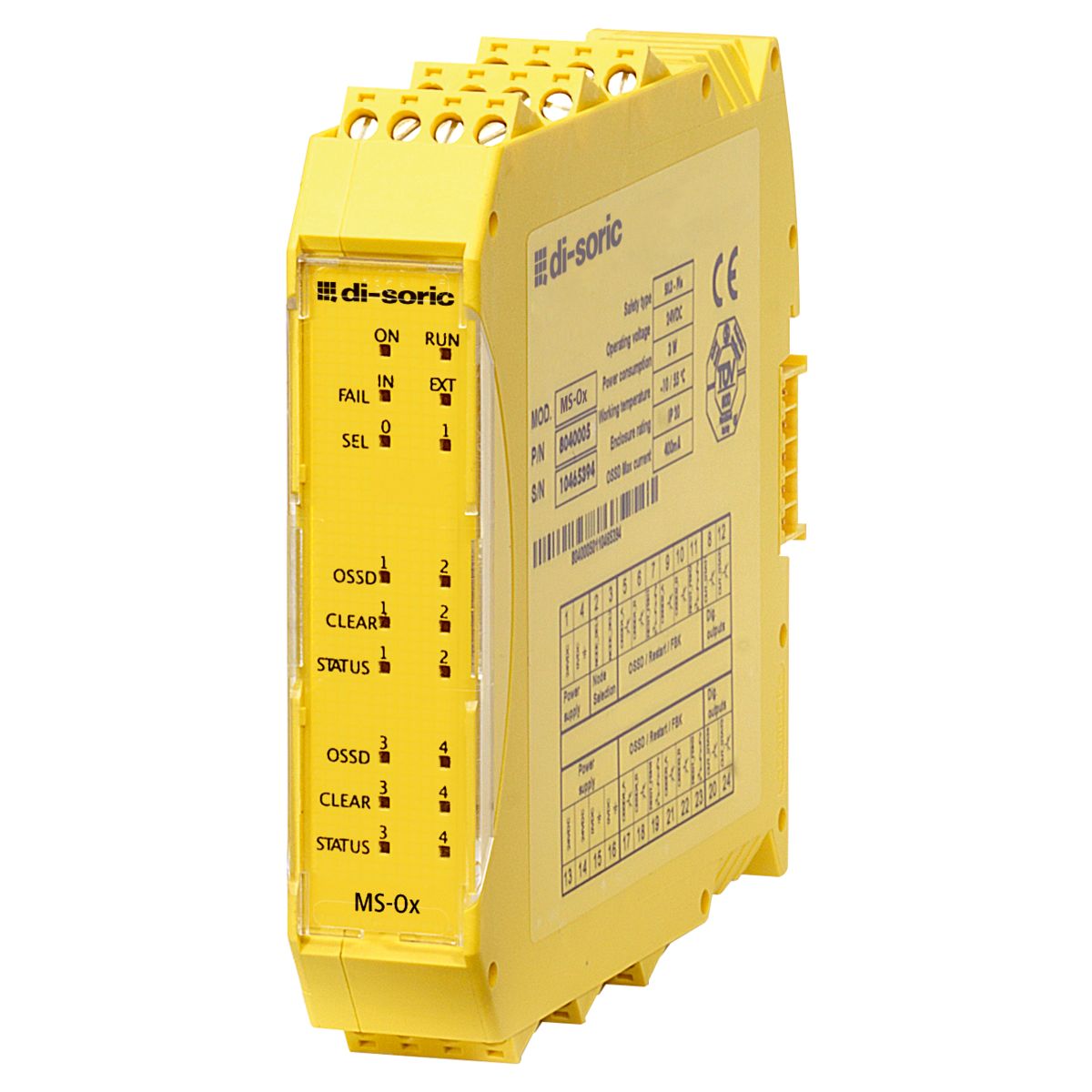

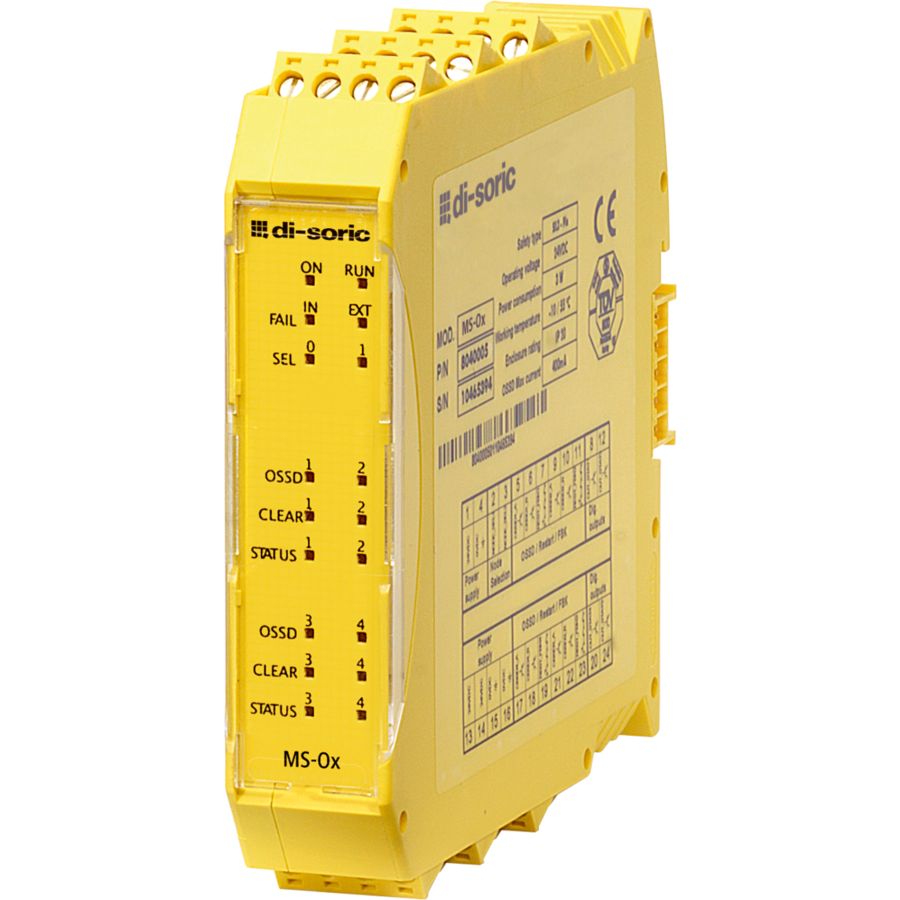

Ms - Expansion Unit - MS-O2

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Characteristic variables	SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Kat. 4 (EN ISO 13849-1)
Mounting	on DIN-rail in accordance with EN 50022-35 standard
Operating principle	Output expansion unit
Safety output	pnp (2 pairs OSSD), 400 mA / 24 V DC
Service voltage	19,2 … 28,8 V DC
Signal outputs	pnp, 100 mA (24 V DC)
Communication	5-way high-speed bus 5.0
Display	Input / output status and error diagnostics
Start / restart	2 inputs (EDM)
Connection	removable terminal blocks, Screw contacts
Communication	5-way high-speed bus 5.0
Scope of delivery	multi-language installation sheet, MS - Plug Connector MS-SC
