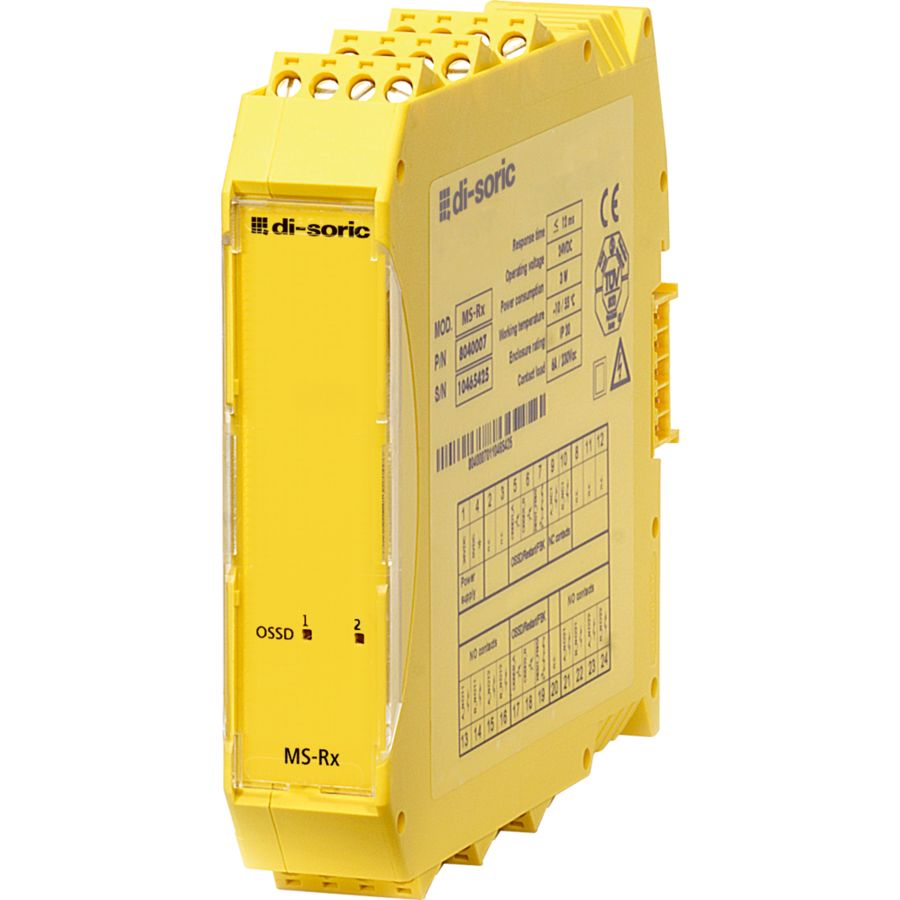

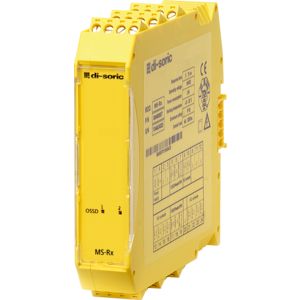

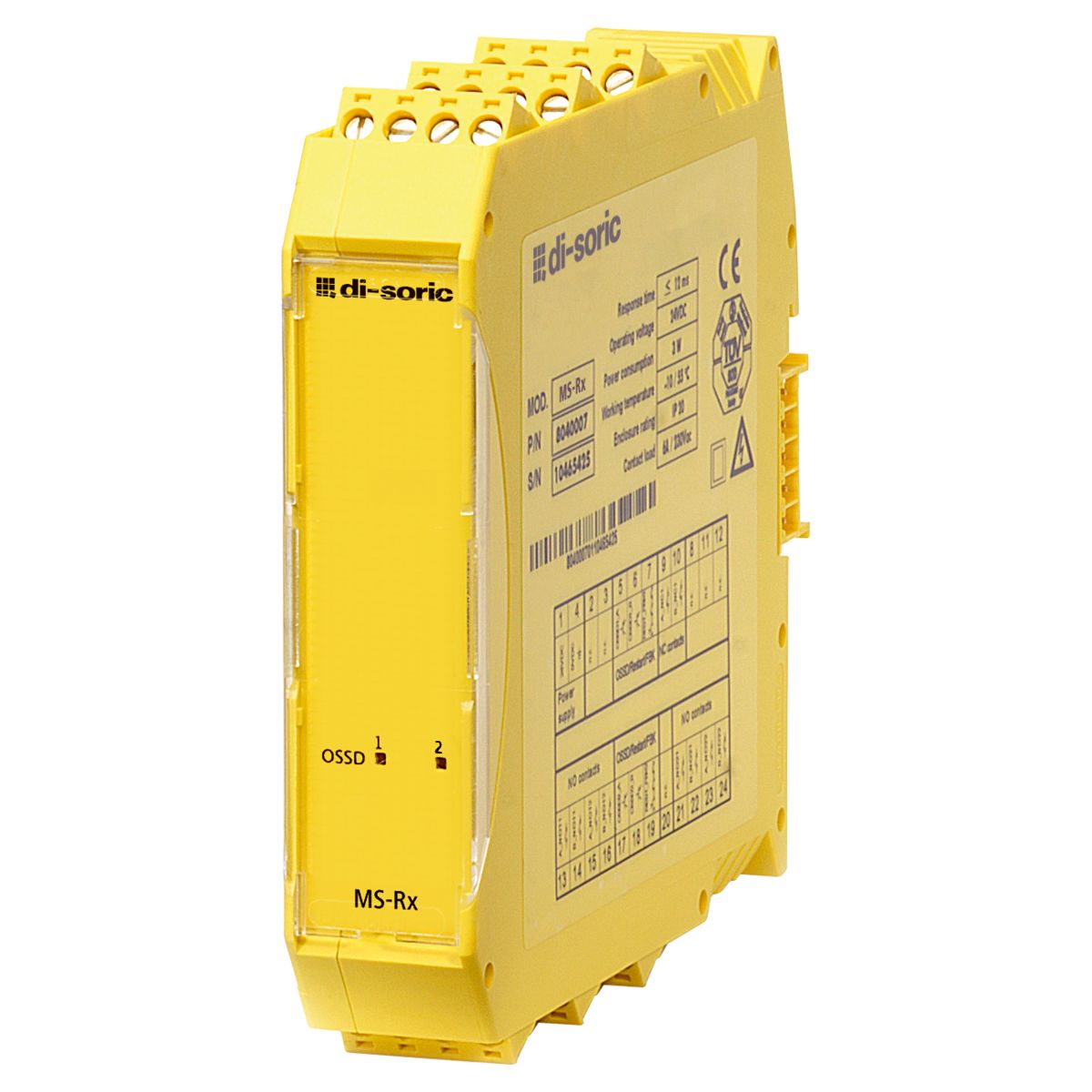

Ms - Expansion Unit - MS-R2
Part Number: MS-R2
Article Number: 208394
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Characteristic variables | SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Kat. 4 (EN ISO 13849-1) |
|---|---|
| External device (relay) monitoring - EDM | Feedback output (1x NC) |
| Mounting | on DIN-rail in accordance with EN 50022-35 standard |
| Operating principle | Safety relay module |
| Safety relay outputs | NO, NC, 6 A (240 V AC) |
| Service voltage | 19,2 … 28,8 V DC |
| Communication | Wired directly to OSSD |
| Display | Output status |
| Connection | removable terminal blocks, Screw contacts |
| Communication | Wired directly to OSSD |
| Scope of delivery | multi-language installation sheet |
