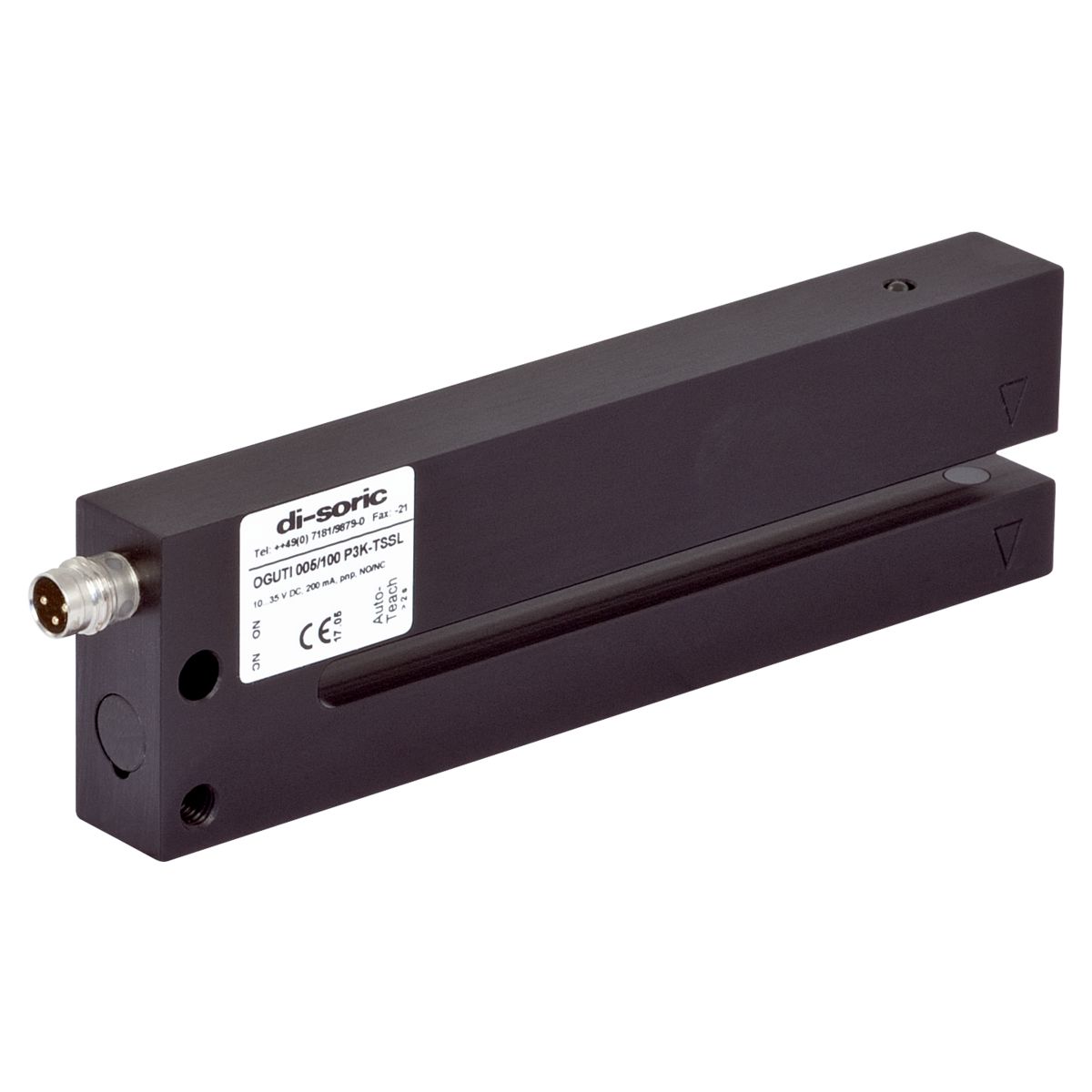

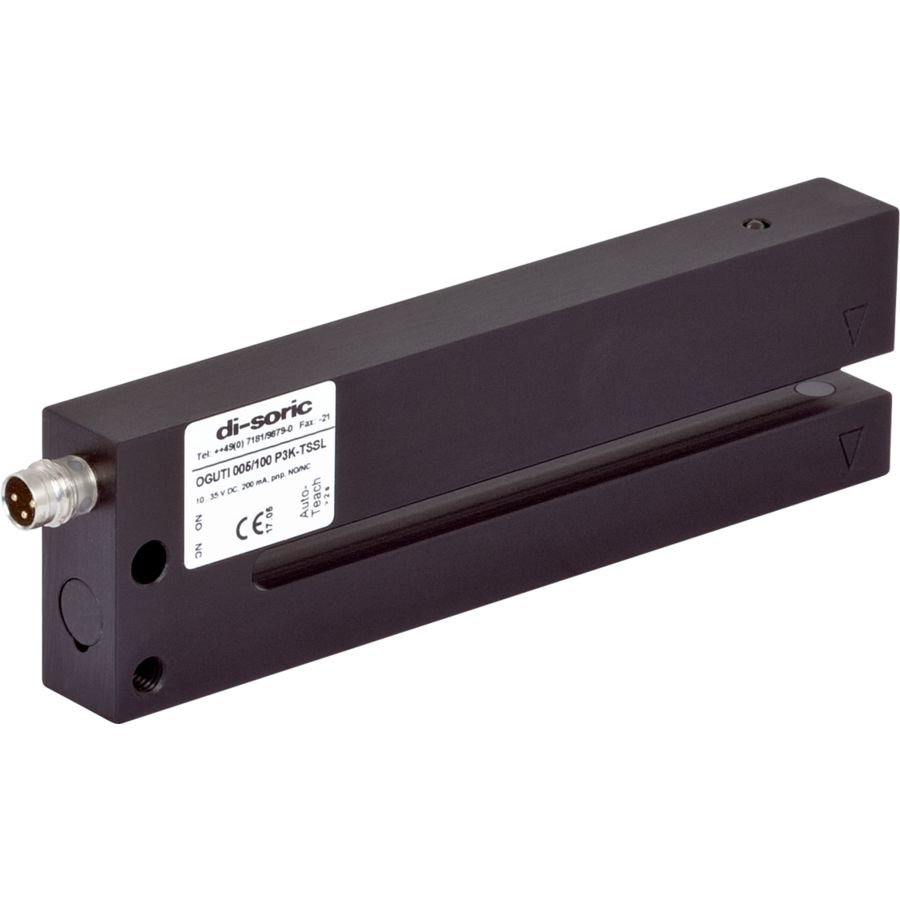

Optical Label Sensor - OGUTI 005/100 P3K-TSSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	LED
Sensitivity adjustment	Teach button
Light color	Infrared / 880 nm
Fork opening	5 mm
Leg length internal	100 mm
Service voltage	10 … 35 V DC (Supply Class 2)
No-load current (max.)	35 mA
Switching output	pnp, 200 mA, NO/NC
Ambient temperature during operation	-10 … +60 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
