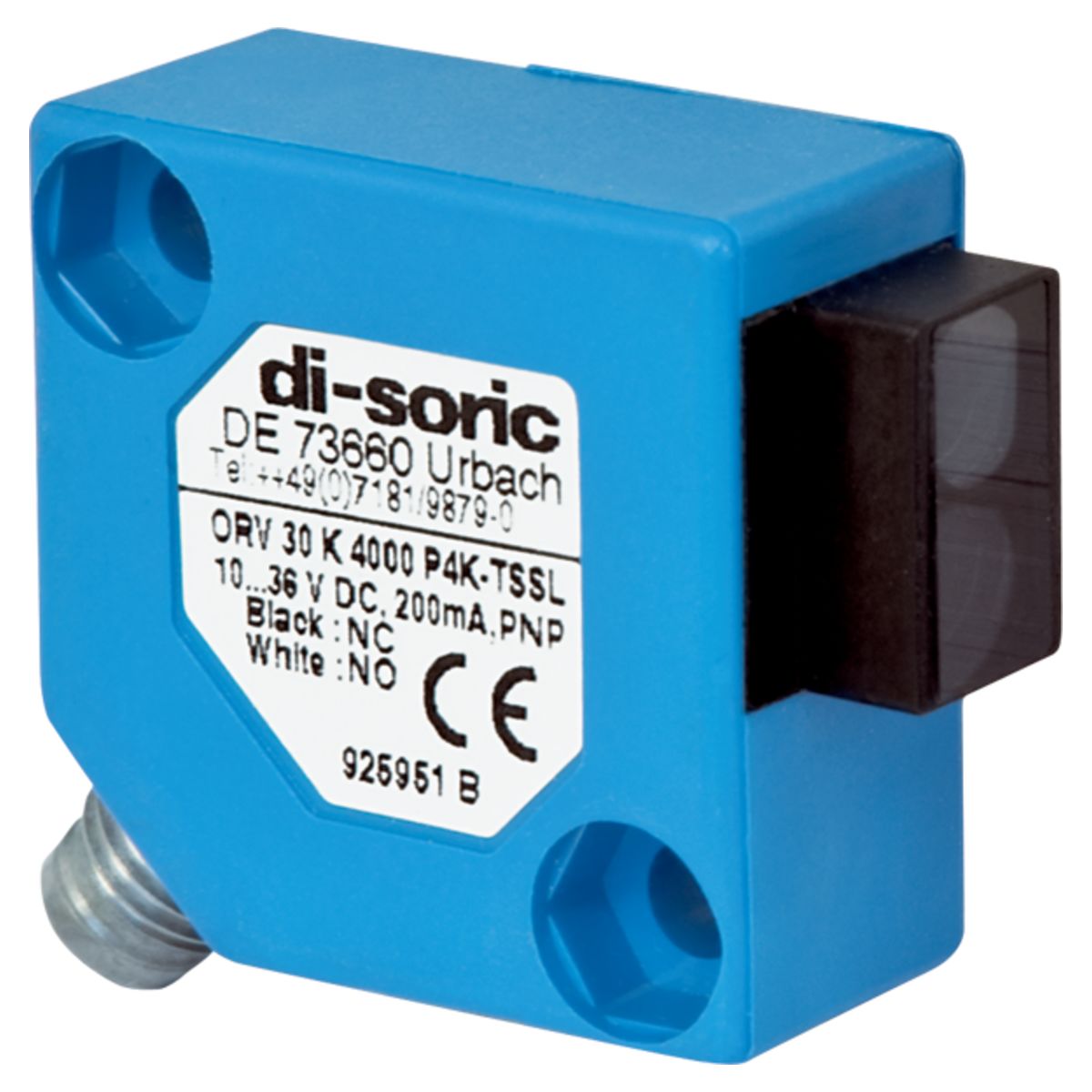

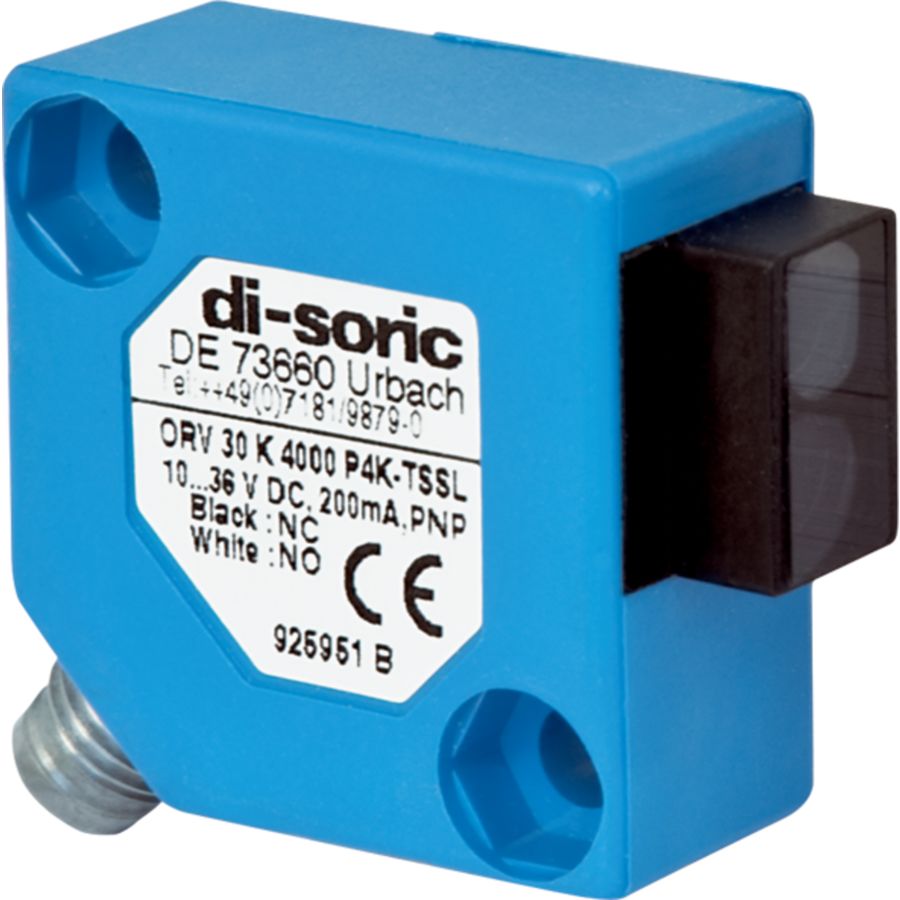

Retroreflective Sensor - ORV 30 K 4000 P4K-TSSL
Part Number: ORV 30 K 4000 P4K-TSSL
Article Number: 202754
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Retroreflective sensor |
|---|---|
| Transmitter light source | LED |
| Light color | red / 660 nm |
| Range | 200 … 4.000 mm |
| Referring reflector | Ø 84 mm, R 84 |
| Service voltage | 10 … 36 V DC |
| Switching output | pnp, 200 mA, antivalent |
| Ambient temperature during operation | -25 … +55 °C |
| Protection class | III, operation on protective low voltage |
| Connection | Connector, M8, 4-pin |
