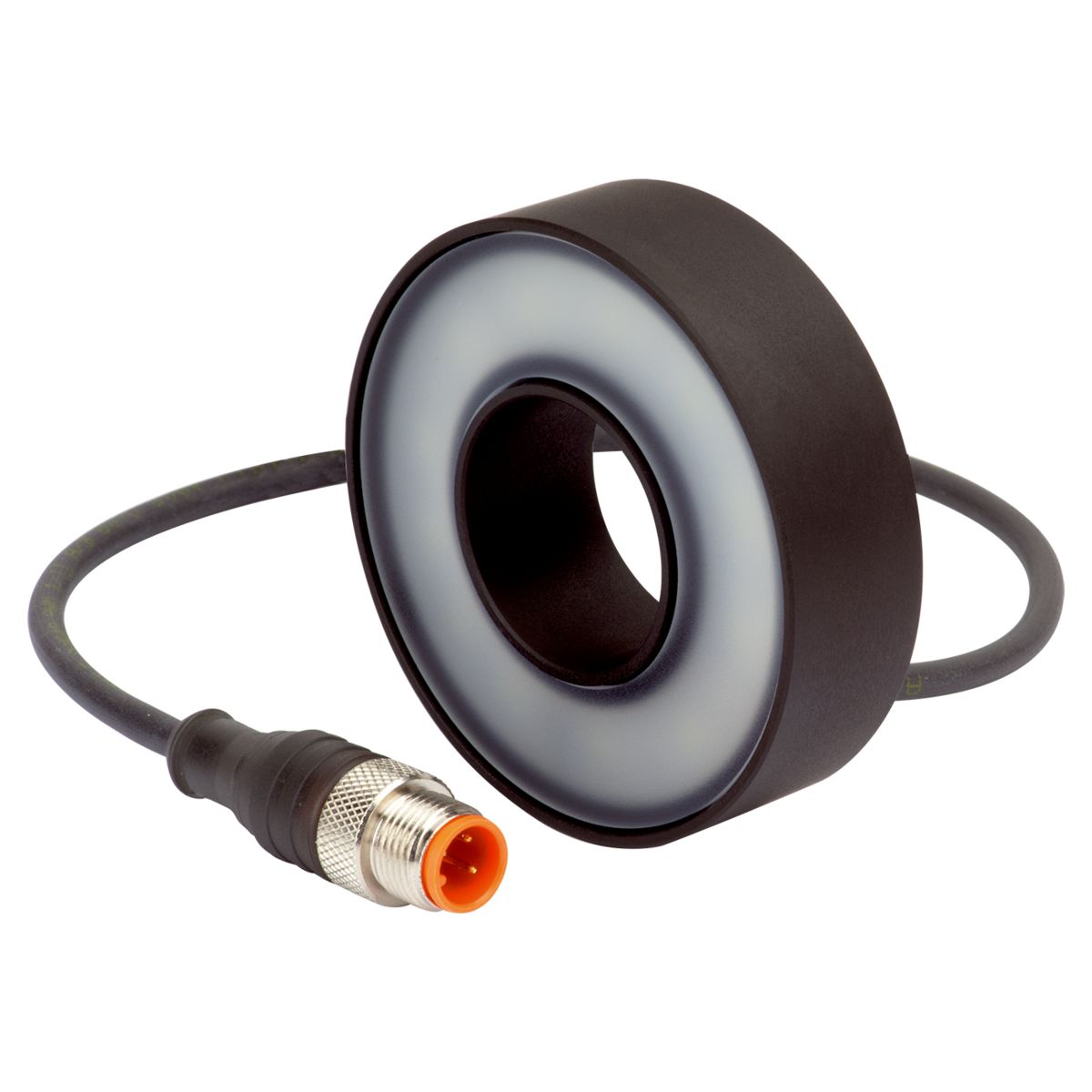

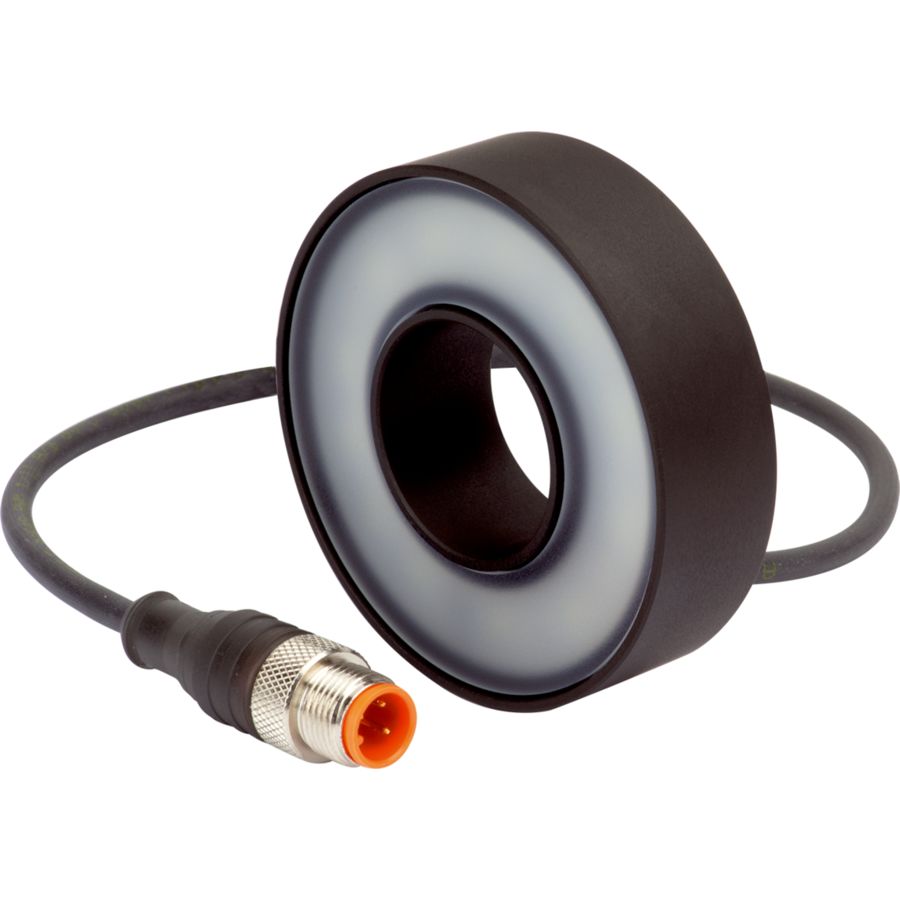

Ringlight - BE-R30-G1-K-BS-DIF
Part Number: BE-R30-G1-K-BS-DIF
Article Number: 209552
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Characteristics | State-of-the-art high power LEDs |
|---|---|
| Transmitter light source | LED |
| Light color | red |
| Service voltage | 24 V DC (Supply Class 2) |
| Housing material | Aluminum, Black (Anodized) |

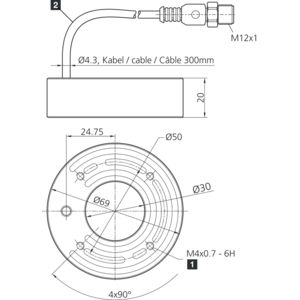

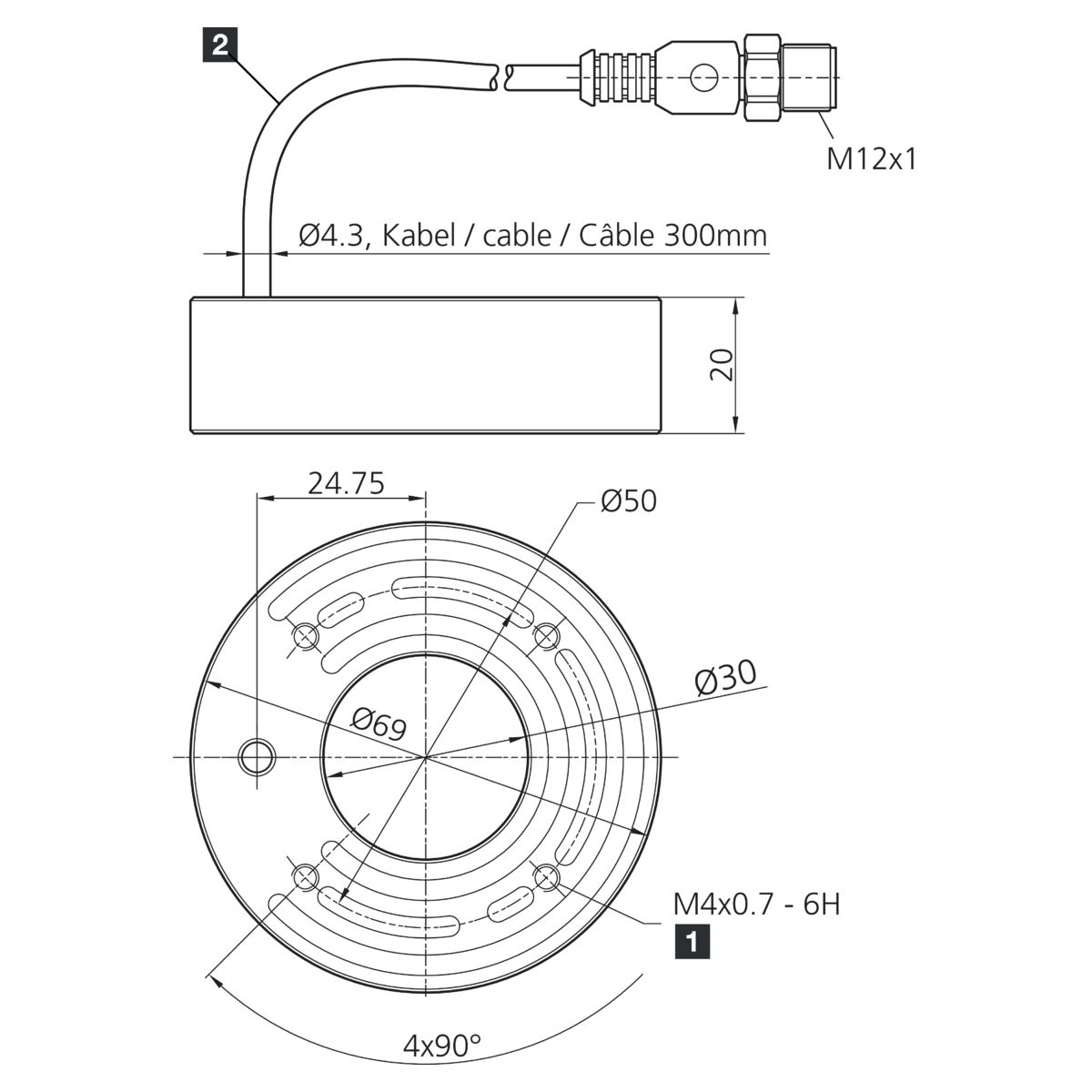

| Size | Ø 30 mm, 69 mm |
| Ambient temperature during operation | 0 … +40 °C |
| Protection type | IP 67 |
| Risk group (DIN EN 62471) | Free group |
| Protection class | III, operation on protective low voltage |

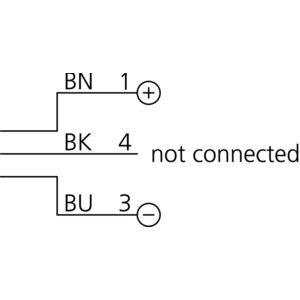

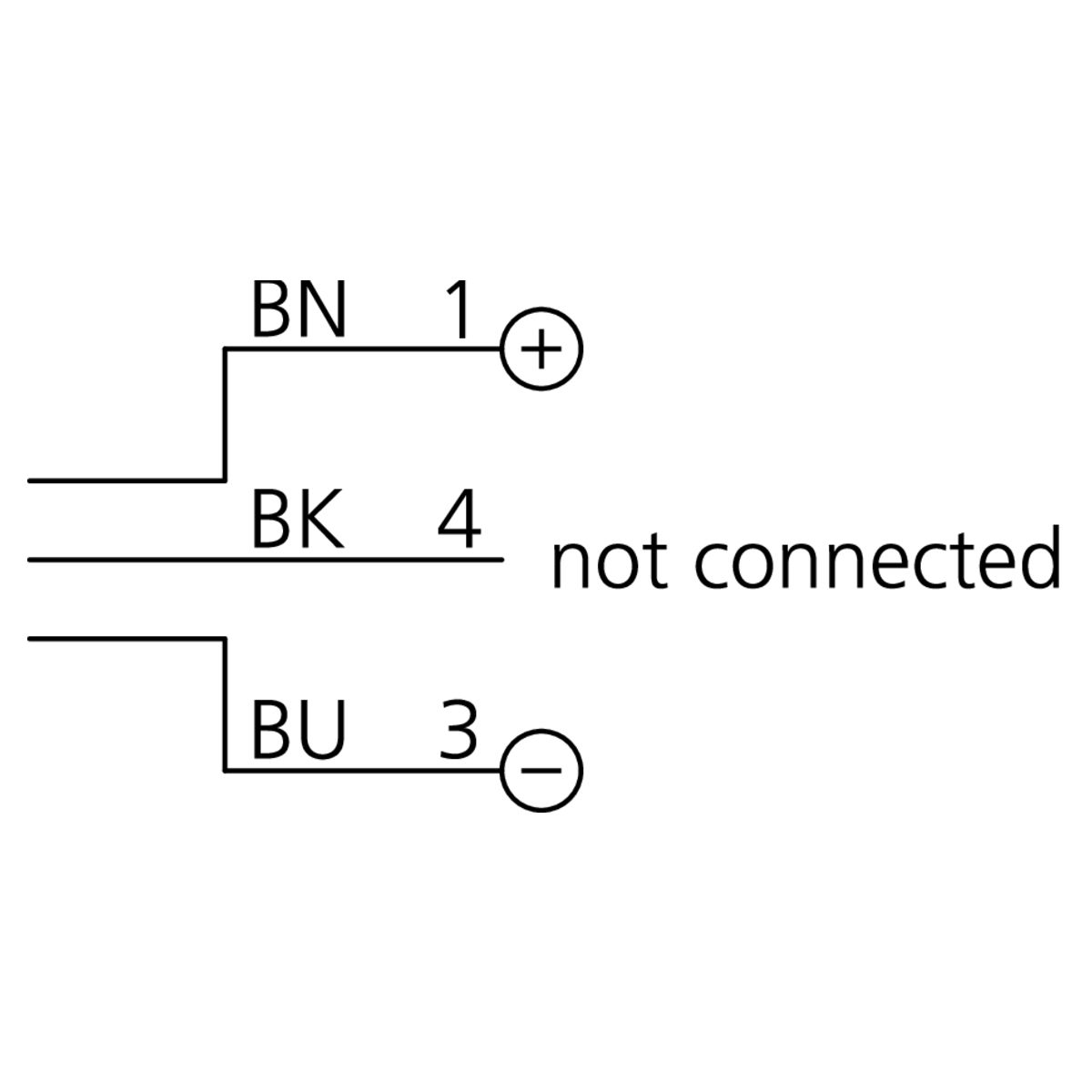

| Connection | Cable/connector, 0,3 m, M12, 3-pin |
