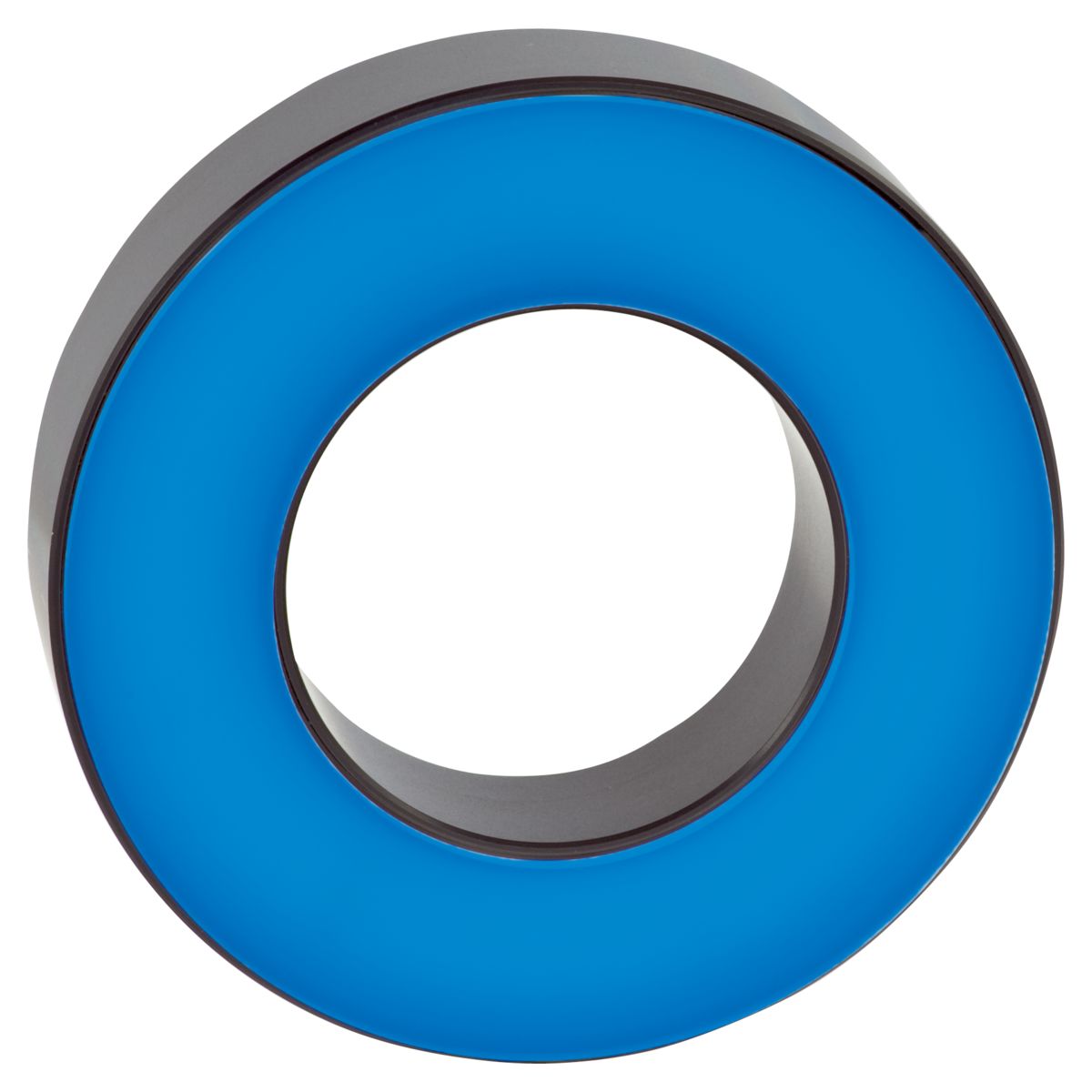

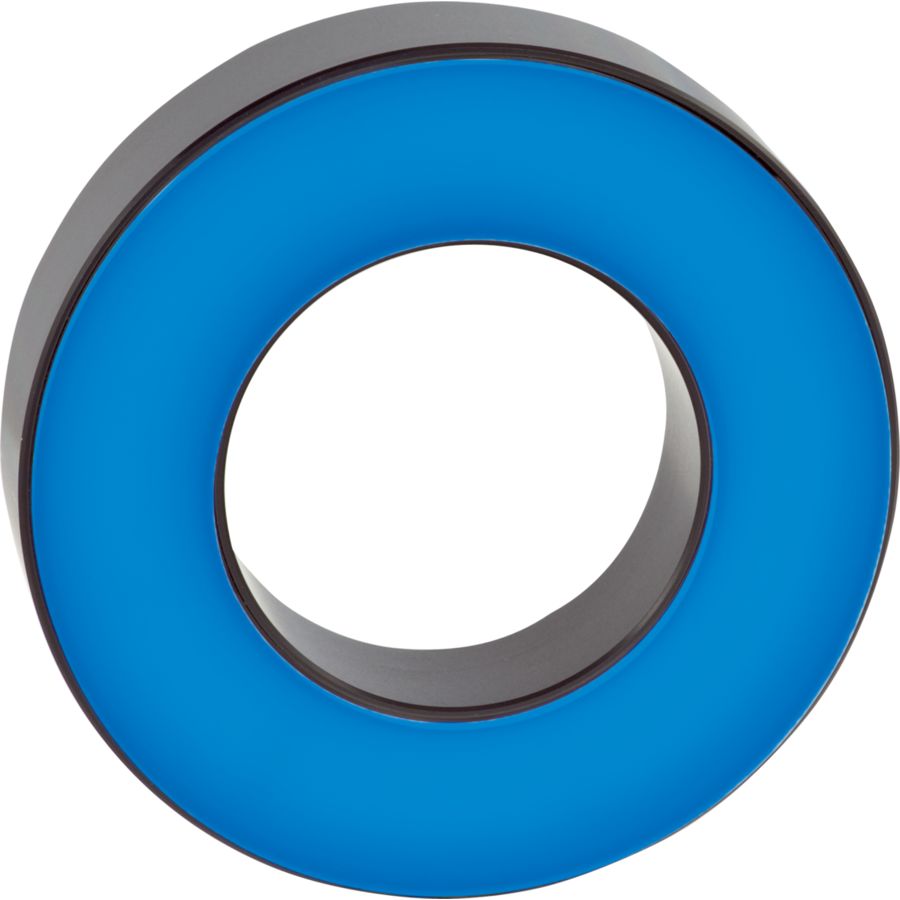

Ringlight - BEK-R70/20-G3TI-IBS-CLR

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Transmitter light source	LED
Light color	Blue
Service voltage	18 … 35 V DC (Supply Class 2)
No-load current (max.)	460 mA
Housing material	Aluminum (Anodized)

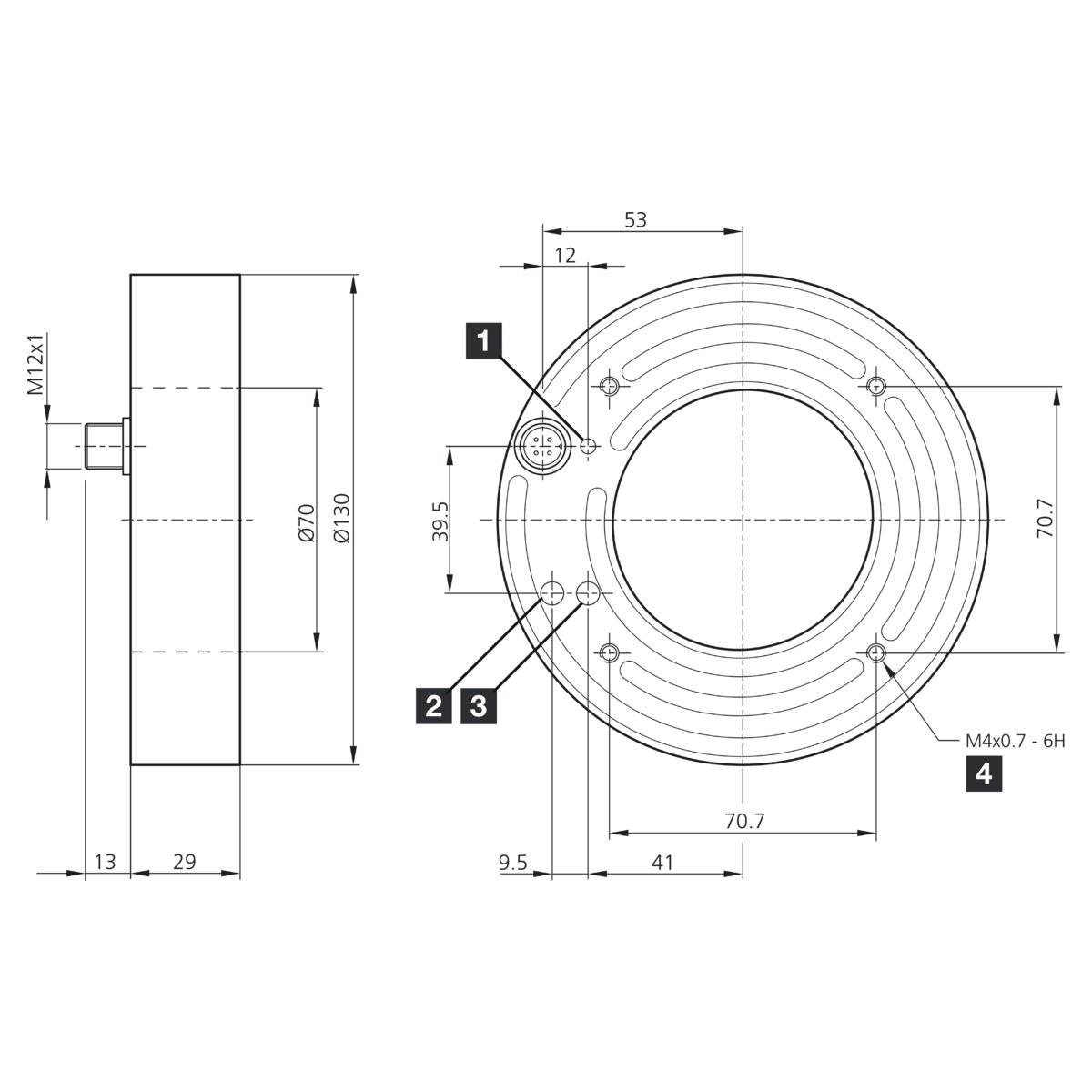

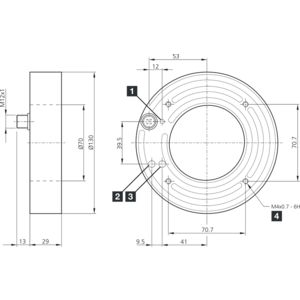

Size	Ø 130 mm, 70 mm
Ambient temperature during operation	0 … +40 °C
Protection type	IP 67
Risk group (DIN EN 62471)	Free group
Protection class	III, operation on protective low voltage

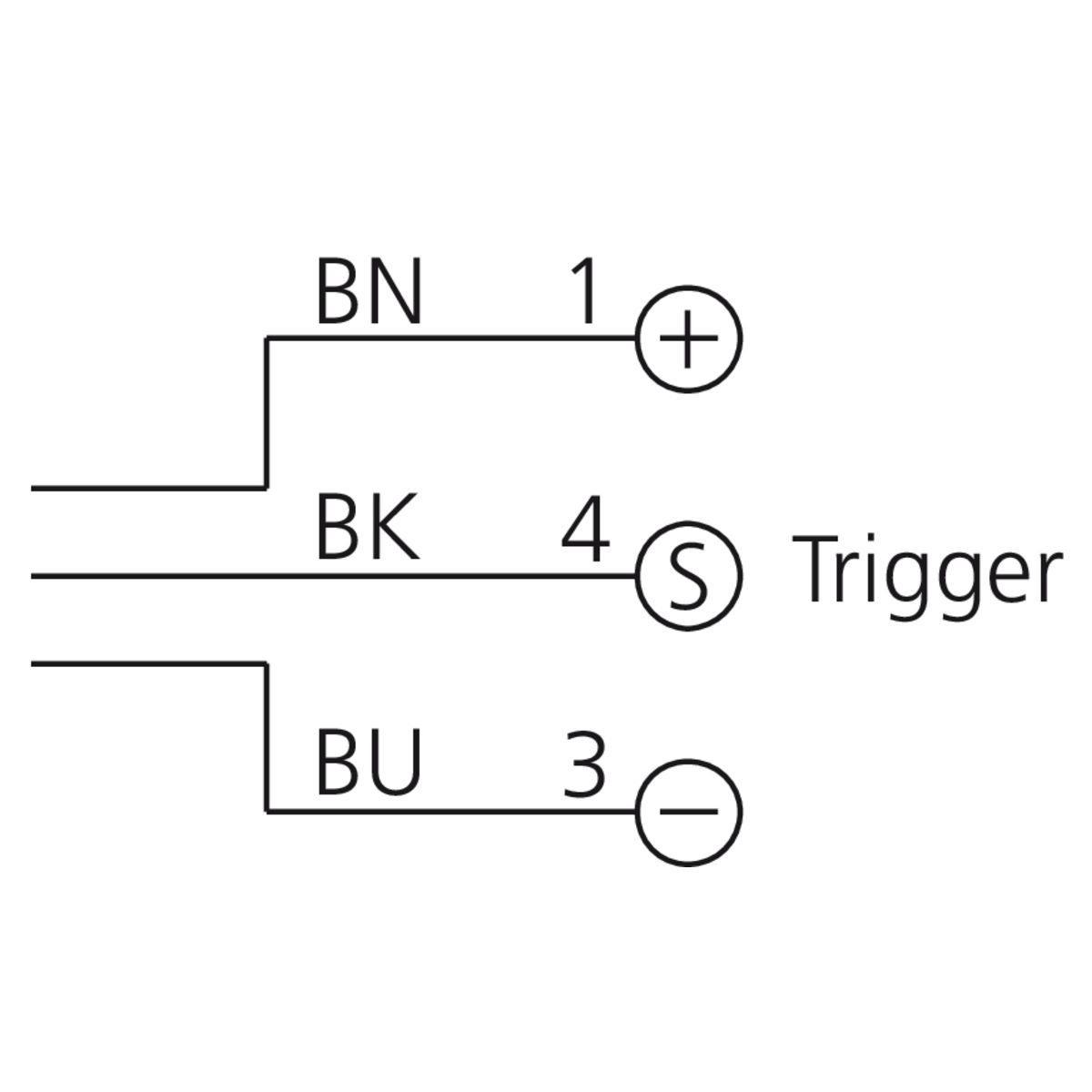

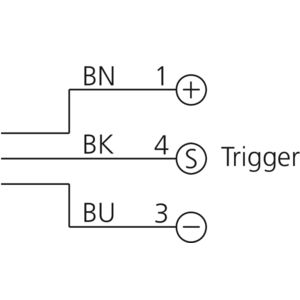

Connection	Connector, M12, 3-pin
