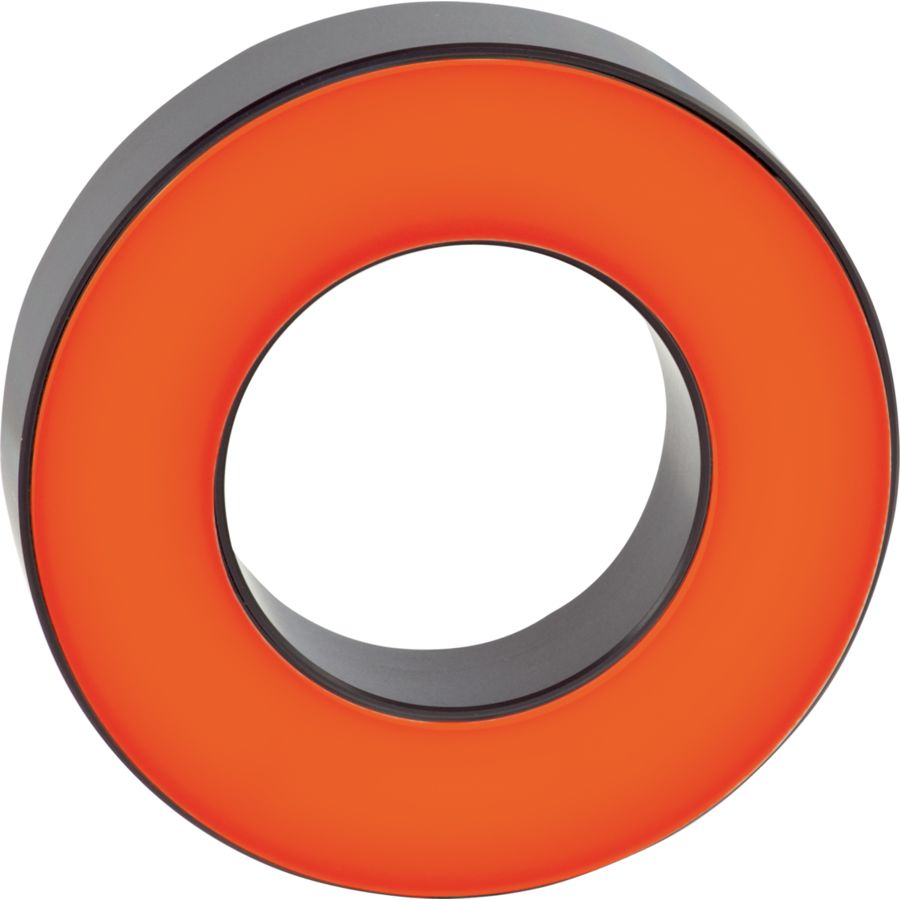

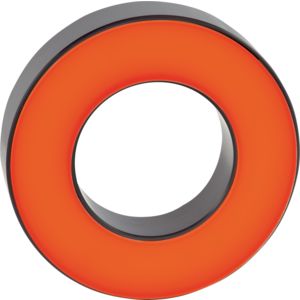

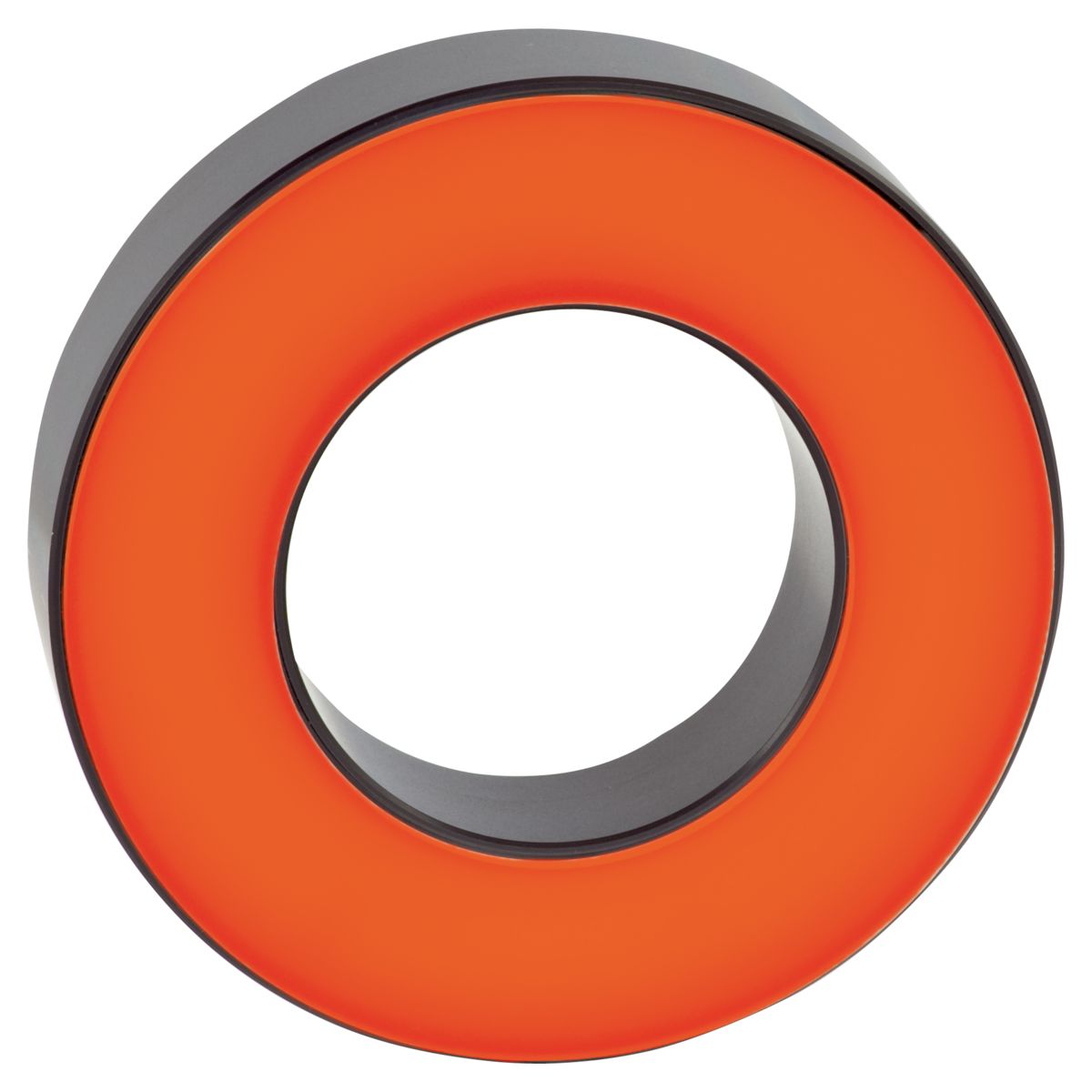

Ringlight - BEK-R70/30-G1TI-IBS-CLR
Part Number: BEK-R70/30-G1TI-IBS-CLR
Article Number: 206383
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Transmitter light source | LED |
|---|---|
| Light color | red |
| Service voltage | 18 … 35 V DC (Supply Class 2) |
| No-load current (max.) | 470 mA (24 V DC) |
| Housing material | Aluminum (Anodized) |

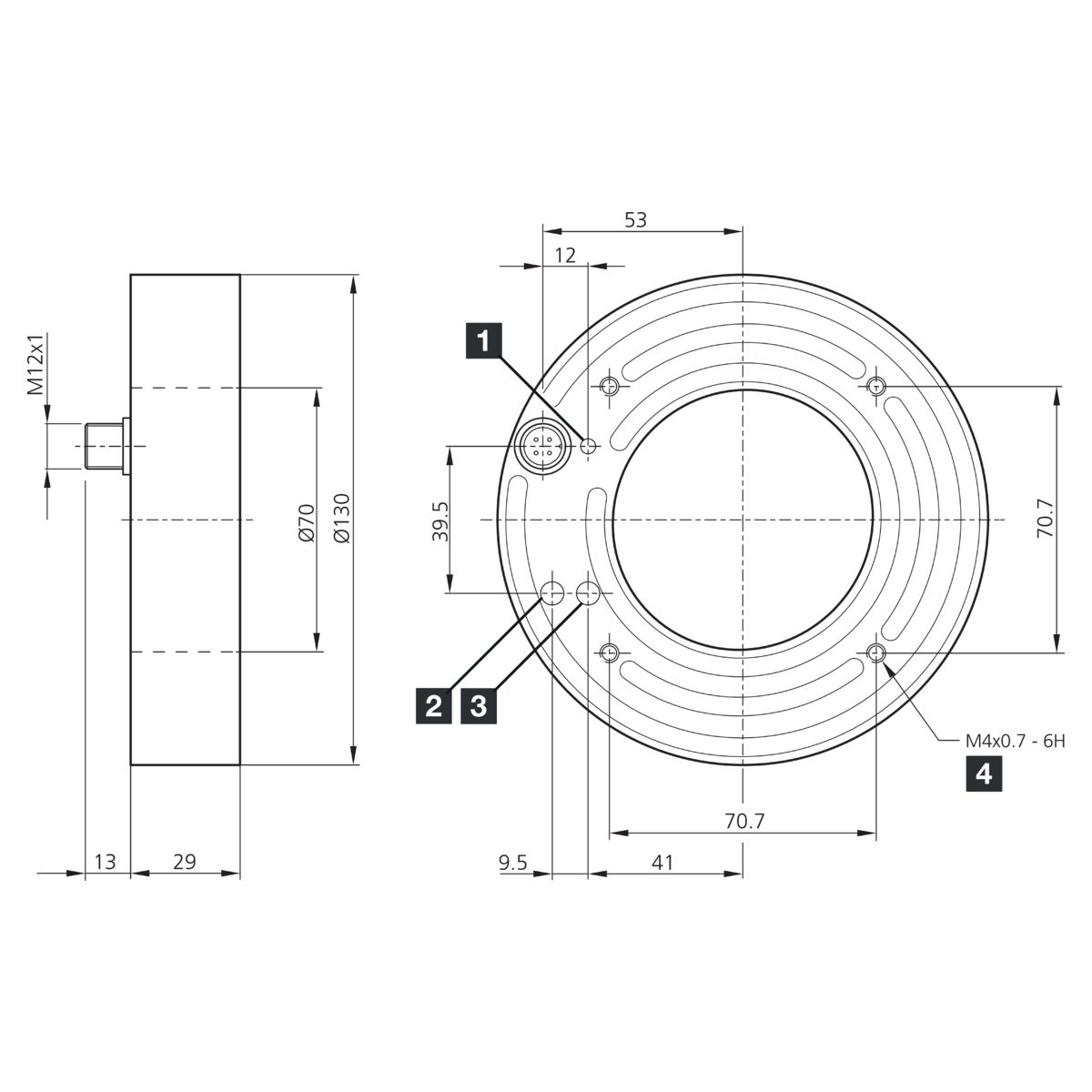

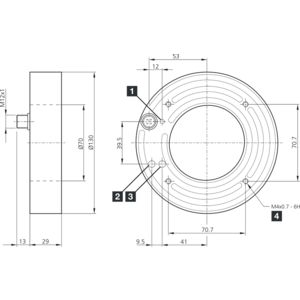

| Size | Ø 130 mm, 70 mm |
| Ambient temperature during operation | 0 … +40 °C |
| Protection type | IP 67 |
| Risk group (DIN EN 62471) | Free group |
| Protection class | III, operation on protective low voltage |

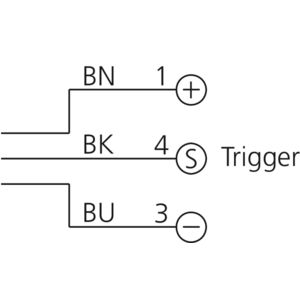

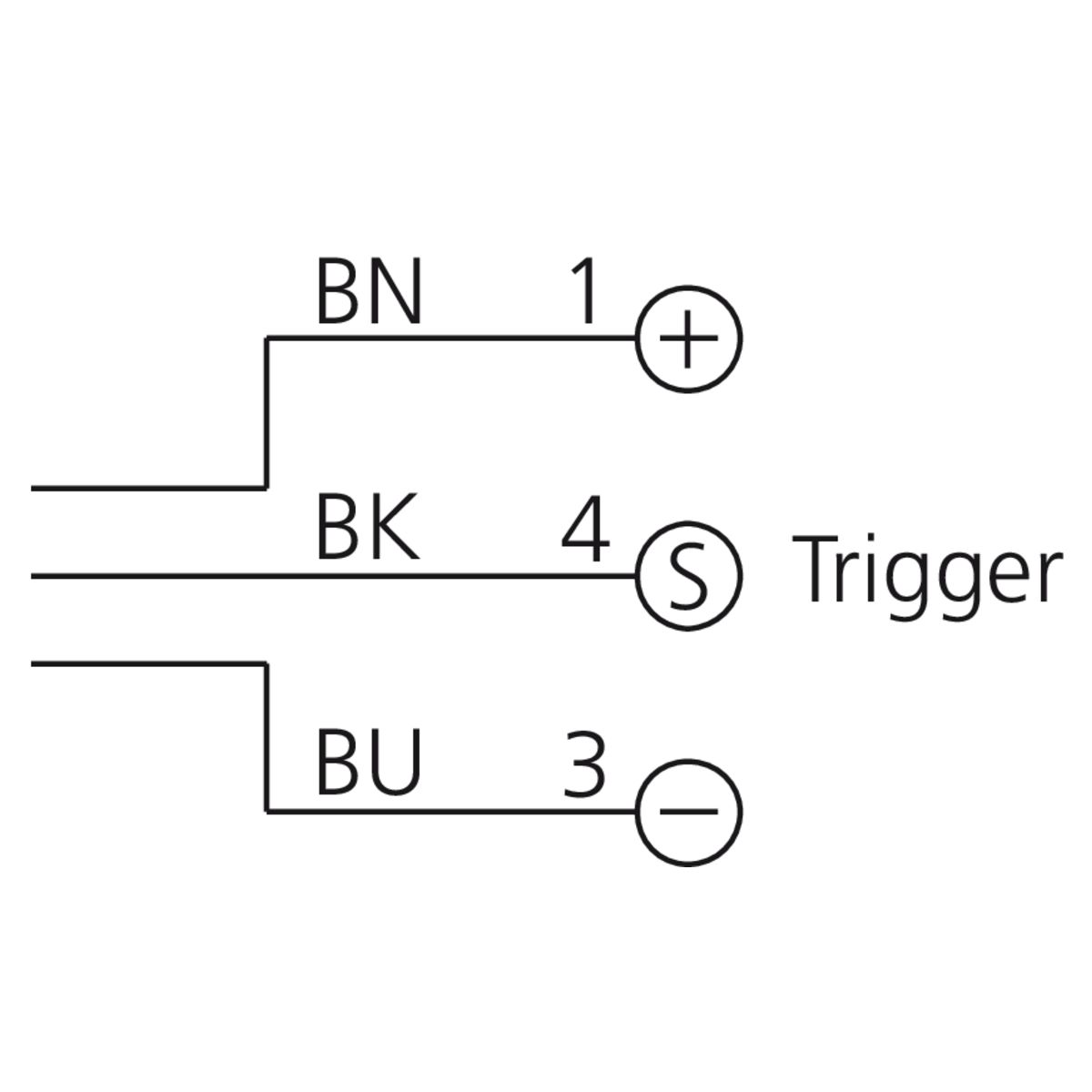

| Connection | Connector, M12, 3-pin |
