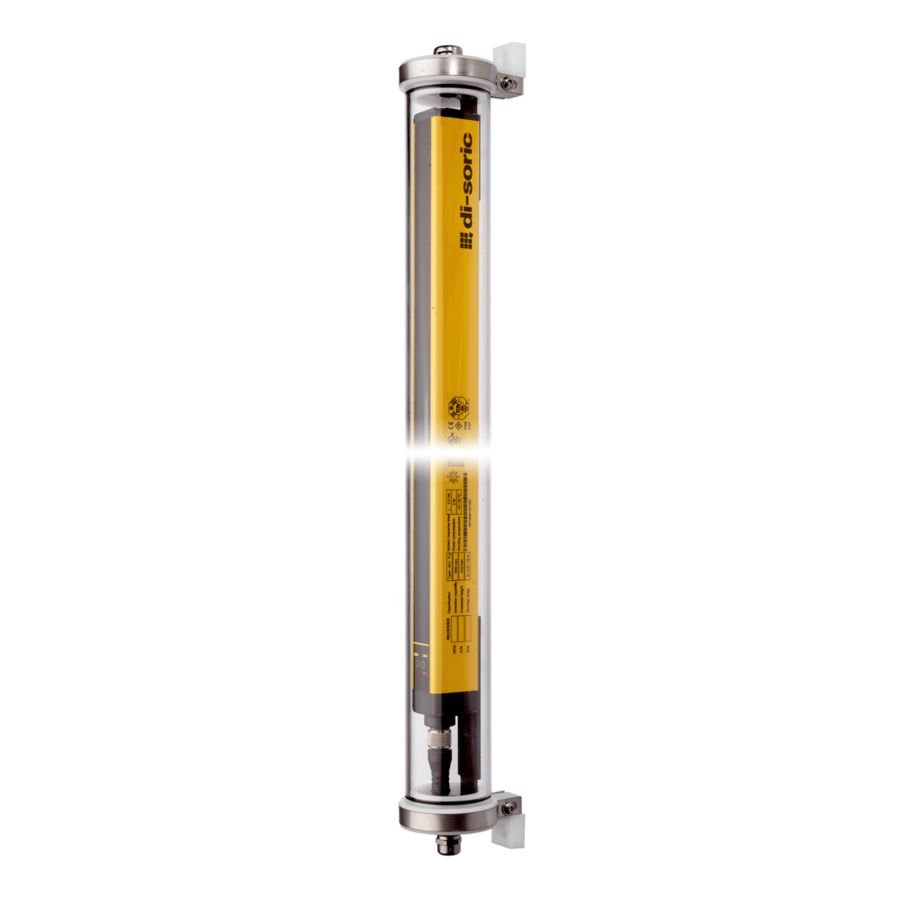

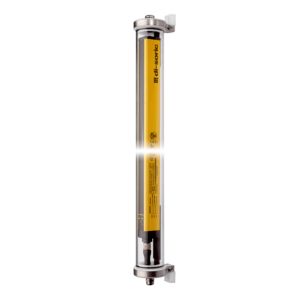

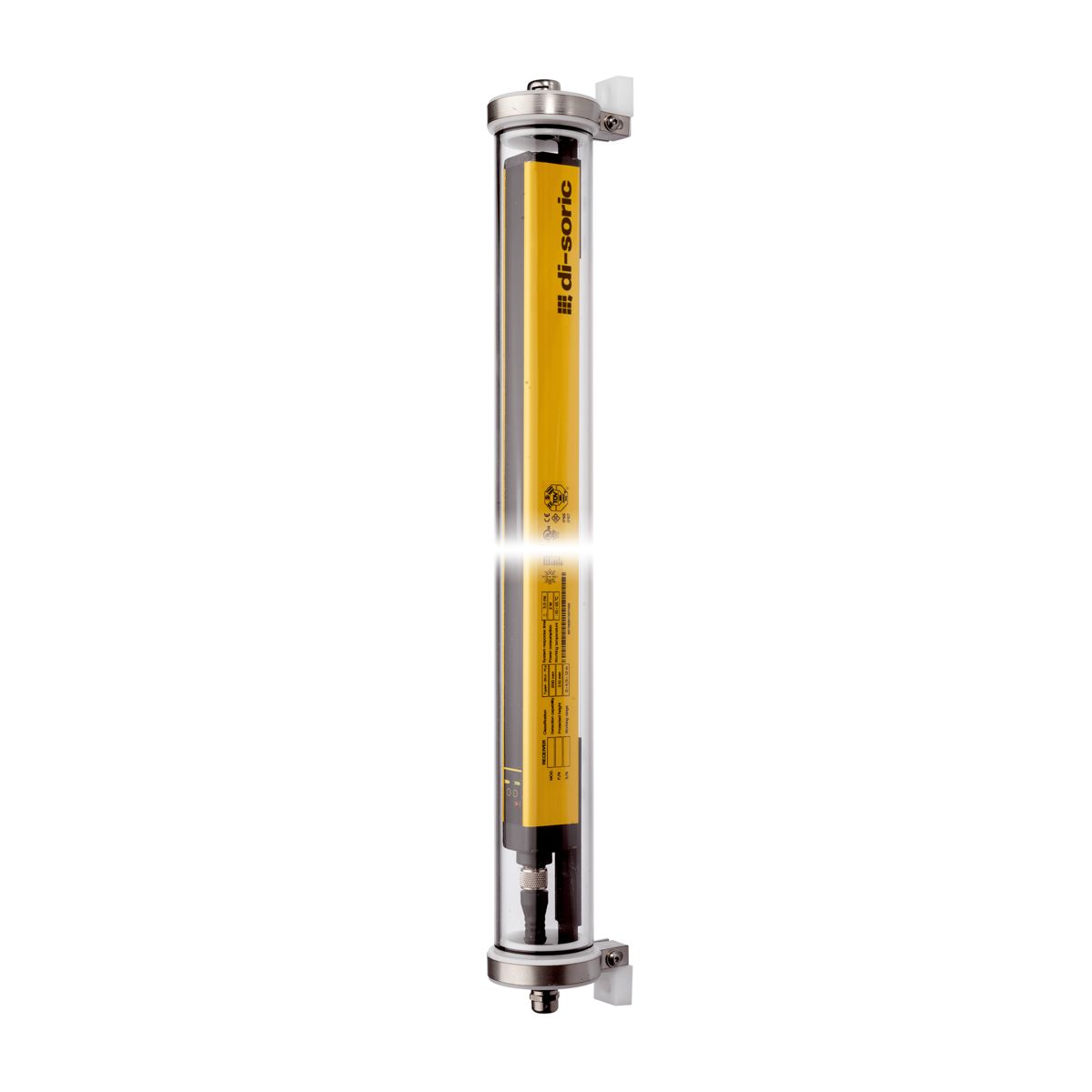

Safety Light Curtain In Ip 69k Protective Housing - SLI4-1051-WTF
Part Number: SLI4-1051-WTF
Article Number: 208833
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Characteristic variables | Typ 4 (IEC/TS 61496-2), SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Kat. 4 (EN ISO 13849-1) |
|---|---|
| Protective function | Finger protection |

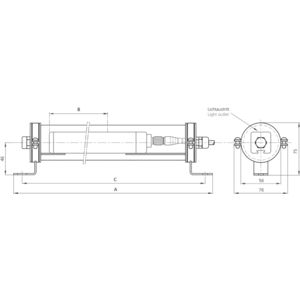

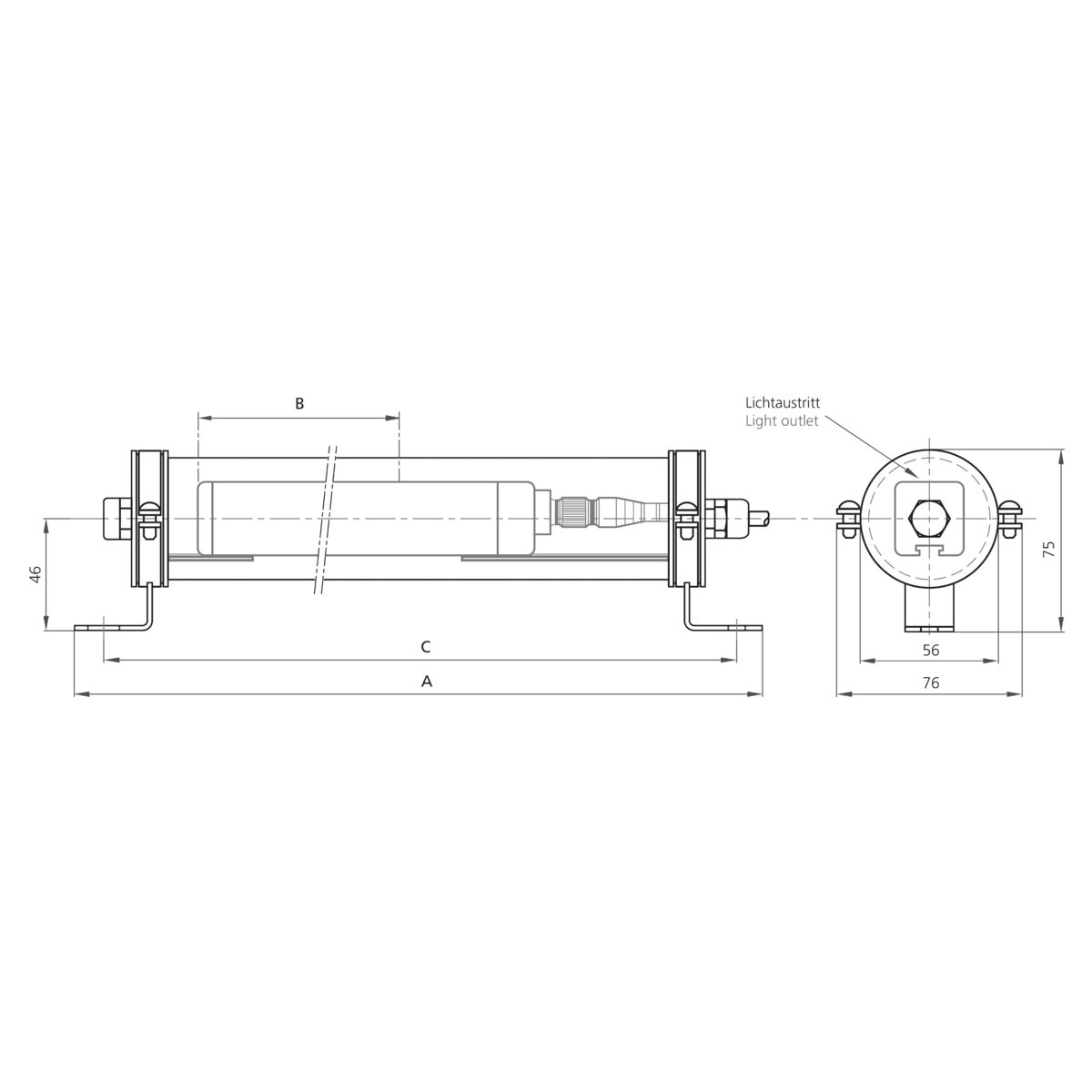

| Total height (A) | 1.237 mm |
| Protective field height (B) | 1.060 mm |
| Resolution | 14 mm |
| Number of beams | 105 |
| Model | built-in control functions (EDM) |
| Safety output | pnp (2x), 400 mA / 24 V DC |
| Service voltage | 19,2 … 28,8 V DC |
| Range | 2.000 mm, 5.000 mm |
| Protection type | IP 69K |

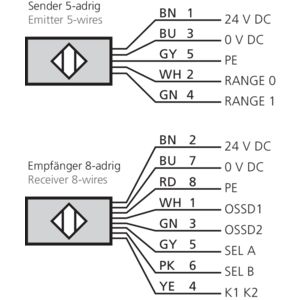

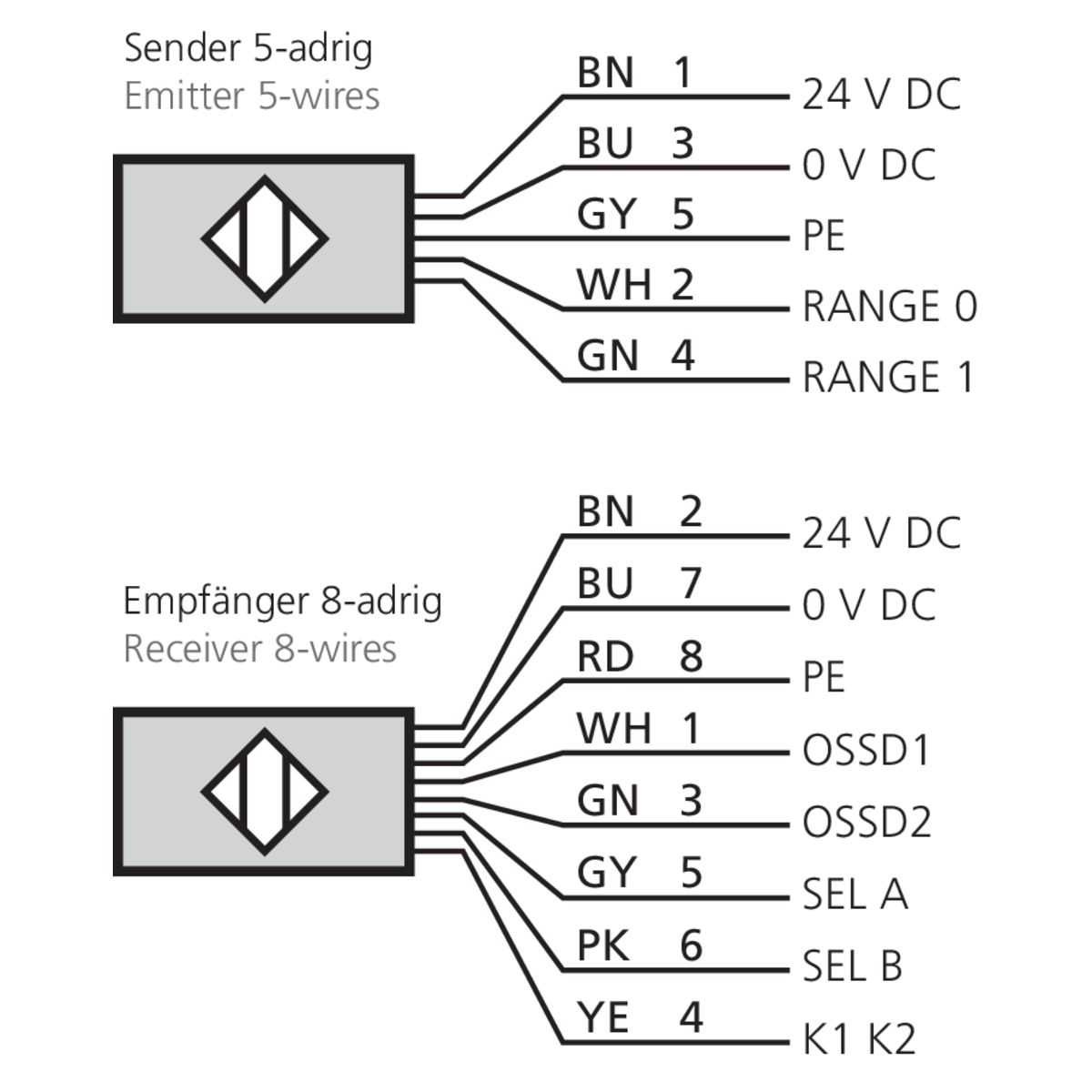

| Connection | Cable, 10 m |
| Scope of delivery | Transmitter + receiver, CD-ROM containing the multi-language operating instructions, Quick installation guide, POM-C and stainless steel fastening brackets |
