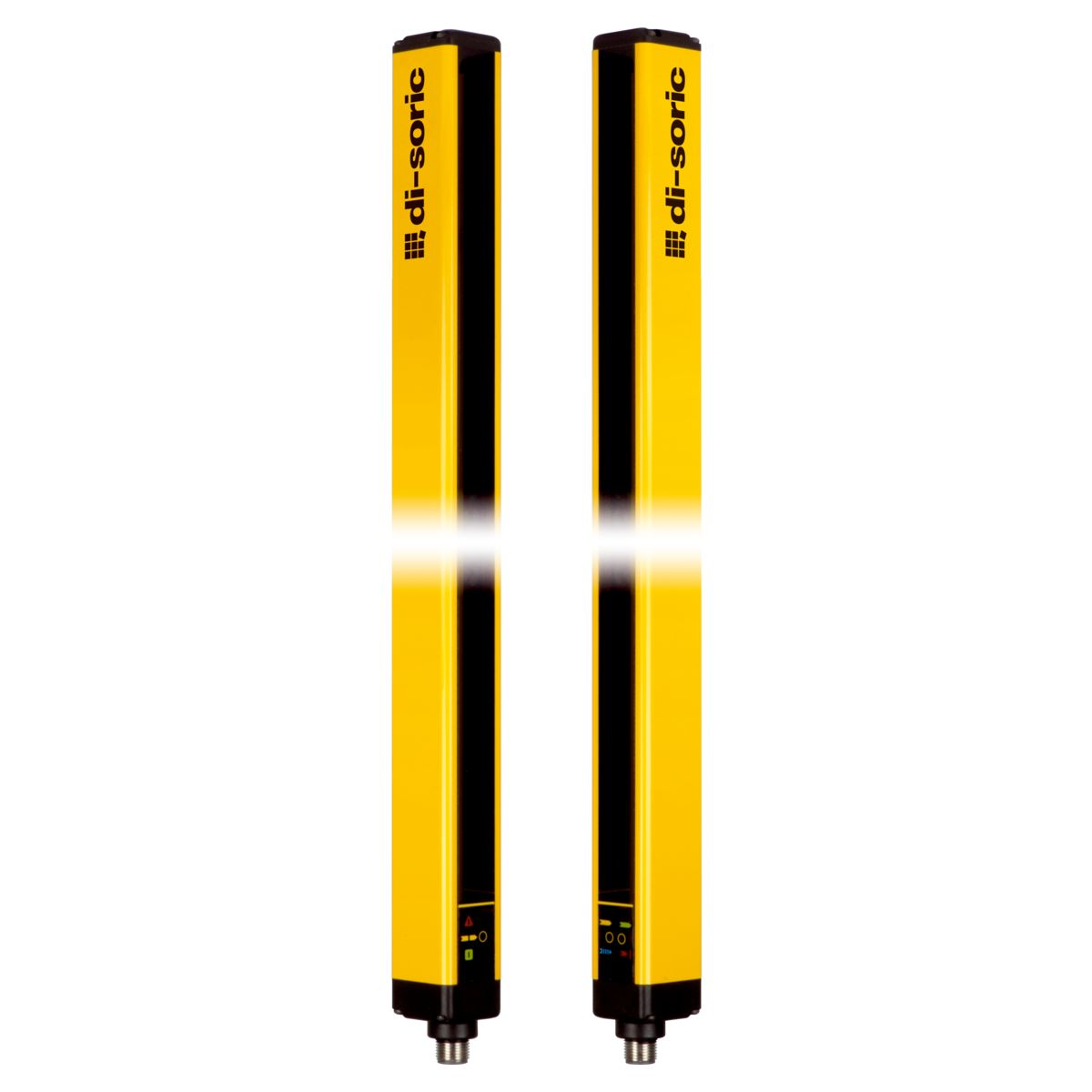

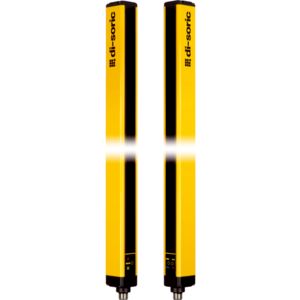

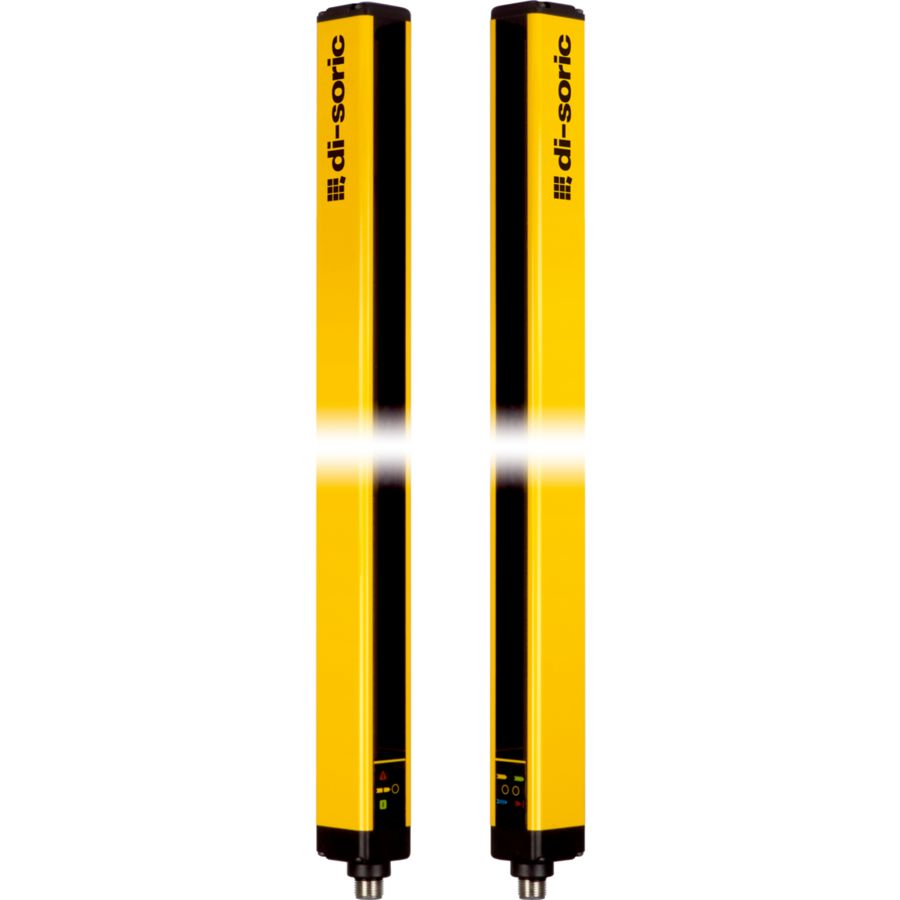

Safety Light Curtain - SLBH4-605
Part Number: SLBH4-605
Article Number: 208585
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Characteristic variables | Typ 4 (IEC/TS 61496-2), SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Kat. 4 (EN ISO 13849-1) |
|---|---|
| Protective function | Body protection |
| Total height (A) | 663 mm |
| Protective field height (B) | 610 mm |
| Resolution | 50 mm |
| Number of beams | 16 |
| Model | Basic, extended range |
| Safety output | pnp (2x), 400 mA / 24 V DC |
| Service voltage | 19,2 … 28,8 V DC |
| Range | 10.000 mm, 20.000 mm |
| Protection type | IP 65, IP 67 |
| Connection | Connector, M12, 5-pin |
| Connection 2 | Connector, M12, 5-pin (Receiver) |
| Scope of delivery | Transmitter + receiver, one set of standard fixing brackets SA 4, CD-ROM containing the multi-language operating instructions, Quick installation guide |
