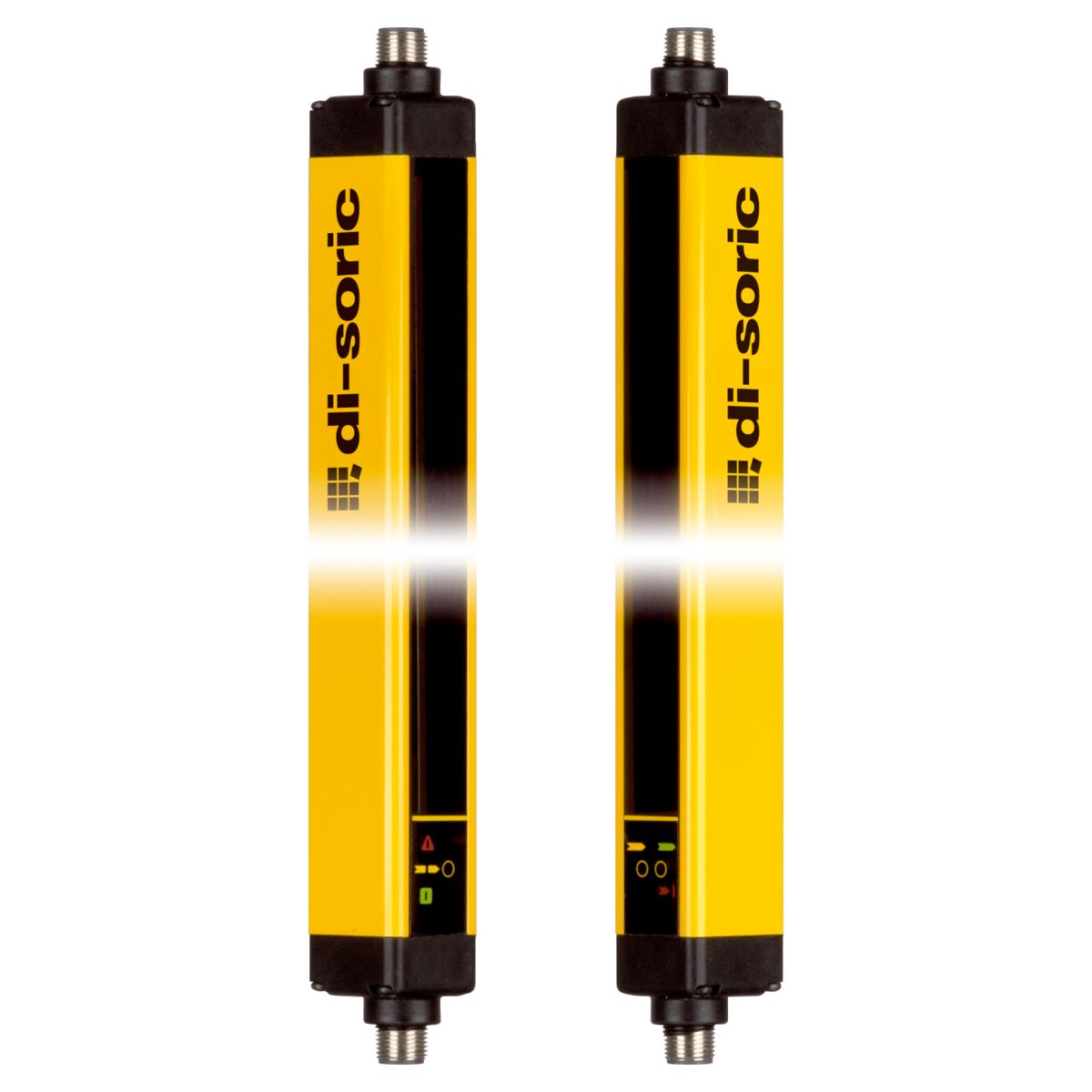

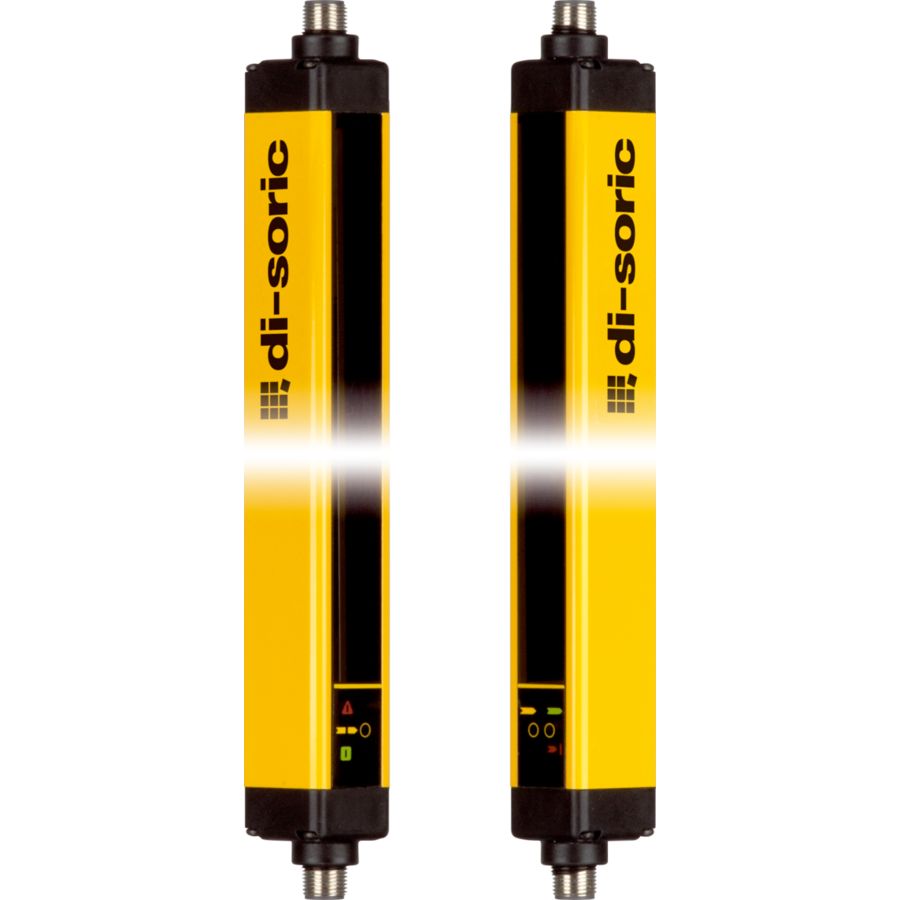

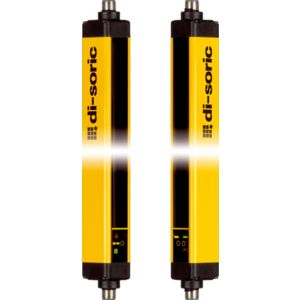

Safety Light Curtain - SLI4-309-S2
Part Number: SLI4-309-S2
Article Number: 209004
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Characteristic variables | Typ 4 (IEC/TS 61496-2), SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Kat. 4 (EN ISO 13849-1) |
|---|---|
| Protective function | Body protection |

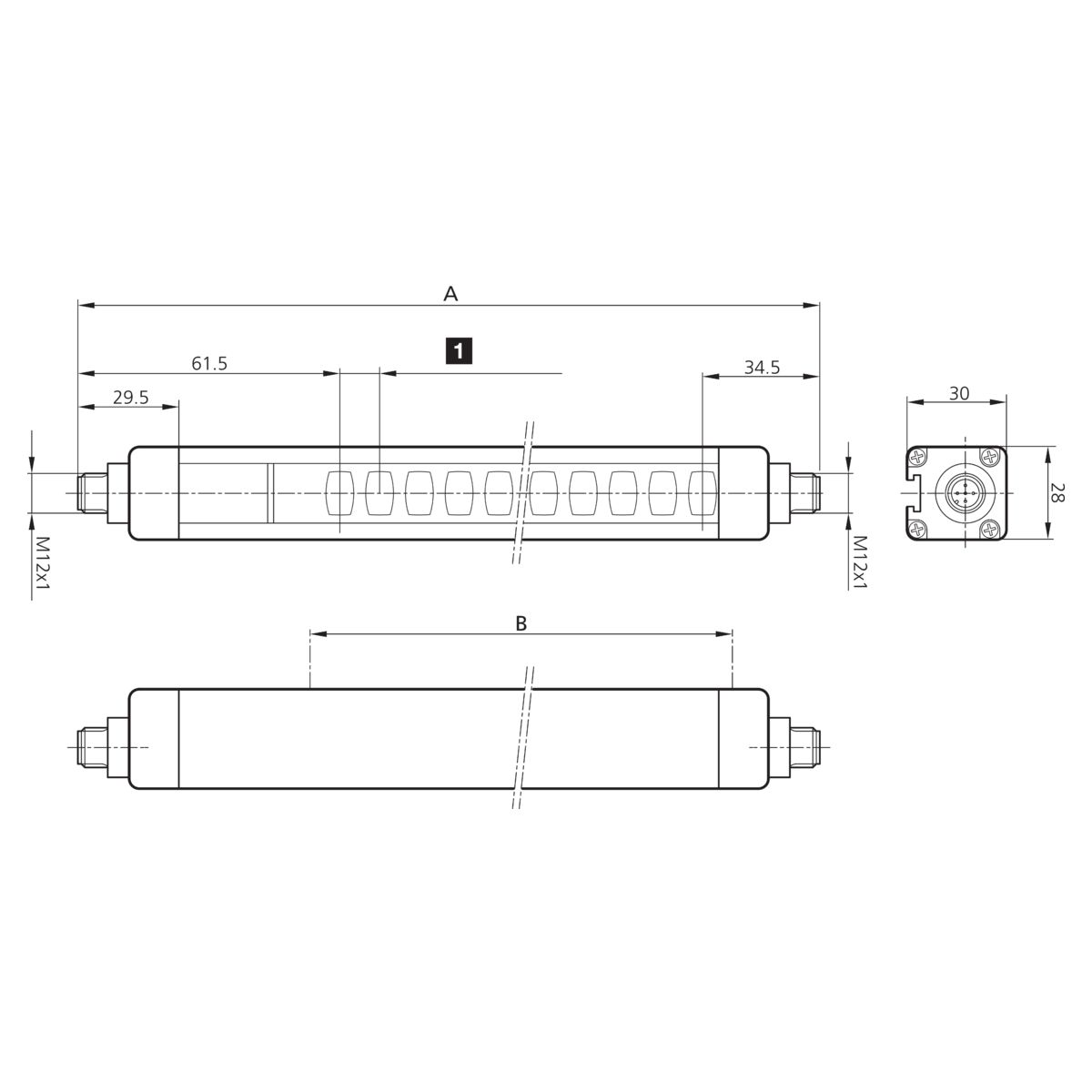

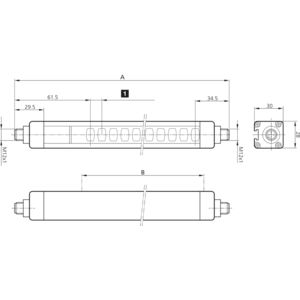

| Total height (A) | 387 mm |
| Protective field height (B) | 310 mm |
| Resolution | 90 mm |
| Number of beams | 4 |
| Model | built-in control functions (EDM), Slave 2 |
| Service voltage | 19,2 … 28,8 V DC |
| Range | 4.000 mm, 12.000 mm |
| Protection type | IP 65, IP 67 |
| Scope of delivery | Transmitter + receiver, one set of standard fixing brackets SA 4, CD-ROM containing the multi-language operating instructions, Quick installation guide |
