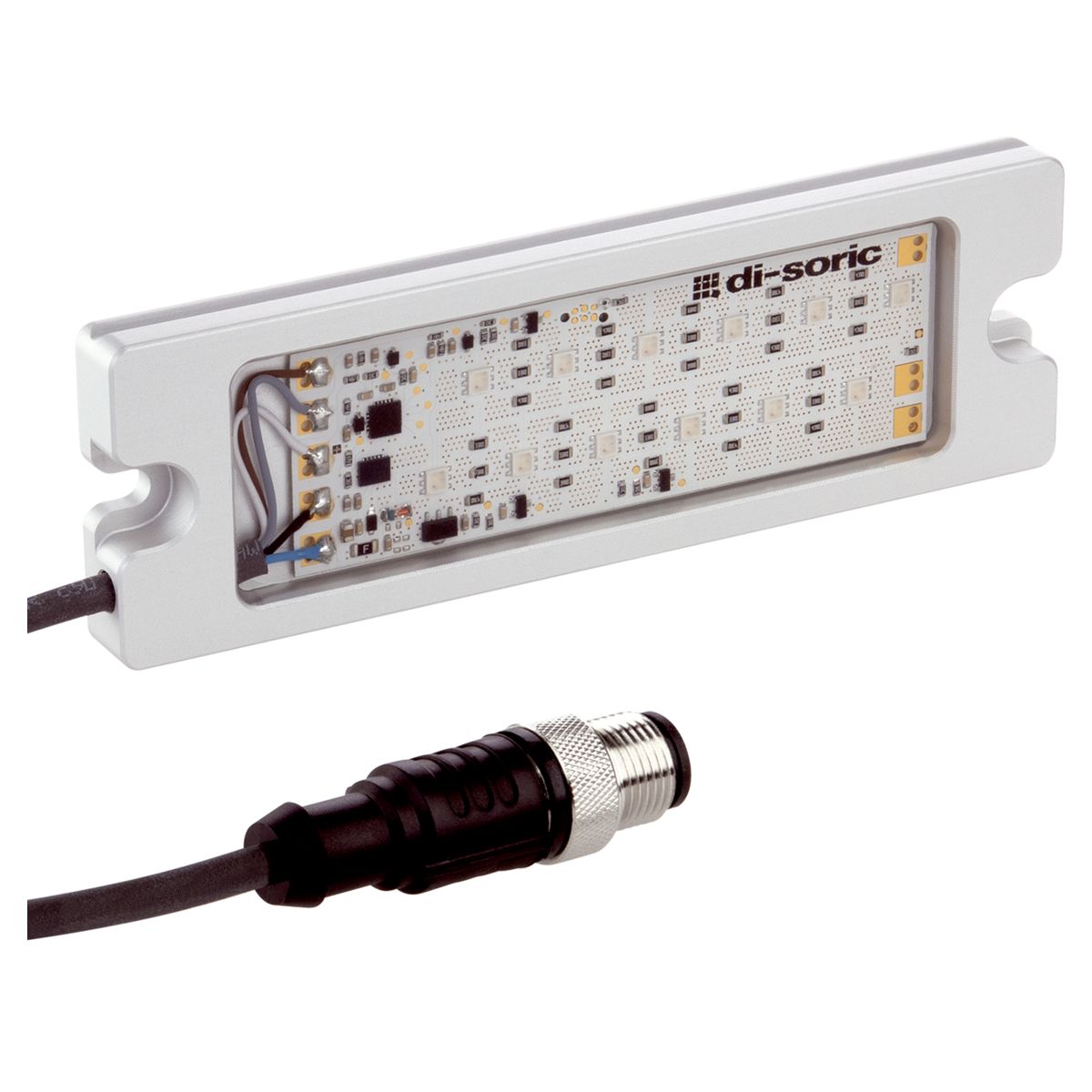

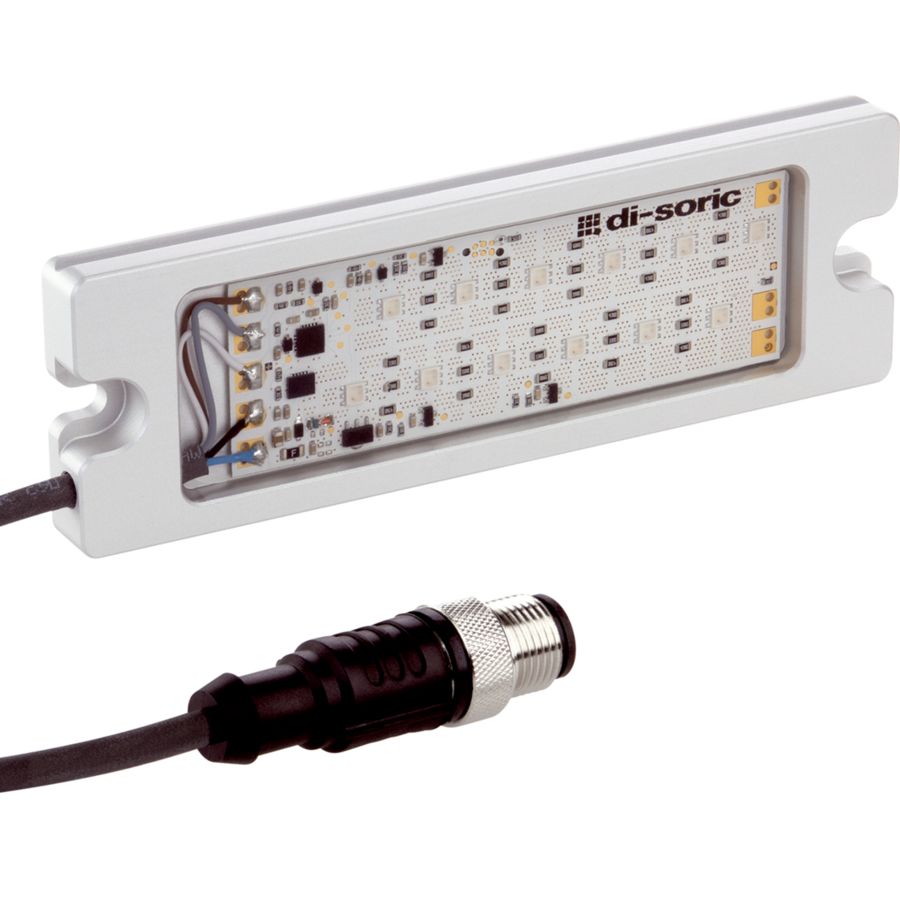

Signal Lighting - SB-RGB-126-K-B5
Part Number: SB-RGB-126-K-B5
Article Number: 212779
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Light color | RGB |
|---|---|
| Deflection angle FWHM | 120° |
| Service voltage | 24 V DC (Supply Class 2) |
| No-load current (max.) | 115 mA Peak (24 V DC) |
| Housing material | Aluminum, natural (Anodized) |
| Protection type | IP 67 |
| Risk group (DIN EN 62471) | Free group |
| Protection class | III, operation on protective low voltage |

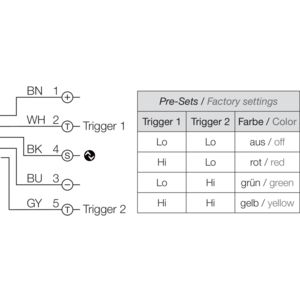

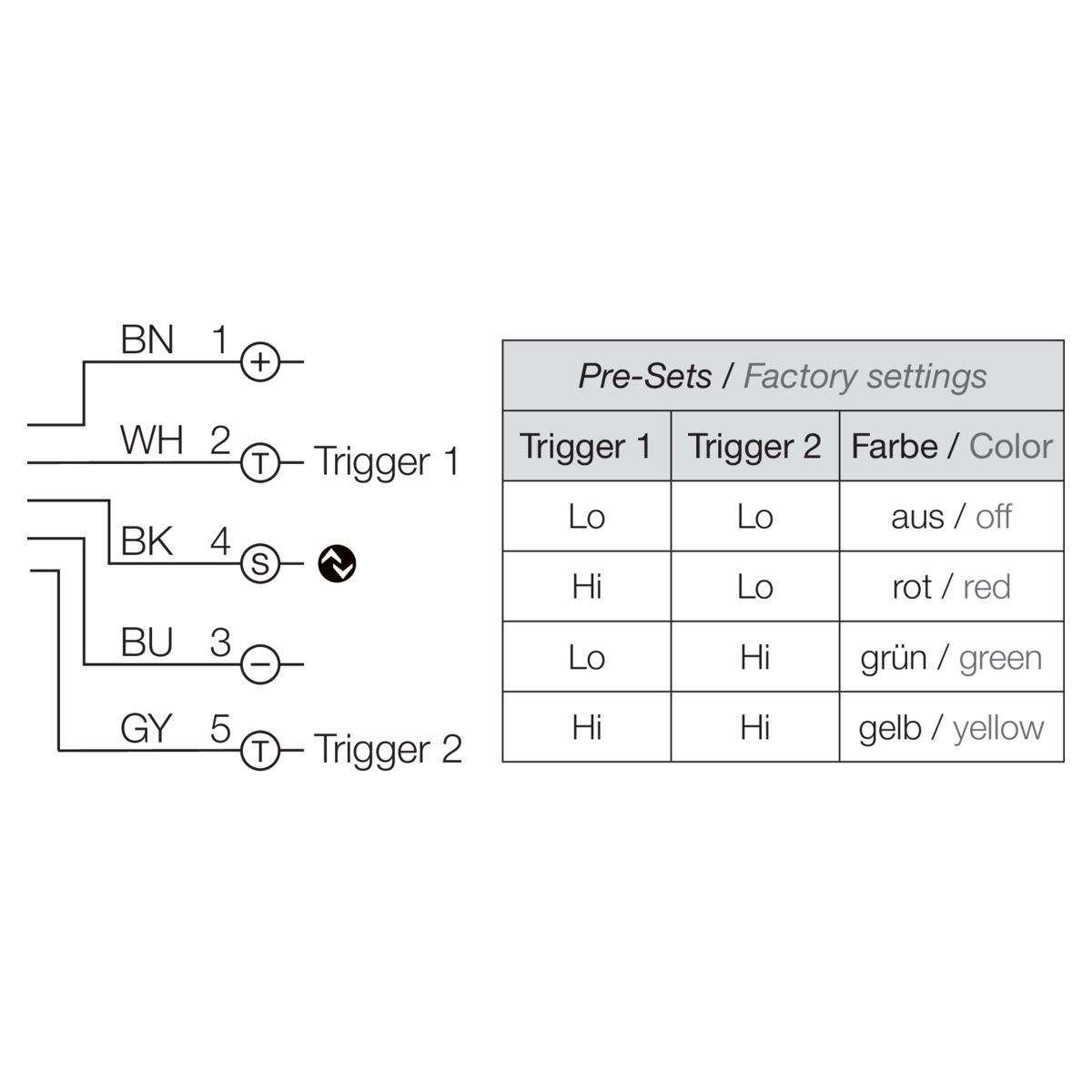

| Connection | Cable/connector, 0,3 m, M12, 5-pin |
