SLM4PO-453
Part Number: SLM4PO-453
Article Number: 212712
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Characteristic variables | Typ 4 (IEC/TS 61496-2), SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Kat. 4 (EN ISO 13849-1) |
|---|---|
| Protective function | Hand protection |
| Total height (A) | 570 mm |
| Protective field height (B) | 450 mm |
| Resolution | 30 mm |
| Number of beams | 23 |

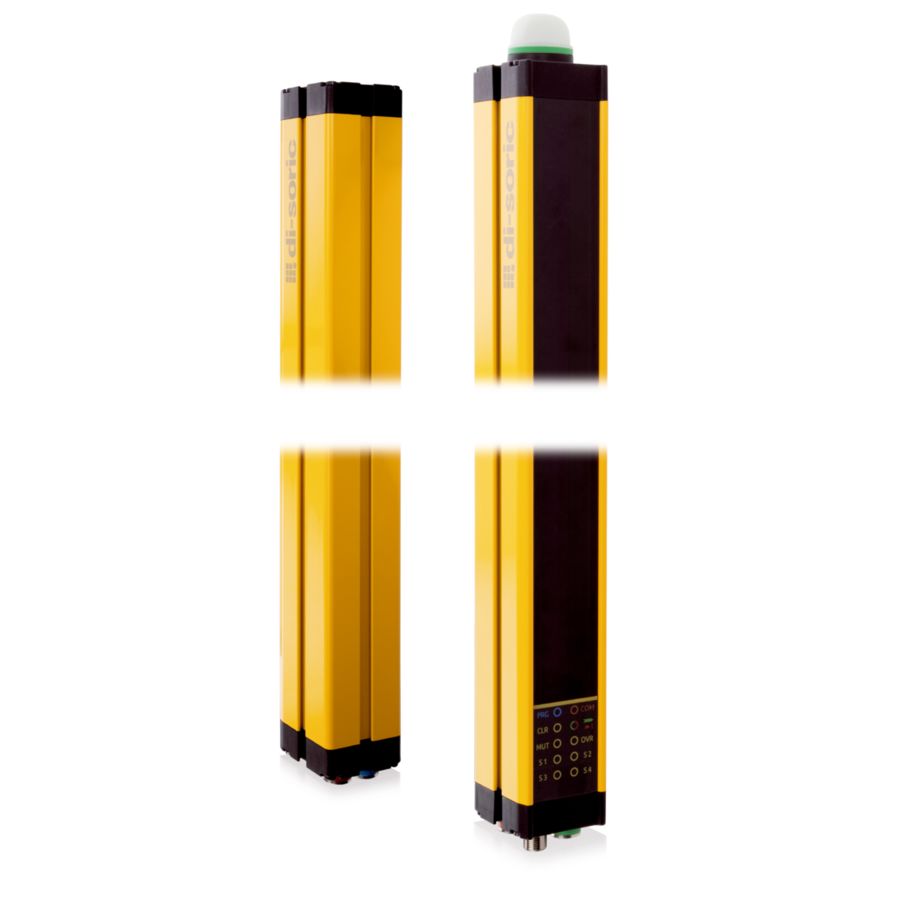

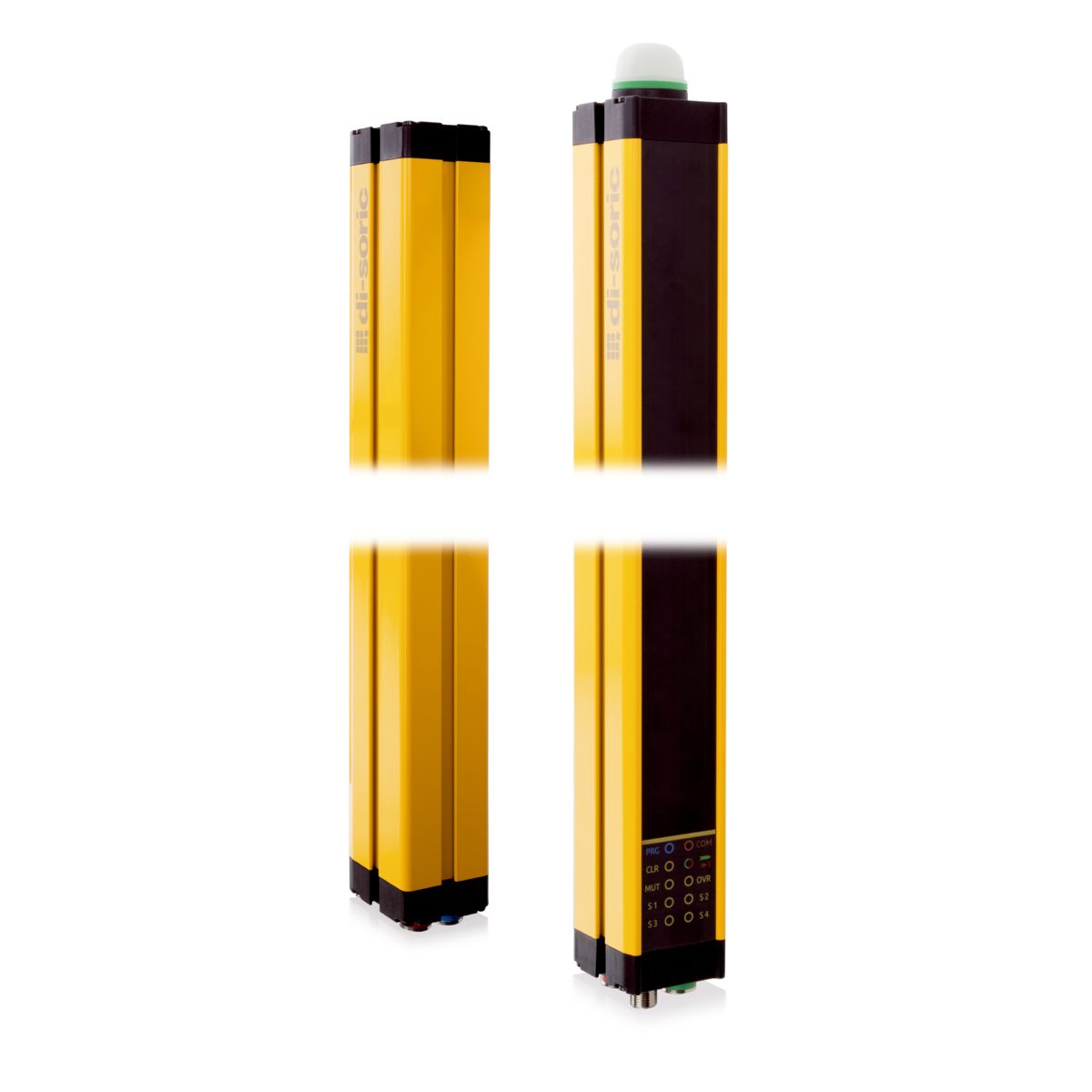

| Model | Muting safety light grid |
| Safety output | pnp (2x), 400 mA / 24 V DC |
| Service voltage | 19,2 … 28,8 V DC |
| Range | 4.000 mm, 12.000 mm |
| Protection type | IP 65, IP 67 |
| Scope of delivery | one set of standard fixing brackets SFB-4SG |
