Ultrasonic Label Sensor - UGUTI 6/70 G6-B5

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Ultrasonic through-beam sensor
Sensitivity adjustment	Remote teach, Keyboard
Fork opening	6 mm
Leg length internal	70 mm
Service voltage	18 … 30 V DC
No-load current (max.)	40 mA

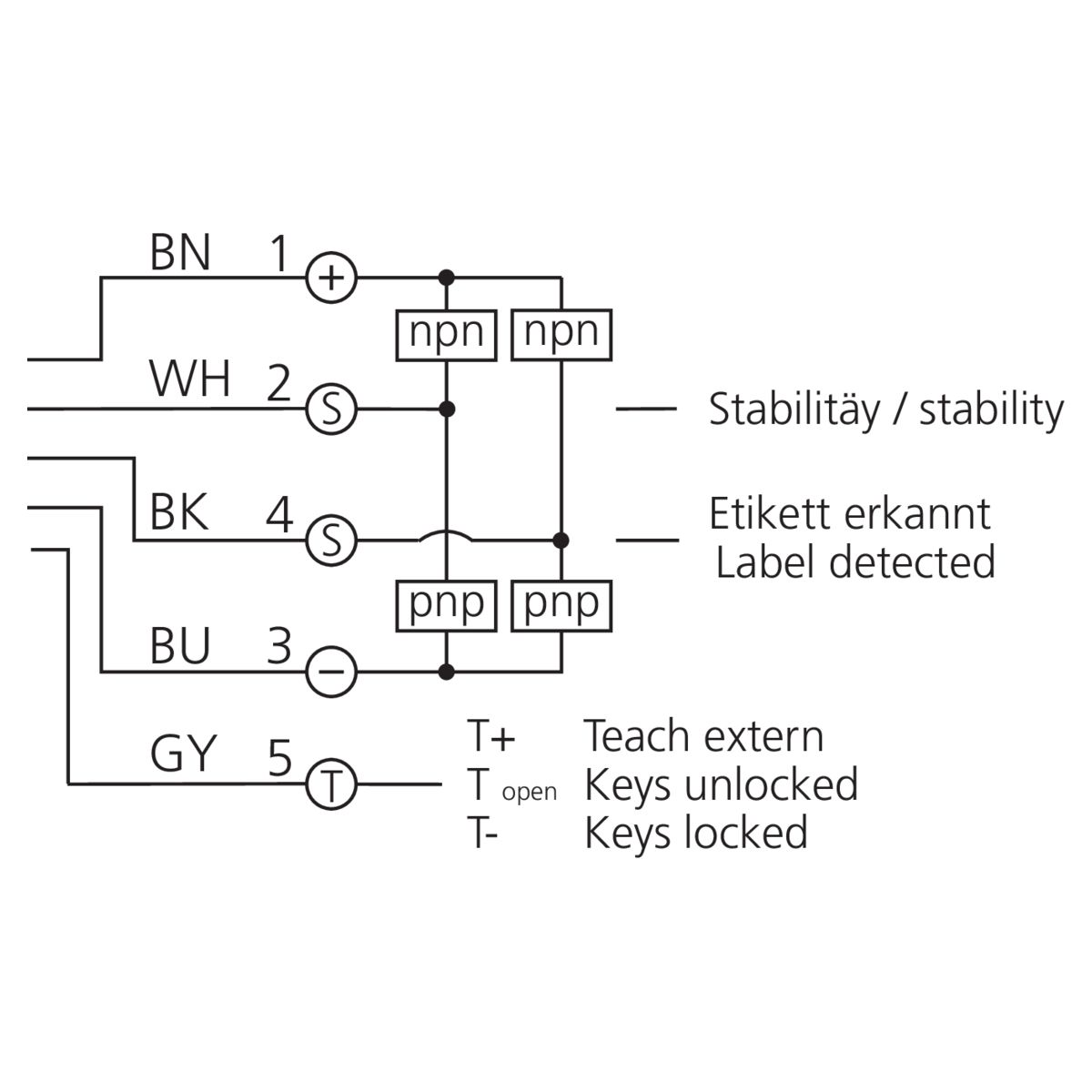

Switching output	Push-pull, NO/NC
Characteristics	Connector outlet at the back
Interface	IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Ambient temperature during operation	0 … +60 °C
Protection type	IP 67
Connection	Connector, M12, 5-pin
